4K 1080P Full HD HDMI to NDI Encoder, NDI to HDMI Decoder Support POE Tally PTZ Control,FPGA
FPGA AIO Encoder and Decoder, Support 1080p,4K,POE, PTZ Control, Audio, Web Gui and Multicast
| Weight | 670 g |
|---|---|
| Dimensions | 17.4 × 12 × 8.7 cm |
| HDMI Version | 4K will be coming soon |
| Video resolution | 1080P 60, 1080P 50, 1080P 25, 1080P 24, 720P 50, 720P 60 |
| NDI Codec | Full NDI high quality video coding, 1080P 60 125M |
| Video input/output | Input 1-way HDMI (support audio) |
| Audio | 3.5MM Audio embedding and de-embedding |
| Power | Gigabit POE power supply, TYPE-C, 5-18V wide voltage |
| PTZ Control | Support,and support DHCP |
| Network coding | TCP, UDP |
Detailes About 4K 1080P Full HD HDMI to NDI Encoder, NDI to HDMI Decoder Support POE Tally PTZ Control,FPGA
Overview
NDI is the world’s leading standard for IP network video interconnect technology. Converting HDMI and NDI in both directions and taking advantage of NDI’s IP interconnection advantages and a comprehensive product ecosystem will help you gain a leading edge in the Ultra-high-definition video IP business.
Full NDI 1080P Encoder/Decoder integrates NDI’s SDK and is compatible with all market-available Full NDI products. It can be used as an HDMI TO Full NDI encoder or a Full NDI TO HDMI decoder (selected through the UI interface). This device is small and compact enough to put in your pocket, and can be mounted on a professional camera using an accessory. It supports 1080p60 HDMI video input, encoding into Full NDI stream output, or Full NDI stream decoding and 1080p60 HDMI video output. The encoding terminal supports HDMI loop out, built-in tally light, and PoE and TYPE-C power supply. It supports the PTZ control camera, and 3.5MM audio adding and de-embedding , and is provided with a standard camera screws mount. It can be configured through WEB UI input. Conference cameras, HDMI professional cameras, and other video sources can be easily and seamlessly connected to NDI only using one network cable.
FULL NDI 1080P Encoder /decoder: Integrated NDI company’s SDK, compatible with all FULL NDI products in the market. It can be used as a HDMI TO FULL NDI encoder or FULL NDI TO HDMI decoder (Selectable through UI interface).
Support FULL NDI, codec
The encoding end supports the HDMI loop out
The HDMI input resolution is as follows: 1080P60，1080P59.94，1080P50，1080P30，1080P29.97，1080P25,1080P24，720P60，720P50
Support for POE power supply
The PTZ controls the video camera
Support for TALLY light display
Support audio adding and de-embedding
Can be configured via the WEB UI inputs
Specification
| Video input interface | 1-way HDMI (support audio) |
| Video output interface | 1 route HDMI, HDMI ring out or decoding output |
| Audio input interface | 1 route, 3.5MM |
| Audio output interface | 1 route, 3.5MM |
| Network interface | 1 route RJ45 (with POE), 1000Mbps network interface |
| Video resolution support | 1080P 60, 1080P 50, 1080P 25, 1080P 24, 720P 50, 720P 60 |
| NDI codec characteristics | NDI encoding or NDI decoding |
| NDI CODEC features | Full NDI high quality video coding, 1080P 60 125M |
| LED, pilot lamp | Tally Indicator light, power light, running light, network connection, and status light |
| Power supply mode | Gigabit POE power supply, TYPE-C, 5-18V wide voltage |
| PTZ control | Support |
| Voice intercom | Need to customize |
| Network coding | TCP, UDP |
| DHCP | Support |
| Management style | WEB operate |

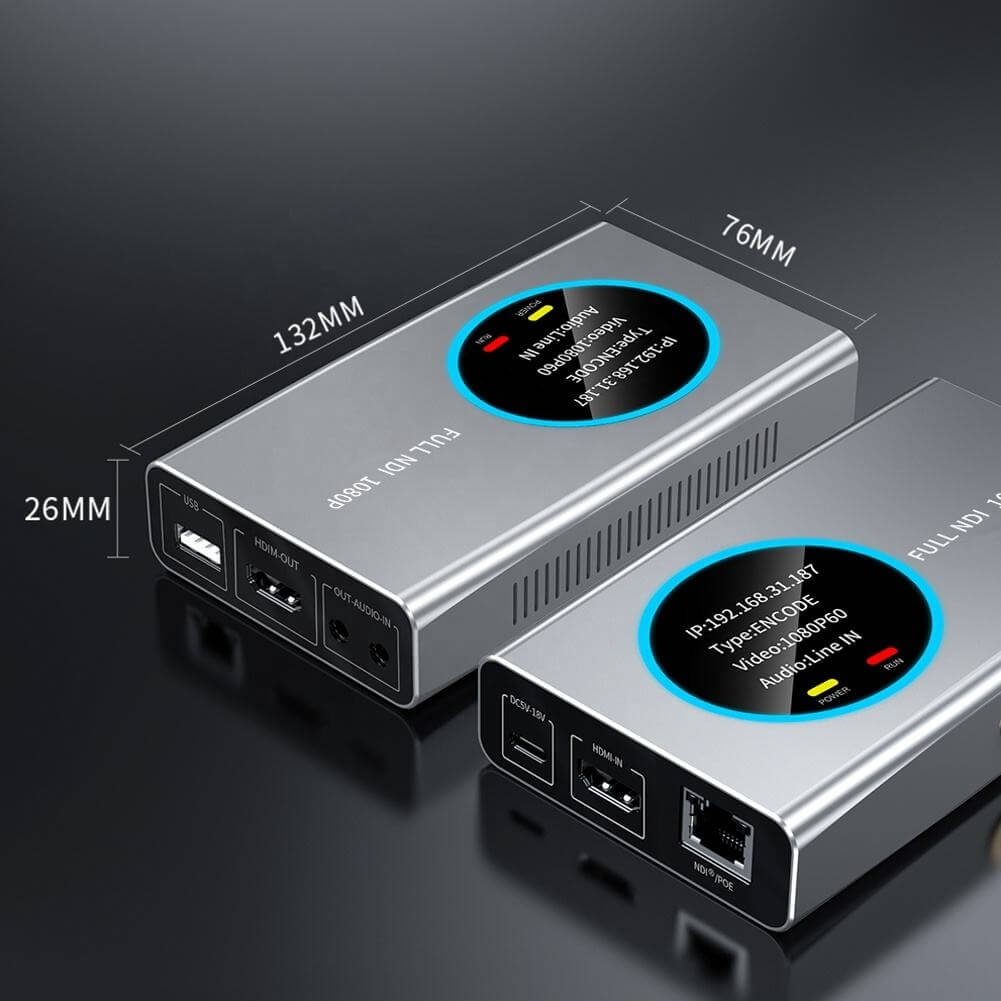

| Product size | 132*76*26（mm） |
| Packing measurement | 173.6*117.6*86.75(mm) |
| Power dissipation | 4W |
| Net weight | 231.9g |
| Rough weight | 659.6g |
| Full NDI bandwidth description | 1080P60/125Mbps, 720P60/90Mbps |

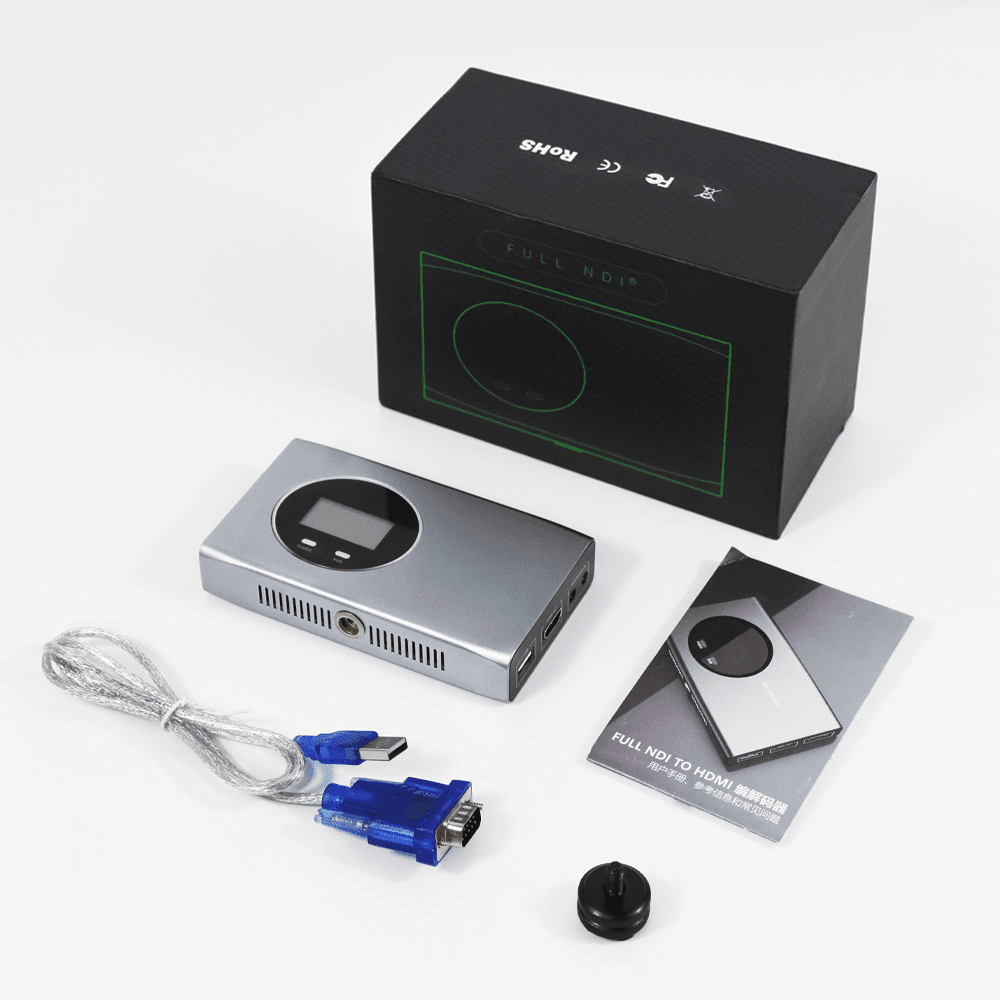

| Random accessories
| 12V1A type-c power supply (three interchangeable connectors), USB to 9-pin male serial cable, British standard 1/4 double-layer bolts |
Diagram

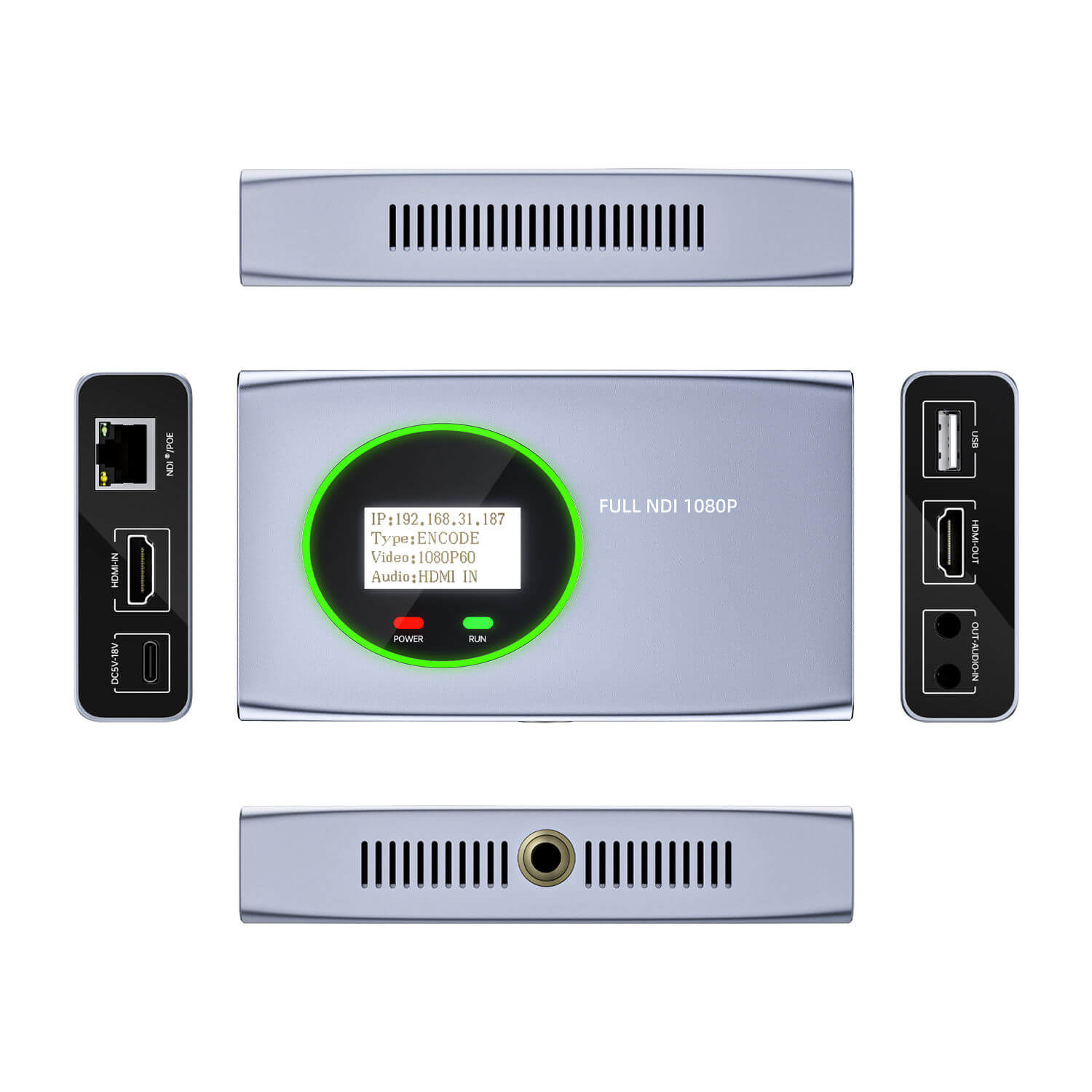

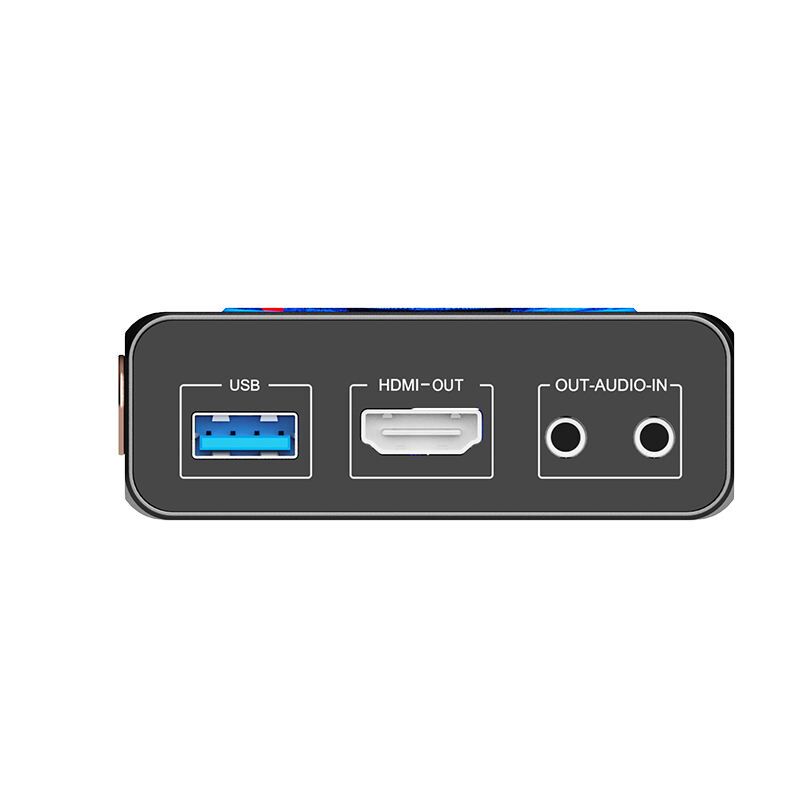

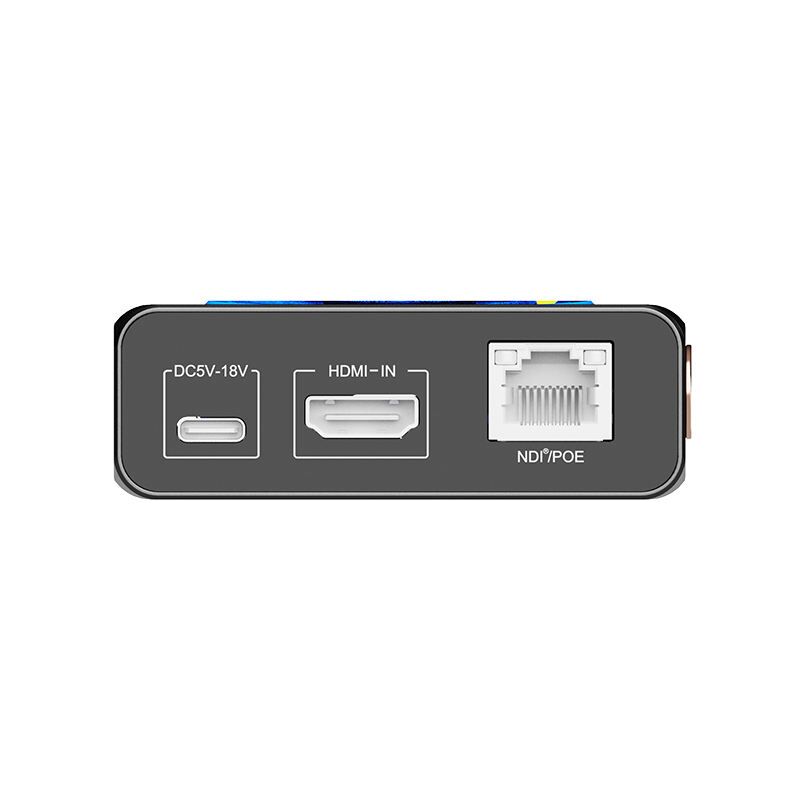

Interface
PTZ control
You can easily control your PTZ camera using the USB-to-RS232 cable.
Compatibility
Compatible with OBS, XSplit, VMix, Adobe, VIDBlasterX, Wirecast, mimoLive, streamaster and NewTek NDI…
Full NDI Converter,Bi-directional Encoder and Decoder
Can be used as an encoder, decoder, converter and broadcast hub.
Bi-directional
POE power supply
