4K 4×4 8×8 HDMI Matrix Video Wall Controller Big Screen Display
4K60Hz 4×4 Enjoy large screen HDMI 2.0 Matrix
| Weight | 5000 g |
|---|---|
| Dimensions | 43 × 22 × 5 cm |
| HDMI Version | hdmi2.0 |
| Resolution | 4k60hz 4:4:4 |
| HDCP | HDCP2.2 |
| Markets | Hospitality, Residential, Corporate, Education, Venues, Government, Retail |
| RS232 Control | Support |
| TCP/IP Control | Support |
Detailes About 4K 4×4 8×8 HDMI Matrix Video Wall Controller Big Screen Display

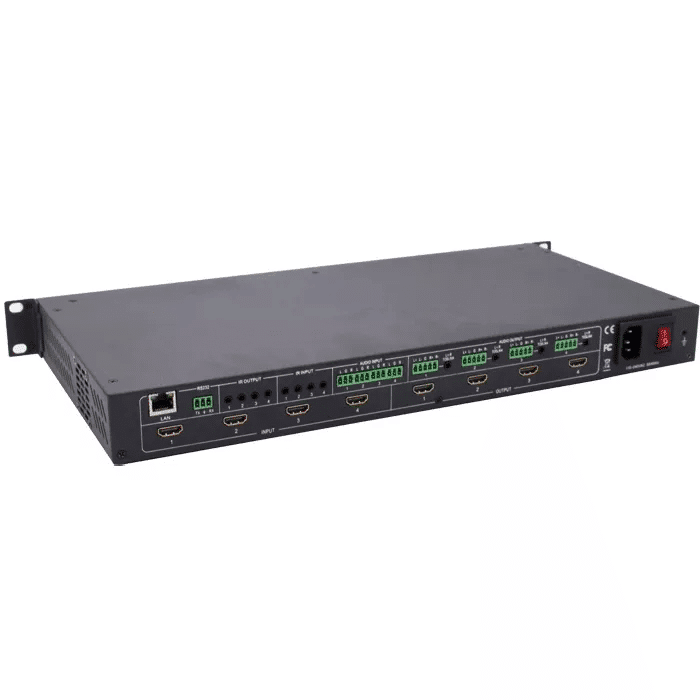

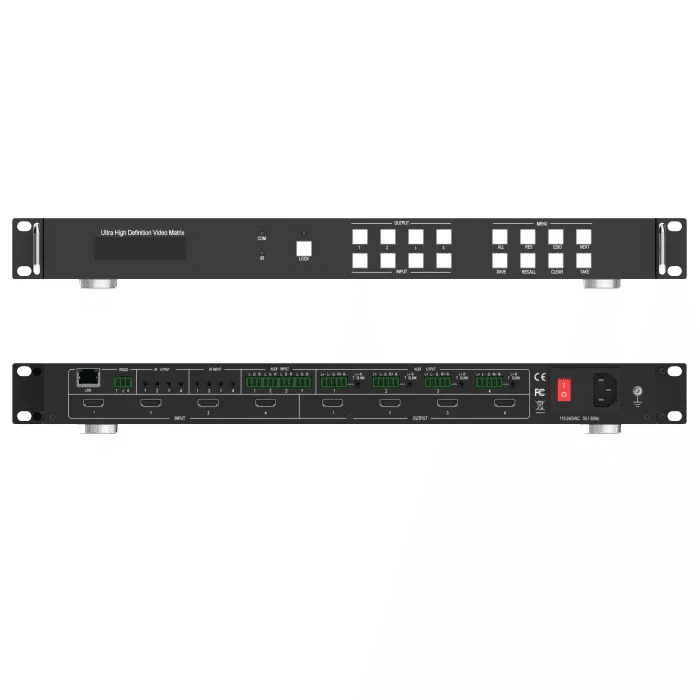

4K 4×4 Seamless Video Wall Controller
4k hdmi matrix 4X4 8×8 support seamless function 4:4:4 60HZ
The 18Gbps 4×4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays. Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix and Audio matrix. IR matrix routing follows the video routing. Audio extract and insert are supported. The product supports CEC management and strong video wall processing.
Features
1) HDMI 2.0 and HDCP 2.2 compliant
2) Support 18 Gbps video bandwidth
3) Support video resolution up to 4K60 4:4:4
4) Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
5) Support seamless switching, video wall function

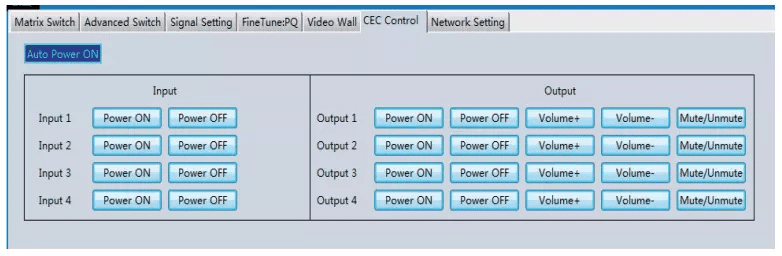

6) Support CEC management
7) Support audio matrix and IR matrix function
8) Support external L/R audio insert on HDMI stream
9 ) Support EDID management

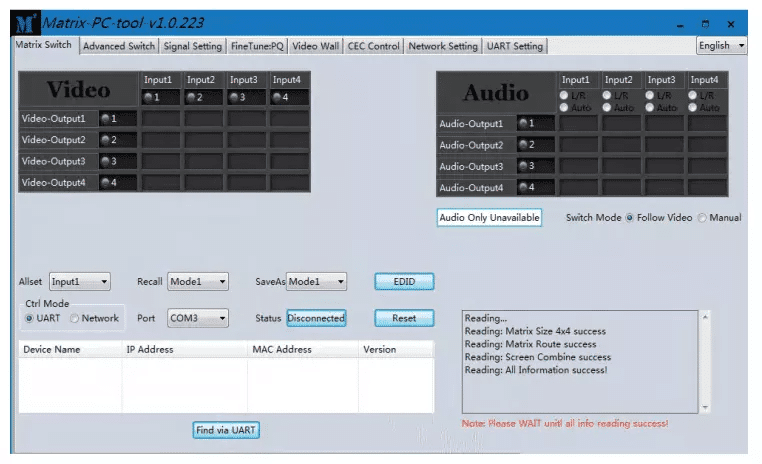

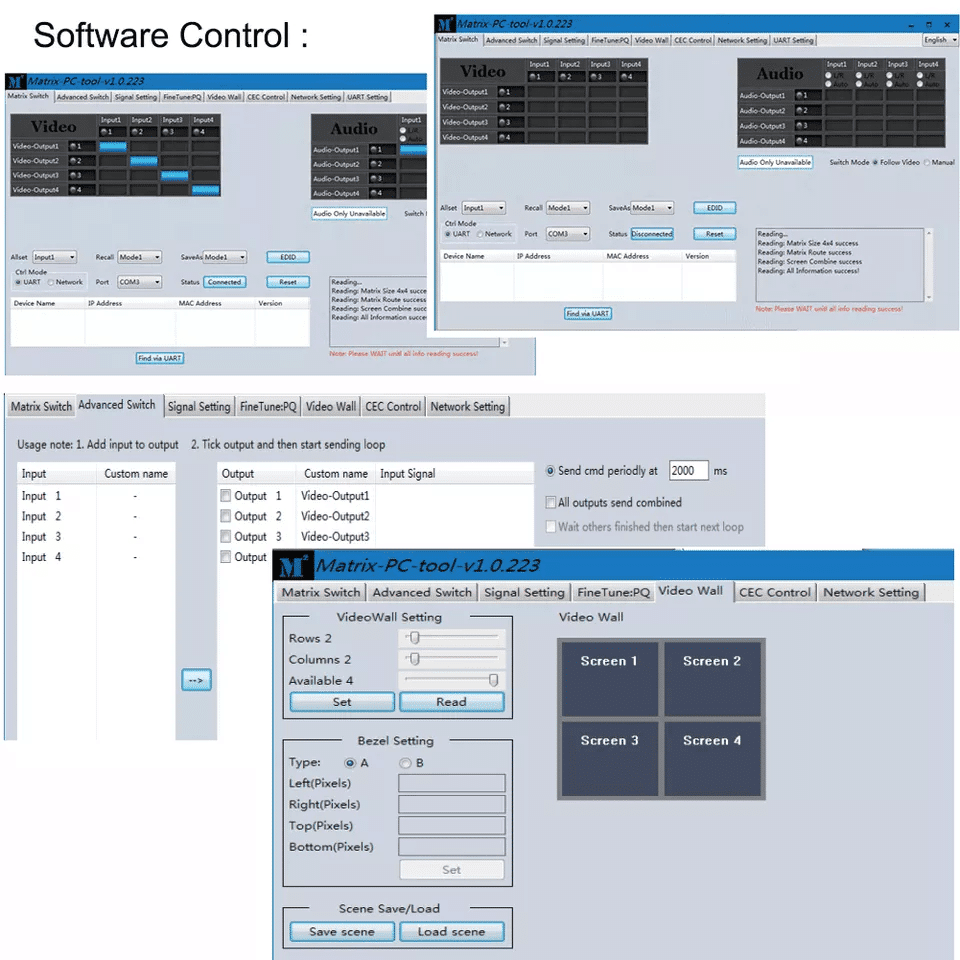

10)Support front panel, RS232, TCP/IP (LAN 10M/100M) control
Package Contents
1 x 4×4 seamless UHD Matrix
1 x AC Power Cord
1 x Matrix IR Remote
4 x IR Receiver cable (1.5 meters)
4 x IR Blaster cable (1.5 meters)
1 x 3-pin Phoenix Connector
1× CAT6 cable
1× USB to RS232 Cable
1× User Manual
SPECIFICATION
| Technical | |
| HDMI compliance | HDMI 2.0 |
| HDCP compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Color Space | RGB, YCbCr 4:4:4/4:2:2 |
| HDMI Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential Impedance | 100±15ohm |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| RS232/Ethernet Control | |
| Baud rate and Protocol | Baud rate: 9600, data bit: 8 Stop bit: 1, no parity checking |
| Ethernet | IE10.0+,HTML5 |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 430mm (W)×220mm (D)×44mm (H) |
| Weight | 5kg |
| Power Supply | Input: AC110 – 240V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 60W (Max) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature | -20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity | 10 %- 50% RH (no condensation) |
