18Gbps 4×1 4K60 HDMI KVM Switcher Support Mouse and Keyboard Control

HDMI2.0 4K60Hz 4X1 HDMI KVM Switch



Additional information

Weight 450 g
Dimensions 22 × 9 × 3 cm
HDMI Version

2.0

Resolution

4K2K@60Hz 4:4:4, 18Gbps

HDCP

HDCP2.2

Markets

Home, Office, Hospitality, Residential, Corporate, Education, Venues, Government, Retail

Control

Control via front panel button/hot-key/mouse

USB

Support USB 2.0,USB 1.1

Audio

Support Audio up to 7.1CH

Detailes About 18Gbps 4×1 4K60 HDMI KVM Switcher Support Mouse and Keyboard Control

4K60 4×1 HDMI KVM Switch

Mouse USB 2.0 screen switch

18gbps 4x1 4k60 hdmi kvm switcher support mouse and keyboard control

1. Introduction

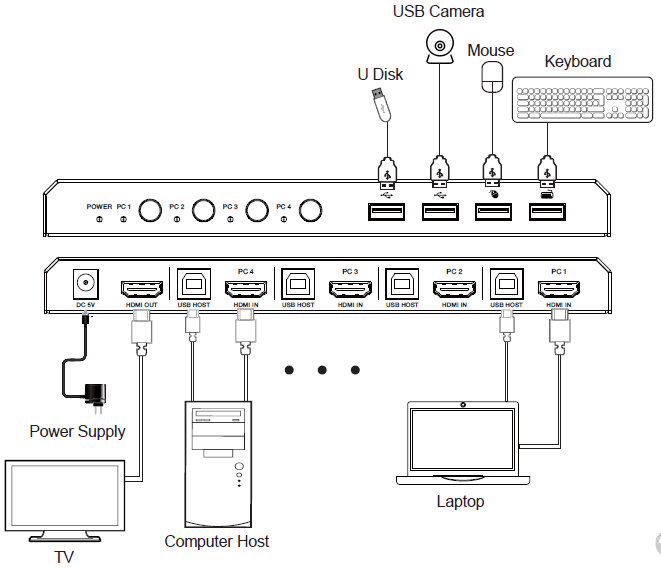

This video switcher can switch 4 HDMI input device signals (such as PC, laptop, Mac) to 1 HDMI display device (such as TV, projector, LED display),and realize 4 signal source devices to share 1 display device.
It supports video resolution up to 4K2K@60Hz 4:4:4. The product is designed with 4 USB2.0 input ports and 4 USB (2xUSB2.0, 2xUSB1.1) output ports, so that you can not only operate 4 source devices with keyboard and mouse, but also can share U disk and printer, which is widely used in various offices.
2. Features

1)HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant

2)Video resolution up to 4K2K@60Hz 4:4:4

3)Support 18Gbps video bandwidth

4)Support HDR, HDR10, HDR10+, Dolby Vision HLG pass-through

5)Support HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby  TrueHD, and DTS-HD Master Audio)

6)Support 4 *(HDMI +USB2.0) inputs and 1*HDMI+ 4*USB (2* USB2.0+

7)USB1.1) outputs

8)Support input auto switching

9)Adaptive EDID, able to adapt to a variety of complex application environment

10)Support one-to-one control of input source through the front panel button

11) Both HDMI and USB input and output support hot swap

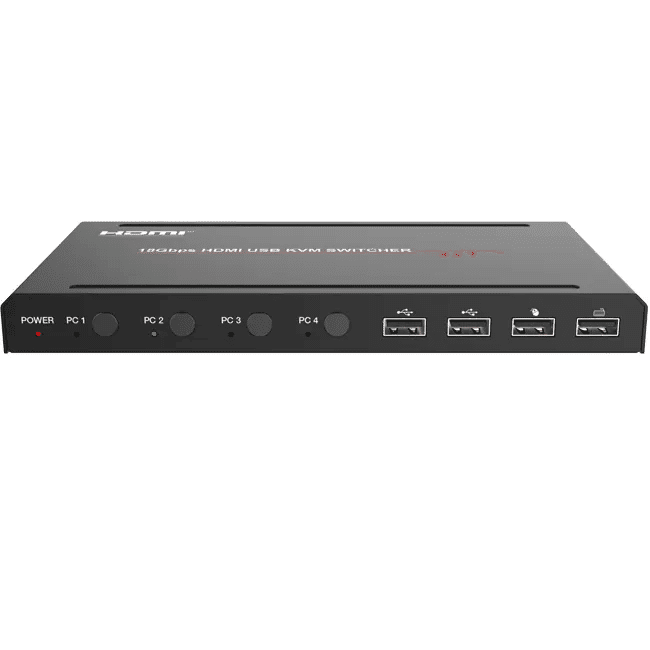

12)Control via front panel button/hot-key/mouse

13)Simple to install, plug and play

3. Package Contents
 1 × 18Gbps HDMI 4 by 1 KVM Switcher
 1 × 5V/2A Power Adapter
 4 × USB Cable (1.5 meters)
 1 × User Manual

SPECIFICATION

Technical
HDMIcompliance HDMI 2.0b
HDCPcompliance HDCP 2.2 and HDCP 1.x
Video Bandwidth 18 Gbps
Video Resolutions up to 4K@60Hz,4Kx2K @24/30Hz
Color Depth
8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0)
HDR HDR, HDR 10, HDR 10+ and Dolby vision
Color Space/Depth RGB,YCbCr4:4:4,YCbCr 4:2:2,YCbCr 4:2:0
HDM Audio Formats PCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
USB Version USB2.0 (Data transfer rate up to 480MB/S)
Connections
Input ports / Output

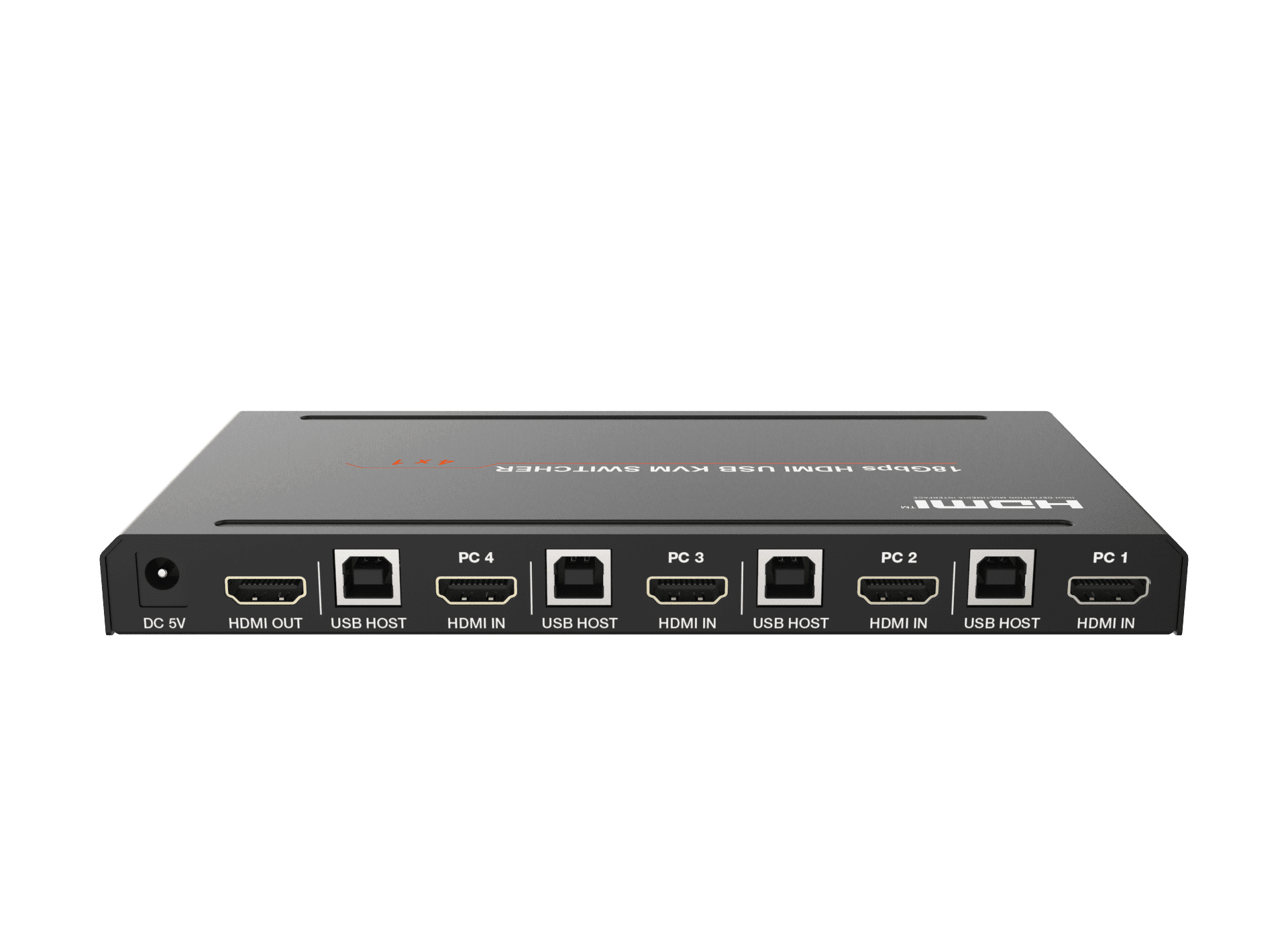

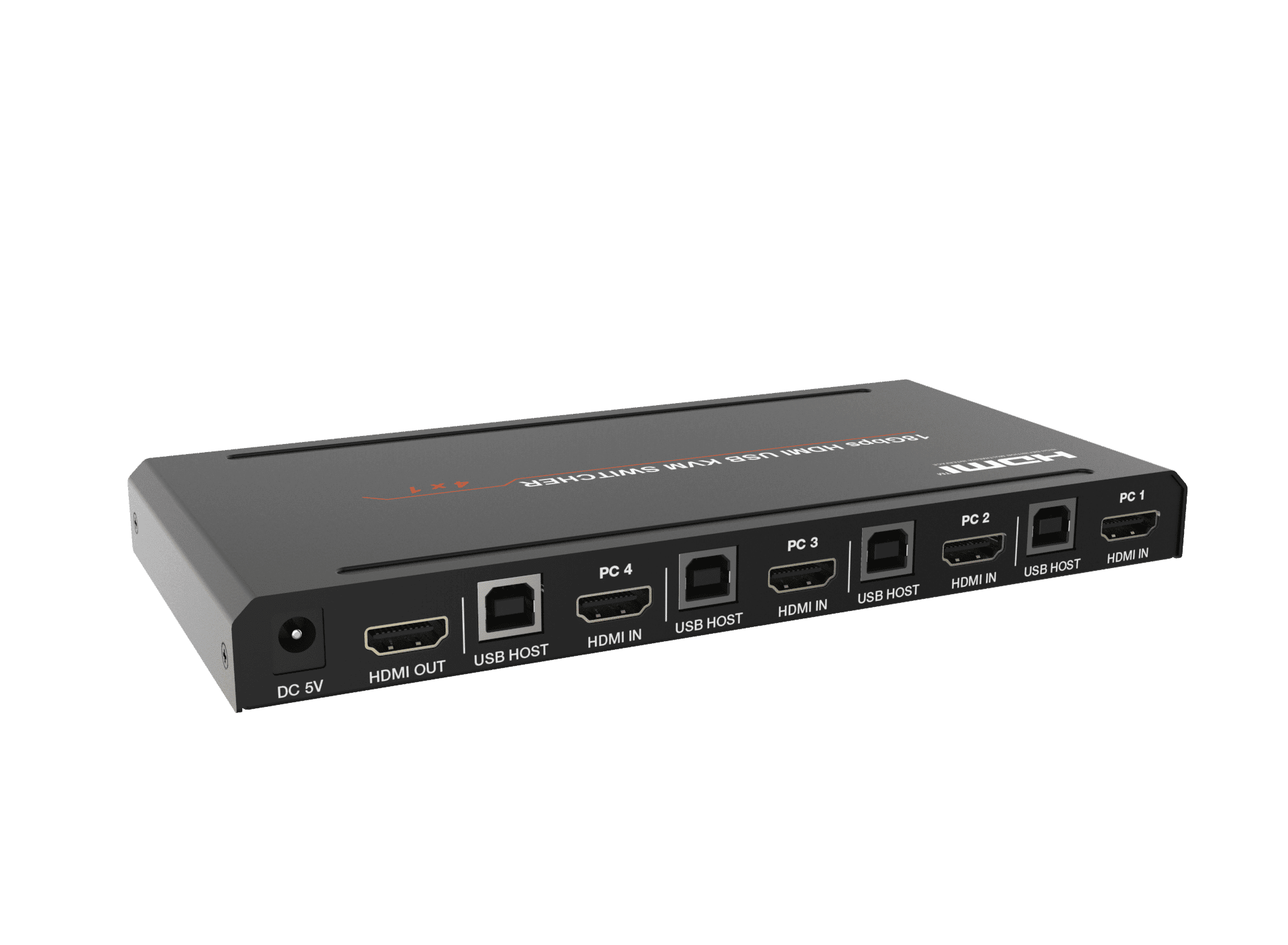

In: 4 x HDMI [Type A, 19-pin female]
4 x USB [Type B]

Out:1 x HDMI [Type A, 19-pin female],4 x USB [Type A]

ESD Protection
Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge)
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 212mm(W) × 82mm(D) × 21mm(H)
Weight 440g
Power Supply Input: DC 5V/2A. Support DC5-12V wide voltage power

supply; Output with overcurrent protection function
Power Consumption 1.5W (Max)
Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 – 90% RH (no condensation)
