2 Channel Flexible Modular Seamless Matrix System 8×8,16×16,36×36,72×72,80×80 4K18Gbps 2K

Pro Audio Video Solutions Video wall Processor / Controller / Video wall system 36×36,80×80

Additional information

Weight 16000 g
Dimensions 48.3 × 37.8 × 26.6 cm
HDMI Version

4K Series Card : HDMI 2.0b, HDCP 2.2
2K Series Card : HDMI 1.4, HDCP 1.4

Resolution

4K cards 3840x2160p60Hz YCbCr 4:4:4
2K cards 1920x1200p60Hz YCbCr 4:4:4

Bandwidth

HDMI18Gbps

Audio Formats

HDMI Audio LPCM 2.0/5.1/7.1CH
Analog audio LPCM 2.0CH

Control

Front Panel button, IR,RS-232,TCP/IP, Web GUI,or PC program

Input /Output

Support HDMI, DVI-U(DVI/YPbPr/CVBS), VGA, 3G/HD/SD-SDI, HDBaseT and Fiber input and output

Color Depth

2K series card: 8/10/12-bit (1080P60Hz)
4K series card: 8/10/12-bit (4K30Hz); 8-bit (4K60Hz 4:4:4)

Transmission Distance

HDMI: 1080P/15 meters, 4K30/10 meters, 4K60/5 meters
HDBT: 1080P/70 meters/100 meters/150 meters;
4K/40 meters/70 meters/120 meters

Markets

LED/LCD Video Wall Application via Gen-Lock Technology , no Delay.

Detailes About 2 Channel Flexible Modular Seamless Matrix System 8×8,16×16,36×36,72×72,80×80 4K18Gbps 2K

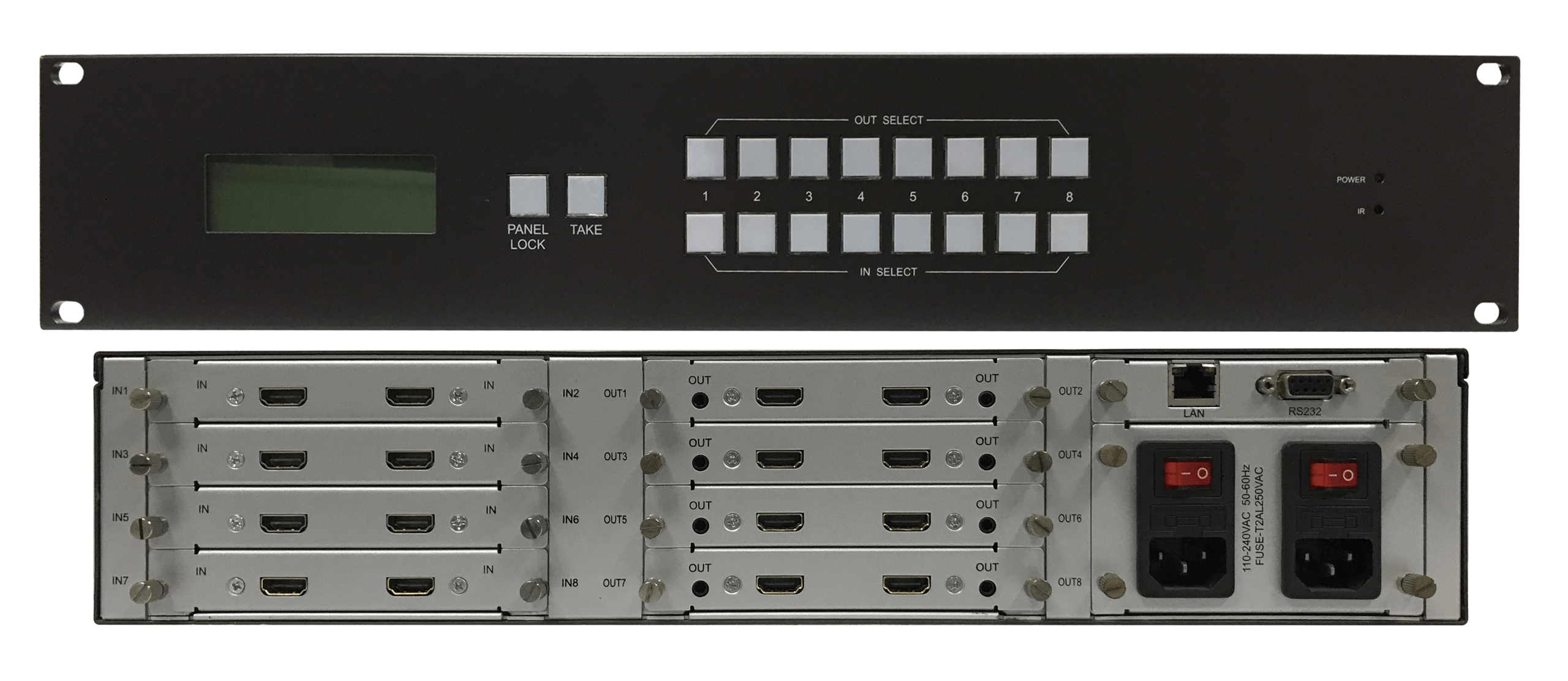

Flexible Modular Seamless Matrix One card with 2 ports

(HDMI,DVI,SDI,Fiber,HDBaset,VGA,)



Introduction

Modular multi-format mixed seamless switching matrix is a high performance video signal switching equipment. It supports up to 8~80 inputs, 8~80 outputs with many kinds of daughter cards. This product supports multiple video formats input and output.

Multi-format matrix using the daughter cards structure, flexible and convenient installation. The input/output port support: Fiber, HDbaseT, SDI, HDMI, VGA, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS).

With the Ethernet/LAN and RS232 communication interface, through the PC software to control the matrix signal switching, monitoring the working status of the matrix, set the signal resolution, etc..

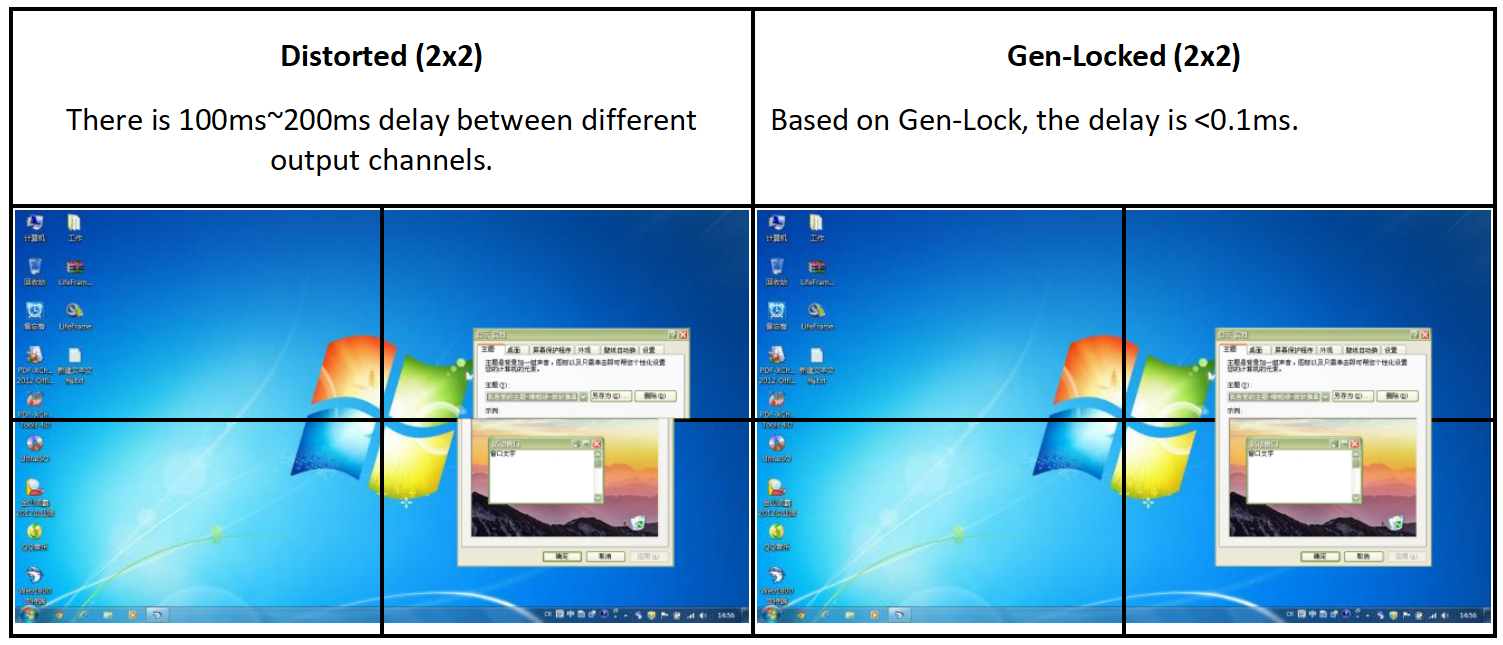

Highlights 2: Gen-lock based Video Wall Based on Gen-Lock technology, the video delay between any output channel is less than 0.1ms, the video will not distorted. Available in 8×8~80×80 depends on number of output channels.

It’s especially matched with LCD/LED Video Wall

2 channel flexible modular seamless matrix system 8x8,16x16,36x36,72x72,80x80 4k18gbps 2k

Highlights 3: Any kind of Font Default: English, Chinese Available: French, German, Hindi, Portuguese and Spanish, etc. Size/Color/Position/Content may be set by PC/Notebook.

Product performance

Redundant power supply

Support Seamless switching

Support up to 8~80 inputs and 8~80 outputs Input/Output port: Fiber, HDbaseT, 3G-SDI, HDMI, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS)

maximum resolution of 1920 x 1080@60Hz (2K cards); 3840×2160@60Hz(4K cards)

Control interface: RS232,Web-based Ethernet/LAN

PC software to facilitate remote control, real-time display the input and output status

Scalar inside, output resolution control available

Video wall function

Character overlay function: Font / color / size control available

2 channel flexible modular seamless matrix system 8x8,16x16,36x36,72x72,80x80 4k18gbps 2k

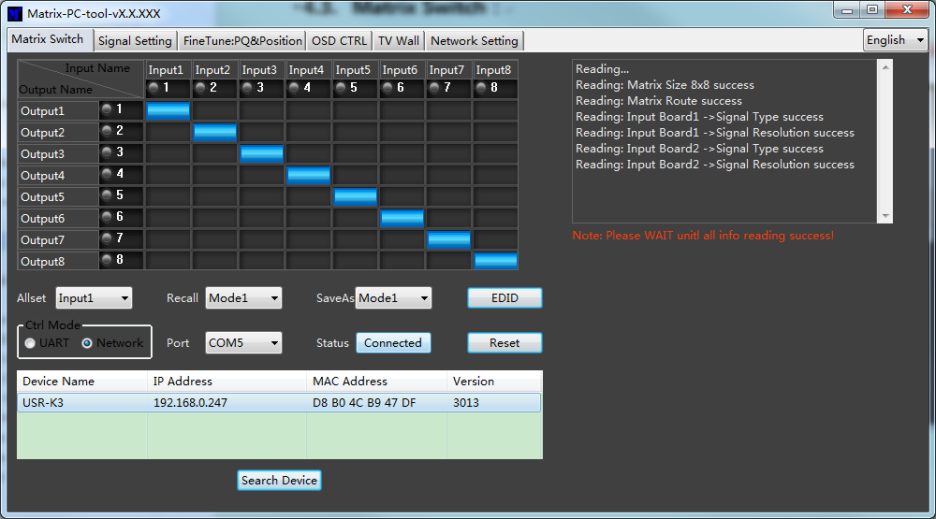

Web Gui Setting ,support third part kpi control

2 channel flexible modular seamless matrix system 8x8,16x16,36x36,72x72,80x80 4k18gbps 2k

Package Contents

① 1 x Modular Seamless Switching Matrix
② 6 x 3pin-3.81mm Phoenix Connector (male)
③ 2 x 4pin-3.81mm Phoenix Connector (male)
④ 1 x IR Remote
⑤ 1 x RS-232 Serial Cable (DP9 female connector to 3pin H2.0 Phoenix Connector,
1.5 meters)
⑥ 1 × USB to RS-232 Serial Cable (USB A to RS-232 serial DB9 male connector)
⑦ 4 × Rubber Foot
⑧ 4 × Machine Screw (M3*4)
⑨ 1 x 100~240V AC 50/60Hz Power Cord
⑩ 1 x User Manual

Modular Matrix Using Cautions

(1)During installation, must ensure the power supply ground is good, and ensure that the power supply for the device is 50/60Hz, AC110-240V;

(2)Do not place the matrix in the place where is too cold or overheated. In the wet environment or a long time not use, better to turn it off;

(3)Maintain a good ventilation of the working environment, to facilitate the timely discharge of heat;

(4)Make sure the signal cable, communication cable connect well to the matrix, then power on; AC power can’t exceed 220V; (5)Change the input source without turn off matrix, may cause video not display correctly on the display. If this occur, please turn off the matrix, then power on, or re-plug the input board;

(6)HDMI/DVI cable should not exceed 10 meters, certified cable is recommended;

(7)If control via RS232 failed, please check whether the com port selected is right, and the RS232 cable is straight cable, not cross cable, the baud rate must set to 9600;

(8)If after switch , there is no video output, , please check as follows:

Check whether the switch command is executive or not, can use the PC-tool to see the input and out routing information;

Check the source is work normal or not; Can direct connect the source’s output to a display to see whether the source is ok or not;

If the source is ok, then check the input board is ok or not, please refer to the PC-Tool’s Signal Setting page to check whether the output port’s input has signal or not, if there is no signal input, then the input board is broken, otherwise the input board is ok;

If the input board is ok, check whether the output board is ok or not;

If the above steps are still not sure why, please replace the input or output boards, Or refer to the professional maintenance person for help;
