Hot sale ! LED flexible transparent film display wholesale factory shipping

Adhesive transparent led film screen



Additional information

Weight 4000 g
Dimensions 100 × 40 × 2.5 cm
pixel pich(mm)

6.25,5

lamp bead

F1515

Material

Integrated IC, breakpoint resume

unit resolution (W×H)

P6.25 size 160*64, P5 Size 192*64

brightness

2000/4000DC

refresh rate

3840Hz

tranmittance

90%

waterproof class(ligh face/back)

IP68

scanning mode

Static

environment temperature

-20~55℃ humidity 10-90%

horizontal/vertical view

≥180°

Power

max power (W/m²) :400W/m²
average power (W/m²): 200W/m²

Detailes About Hot sale ! LED flexible transparent film display wholesale factory shipping

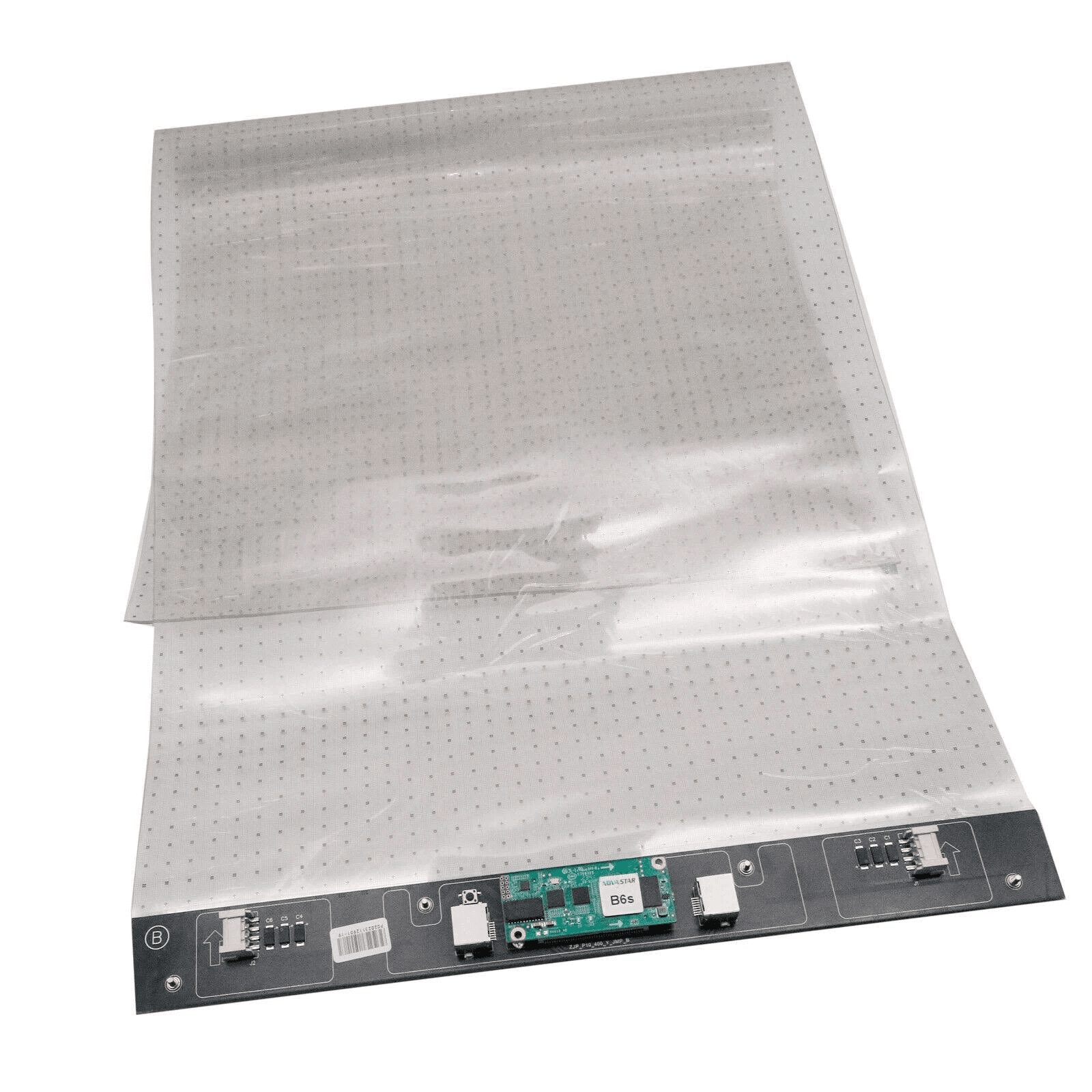

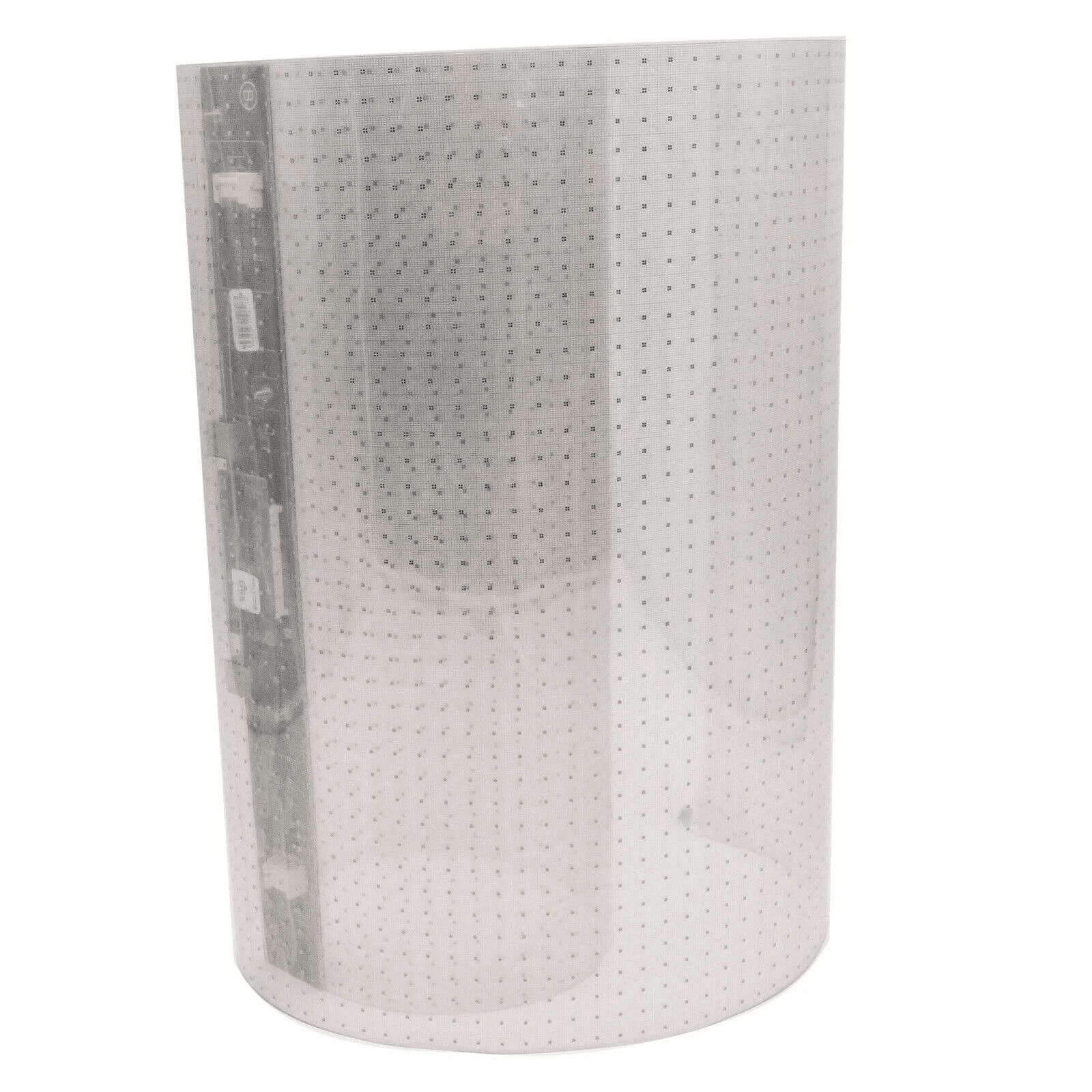

LED Flexible Transparent Film Display LED Matrix Panel P6.25 P5

Introduction

Flexible transparent LED display is a new technology with broad application prospects. The transparent led display is transparent and be curved through the use of flexible materials and transparent electronic light emitting diodes (leds).

The flexible tranparent led screen is made of flexible base material, which has the characteristics of bending, crimping, folding, etc. Compared with the traditional screen, it has higher durability, better energy consumption and larger display area.

Widely used in custom curved screen, custom transparent led screen,custom cylindrical screen.

Compare to old LED display, Old LED display takes a lot of time and money to custom screens. The custom screen is difficult to move, mataining and recycling.



Flexible Transparent LED Screen Features

ØStrong flexible capability
ØHigh transmittance
ØEnergy saving and environgment friendly
ØEasy installation
ØSelf-developed anti-yellowing technology
ØStrong durability and cold & high temperature resistance

hot sale ! led flexible transparent film display wholesale factory shipping

How to use flexible transparent film screen?

hot sale ! led flexible transparent film display wholesale factory shipping

What’s the benefits of LED flexible transparent film display ?

G o o d  f l e x i b i l i t y

I t  c a n  b e  a t t a c h e d  t o  a n y  Curved screen, shaped screen and straight screen are easliy created.

E n e r g y  s a v i n g  a n d  e n v i r o n m e n t  p r o t e c t i o n

Heat dissipation is only 20% of the tradition display, which improve the efficinency of photovoltaic conversion, reducing faliure rate of disdisplay to make its life longer.

C o m f o t a b l e  l o o k i n g
With these advantages in the display effect, its high gray scale,high colour degree,high refresh rate,adjustable brightness, the display effect is stable and the looking is comfortable.

H i g h  C l a r i t y & H i g h  L i g h t  W i d e  V i e w i n g  A n g l e

I n v i s i b l e d i s p l a y
The light-emitting chip has micron light source. It looka clear and transparent without the influence of grid and bar.

H i g h t r a n s p a r e n c y
The tranamittance can up to more than 95%. You can hardly see the lines within 1-3m. We retain the
function of lighting perspective to ensure the consistency of curtain glass landscape.

S u p e r – l a r g e v i e w i n g a n g l e
Up & down and left & right field of view up to 140 degrees, viewing without dead corners, no color bias, the image is always perfect and seamless.

hot sale ! led flexible transparent film display wholesale factory shipping

L i g h t a n d Po r t a b l e

A t t a c h w i t h o u t w e i g h t p r e s s u r e
The film thickness is less than 2.5mm and the weight is only 0.5~1.2kg/㎡. The steel frame structure is not required and changing the appearance of buildings is not necessary. Therefore, the cost of transportation and installation can be reduced.

P o r t a b l e t o i n s t a l l
You just need to lightly attach the film, connecting the signal and power supply,that’s all for the intallation, which can save the cost of intallation and matainance.

U n l i m i t e d s i z e
According to the glass size, the two features that are seamless video wall display amd invisible installation, can make the film merges with glass curtain wall.

hot sale ! led flexible transparent film display wholesale factory shipping

Anvanced optical material

The flexible thin film is low fog and has high transparency. It is also high temperature resistance.
The flex transparent led screen thickness is only 3mm(a coin thickness is around 1.9mm.)But the foldable led screen thickness is 15mm or so.
The transmittance can up to 90%. There’s little impact on visual effect of the existing building facilities. The transmittance of common glass curtain wall is 75%-95%.

The flex transparent led screen weigh only 0.5~1.2kg/㎡. There is no burden for the exsiting building.
It can work in -20~55 ℃ environment. It’s resistance to water and air. It adapts to high humidity(10-90% humidity)
It can be arbitrarily cut, curved displaying. It’s sutible for custom screen scenes, such as curevd screen, shaped screen,etc.

Advanced technology : Metal Mesh technology+Anti-UV

LED transparent innovative application, Break the tradition, overlay iterative LED display technology

Self-developed Embedded Driver IC ,True 16 bit Greylevel Breakpoint Resume
With the combination of embedded driver IC, each lamp bead is the “power source”, so that the wiring is more
free, more uniform heat dissipation and more accurate control. Adopting micron light source, light-emitting chip has
many advantages, such as high transparency, high temperature resistance, anti-static, dustproof, moisture-proof and invisible drive chip.

Flexible transparent LED display can be considered as the common screen to use. It can also be used in various special areas. such as creative shaped screen, cylindrical screen, spherical screen and curved screen. It can be used in many scenes, like glass curtain wall,, business and advertising,creative art exhibition and so on.

hot sale ! led flexible transparent film display wholesale factory shipping

hot sale ! led flexible transparent film display wholesale factory shipping
