Hot sell LCD VideoWall Controller 2×2 4K60hz input 4k30hz output with Audio,USB,VGA,DVI

4 Channel Video Wall Controller 2X2 Hdmi Dvi Vga Usb Video Processor With Rs232

Additional information

Weight 1200 g
Dimensions 22 × 17 × 5 cm
HDMI Version

Input 3840 x 2160/60Hz (RGB420)
Output 3840 x 2160/30Hz * 4

Audio

3.5 Audio interface,support left and right channels and stereo,AV signal switch synchronously

VGA

640×480/85Hz to 1920×1200/60Hz

IR Control

Support

DVI

DVI-I interface (24+5), with a maximum resolution support of 3840×2160/30Hz

Video

Automatic identification the system of NTSC、PAL and SECAM, link with 1 audio interface of 3.5

Splicing scale

Simple four-piece splicing The input signal supports 90°180°270° full screen rotation (resolution is 1920x1080p or below), and the output screen supports 180° mirror/flip;

Detailes About Hot sell LCD VideoWall Controller 2×2 4K60hz input 4k30hz output with Audio,USB,VGA,DVI

LCD Multi-screen processor 4K 4-way

HDMI/USB(Flash drive )/DVI/VGA input





hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

This product is a high-definition image splicing processor specifically designed for LCD TVs, ultra narrow edge LCD screens, and projectors. It supports 4 HDMI signal outputs per unit and can be connected to LCD TVs or other display devices. Various splicing modes can be customized according to user needs. Videowallcontroller 2X2  (2×2, 1×1, 1×2, 1×3,1×4,4×1, 3×1,2×1)

The product can be cascaded to achieve a maximum of 255 signal outputs.

The product adopts high-definition processing chips and supports input and output of 4K signals.

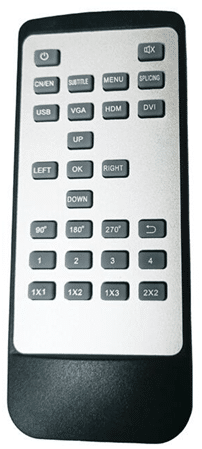

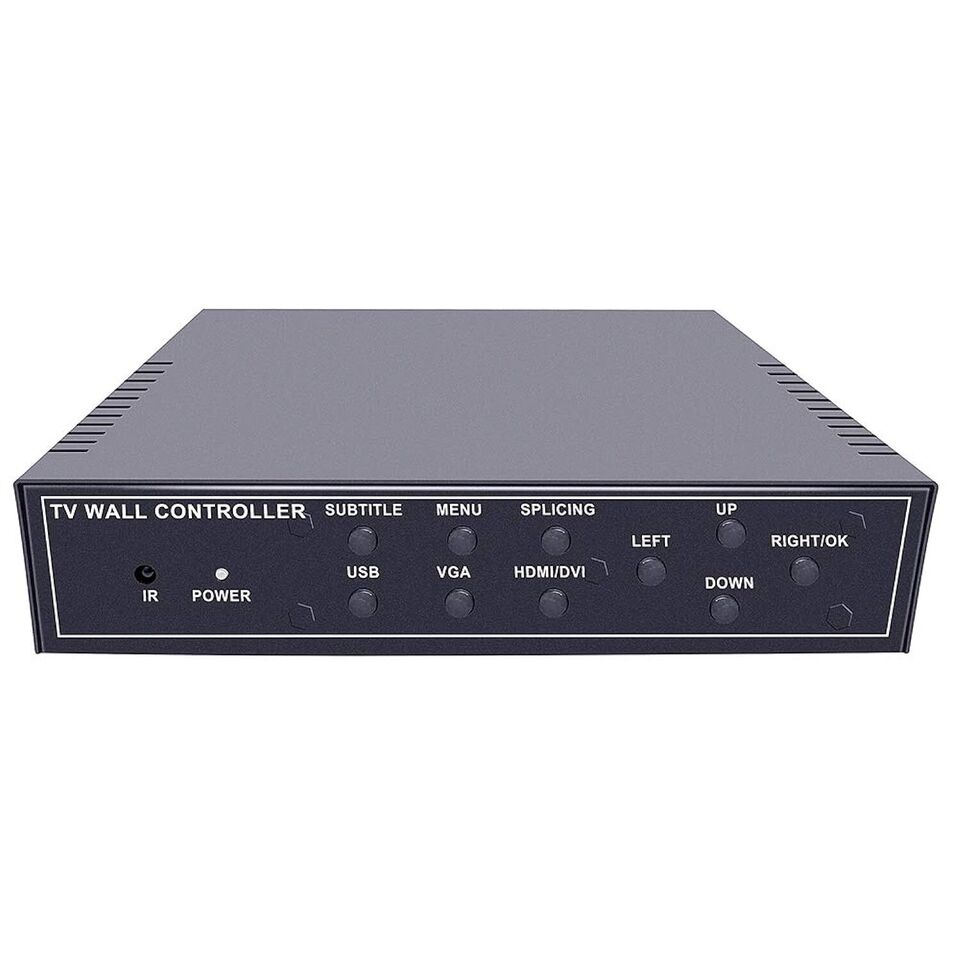

The product design includes infrared remote control and front panel buttons, allowing users to quickly and fully control the splicer with one click through the buttons or remote control, making it simple and convenient.

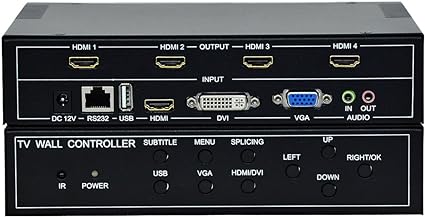

Simultaneously supporting 1 VGA, 1 DVI, 1 USB, and 1 HDMI input, all input signals can be switched to the large screen for splicing display.

hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

Feature:

Supports audio input and output, and supports synchronized output of audio and corresponding videos.

Supports arbitrary splicing of screens and 180 ° flipping.

Supports USB access, allowing you to directly decode videos, images, play MP3 players, documents, etc. by inserting a USB flash drive; No need to configure other front-end devices specifically, simple and practical.

Support remote control operation, infrared remote control can complete all functions of splicing processor setting, switching, and adjustment; The remote control adopts an ultra sensitive design, and the remote control distance can reach 5 to 10 meters.

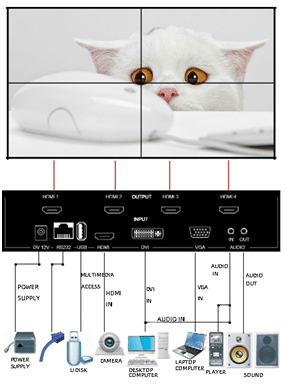

2 * 2 Splicing Installation Instructions

1.Connect the input signals (HDMI, DVI, VGA) to the input end of the splice box.

Connect the HDMI output end of the splicing box to the large screen (no need to connect in sequence).

Multiple splicing methods: 1. Find the remote control or device front panel button “SPLICING” inside the packaging box, and repeatedly switch between multiple splicing modes (1×1/1×2/1×3/1×4/2×1/2×2/3×1/4×1).

2. Find the remote control buttons 1×1/1×2/1×3/2×2 for quick switching.

3. Use the remote control inside the packaging box or the button “MENU” on the front panel of the device to call up the splicing menu. Select “left” and “right” to locate the menu to the splicing menu (press “up” and “down” to select the corresponding options, and adjust the parameters through “left” and “right”). Select “Splicing Mode Setting” as “2X2”, as shown in Figure 1:

hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

Select the HDMI port and corresponding splicing position, and adjust according to the prompts in the upper right corner (for example, in 2X2 mode, the splicing mode in the upper right corner is 2X2, press the OK button on the remote control to confirm, and press the return button). As shown in Figure 2:

hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi



Main Menu Description:

The main menu is divided into: 1. Image 2. Settings 3. Time
Call up through the remote control inside the packaging box or the button “MENU” on the front panel of the device (press “Up”, “Down”, “Left”, and “Right” to select the corresponding options for adjustment confirmation, and press the button when returning/exiting ).

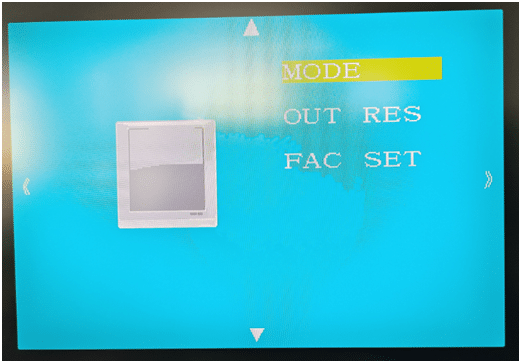

Menu 1: Image (Image Mode, Output Resolution, Restore Factory Settings)

hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

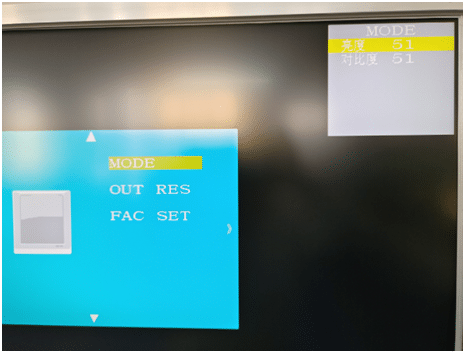

1.1 Image mode: Brightness and contrast adjustment (use the remote control to select up, down, left, right, and confirm with the OK button, then press the back button to exit)

hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

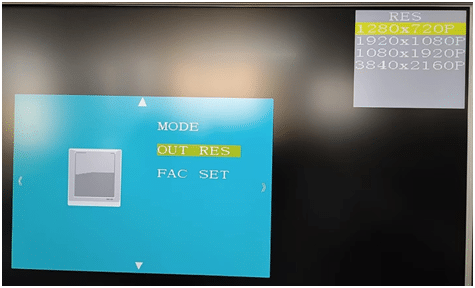

1.2 Output resolution: Supports 1280x720P/1920x1080P/1080x1920p/3840x2160p (it is recommended to adjust to 1920x1080P when in 1×4 splicing mode)
hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

1.3 Restore factory settings: If it is necessary to restore factory settings before operation, it is not recommended to use it normally.

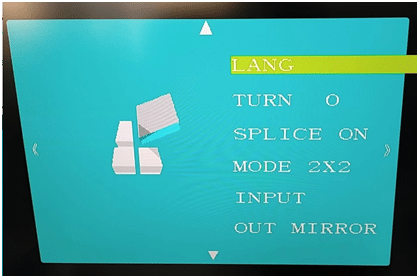

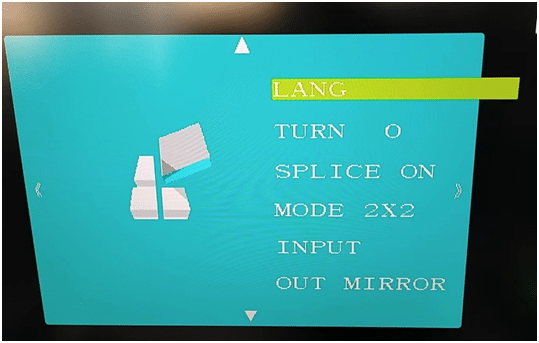

Settings (menu language, input flipping, splicing switch, splicing mode, signal source selection, output mirroring)

2.1: Menu language, select this option to switch between Chinese and English

2.2: Input flipping: Input signal flipping, overall flipping when splicing in 2X2 or 1X1 mode

2.3: Splicing switch: On or off, adjust the splicing switch to “On” to perform splicing;

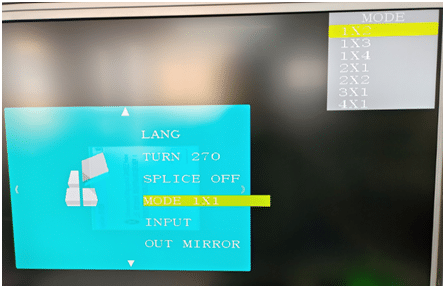

2.4: Splicing mode: 1×1/1×2/1×3/1×4/2×1/2×2/3×1/4×1 to select the desired mode and confirm “OK”.
hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

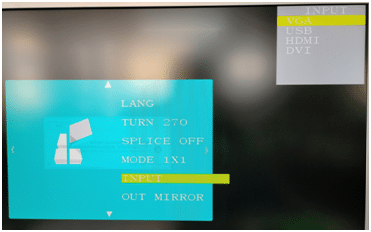

2.5: Signal source selection: USB (USB flash drive)/HDMI/DVI/VGA.

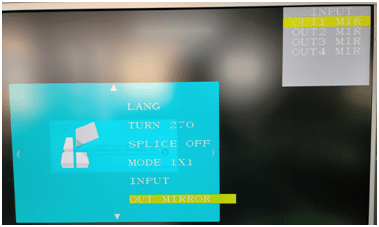

2.6: Input mirror: Output 4 signals 1/2/3/4 single screen flip/mirror.

hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

All of the above can be adjusted by pressing “Up”, “Down”, “Left”, and “Right” to select the corresponding options. OK confirmation, press the button to return/exit .

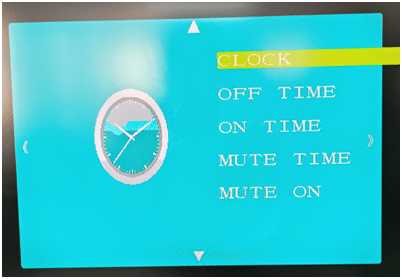

Time (clock, shutdown time, startup time, sleep timer, automatic sleep on/off):

hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

Press “Up”, “Down”, “Left” and “Right” to select corresponding options for adjustment confirmation. Press “Up”, “Down”, “Left” and “Right” to return/exit .

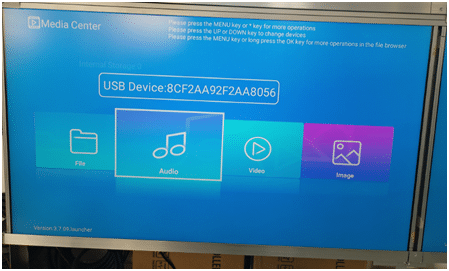

USB/USB drive menu: picture, file, music, video

Operate through the remote control USB in the packaging box or the USB key on the front panel of the device.

The product can realize USB play and splicing functions. Users can realize the spliced playing of pure video or picture format after the basic function of LCD splicing is realized. It can be realized by simply inserting a USB stick into the USB interface of our product, without the need to specially configure a computer or other playback equipment. It is simple and practical. Supporting video selection or all playback;

USB can support some commonly used videos, pictures, MP3 and TXT documents; Capable of supporting all functions such as round play, pause, fast forward and program list;

hot sell lcd videowall controller 2x2 4k60hz input 4k30hz output with audio,usb,vga,dvi

Press “Up”, “Down”, “Left” and “Right” to select corresponding picture/video/file/music for play confirmation, and press ” .
