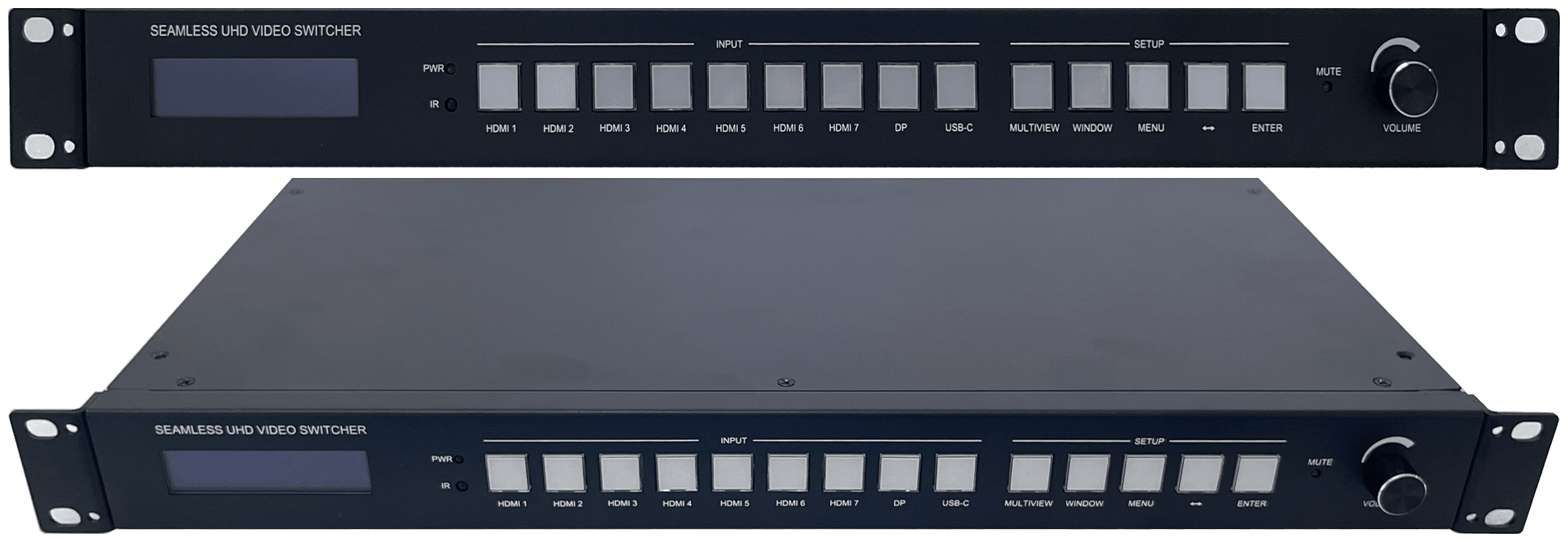

Seamless UHD Video Switcher with USB-C ,Displayport input
| Weight | 5000 g |
|---|---|
| Dimensions | 43 × 22 × 4.4 cm |
| Band Width | 594MHz (18Gbps), HDMI 2.0, HDCP2,2 |
| Input ports/Output | In: 7 HDMI, 1 DP, 1 USB-C |
| ESD | Air: ± 8KV, Contact: ± 4KV, |
| Audio Format | LPCM |
| Package list | Switcher Unit,AC Power Cord,User Manual,3 way male captive screw connector,5 way male captive screw connector |

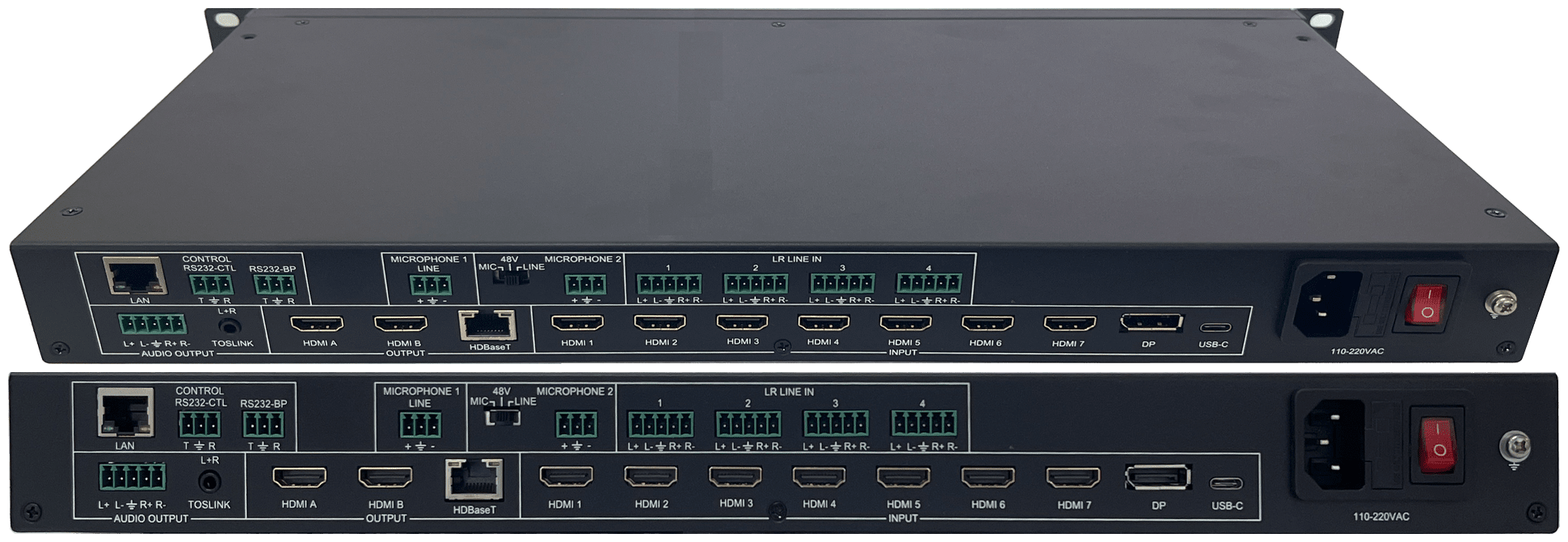

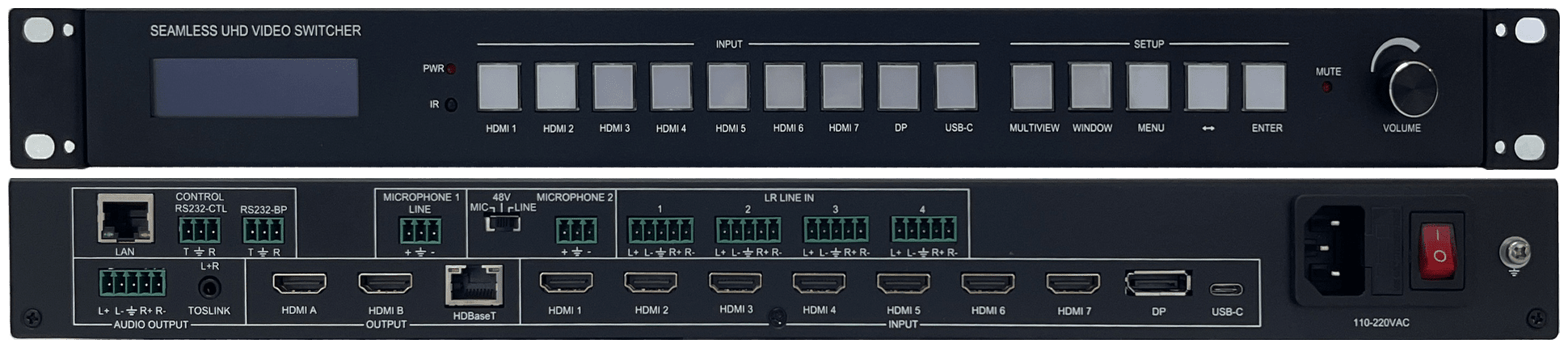

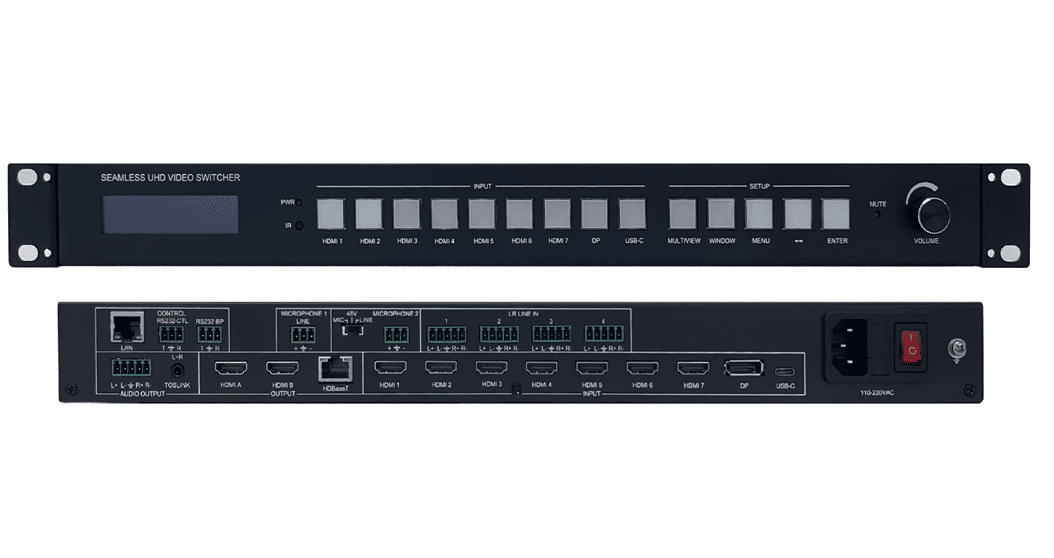

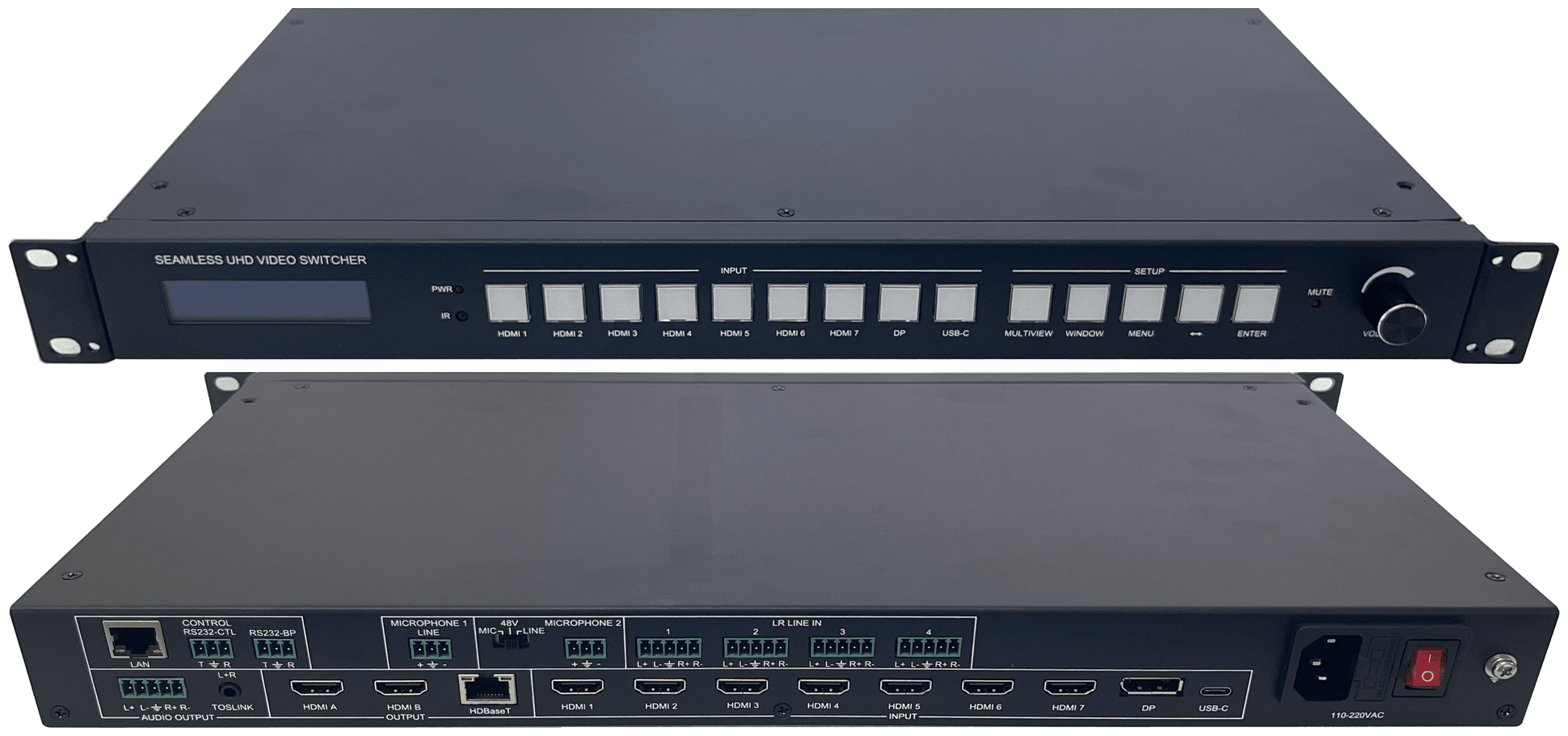

This device is a seamless multi-format presentation switcher with 7 HDMI 2.0 inputs, 1 Display Port input and 1 USB-C (Video and Audio only) input. It provides three mirrored outputs – HDMI A, HDMI B for local display and HDBaseT output for a remote HDBaseT receiver and display.
It provide 4 balanced LR audio inputs and 2 microphone inputs
This device support display multiple sources on a single screen up to 4 display window
User can easily manage it via the front buttons,Remoter,RS232, TCP/IP commands.
7 HDMI inputs, 1 DP input, 1 USB-C (Video and Audio only) input
3 mirrored outputs – HDMI A, HDMI B and HDBaseT
Support Long Reach HDBaseT transmission, 150m@1080P and 120m@4K
Support HDMI 2.0,HDCP 2.2, video resolution up to 3840×2160@60
Support SINGLE,PIP,PBP,3xWIN,4xWIN display mode,Provide up to 20 display scene to save or load Seamless switching on single window display mode
Fast switching on non-single window display modes
Support independently audio selection (break away selection)
Support audio LPCM,AC3,DD+,DTS for Input HDMI1/2/3
Support 2 microphone inputs, both can be mixed with main audio
Independently microphones volume control and overall volume control
Support audio ducking function when microphone activated
Support balanced LR audio output and Toslink digital audio output
Support external LR input
Support multiple Test Pattern output
Support 48V iPOC power supply to remote HDBaseT receiver
Support OSD Menu navigation
The Switcher support 5 categories of multiview display modes
SINGLE, PIP, PBP, 3xWIN, 4xWIN
Users can select different operations for different Multiview modes as following:
SINGLE, PIP, PBP, 3xWIN, 4xWIN
Multiview window distribution as following
User can do more layouts via RS232 commands and provide user defined multiview up to
10 scenes. The scene includes following points
Multiview Mode: SINGLE, PIP, PBP, 3xWIN, 4xWIN
SINGLE: Input selection
PIP: Inputs selection, Sub window size and position selection
PBP, 3xWIN, 4xWIN: Inputs selection, Layout Mode, Display aspect
