49 inch 3.5mm bezel LCD splicing screen—LG panel LCD VideoWall

49 inch LCD splicing screen



Additional information

Weight 19100 g
Dimensions 107.834 × 60.836 × 11.35 cm
Screen bezel

3.5mm

Resolution

1920×1080

Brightness

500cd

Contrast

1400:1

Viewing angle

Horizontal 178/Vertical 178°

Brand

LG Original

Markets

*Real estate business display industry *Video conferencing industry
*Security monitoring industry *Outdoor advertising industry
*Entertainment KTV industry *Internet cafe display industry
*Touch teaching industry *Public display industry

Detailes About 49 inch 3.5mm bezel LCD splicing screen—LG panel LCD VideoWall

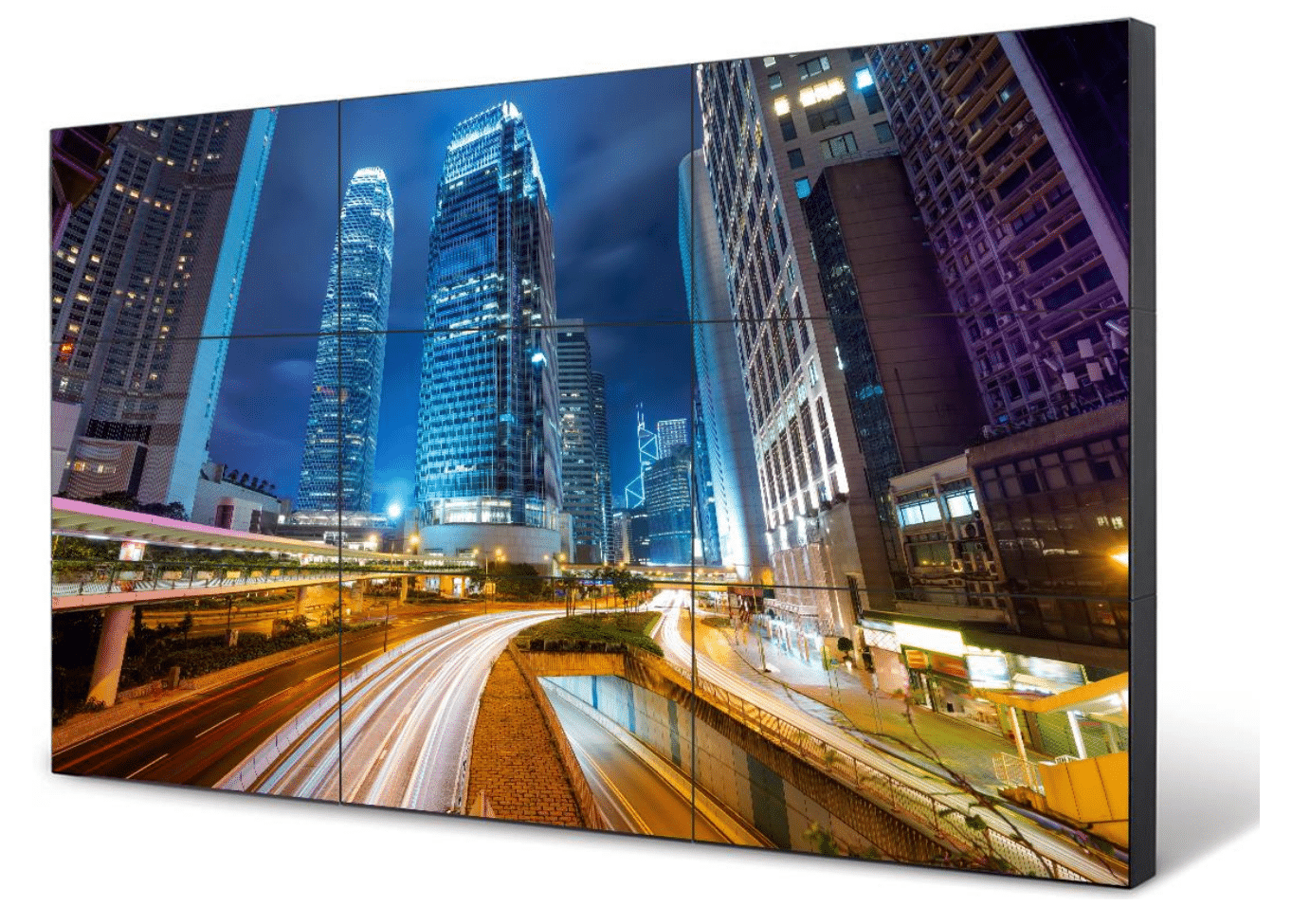

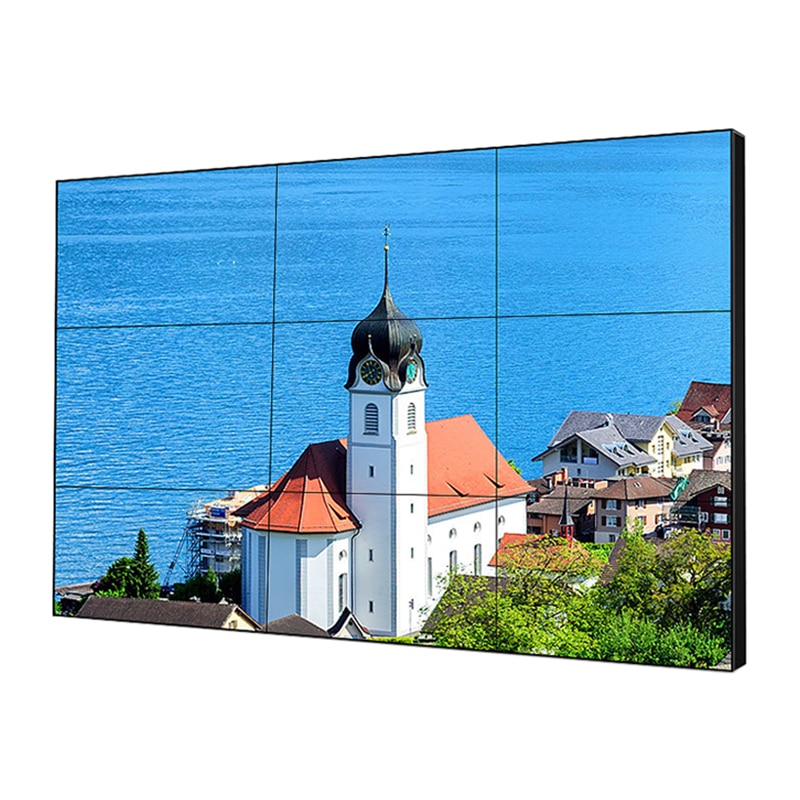

LCD VIDEO WALL DISPLAY



LCD Panel is adopting LG original modules and industry-leading direct-lit LED backlight, it has good color reproduction, realistic images, ultra-dense distribution of dots, and uniform backlight brightness. A DID LCD splicing product with energy saving, environmental protection, long life, wide viewing angle and high stability, suitable for commercial display industry, video conferencing industry, security monitoring and other industries.

Features

1. Ultra-narrow bezel, physical seam 3.5mm design
2. Supports one-click splicing and USB burning functions
3.3D noise reduction technology, high-definition image quality display
4. High-brightness LED backlight display design, wide viewing angle

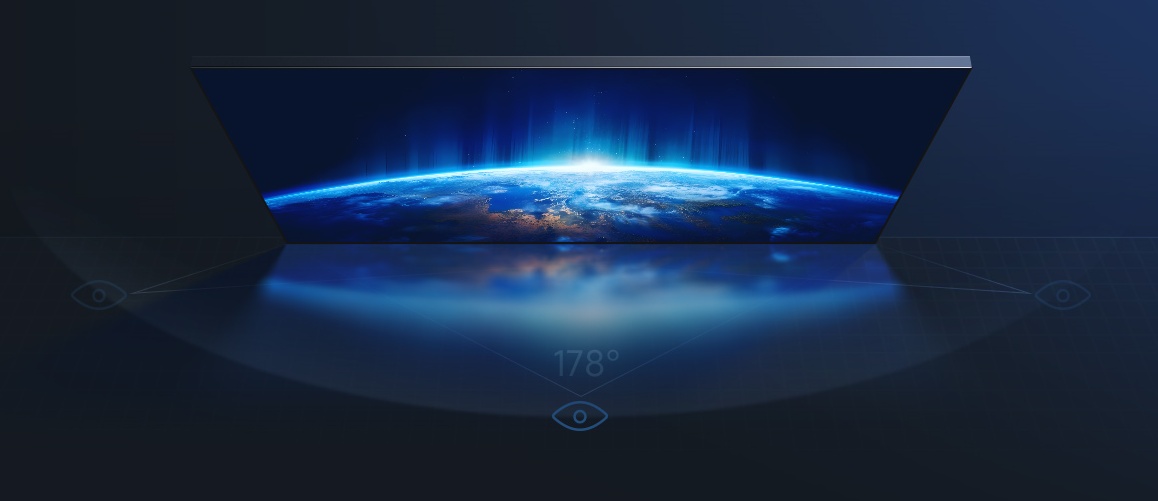

5. Display supports 178° ultra-wide viewing angle
6. Contains power cord, network cable and other accessories


49 inch 3.5mm bezel lcd splicing screen—lg panel lcd videowall


System features:

1. The processor adopts a unique embedded structure design, which can accept input from various image signal sources and directly drive a full range of large-size LCD screens. After segmentation and amplification, it can display images on various large-screen splicing walls in real time without distortion. It is displayed on the body and the processing process is completely hardware-based.

2.Full hardware architecture, no CPU and operating system; no risk of virus infection, good security.

3.Energy-saving and environmentally friendly, in line with national energy-saving standards, with standby power consumption less than 0.5W.

4.The encryption processor has a built-in registration function, the most perfect and rigorous encryption method on the market.

5.Built-in time system can realize year, month, day, and weekly scheduled power on and off.

6.It has a color temperature correction system that can quickly adjust the color difference when there is a color difference on the screen.

7.Supports intelligent signal switching, automatic signal recognition and automatic switching, without the need for remote control and control software.

8.Supports intelligent photosensitivity and automatically adjusts the backlight brightness of the large screen according to the ambient light intensity.

9.Supports startup LOGO splicing function (please specify if you need this function), and supports USB fast upgrade, which is convenient and fast. USB supports playing high-definition videos, advertisements, etc. for personalized projects.

10.The large-screen control software supports matrix linkage for easy operation. It has a variety of built-in matrix protocols to meet market needs. It can provide development protocols to facilitate customers to flexibly adopt third-party central control systems or compile their own software to construct large-screen engineering systems.

11.The output word supports two subtitle implementation functions

(1) A board internal subtitle function (please explain if you need this function)

(2) A computer screen function

(3) Control software supports Android phone to control large screen

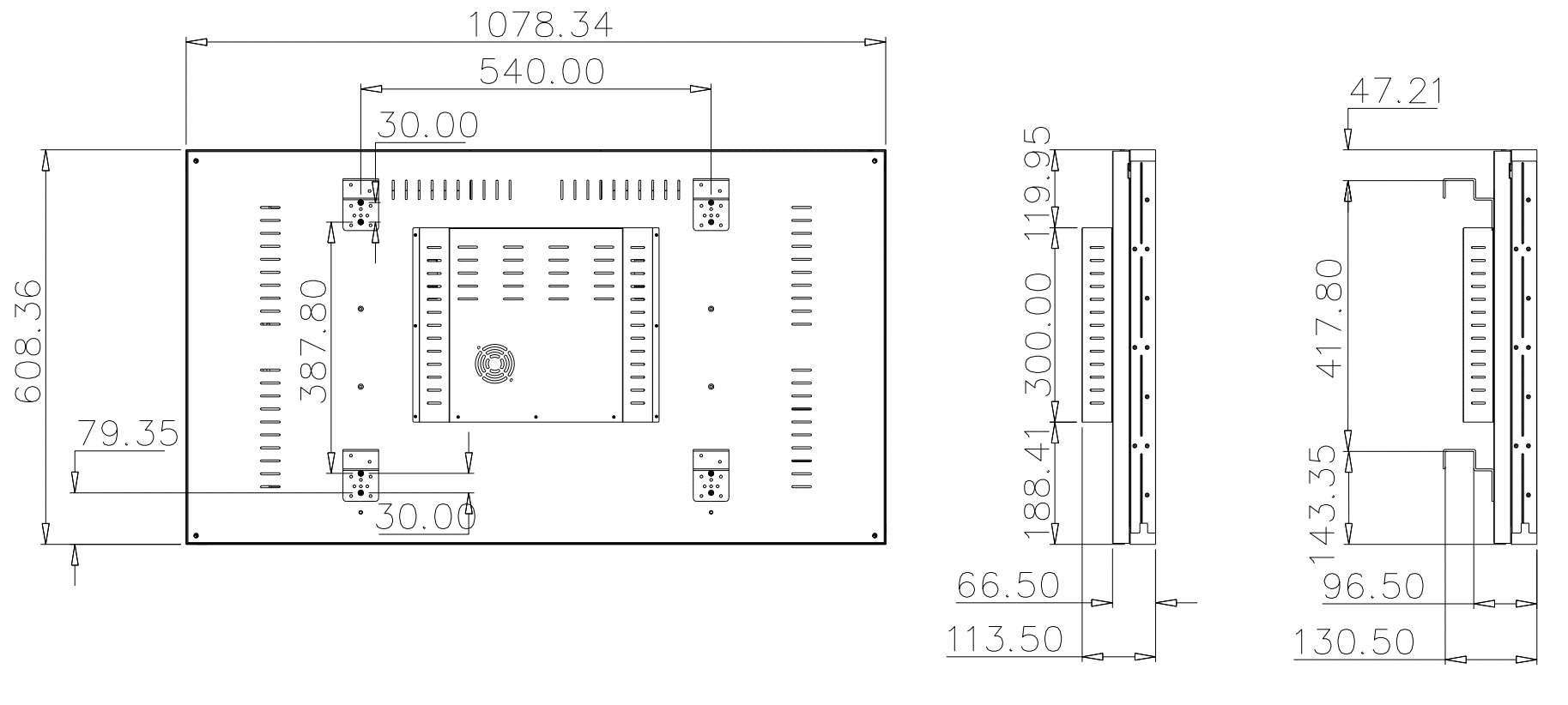

49inch LG Panel size:

49 inch 3.5mm bezel lcd splicing screen—lg panel lcd videowall

LCD splicing screen

1. Using the latest generation of DID digital light processing technology, all equipment adopts modular design.

2. It has good stability, reliability, safety, and good expansion capability in displaying the number of signals.

3. Support multi-screen image splicing, the picture can be displayed on the whole screen or split screen, and there is no non-linear distortion effect in the full screen range.

4. The brightness of the entire screen is uniform, there are no dark corners or bright corners, and the picture is stable and flickering-free.

5. It has the characteristics of high resolution, high brightness, high definition and wide contrast range.

6. Support HDMI/DVI/VGA/AV or CVBS signal input, built-in 3D noise reduction, motion compensation, and deinterlacing image processing functions.

Image processor

1.Support DVI/HDMI/VGA signal input and DVI signal output.

2.The control software supports the WINDOWS operating platform, adopts the Server/Client structure mode, and the software follows the TCP/IP protocol.

3.You can set, store and manage multiple plans, set the window size and position of the display signal, store the user setting template in the form of a file, and call the saved display plan at any time, triggering it based on time or shortcut keys , to achieve automatic display of the screen.

4.Multi-functional operations can be implemented on the signal window (users can directly zoom, roam, hide, switch, etc. on the network, RGB signal and video signal windows directly on the client software, and can store them as plans).

5.The client software can display various video, RGB, network and other window images at the same time (screen return function); any client software can display the working status of each component of the display wall controller, such as: motherboard temperature, CPU temperature, fan speed etc. (system monitoring function).

6.Ultra-high-resolution pictures, PPT, and application software (GIS system or SCADA system, etc.) can be run directly on the multi-screen image splicing controller.

7.The processor power supply redundancy and hot-swappable function have the function of precise synchronization of multi-screen signals on the display wall.

8.The display wall controller control protocol can be opened to users to facilitate secondary development by users.

Product Specification

  Model Specification
Panel LCD size 49 inch
LCD Manufacturer LG
Panel model LD490DUN
Light source LED backlight
Resolution 1920*1080
brightness 500cd/m²
contrast 1400:1
Reaction time 8 ms
Pixel pitch 186.5(H) ×RGBX559.5(V)
perspective Horizontal 178/Vertical 178°
Visible area 1074.54*604.56
Display color 16M(8bits-true)
Weight 19.1KG
Power Adapter Operating Voltage 100-240V,50-60Hz
Maximum Power ≤240W
Standby power 0.5W
Environment Requirement Working temperature 0℃~50℃
Working humidity 10%~90%
Storage temperature -20℃~60℃
Storage humidity 10%~90%
Input and Output USB port 1(only for firmware upgrade)
RS232 input 1
RS232 output 2
HDMI port 1
DVI 1
Others Overall size 1078.34*608.36*113.5mm
Single unit packaging 1145*190*685mm
Double packaging 1145*320*685mm
Shell color black
Bezel 3.5mm
Packing list Product user manual 1
Warranty card 1
Power adapter cable 1
Lan cable 1
plugboard 1
Remote controller 1

Application

*Real estate business display industry

*Video conferencing industry

*Security monitoring industry

*Outdoor advertising industry

*Entertainment KTV industry

*Internet cafe display industry

*Touch teaching industry

*Public display industry
