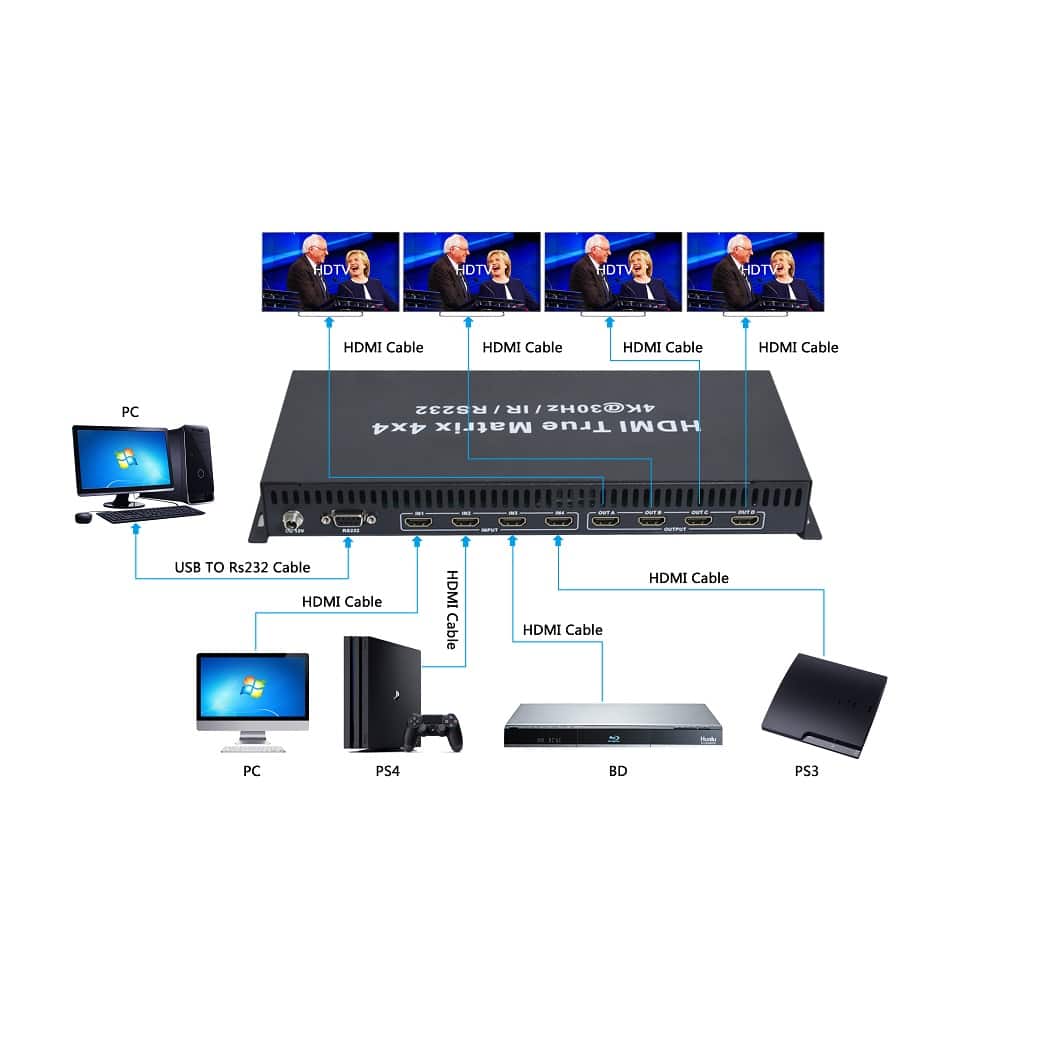

The 4×4 HDMI Matrix can connect four HD Sources with four HD Displays; it can easily switch and distribute four HD Source signals to four HD displays at the same time.

Full HD 1080P 4K 3840×2610 RS232 and IR Control HDMI 4 In 4 Out HDMI Splitter HDMI Matrix Switch 4×4

Feature：
1. Four Input HD Source signals switch and distribute to four HD Displays
2. Support 30/36 Bit Deep Color
3. Support Blue-Ray DVD24/50/60fs/HD-DVD/xvYCC
4. Support Audio Format:DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
5. Support Signal Retiming
6. Input HDMI Cable length up to 10M if using the standard AWG26 HDMI Cable; Output HDMI Cable length up to 15M if use the standard AWG26 HDMI Cable.

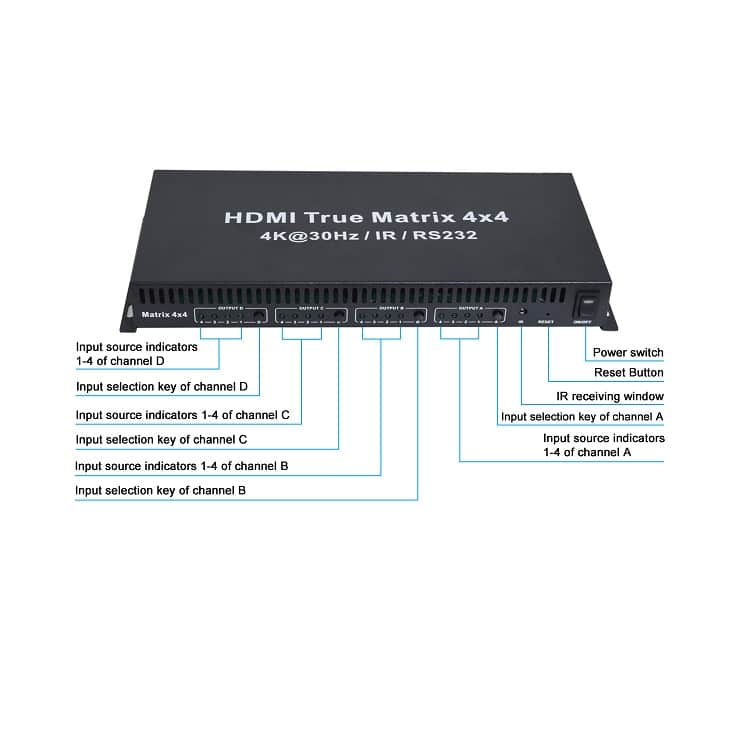

7. It can use the remote to choose the signal source or switch the input signal source by press the switch button.
8. Use 12V3A Power Adaptor

SPECIFICATION:
HDMI Input/Output Resolution……24/50/60fs/3D/1080p/1080i/720p/576p/576i/480p/480i
Deep Color….24bit/deep color 30bit,36bit
HDMI Audio Format……DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Max bandwidth………225MHz
HDMI Max baud rate……6.75Gbps
Input/Output TMDS signal ……0.5~1.5Volts p-p（TTL）
Input/Output DDC signal…… 5Volts p-p (TTL)
HDMI Input cable distance.…… ≤10m AWG26 HDMI standard cable
Output cable distance…….≤15m AWG26 HDMI standard cable
Max working current……2A
Power adapter format………12V/3A
Operating Temperature range…….(-15 to +55℃)
Operating Humidity range…5 to 90%RH (No Condensation)
Product size (L x W x H)……308X151X36 (mm)
Weight…..1216g
