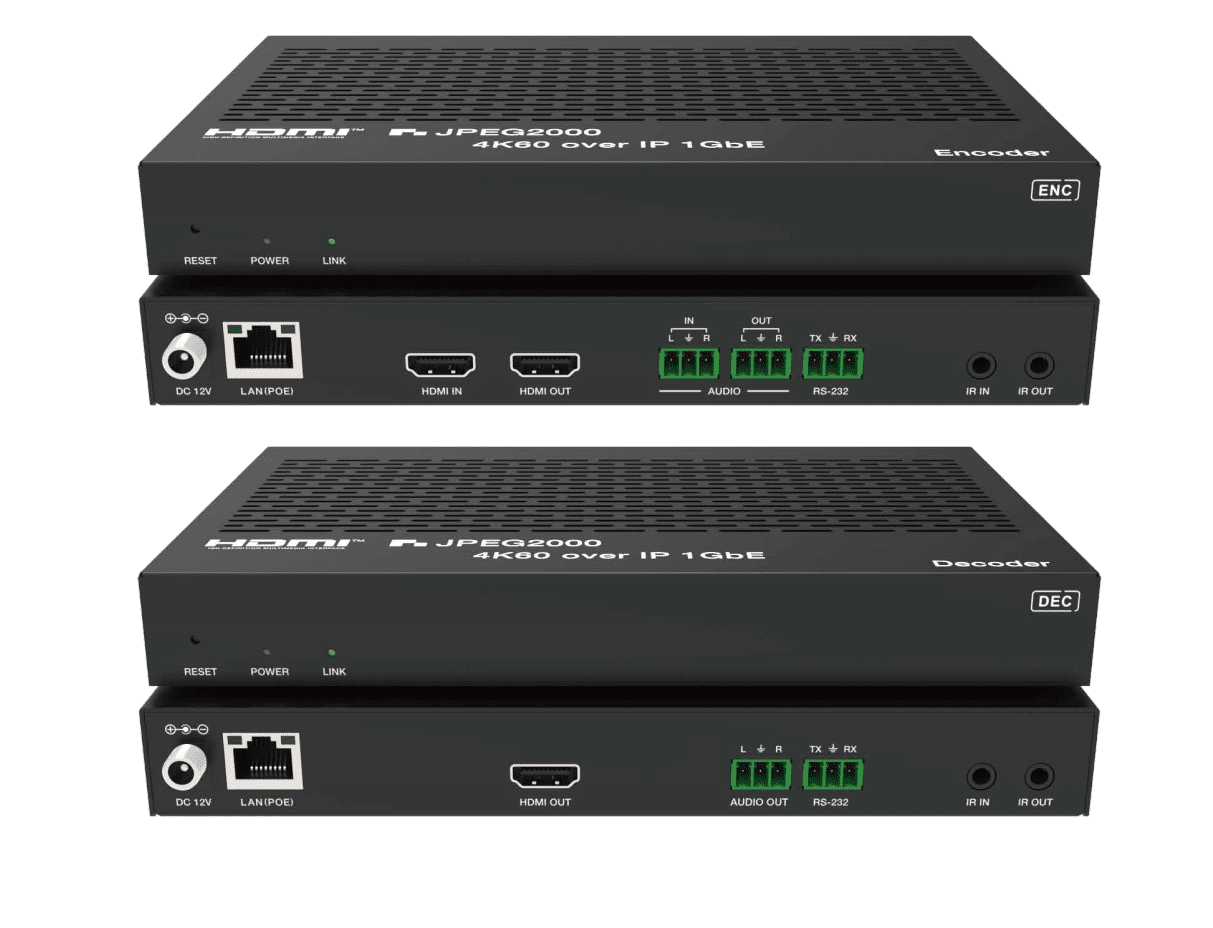

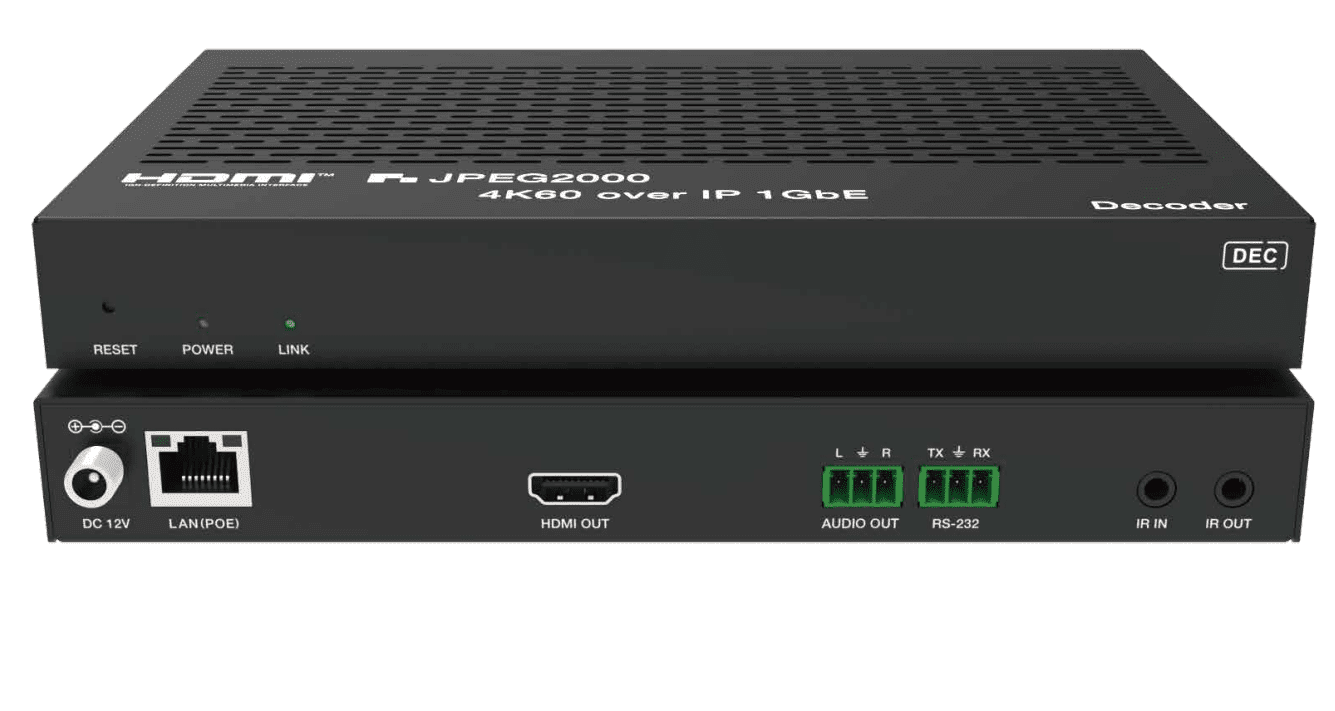

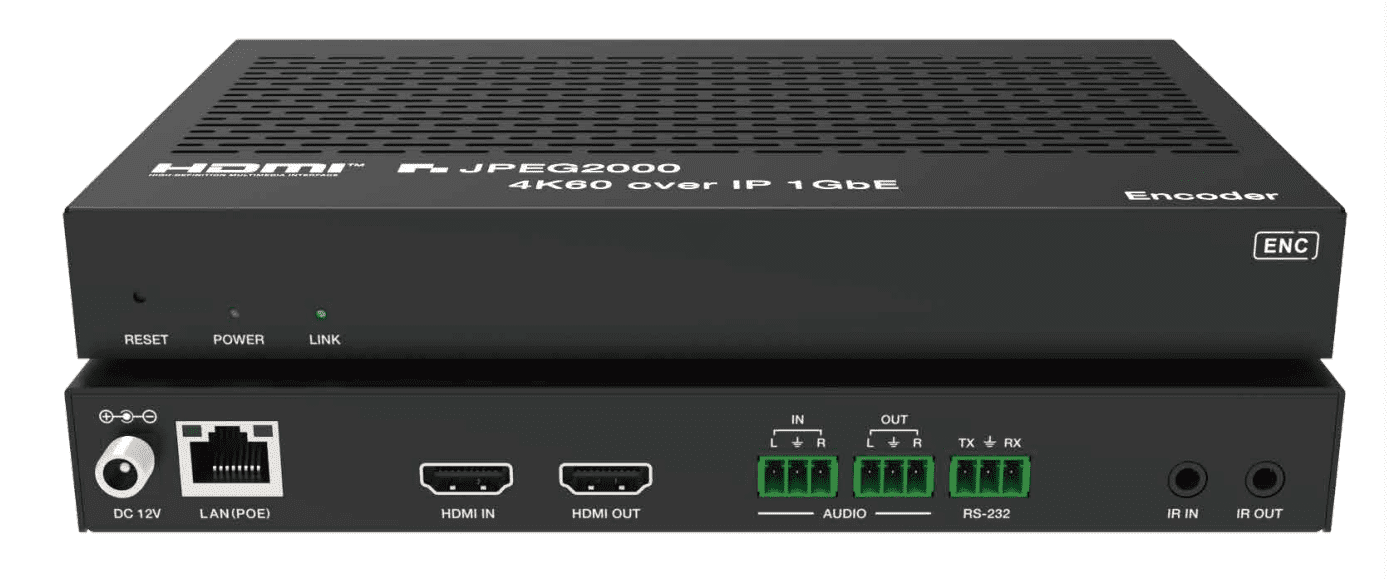

JPEG2000 4K60 AV over IP Encoder Decoder Controller with Dante AV-A
JPEG2000 4K60hz AV over IP 10GbE with Video Wall Processing 9×9,Dante, AV Matrix with keyboard and mouse control,Zero Latency,Multiviewer 25 TVs
| Weight | 1000 g |
|---|---|
| Dimensions | 20.4 × 10 × 2.2 cm |
| HDMI Version | HDMI 2.0b |
| HDCP | HDCP2.2 18Gbps |
| Video Compression Standard | JPEG2000 Technology,All in one AVoverIP |
| Video Network Bandwidth | 1G |
| Video Resolution | Input Up to 4K@60Hz 4:4:4,Output 4k30 4:4:4 |
| Resolution / Cable Length | HDMI Cable IN/Out |
| Transmission Distance | 100m (CAT6A/7) / 70m (CAT6) |
| Dante (optioanl) | built-in Dante AV-A |
| Control | RS232,TCP/IP,Web GUI |
Detailes About JPEG2000 4K60 AV over IP Encoder Decoder Controller with Dante AV-A
Features
Video resolution up to 4K60 4:4:4, based on IP JPEG2000 technology
1G electrical port network
Compliant with HDMI 2.0b and HDCP 2.2 specifications
Support HDR10, Dolby Vision, HLG audio
Support audio formats LPCM 7.1ch, Dolby TrueHD and DTS-HD Master Audio
Supports two-way infrared and RS-232 control

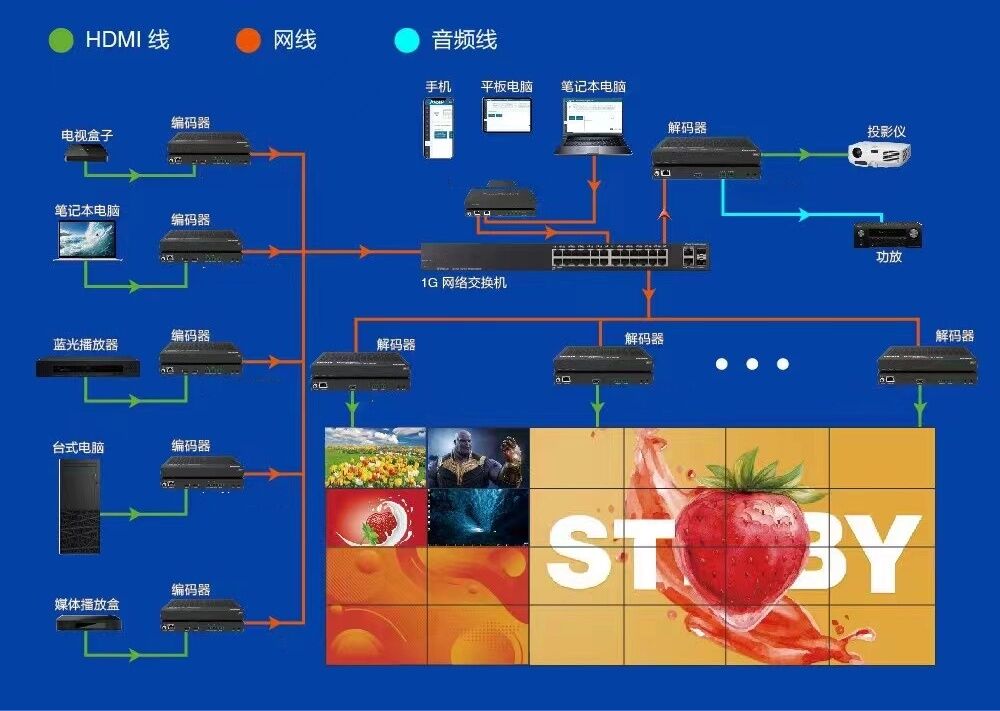

Supports unicast, multicast, matrix and video wall functions, the video wall supports up to 9×9
Flexible audio routing control
Supports optional built-in Dante/AV-A mode
Support audio adding and de-embedding function
Security management
Supports IR, RS-232, TCP/IP and Web GUI control
Support PoE function (802.3af PD device) 1G Ethernet switch

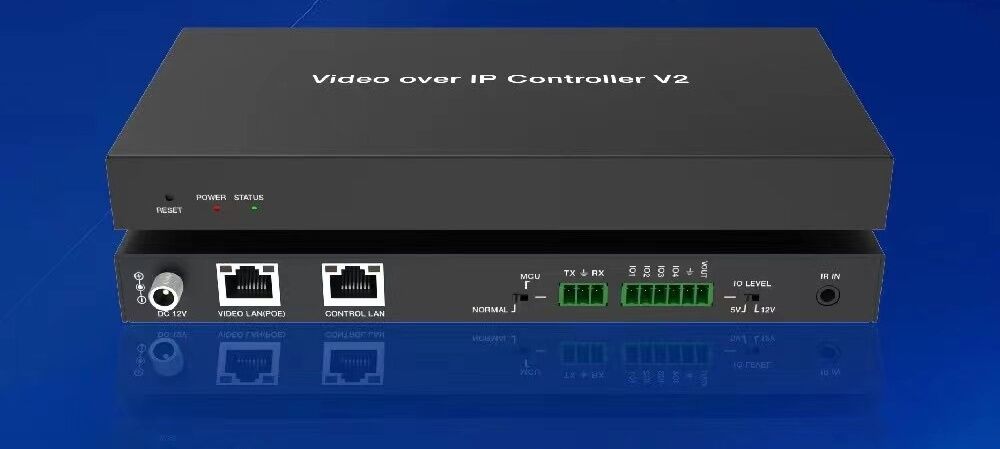

Paired with Controller (IP control server)
Connection:
Gaming Application
