JPEG2000 4K60 AV over IP Encoder Decoder Controller box,Web Gui,Preview,DAPI
JPEG2000 4K60hz HDR AV over IP Encoder Decoder Controller box ,Lossless compression,Dante, AV Matrix with keyboard and mouse control,Zero Latency,9×9, 1G network, security management,Central control box
| Weight | 508 g |
|---|---|
| Dimensions | 20.4 × 9.8 × 2.2 cm |
| HDMI Version | HDMI 2.0b |
| HDCP | HDCP2.2 18Gbps |
| Video Compression Standard | JPEG2000 Technology,All in one AVoverIP |
| Video Network Bandwidth | 1G |
| Video Resolution | Input Up to 4K@60Hz 4:4:4,Output 4k60 4:4:4 |
| Resolution / Cable Length | HDMI Cable IN/Out |
| IP configuration | Auto, DHCP and Manual |
| Dante (optioanl) | built-in Dante AV-A |
| Control | RS232,LAN,Third-party central control,7*24 hours reliable and stable work |
Detailes About JPEG2000 4K60 AV over IP Encoder Decoder Controller box,Web Gui,Preview,DAPI
Introduction

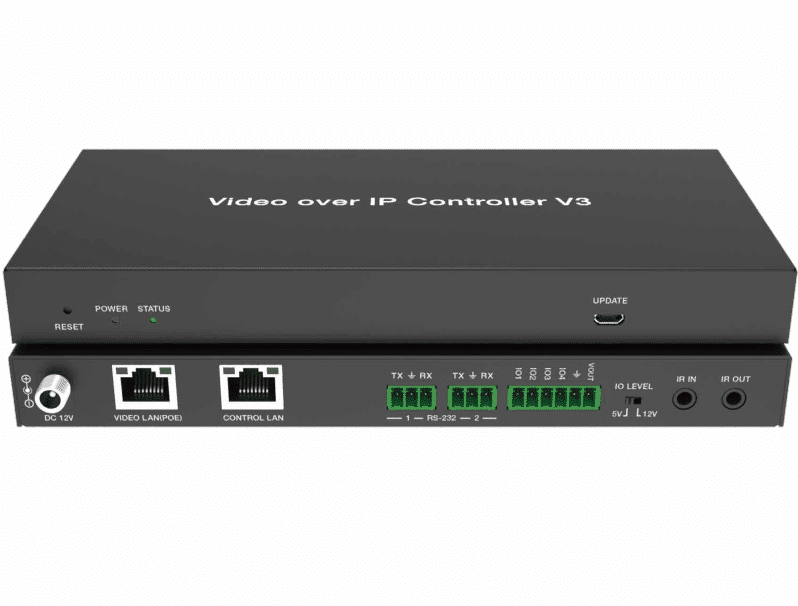

This Video over IP Controller is used to control and manage JPEG2000 IP products. It supports dual 1G network ports, which can realize dual-network isolation of Control network and Multicast video distribution network. The product supports Web GUI/TCP/RS-232/IR/ GPIO controls and POE function. Since the demand of IP products is daily increased in the current market, the IP Controller will be widely applied in more and more different scenarios.
Features
☆ Easy to create project, control and manage the system
☆ Flexibly support Auto, DHCP and Manual three types of IP configurations
☆ HTTPS, SSH, SFTP security compatible
☆ Built-in Web GUI control interface, supporting Drag & Drop operations
☆ Support image preview
☆ Support video, audio, RS-232, IR, USB control and management of the distributed system
☆ Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks.
☆ Support LAN/RS-232 port control and third-party central control
☆ Support IR signal receiving and loop output (3.5mm audio jack, 12V level)
☆ 4 channel GPIO control ports (5V/12V optional level)
☆ Multiple circuits protection, lightning protection and ESD design
☆ Reliable system design, ensuring 7*24 hours reliable and stable work
Packing list
① 1x Video over IP Controller
② 1x 20kHz-60kHz 12V IR Receiver Cable (1.5 meters)
③ 1x IR Blaster Cable (1.5 meters)
④ 2x 3-pin 3.81mm Phoenix Connector (Male)
⑤ 1x 6-pin 3.81mm Phoenix Connector (Male)
⑥ 2x Mounting Ears
⑦ 4x Machine Screws (KM3*4)
⑧ 1x 12V/1A Locking Power Adaptor
⑨ 1x User Manual
Specification
Interface
Dante control Web interface
Application diagram
