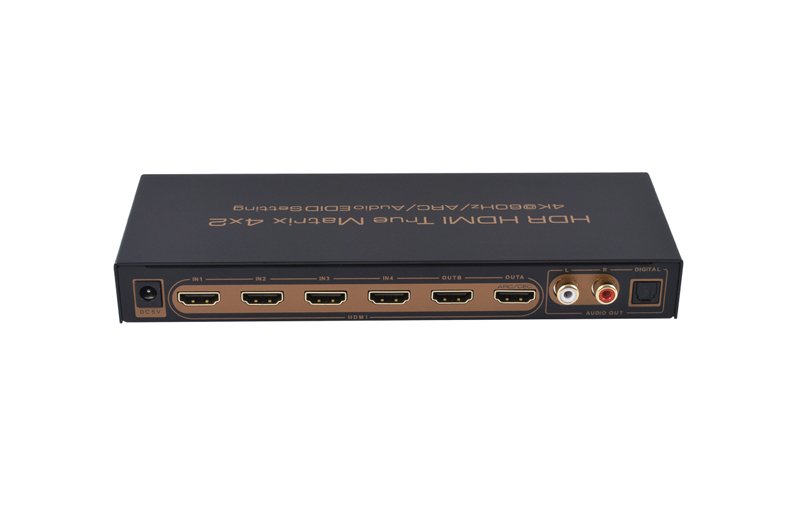

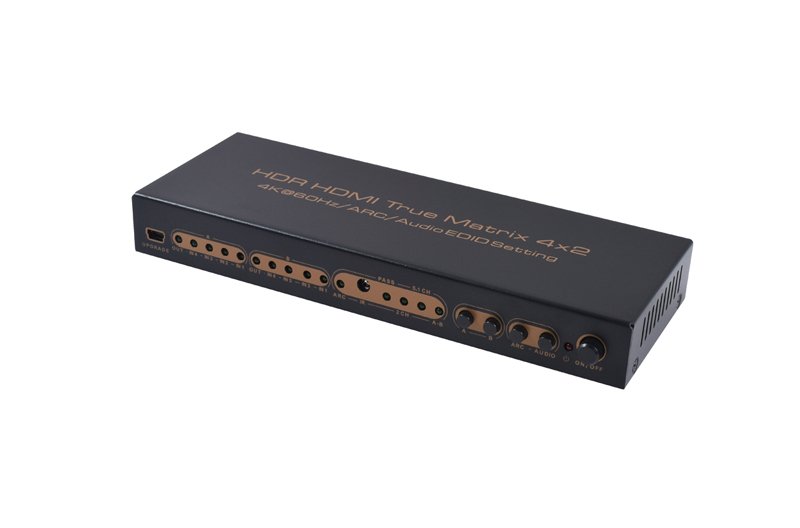

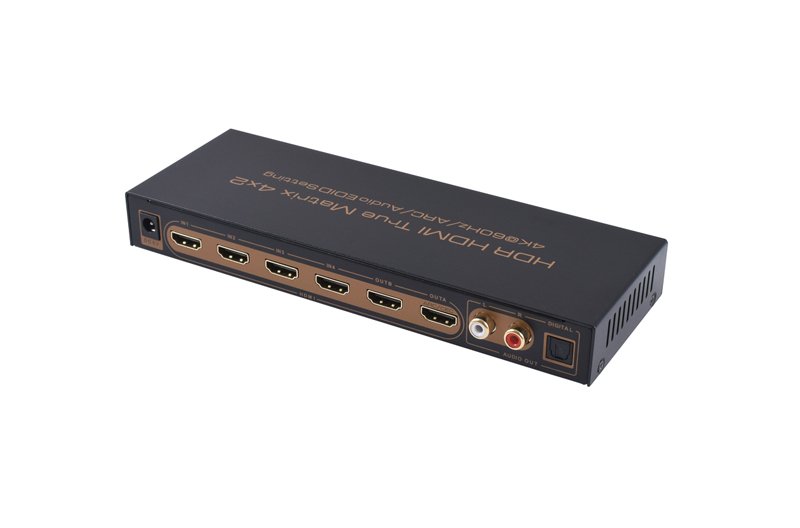

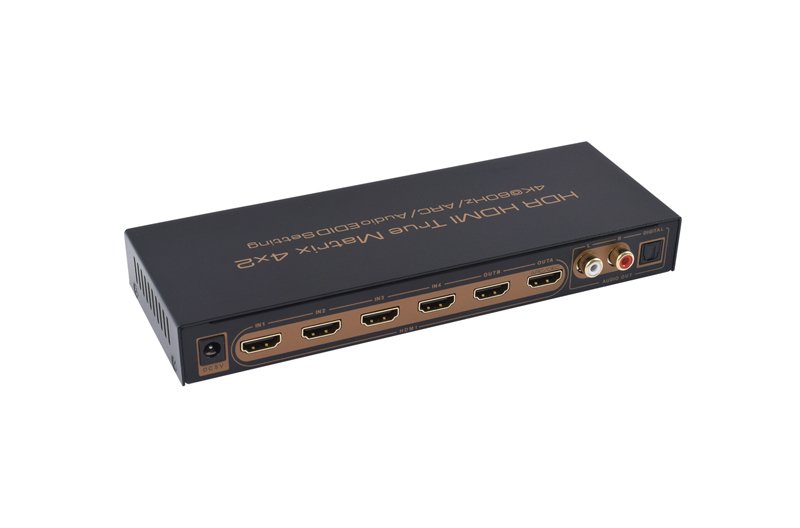

HDR HDMI 2.0 true matrix 4X2 with audio extractor

4K HDR MATRIX 4X2 18Gbps HDMI matrix switch 4X2 ULTRA HD 4:4:4



Additional information

Weight 440 g
Dimensions 25 × 7.5 × 3 cm
HDMI Version

2.0b 18Gbps

Resolution

4K 60 HZ, YCbCr 4:4:4 HDR

HDCP

HDCP 2.2 HDCP1.4

EDID

Support

CEC

Support

ARC

Support

Audio Format Support

Dolby HD, DTS HD, Dolby Atoms, Dolby AC3, DTS5.1, Dolby Digital, 7.1ch, Dolby 5.1, Dolby true HD, LPCM 2.0 Etc

HDMI Input Port

2 Ports, 3 Ports, 4 Ports, 5 Ports

Markets

Residential

Detailes About HDR HDMI 2.0 true matrix 4X2 with audio extractor

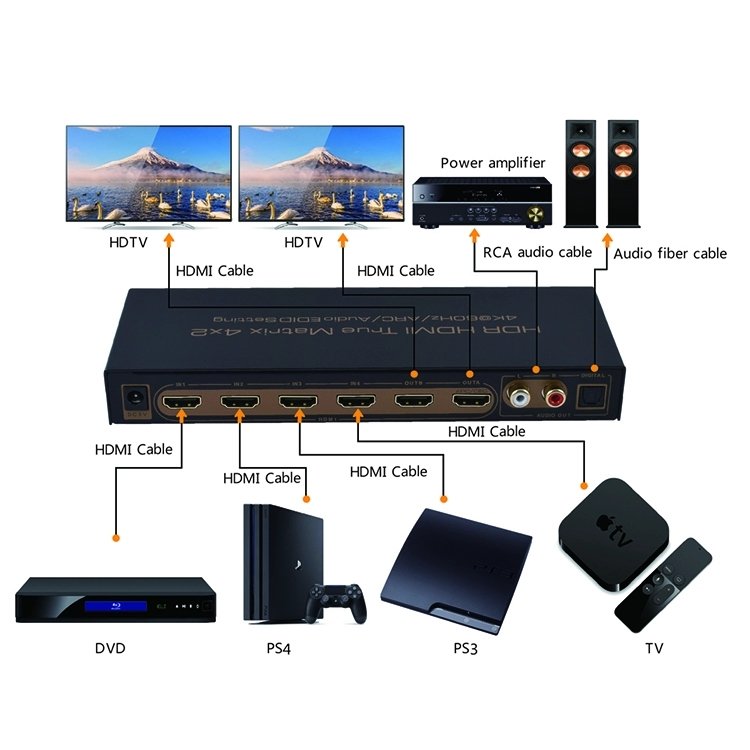

This matrix can switch and splitter four HDMI Inputs to two HDMI outputs, it supports HDR, HDR10,4K/60HZ, YUV4:4:4.
It is one ideal matrix for video conference, church av install, stage video distribution, and many other similar av situations.

FEATURES:

HDMI 2.0b
HDCP2.2/HDCP 1.4
HDR / Dolby Vision 4K supported
Output A supports CEC and ARC, but Output B does not
Video resolution supports up to 4K 60HZ YCbCr 4:4:4 HDR;
HDMI audio format supports Dolby HD, DTS HD, Dolby Atmos, Dolby AC3, DTS5.1, Dolby Digital, 7.1ch, Dolby 5.1, Dolby true HD, LPCM 2.0 Etc. (when audio EDID is set to “PASS”); With audio extractor: optical or 3.5mm audio out
The optical audio format supports Dolby digital 2/5.1ch, DTS 2/5.1ch, LPCM 5.1, LPCM 2CH
Audio EDID setting

Matters needing attention:

The AUDIO OUT is a set of multiplexed ports that allow you to select HDMI OUTA/B sounds by using the “A-B” key.

The Audio EDID mode selection is also available for multiplexing. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B.

The product has a power-off memory function. The setting state of the output channel is recorded and saved. After the power is off, the saved data will be automatically retrieved for configuration.

If you want to use ARC or CEC, you must connect the TV to the OUTA port.

SPECIFICATIONS:

Input ports HDMIX4
Output ports HDMIX2,RCAX2,Optical X1
Video format 480P/720P/1080P/2160P(Supports HDR/Dolby Vision)
Deep color 8/10/[email protected]/720P/1080P [email protected]
Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth 25~600MHz
Transmission rate 0.75~18Gbps
IR distance ≥5m
Input cable length 2160P/AWG 26 ≤5m;1080P/AWG 26 ≤10m
Output cable length 2160P/AWG 26 ≤5m;1080P/AWG 26 ≤12m
Power adapter specification Input: AC 100~240V
Output: DC 5V/1A
Max working current 500mA
Working temperature range -5 ~ +40℃
Working humidity range 5 to 85%RH(No Condensation)
Storage temperature -15 to 55℃
Storage humidity 5 ~95%RH(No Condensation)
Size 250x75x30 (mm)
Weight 440g

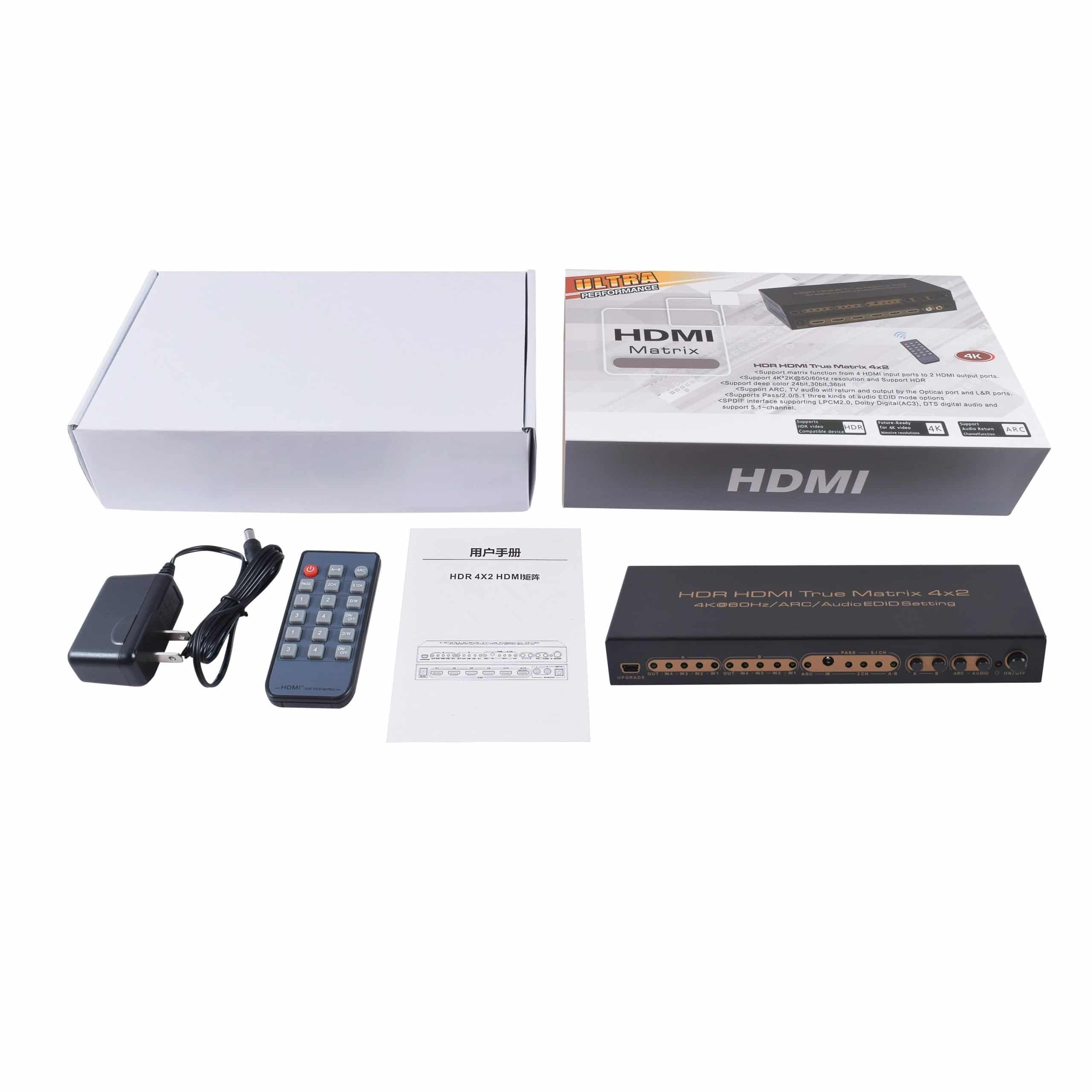

Accessories Manual, Remote, Power Adaptor
