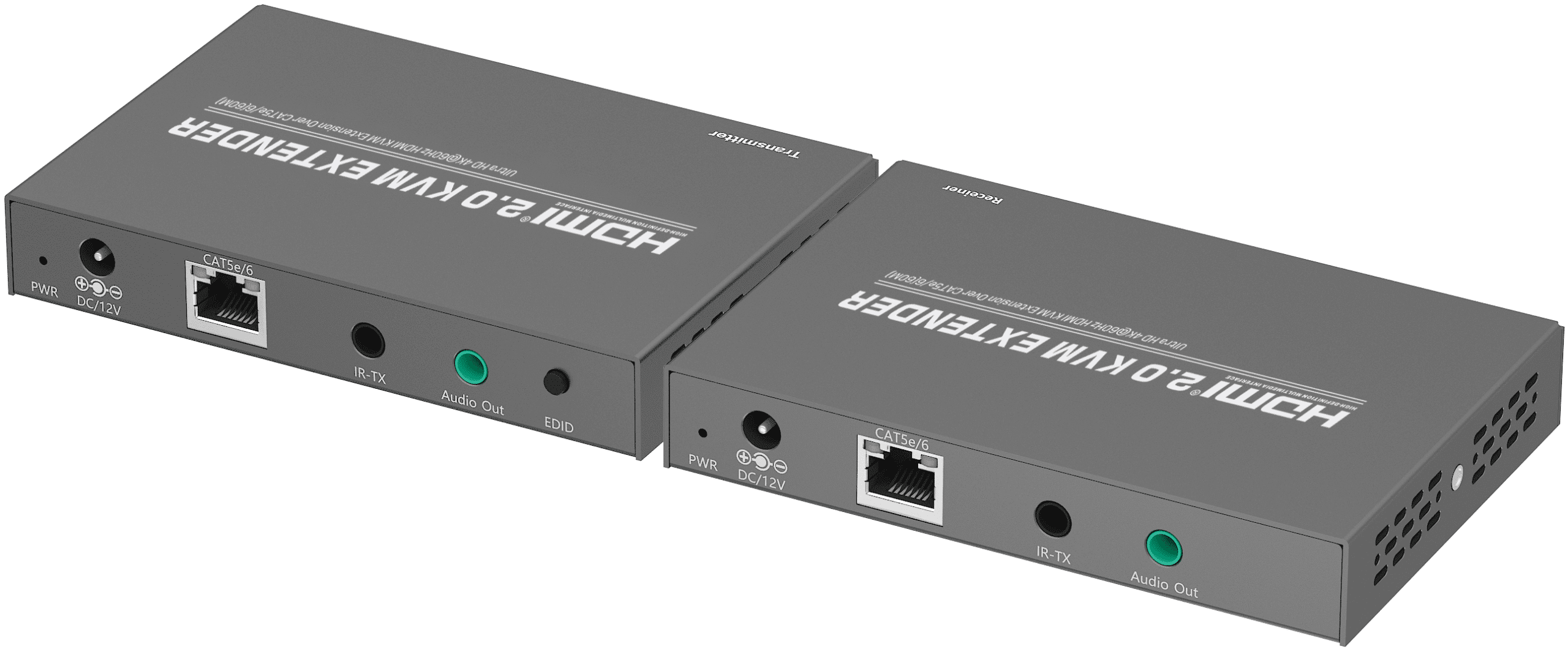

HDMI 2.0 KVM Extender Over Single CAT5e/6 (60Meter) (Ultra HD 4Kx2K@60Hz/IR/POC)
No need Software, Easy Install HDMI 2.0 KVM Extender up to 60meter with USB ports and Audio Extract
| Weight | 400 g |
|---|---|
| Dimensions | 9 × 7 × 2 cm |
| HDMI Version | HDMI 2.0 |
| Resolution | Up to 4K2K@60Hz RGB/YCBCR 4:4:4 |
| HDCP | HDCP 2.2 |
| Transmission Distance | 4K2K@60Hz 4:4:4–60m, 1080P–70m (CAT6 cable) Recommend high level cable |
| Video Bandwidth | 18Gbps |
| Color space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| USB | 1.1 compliant,support remote-control by keyboard and mouse |
| POC | bi-directional IR, POC (Power over Cable) function |
Detailes About HDMI 2.0 KVM Extender Over Single CAT5e/6 (60Meter) (Ultra HD 4Kx2K@60Hz/IR/POC)
Overview
The HDMI KVM Extender use single CAT5e/6 (Recommend) cables up to 60 meters instead of HDMI Cable to transmit high definition signal,at the same time,you can control the source from a distance by using keyboard and mouse,for cutting down cost.
HDMI signal is distributed from source device such as PC,DVR/NVR, Satellite Receiver,Set-Top Box, DV Camera,A/V Receiver and other HDMI enabled device to one or more high definition display device such as HDTV and HDMI Flat panel Display.
Features:
1.Signal transmission: CAT5e/6(recommend) or higher level cable to 60Meter.
2.Support HDMl2.0 and HDCP2.2 protocol.
3.Video format support: 4K@60Hz/1080p/720p/576p/480p
4.Support video format up to 4k2k@60Hz with 24bit RGB/YCBCR 4:4:4,and up to 4k2k@60Hz with 12bit YCBCR4:4:4.
5.Audio format support: TDS-HD/Dolby-true HD/LPCM7.1/DTS/Dollby-AC3/DSD.
6.Support Transmitter with HDMI loop out
7.Support EDlD select.
8.Support long distance controlled by keyboard and mouse.
9.Support 20-60KHz IR working,NEC.
10.Support POC power supply.
11.Support Transmitter and Receiver Audio Extract.
Packing list
1.HDMI KVM Transmitter——————————–1 PCS
2.HDMI KVM Receiver ———————————-1 PCS
3.IR-TX Cable —————————————-1PCS
4.IR-RX Cable ——————————1 PCS
5.USB Data Cable ——————————1 PCS
6.Power Supply ——————————1 PCS
7.User Manual——————————————-1 PCS
Specifications
