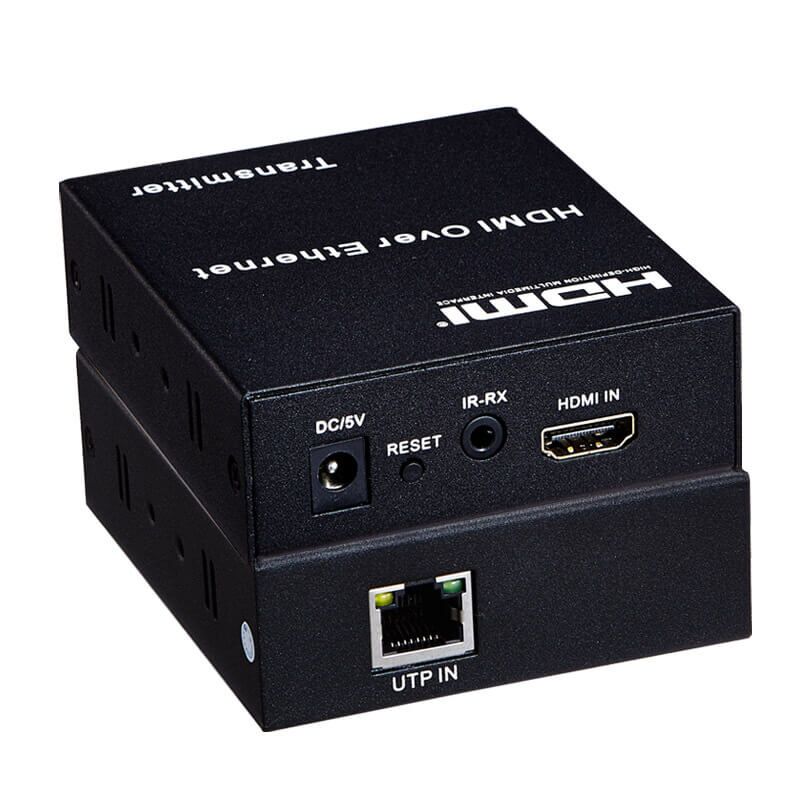

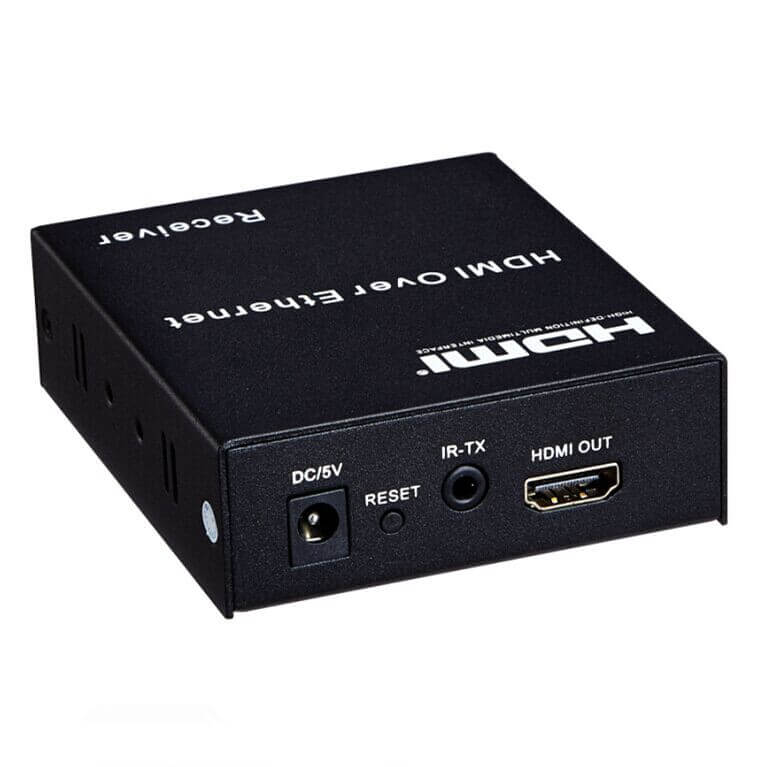

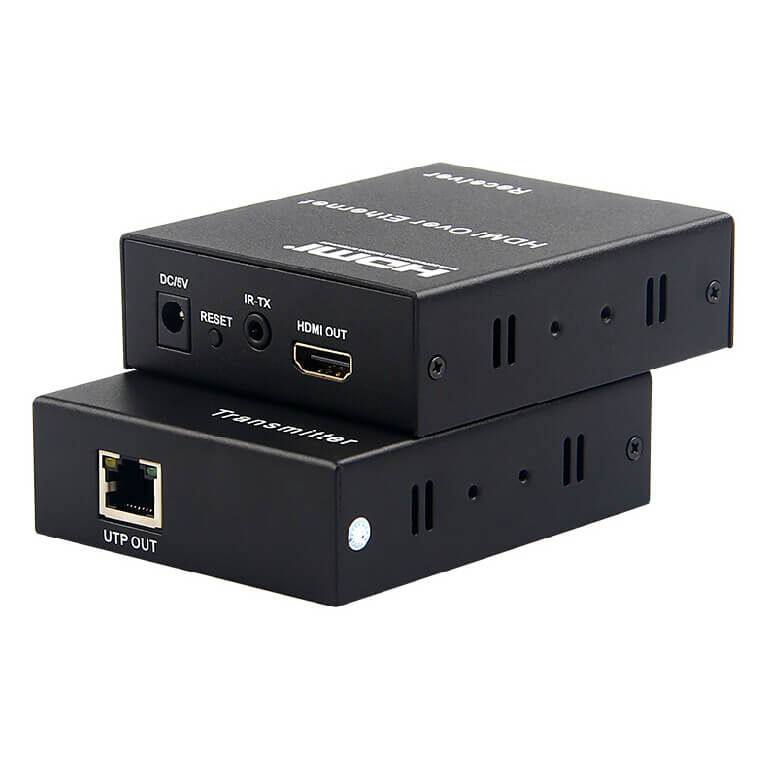

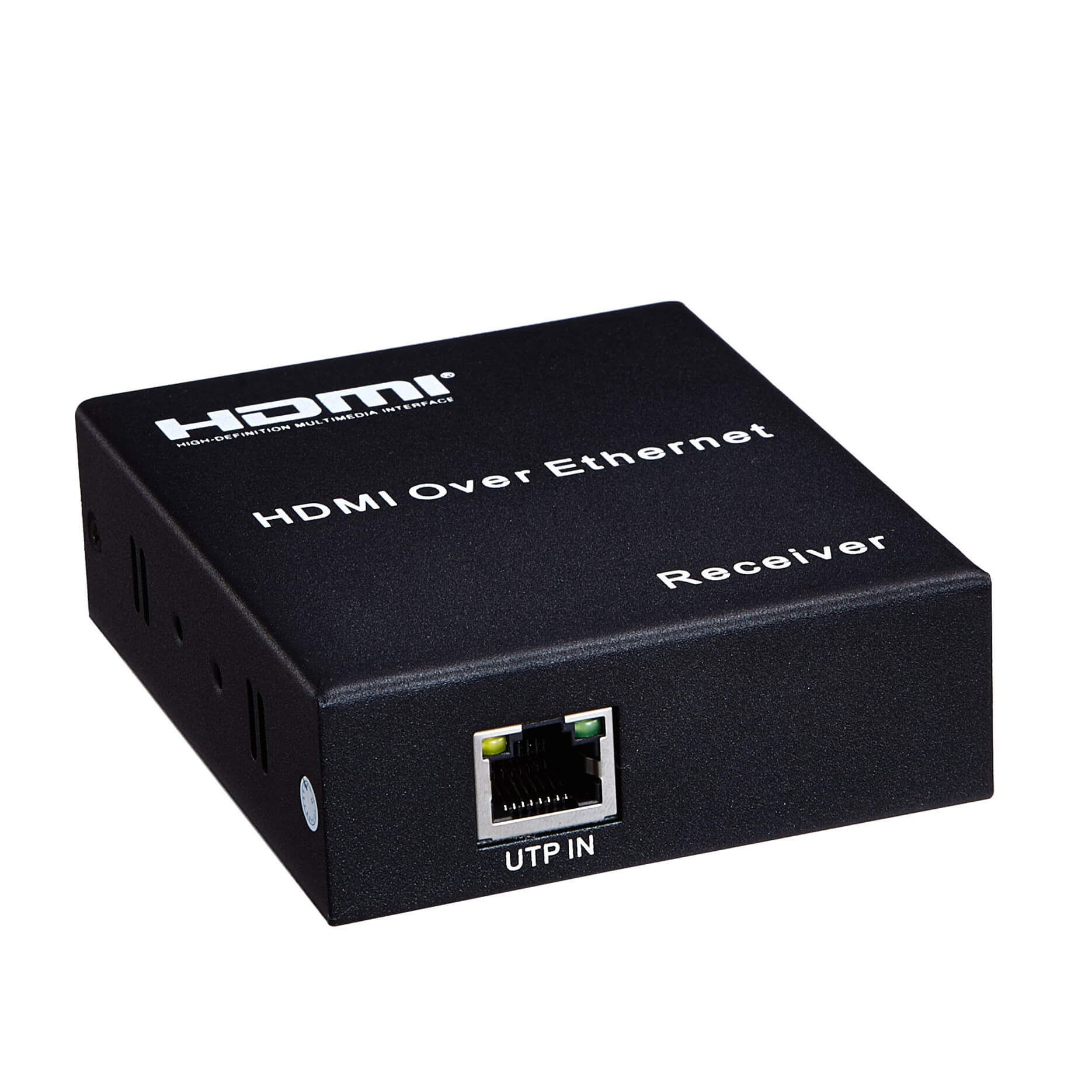

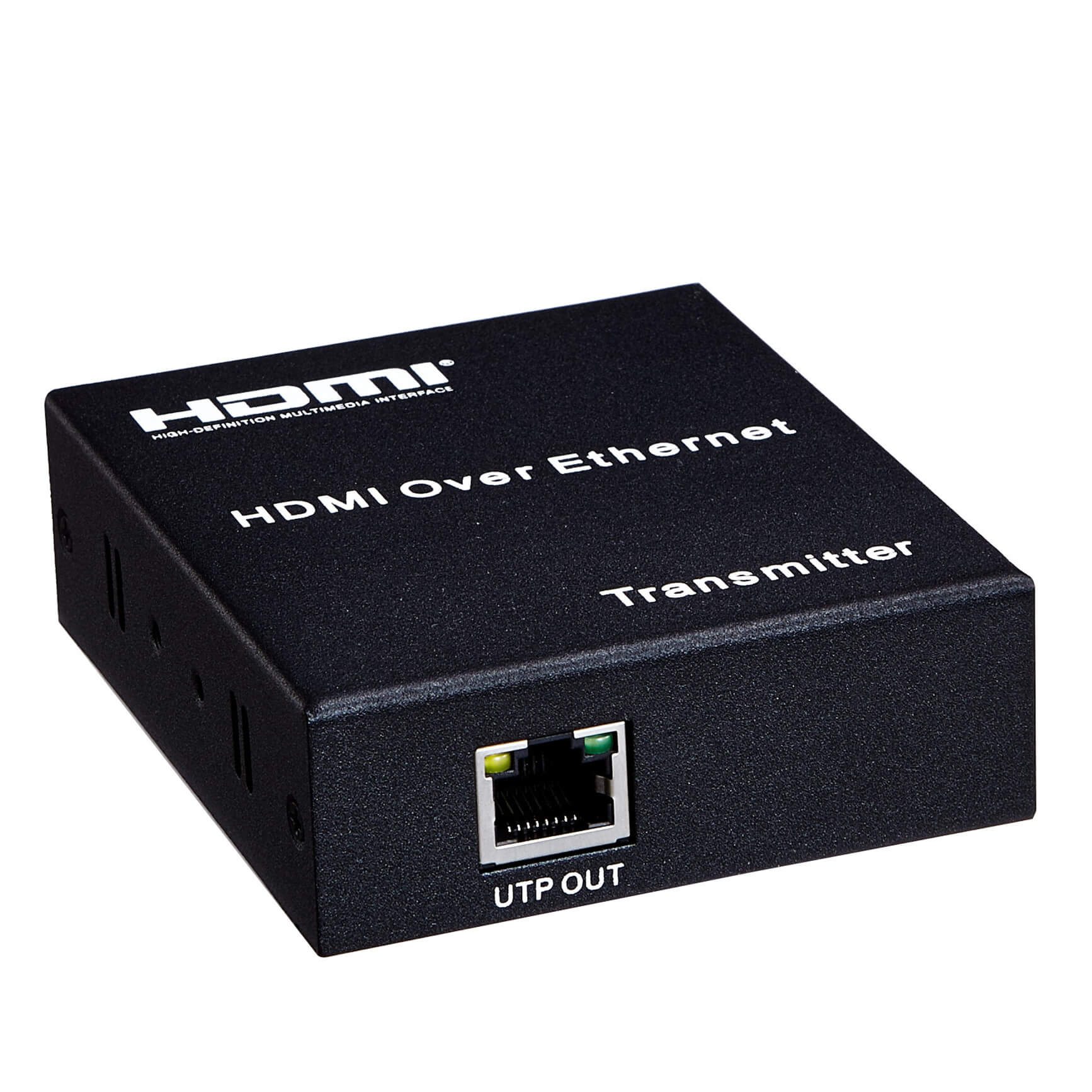

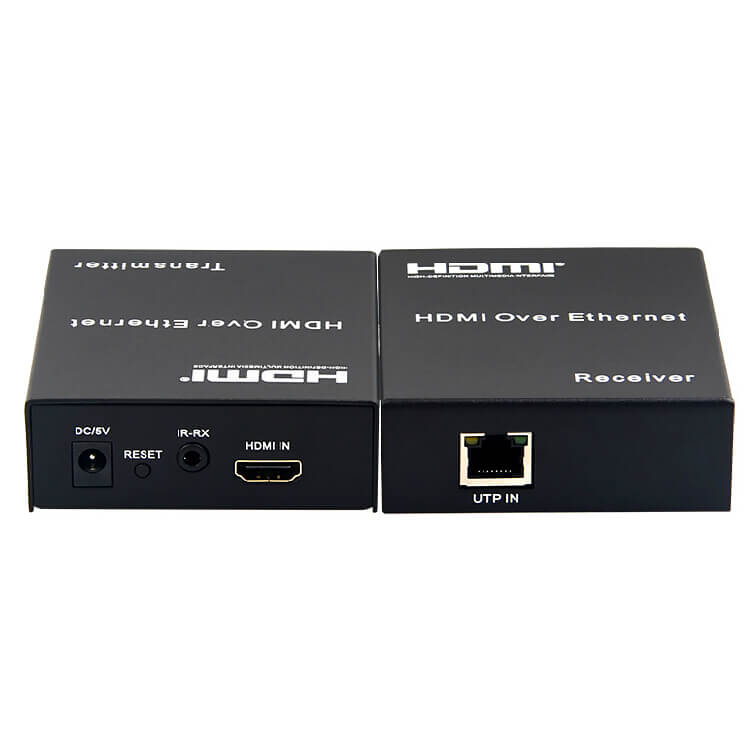

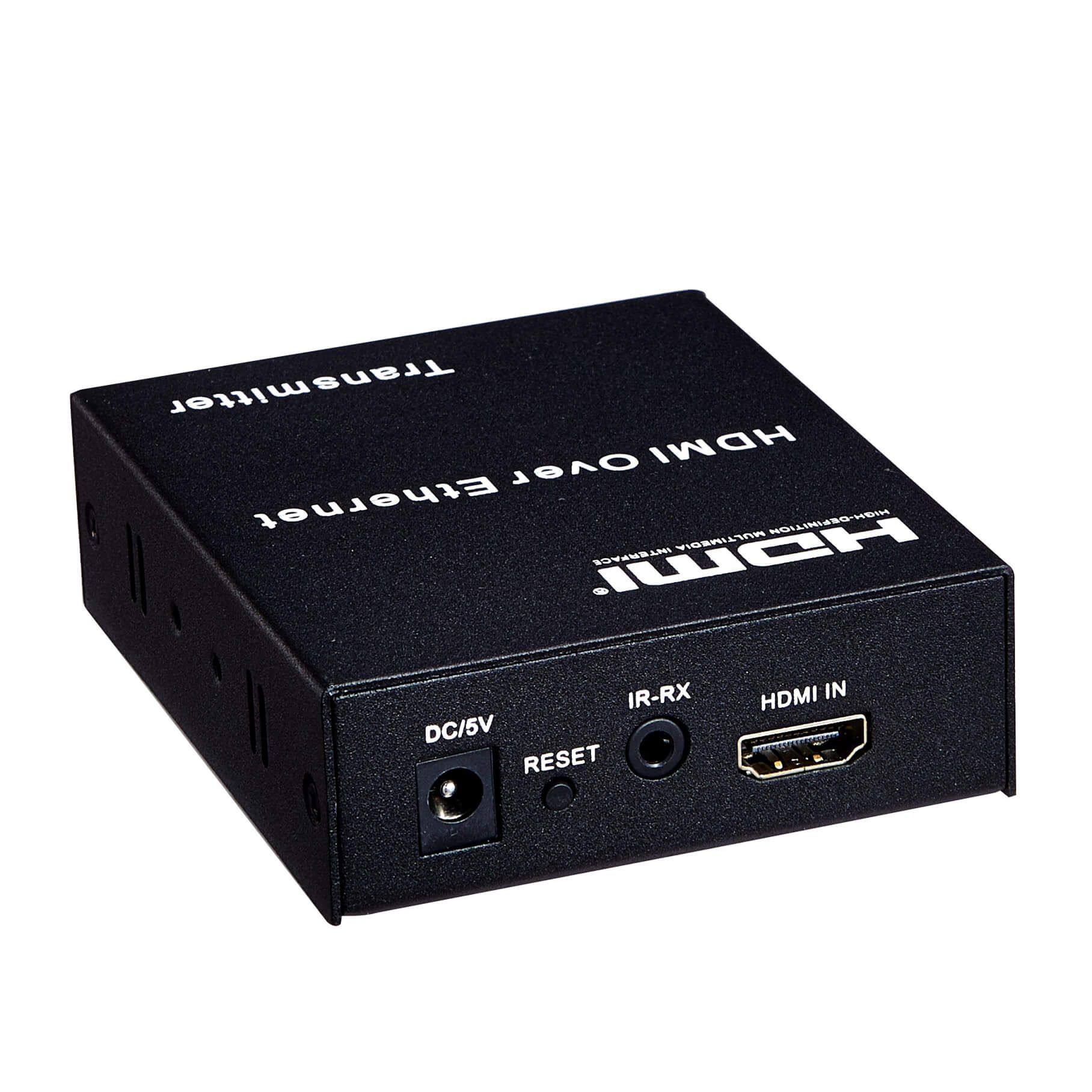

120Meter(393ft)1080P HDMI over one Cat6 Extender with IR

HDMI Extender By Single Cat 6/7 Full HD 1080P with IR control, router connection up to 253 displays



Additional information

Weight 260 g
Dimensions 9.28 × 7.91 × 2.8 cm
HDMI Version

1.4a, 1.65Gbps

Resolution

FULL HD 1080P 60HZ

HDCP

HDCP1.4

Cat6 Cable Perfomance

120Meter, 393 Feet HD Transmission

Markets

Retail, Residential

Detailes About 120Meter(393ft)1080P HDMI over one Cat6 Extender with IR

Features
Extend full 1080p video signal up to 393 feet using 1 CAT6 cable
Follows standard IEEE-568B

Compatible with PC control.

Support one point to many application and connect with router,Compact size
RoHS Compliant

Description
HDMI extender is your low-cost solution when an HDMI signal needs to be extended up to 393 Feet.

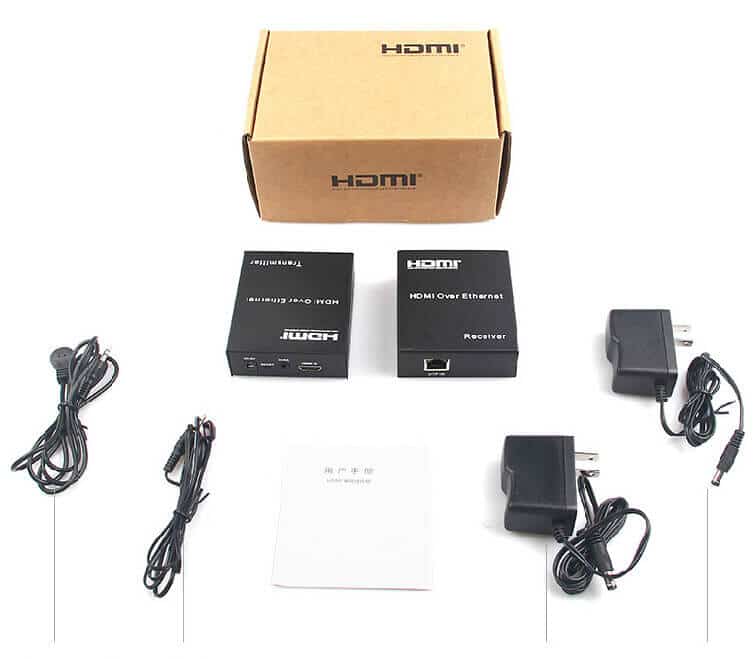

This extender features one-direction IR control,you can send IR signals more than 400ft length (added the cable length between transmitter with source and receiver with TV) control your DVD player over at your television.In addition, the extender is also included with UL listed power adapters.

Sinowell Extender Ir Control

Connect with router and display up to 253 monitors.  ( you need to buy extra receivers)

6 One To Many SPECIFICATIONS:

Length of CAT-6/CAT-5E cable between Rx and TX……Up to 120 meters (393FT)

HDMI Input….24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio input…DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD

HDMI Output…..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio output……DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD

Max bandwidth……165MHz

Max baud rate……1.65Gbps

Input video signal …… 0.5~1.5Volts p-p

Output DDC signal ……… 5Volts p-p (TT1L)

Input HDMI cable distance…..≤15m AWG26 HDMI standard cable

Output HDMI cable distance……… ≤20m AWG26 HDMI standard cable

TX Max working current…….510mA

RX Max working current…….100mA

Power adapter format……Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range…… (-15 to +55℃)

Operating Humidity range……5 to 90%RH (No Condensation)

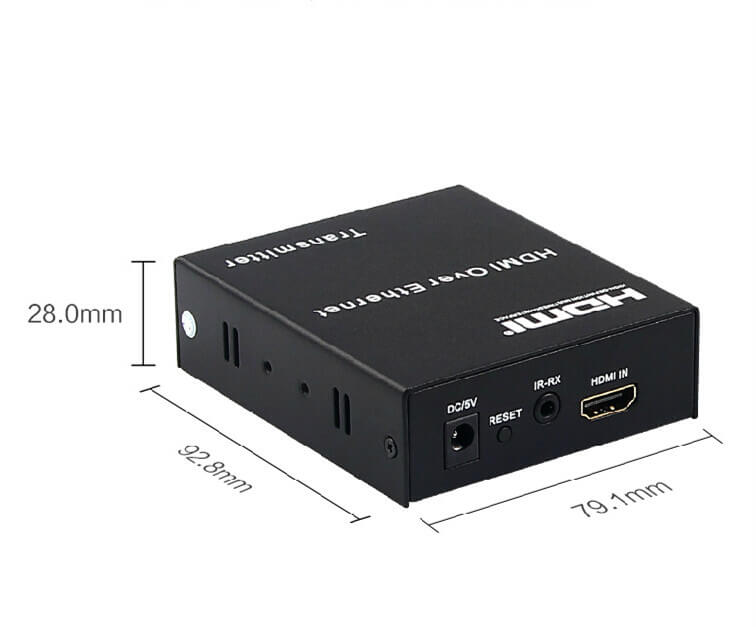

Dimension (L x W x H)     …92.8×79.1×28 (mm)
