4K@60Hz 4:4:4 USB-C HDBaset 3.0 KVM Extender Over a single CAT6A/7 cable 40m-70m

18Gbps HDBaset 3.0 KVM USB2.0 Extender over One Cat6a/7 up to 70m with IR, RS232 control,POC

with USB-C input

Additional information

Weight 800 g
Dimensions 15 × 8 × 3 cm
HDMI Version

HDMI 2.0

Resolution

4K@60Hz 4:4:4

HDCP

HDCP2.2

Transmission Distance

4K60 / 40m; 4K30 / 70m; 1080P / 70m (CAT6/6A cable)

Video Bandwidth

18Gbps

IR & RS232

Support bidirectional IR and RS232 control

Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Detailes About 4K@60Hz 4:4:4 USB-C HDBaset 3.0 KVM Extender Over a single CAT6A/7 cable 40m-70m

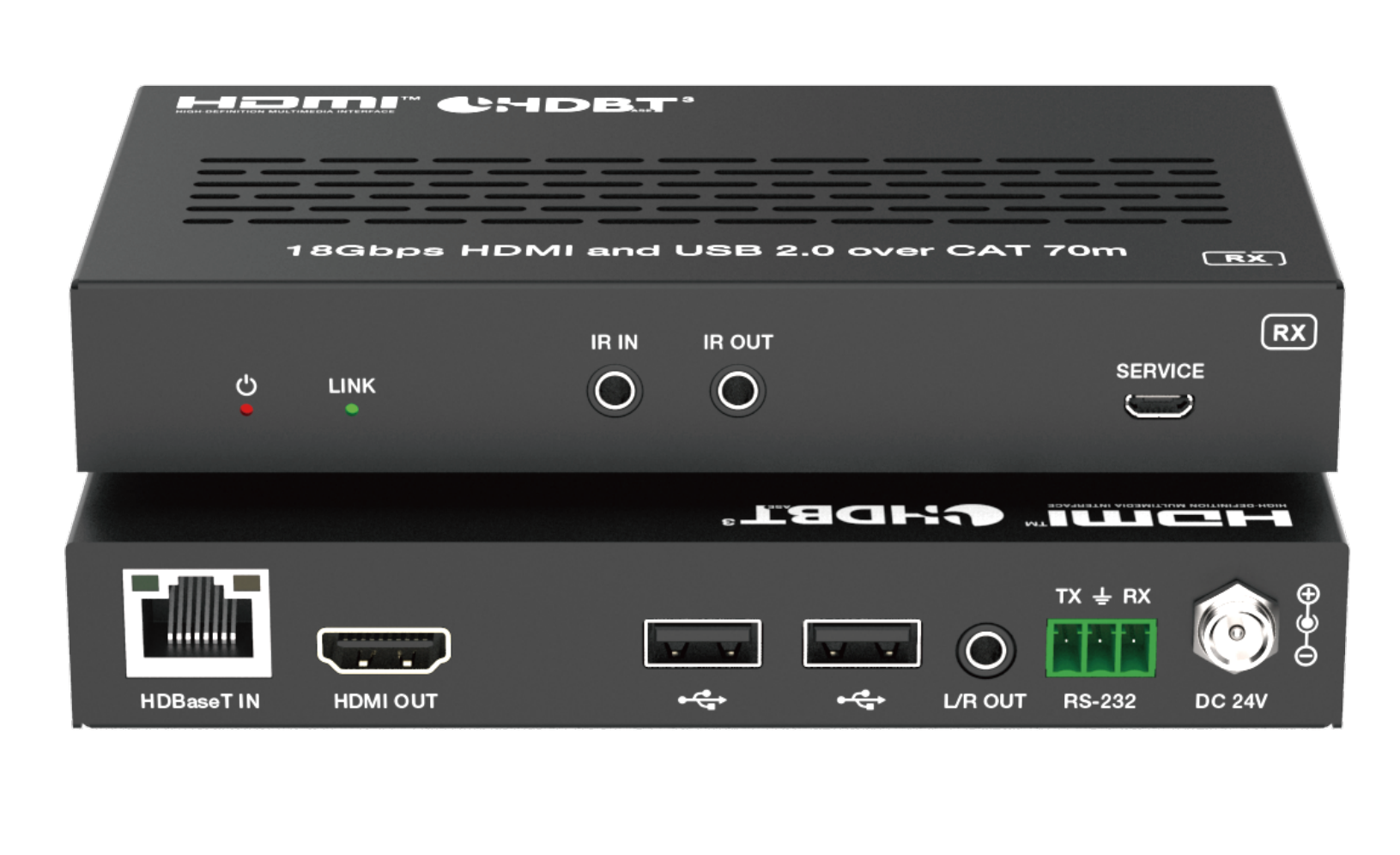

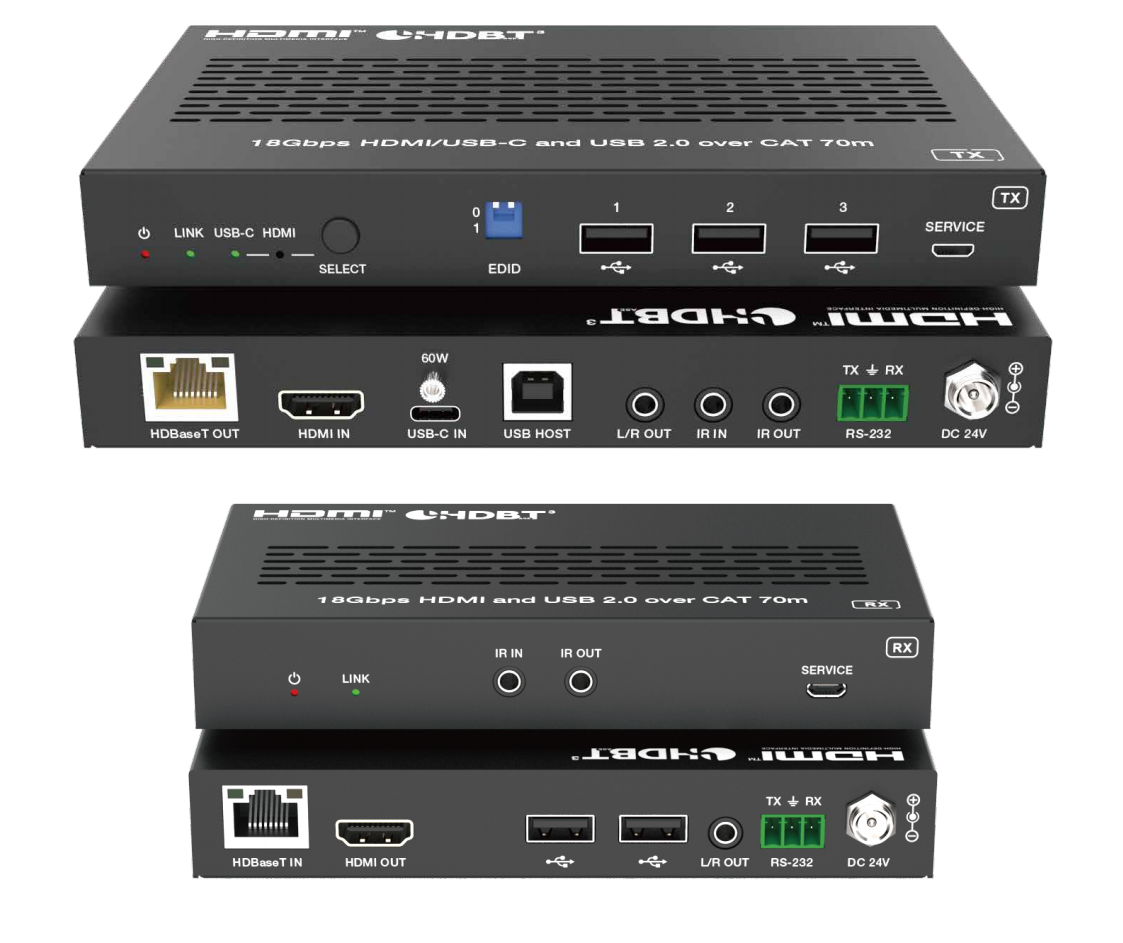

HDMI 4K60 70M HDBaset 3.0 with

USB-C and HDMI input

4k@60hz 4:4:4 hdbaset 3.0 kvm extender over a single cat6/6a cable 40m 70m (复制)

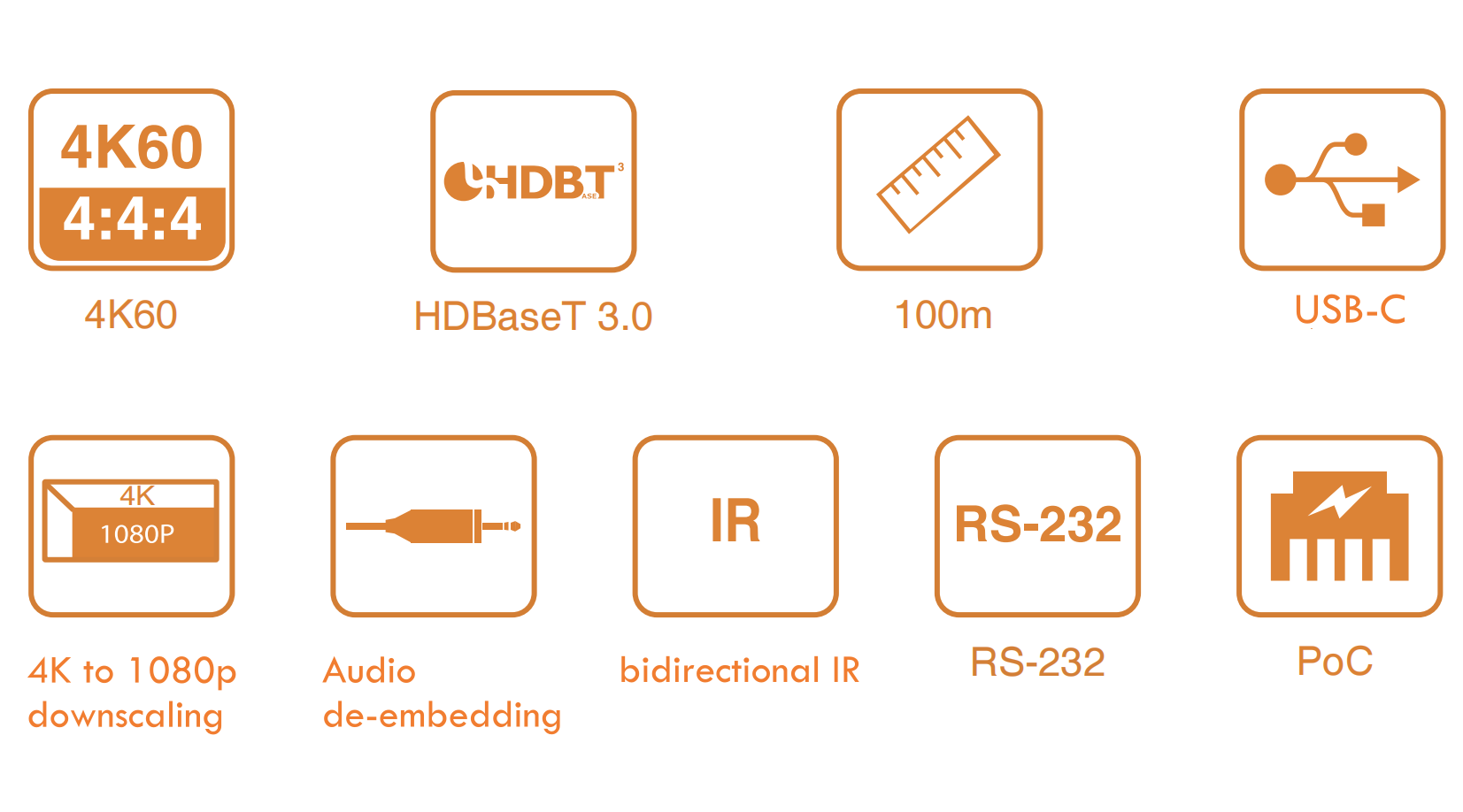

Features:

Complies with HDMI 2.0b and HDCP 2.2 specifications

Video resolution up to 4K60Hz 4:4:4

HDR, HDR10, HDR10+, Dolby Vision transparent transmission

Support LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

CAT6A/7 network cable can be up to 70 meters long

Both USB-C and HDMI inputs support automatic or manual switching modes

USB-C supports ALT-DP mode for A/V, USB 2.0 and up to 60W charging

HDMI output supports 4K to 1080p downscaling without frame rate conversion

EDID management

Both TX/RX support analog audio de-embedding

TX supports USB 2.0 hubs with 3 local USB client ports

USB 2.0, bidirectional infrared and RS-232 transmission

Bidirectional 24V PoC



4k@60hz 4:4:4 usb c hdbaset 3.0 kvm extender over a single cat6a cable 40m 70m
