4K@60Hz 4:4:4 HDBaset 3.0 KVM Extender Over a single CAT6/6A cable 40m-70m

18Gbps 2.0 HDBaset 3.0 KVM Extender over One Cat6/6a up to 70m with IR, RS232 control

Additional information

Weight 800 g
Dimensions 15 × 8 × 3 cm
HDMI Version

HDMI 2.0

Resolution

4K@60Hz 4:4:4

HDCP

HDCP2.2

Transmission Distance

4K60 / 40m; 4K30 / 70m; 1080P / 70m (CAT6/6A cable)

Video Bandwidth

18Gbps

IR & RS232

Support bidirectional IR and RS232 control

Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Detailes About 4K@60Hz 4:4:4 HDBaset 3.0 KVM Extender Over a single CAT6/6A cable 40m-70m

4K60 HDBaseT 3.0 Extender (70m/USB)

4k@60hz 4:4:4 hdbaset 3.0 kvm extender over a single cat6/6a cable 40m 70m

Introduction:

This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI signals, RS-232, bi-directional IR, and USB2.0 signals up to 230ft/70m (4K30/1080P) or 131ft /40m (4K60) via a single CAT6/6A cable.

Video resolution is up to 4K2K@60Hz YUV 4:4:4.

The Transmitter supports HDMI input and audio de-embedding.

The Receiver supports HDMI output and audio de-embedding.

The Extender supports bi-directional RS-232 and IR signal pass-through, EDID management, USB2.0 signal transmission and bi-directional POC function.

The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and it is the perfect solution for home/commercial applications.

4k@60hz 4:4:4 hdbaset 3.0 kvm extender over a single cat6/6a cable 40m 70m

Features:

☆ HDMI 2.0b and HDCP 2.2 compliant

☆ Support 18Gbps video bandwidth

☆ Support video resolution up to 4K2K@60Hz (YUV 4:4:4)

☆ HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass through

☆ LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass through

☆ Transmission distance up to 230ft/70m (4K30/1080P) or 131ft/40m (4K60) via a single CAT6/6A cable

☆ Support bi-directional POC (Power over Cable), when TX or RX gets power, the other end does not need an external power supply

☆ Support 3.5mm analog audio de-embedding at TX and RX

☆ EDID management

☆ Support bi-directional RS-232 signal pass-through, bi-directional IR signal control, USB2.0 signal transmission

☆ Compact design for easy and flexible installation

Specification

Specifications Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit
HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,
DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
IR Level 12Vp-p
Transmission Distance 4K60 / 40m; 4K30 / 70m; 1080P / 70m (CAT6/6A cable)
Connections

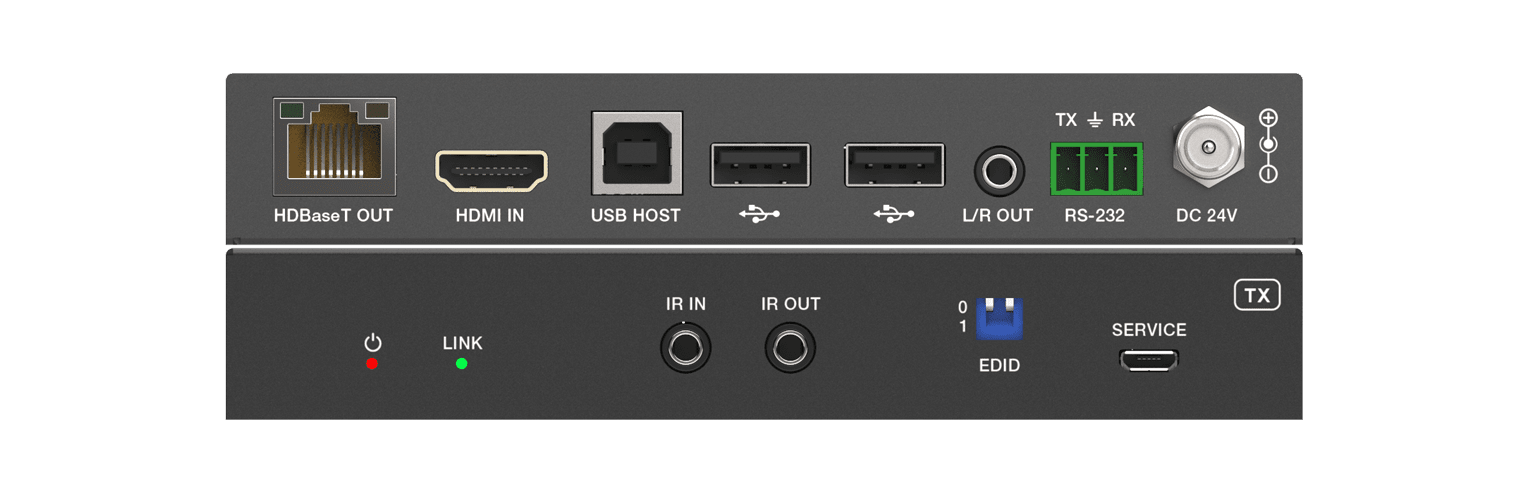

Transmitter Input:1x HDMI IN [Type A, 19-pin female]
Outputs: 1x HDBaseT OUT [RJ45 connector]
1x L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [3pin-3.81mm Phoenix jack]
1x SERVICE [Micro USB, 5-pin female]
1x USB HOST [USB Type B]
2x USB DEVICES [USB Type A]

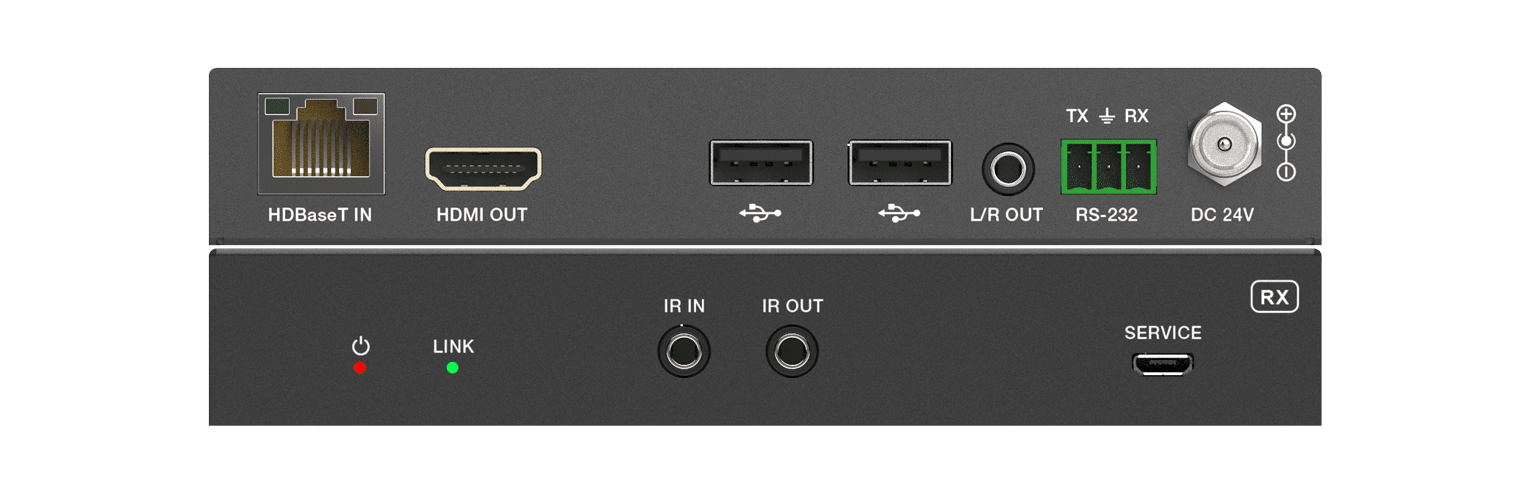

Receiver Input: 1x HDBaseT IN [RJ45, 8-pin female]
Outputs: 1xHDMI OUT [Type A, 19-pin female]
1x L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [3pin-3.81mm Phoenix jack]
1x SERVICE [Micro USB, 5-pin female]
2x USB DEVICES [USB Type A]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver:
144mm [W] x 78mm [D] x 23mm [H]
Weight Transmitter: 323g, Receiver: 319g
Power Supply Input: AC 100 – 240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption 14.28W (POC)
Operation Temperature 32°F – 104°F / 0°C – 40°C
Storage temperature -4°F – 140°F / -20°C – 60°C
Relative Humidity  20 – 90% RH (no condensation)
