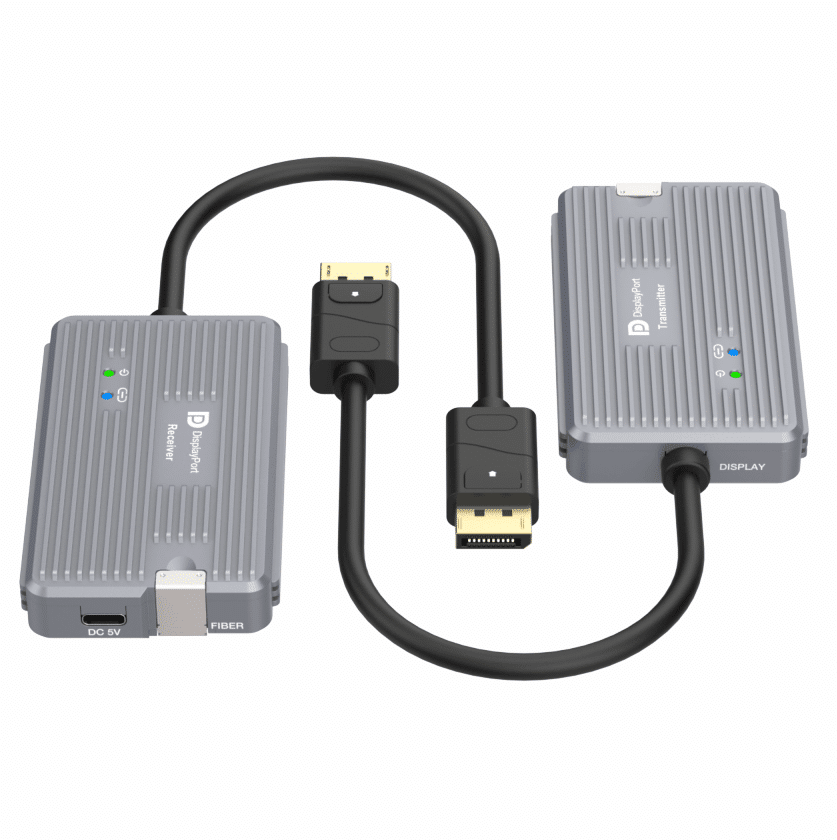

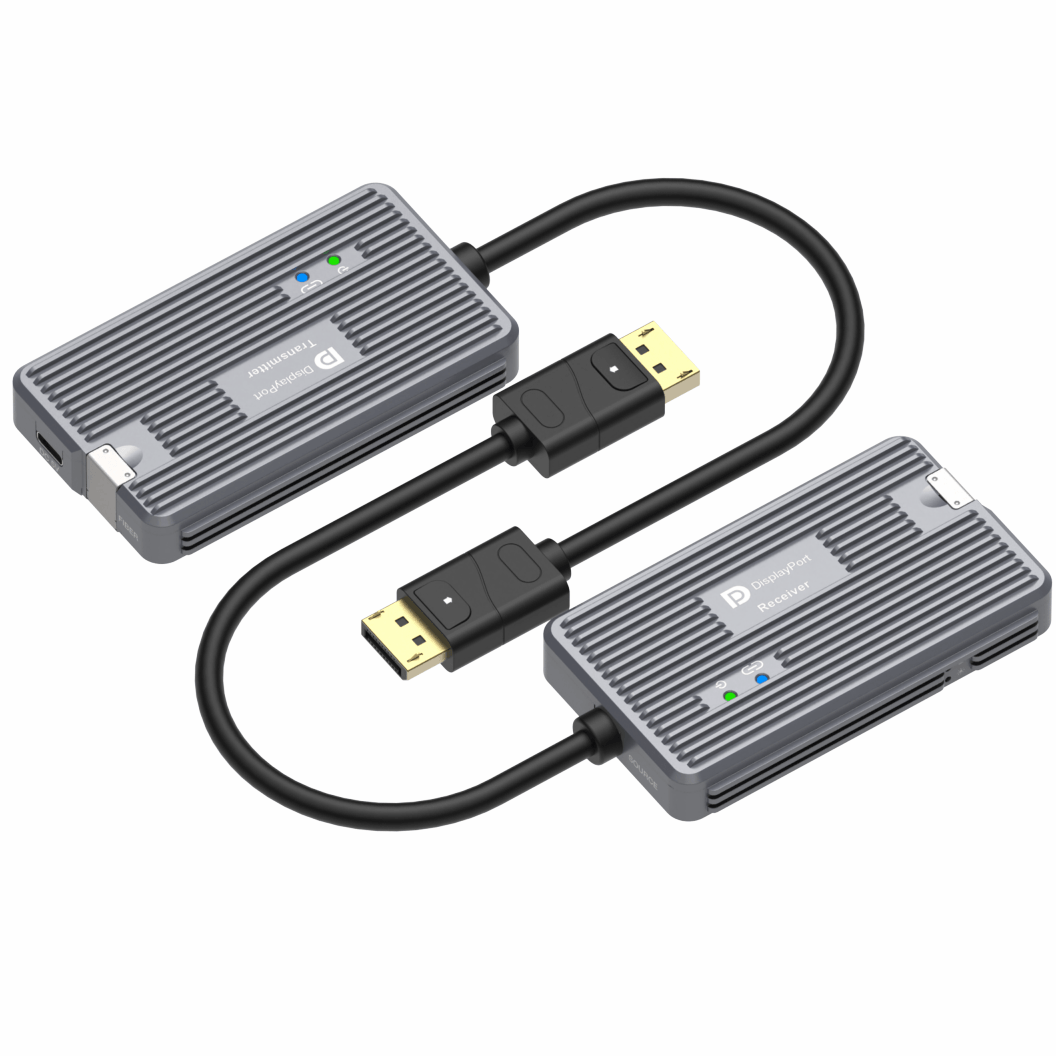

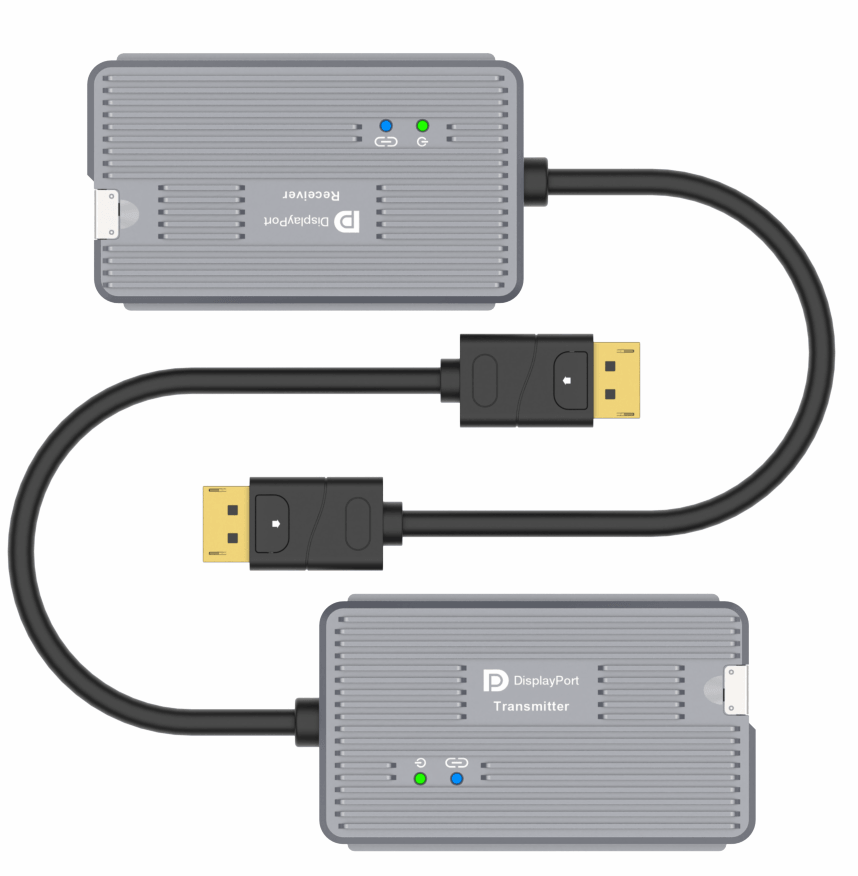

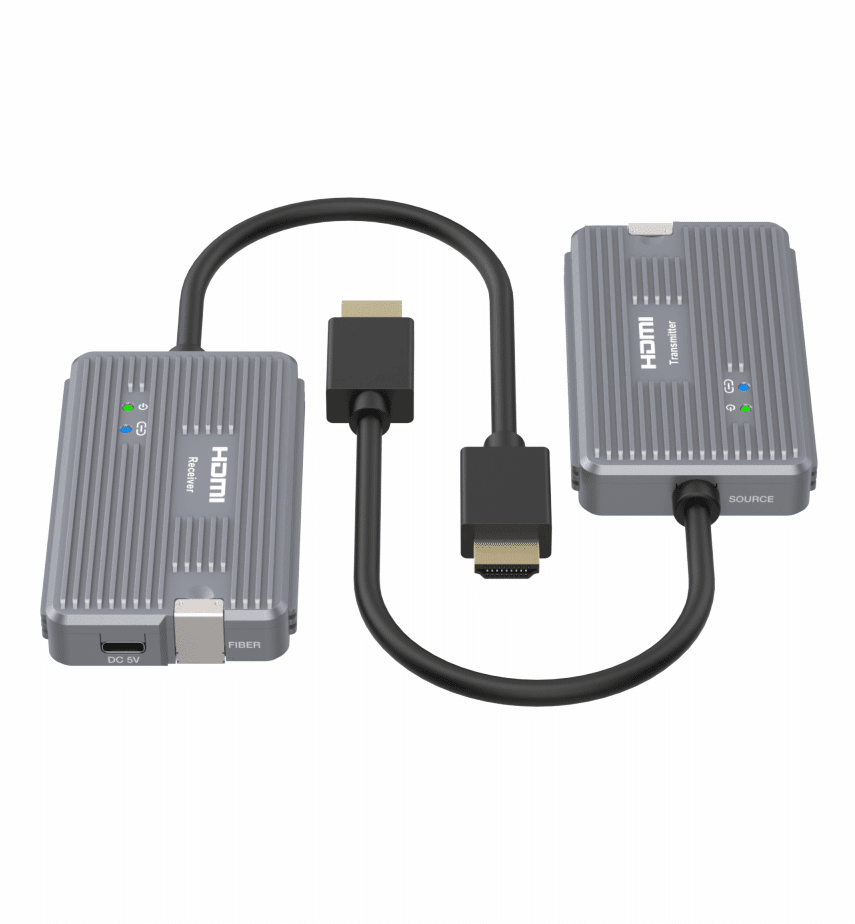

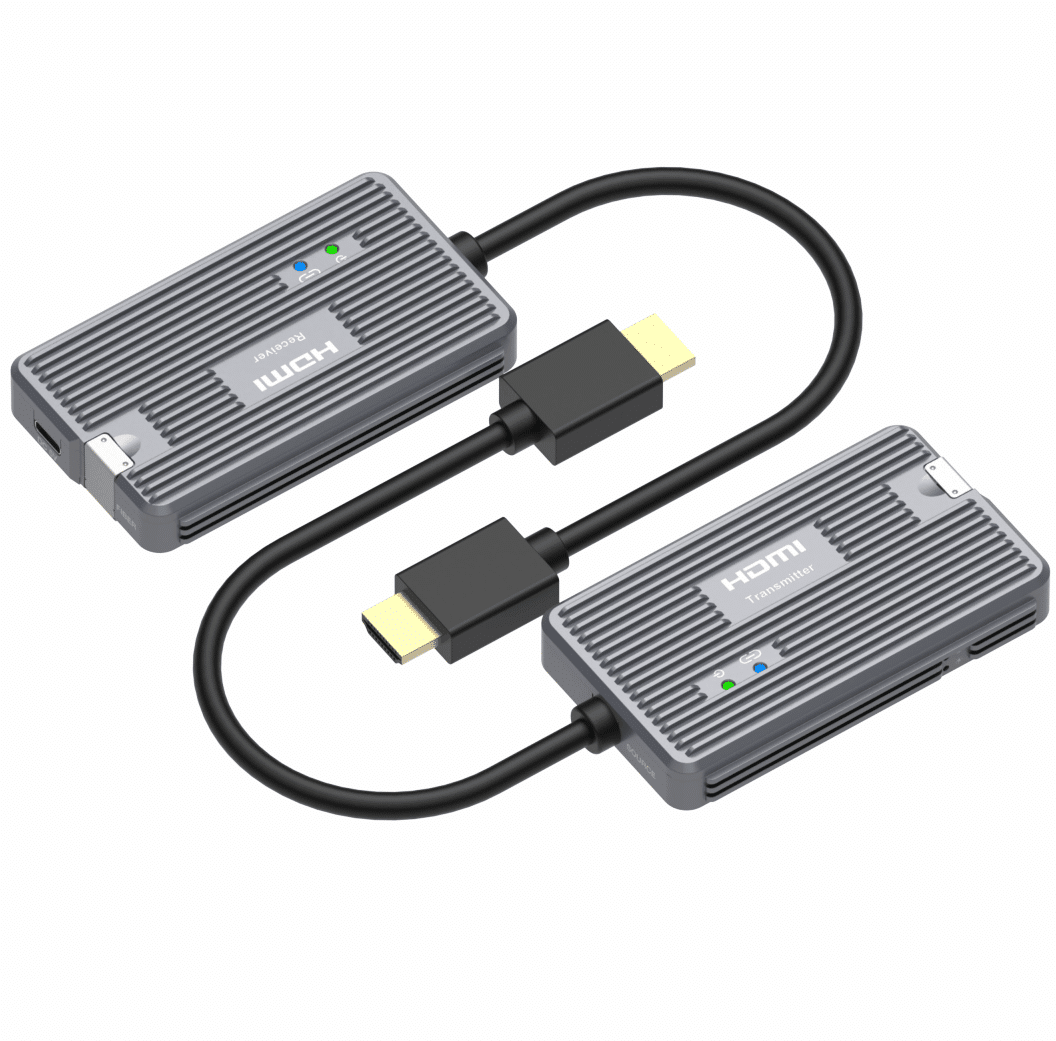

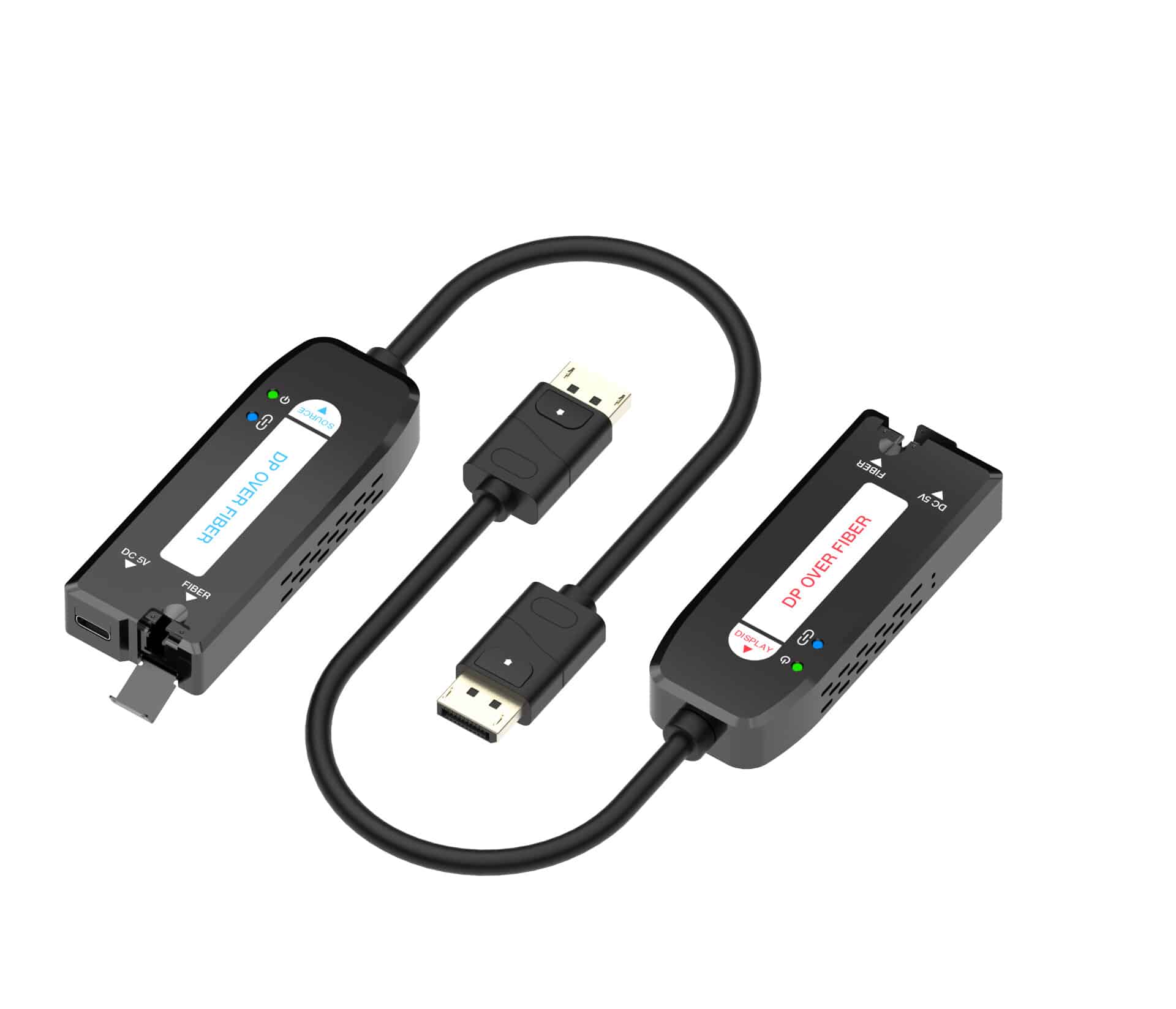

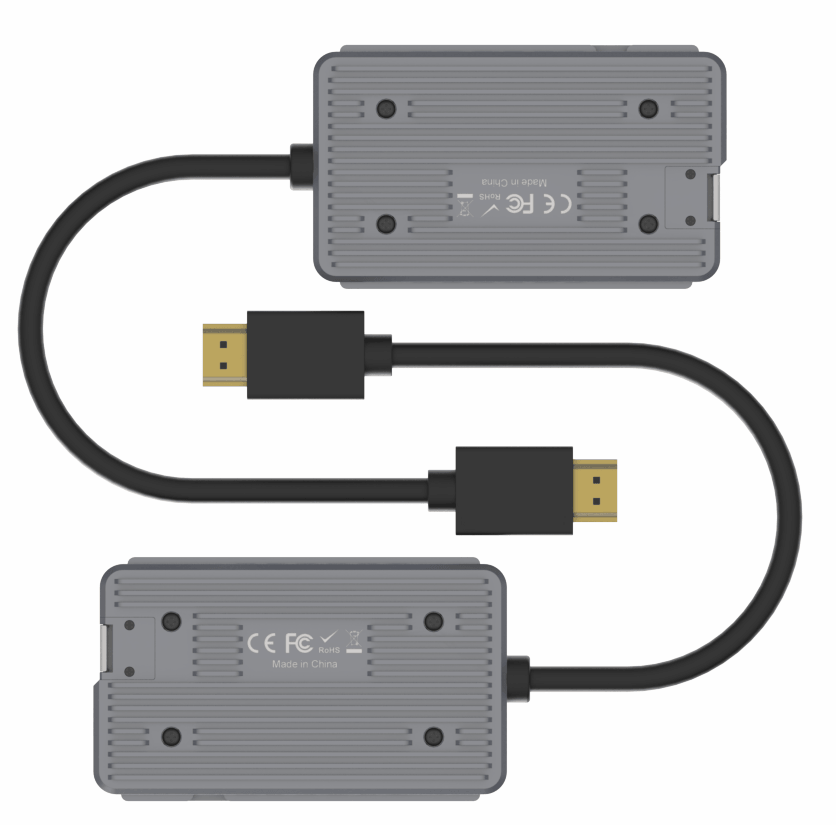

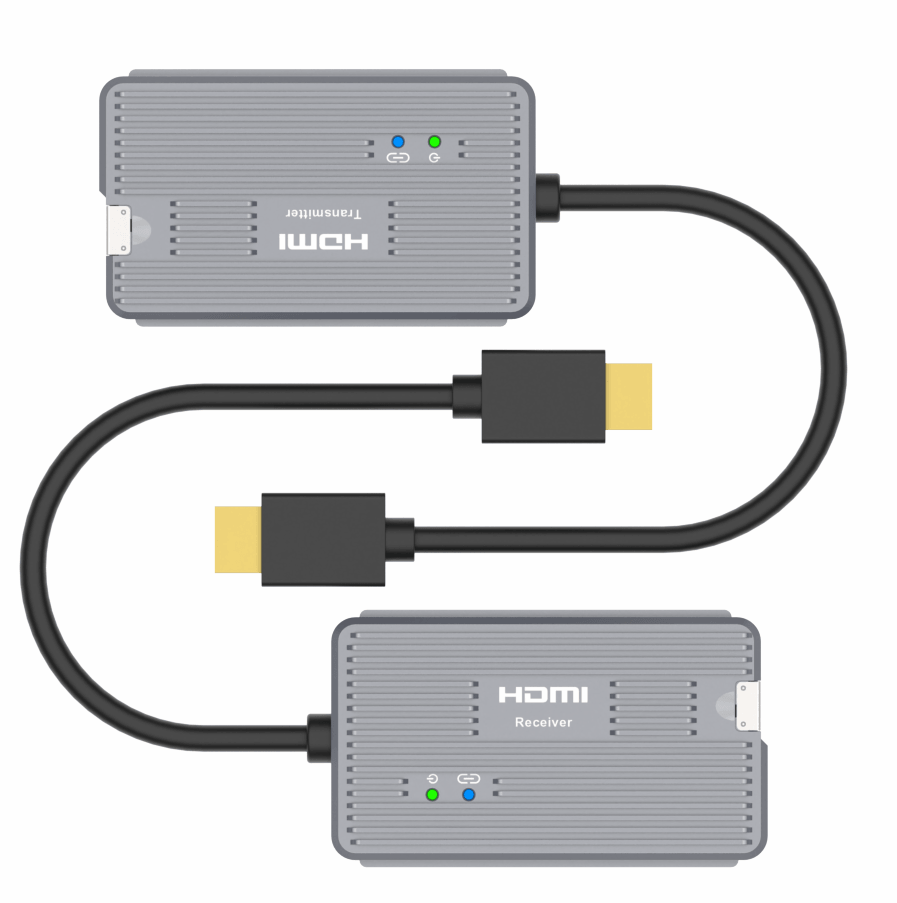

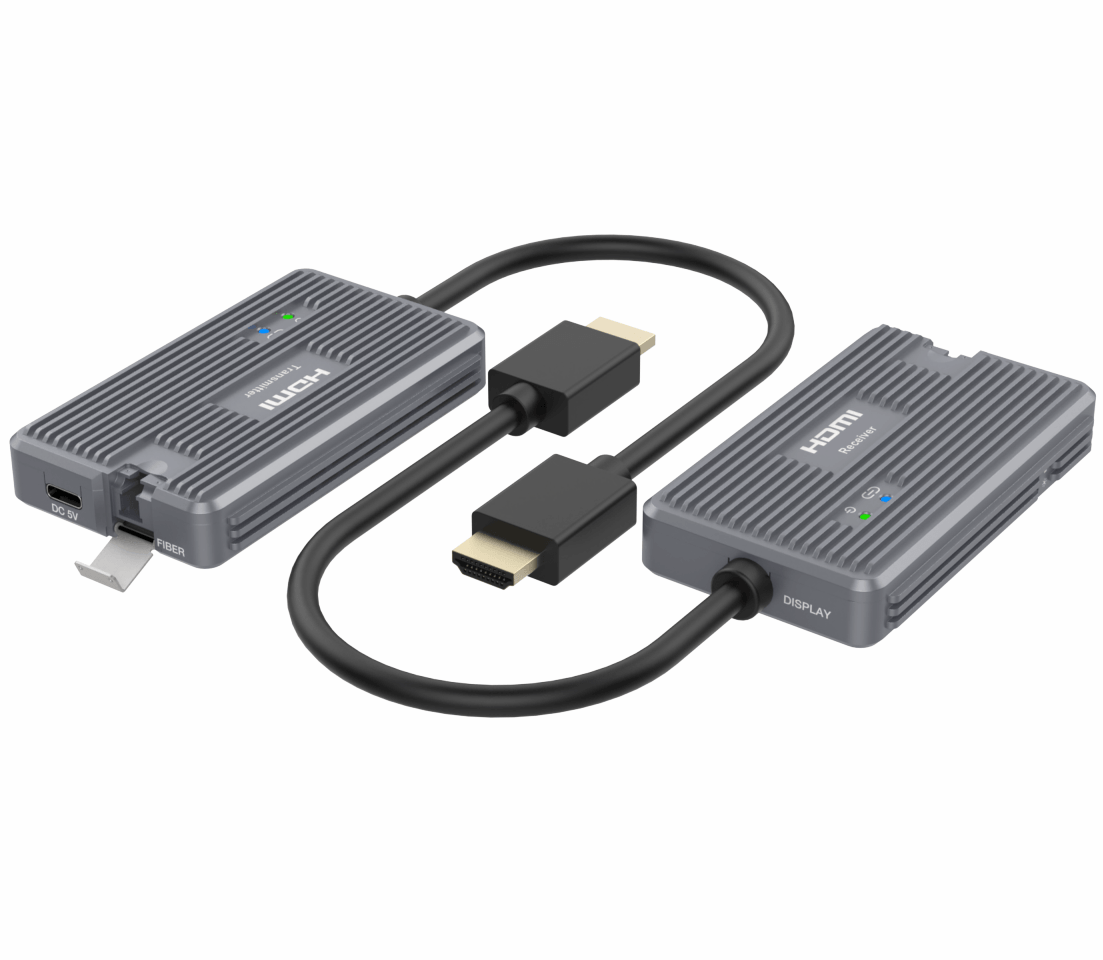

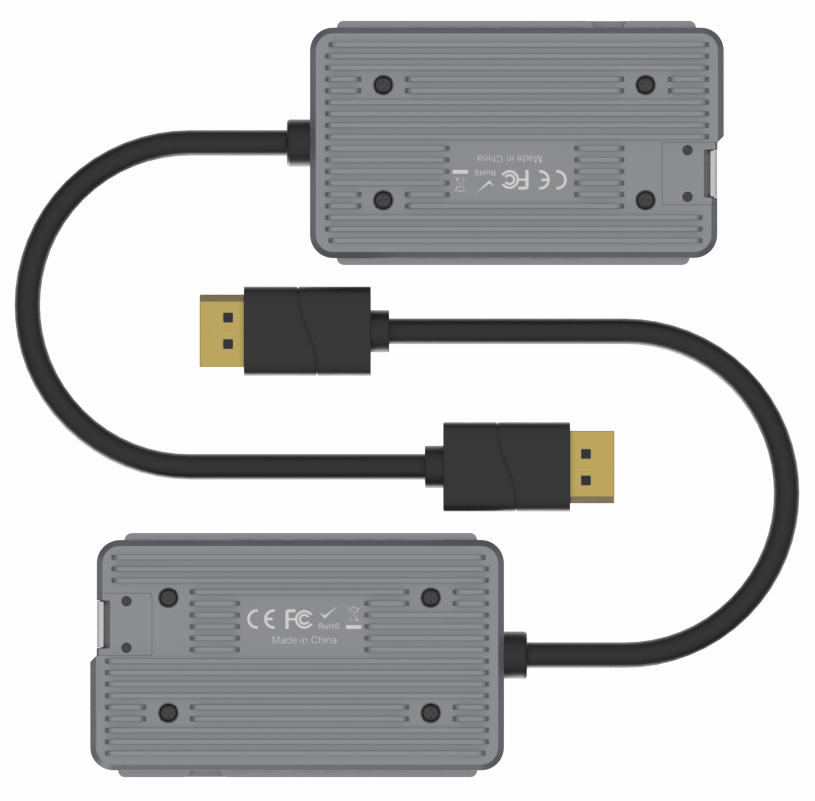

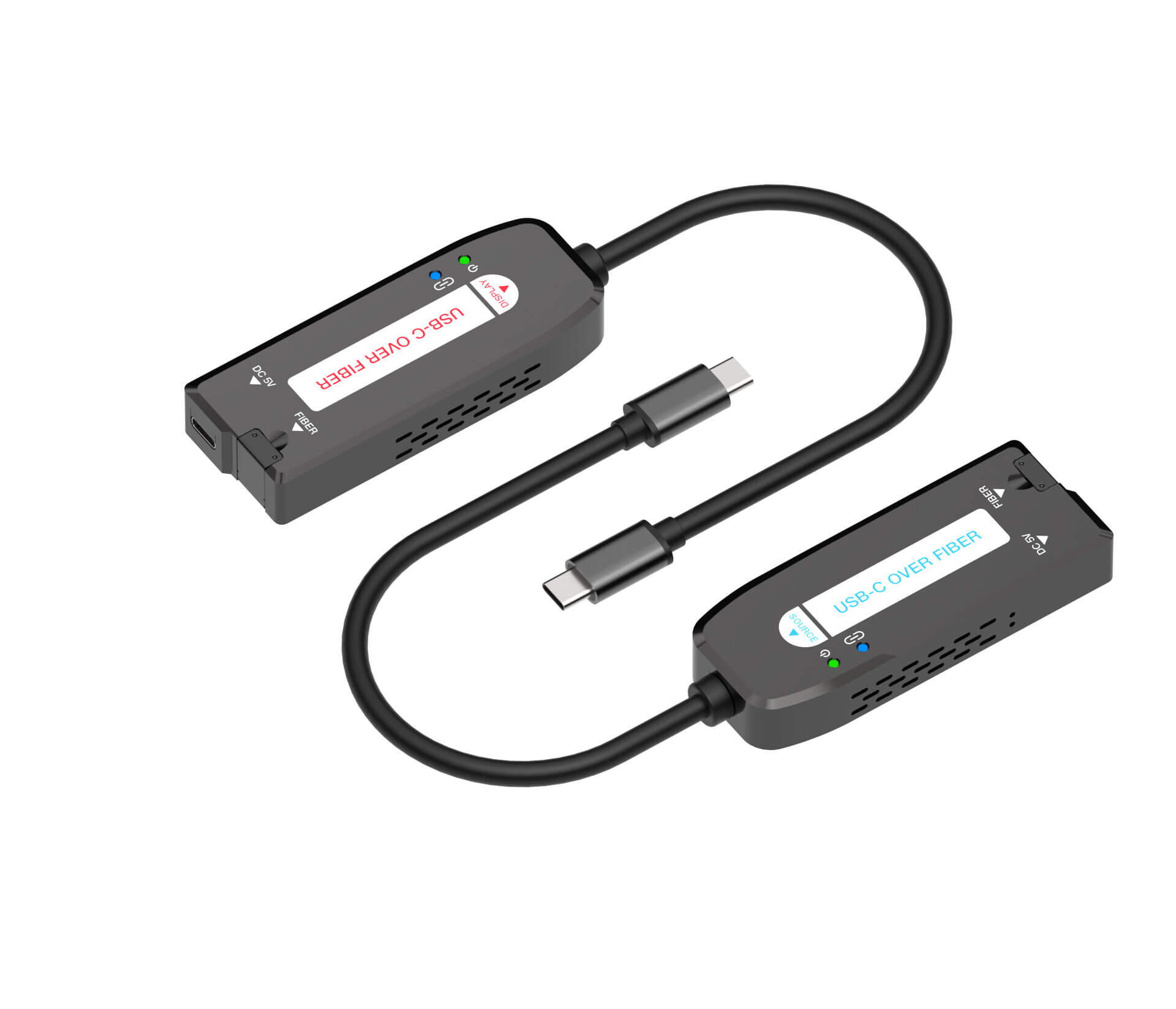

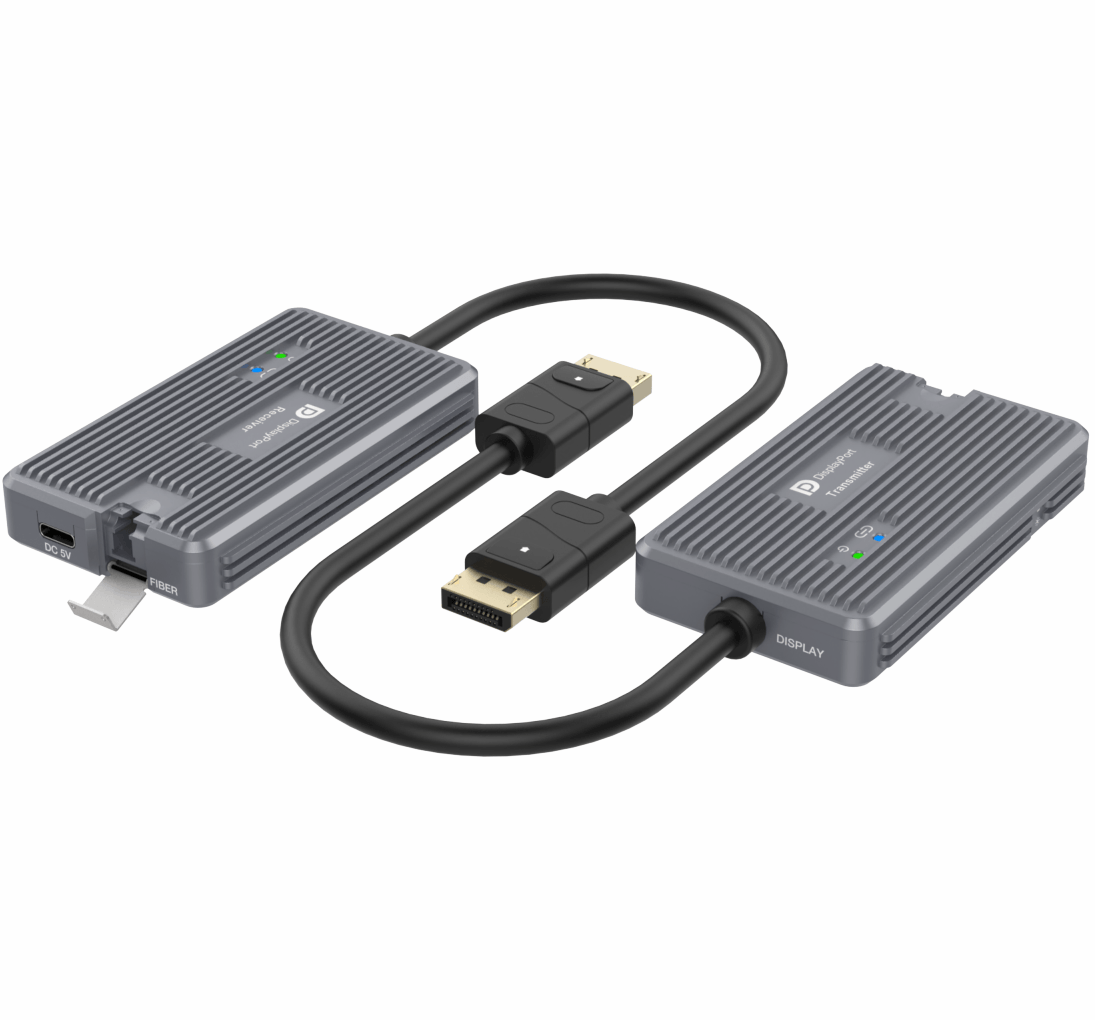

New Fiber Extender 4K@60Hz HDMI/USB-C/Displayport LC 10KM,with cable connector,mini pigtail extender
18Gbps 2.0 HDMI/DP 1.4 /USB-C Fiber Extender over One Fiber cable with Single module inside or replace to multi-mode with multi-module fiber up to 10KM
| Weight | 350 g |
|---|---|
| Dimensions | 8.9 × 3.5 × 1.4 cm |
| HDMI/DP/USB-C Version | HDMI 2.0b,HDMI 1.4b,Displayport 1.4a ,USB-C 1.1 (DP ALT mode) |
| Resolution | 4K@60Hz 4:4:4 |
| HDCP | HDCP2.2/2.3 and 1.x |
| Transmission Distance | Up to 10 km over single-mode fiber cable with single fiber module inside |
| Video Bandwidth | USB-C/DP up to 32.4Gbps (8.1/5.4/2.7/1.62Gbps) |
| Fiber Optic Module | 10G SFP+ module |
| ESD Protection | IEC 61000-4-2: |
| Audio | LPCM, Dolby digital/plus/EX, Dolby True HD, Dalby Atmos and DTS,DTS-EX,DTS-96/24,DTS-High res,DTS-HD Master.DTS:X Audio |
| HDR | HDR10, HDR10+,Dolby Vision,HLG |
Detailes About New Fiber Extender 4K@60Hz HDMI/USB-C/Displayport LC 10KM,with cable connector,mini pigtail extender
Overview
This HDMI Extender can extend HDMI signal up to 10KM (over single-mode fiber cable) or multi-mode fiber is suppoted in SFP modules.The distance over OM4 up to 300m.
Video resolution up to 4K2K@50/60Hz RGB 4:4:4. This product has the advantages of strong anti-interference, high safety performance, small size and light weight, and has incomparable advantages in long-distance transmission.
Features
☆ HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Video resolution up to 4K2K@50/60Hz 4:4:4, as specified in HDMI 2.0b
☆ Support any VESA standard resolution transmission
☆ Support 3D video format
☆ HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
☆ Transmission distance up to 10km (over a single-mode fiber cable)
* Multi-mode fiber is supported in SFP modules. The distance over OM4 is up to 300m
☆ EDID transmission from the receiver to transmitter
☆ EDID lock control
☆ Status LED for simple trouble shooting
☆ Dust-proof design on fiber optic port
☆ Compact design for easy and flexible installation
Package Contents
① 1× 4K60 HDMI over Fiber Extender (Transmitter)
② 1× 4K60 HDMI over Fiber Extender (Receiver)
③ 2× USB cable (USB Type A to Type C)
④ 1× User Manual
| Technical | |
| HDMI Compliance | HDMI 2.0b,1.4b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
|
Input & Output Video Resolution |
4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50,3840x2160p30, 3840x2160p25, 1920x1200p60RB,
1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60,1280x720p60, 1280x720p50, 1024x768p60 Any VESA resolution is supported. |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDMI
Audio Formats |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| Fiber Optic | 10G SFP+ module |
| Transmission Distance | Up to 10km over single-mode fiber cable
At least 300m over multi-mode OM4 fiber cable |
| ESD Protection | IEC 61000-4-2:
±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
|
Transmitter |
Input: 1x IN [HDMI Type A, 19-pin female] 1x DC 5V [USB-C, power input and FW update port]
Output: 1x Fiber [LC female] |
|
Receiver |
Input: 1x Fiber [LC female],
1x DC 5V [USB-C, power input and FW update port] Output: 1x OUT [HDMI Type A, 19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 89.8mm [W] x 34.5mm [D] x 14mm [H] |
| Weight | Transmitter: 127g, Receiver: 127g |
| Power Supply | USB 5V |
| Power Consumption | Transmitter: 3.2W (Max), Receiver: 2.2W (Max) |
| Operating Temperature | 32°F – 104°F / 0°C – 40°C |
| Storage Temperature | -4°F – 140°F / -20°C – 60°C |
| Operating Humidity | 20% – 80% (relative humidity, non-condensing) |
| Storage Humidity | 10% – 90% (relative humidity, non-condensing) |
(HDMI port support HDMI 2.0b,HDMI 1.4b,18Gbps)
(USB-C port support and Displayport port support DP 1.4a,HBR3,HBR2,HBR and RBR (8.1/5.4/2.7/1.62Gbps)
(Our current shipping extender includes single-model fiber inside,so it supports single mode fiber cable,if there is multi-mode fiber inside the extender, it supports multi-mode fiber cable )
DP connector Diagram
USB-C connection diagram

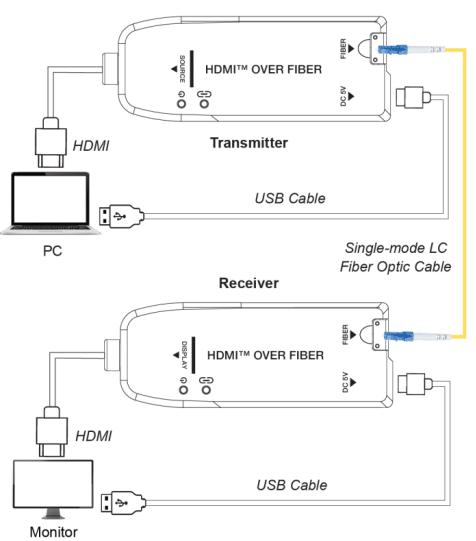

HDMI Connector diagram
