SPDIF RCA L/R Audio Extender over Cat5e/6 Cable 300m DAC PoC
Audio Extender over Cat Cable up to 300meter with DAC L/R, Spdif
| Weight | 300 g |
|---|---|
| Dimensions | 9 × 7.2 × 2 cm |
| Audio Formats | Optical: All audio formats, including LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH |
| Sample Rates | 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz and 192kHz up to 24-bit resolution |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Bitrate over Distance | 192kHz – 100m, 96kHz – 150m, 48kHz – 300m |
| Application | Plug and play solution for sending optical fiber and analog |
Detailes About SPDIF RCA L/R Audio Extender over Cat5e/6 Cable 300m DAC PoC
Overview

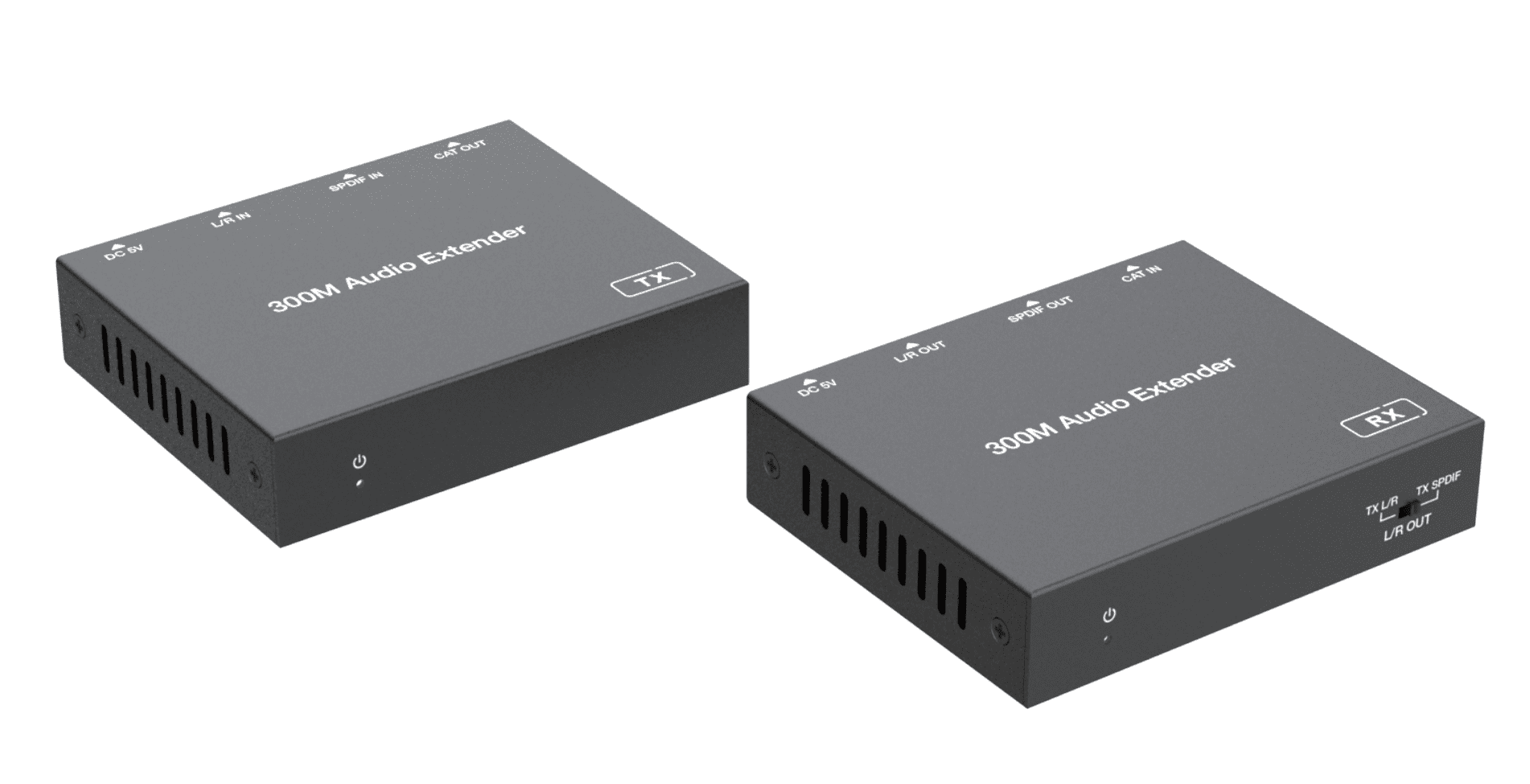

This Audio Extender can transmit digital optical and analog audio signals concurrently up to a distance of 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT5E/6 cable. The digital optical audio is directly passed from transmitter to receiver.
The analog audio output on receiver is selectable from the digital optical or the analog audio signal from transmitter. The extender supports bidirectional POC function. This is a fantastic plug and play solution for sending optical fiber and analog audio from an HDTV back to an amplifier, AVR or multi-room audio system which requires an analog stereo audio input signal.
Features:
☆ Extend optical fiber and analog audio signals up to a distance of 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT cable
☆ Audio formats support: LPCM, DTS, Dolby Digital and Dolby Digital Plus
☆ Support audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz and 192kHz up to 24-bit resolution
☆ Built-in DAC (Digital to Analog Converter), the analog audio output port can output digital audio or analog audio through the audio selection switch
☆ Support bidirectional POC function.
☆ Plug-and-play
☆ Small compact size
☆ Ultra-low jitter and high-fidelity design
Packing list
Specifications
| Technical | |
| Audio Bitrate over Transmission Distance | 192kHz – 100m, 96kHz – 150m, 48kHz – 300m |
| Supported Audio Formats | Optical: All audio formats, including LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH Analog: PCM 2.0 |
| Sample Rates | 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz and 192kHz up to 24-bit resolution |
| ESD Protection | Human Body model: +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge) |
| Connection | |
| Transmitter | Input port: 1 x SPDIF IN [Optical Audio Jack] 1 x L/R IN [RCA Stereo Audio jack] 1 x Micro-USB Output port: 1 x CAT OUT [RJ45] |
| Receiver | Input port: 1 x CAT IN [RJ45] 1 x Micro-USB Output port: 1 x SPDIF OUT [Optical Audio Jack] 1 x L/R OUT [RCA Stereo Audio jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter/Receiver: 90mm[W] × 72mm[D] × 20mm[H] |
| Weight | Transmitter/Receiver: 174g |
| Power Supply | DC 5V/1A |
| Power Consumption | 1.5W (Max) |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |

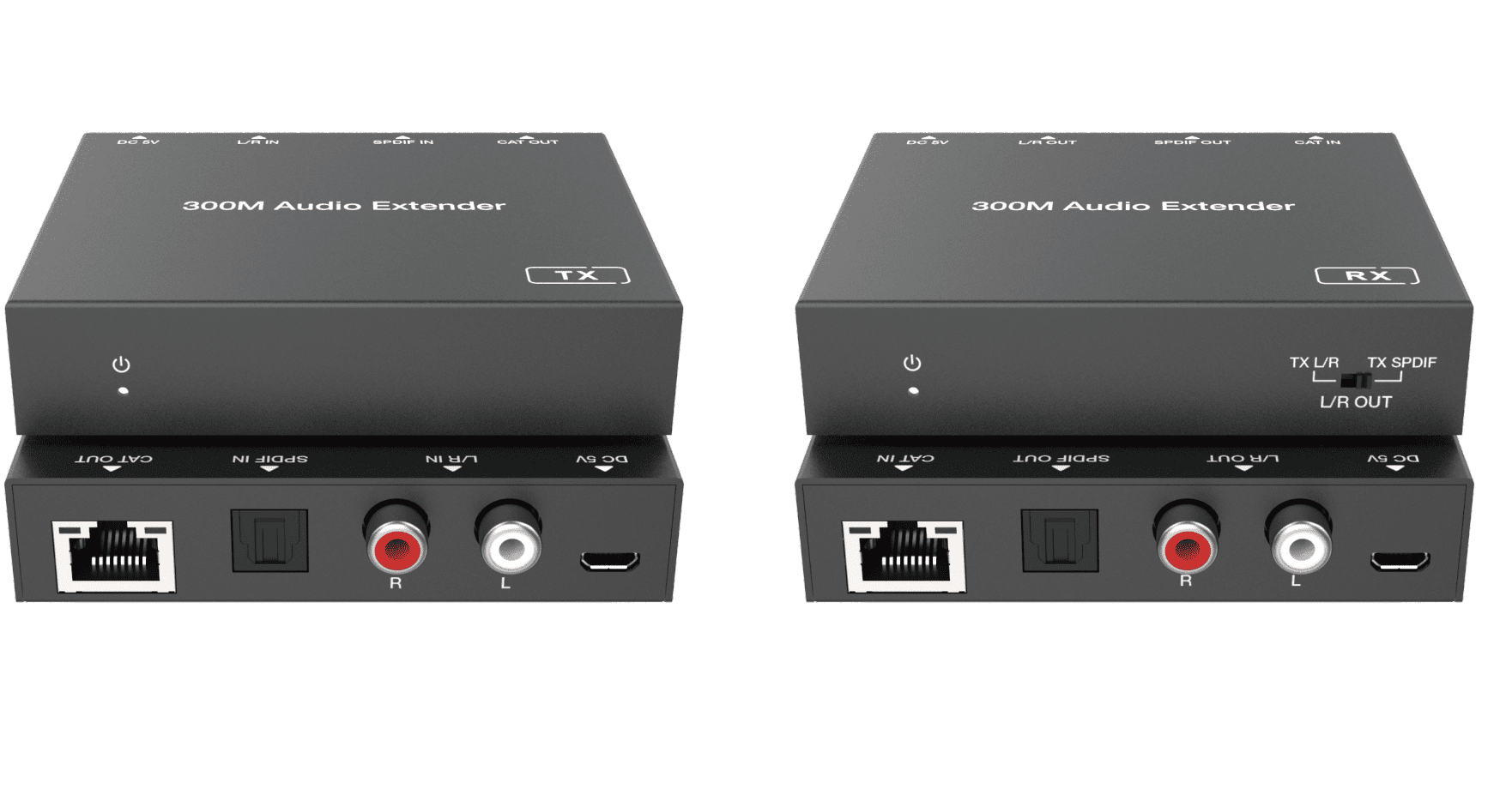

Interface:

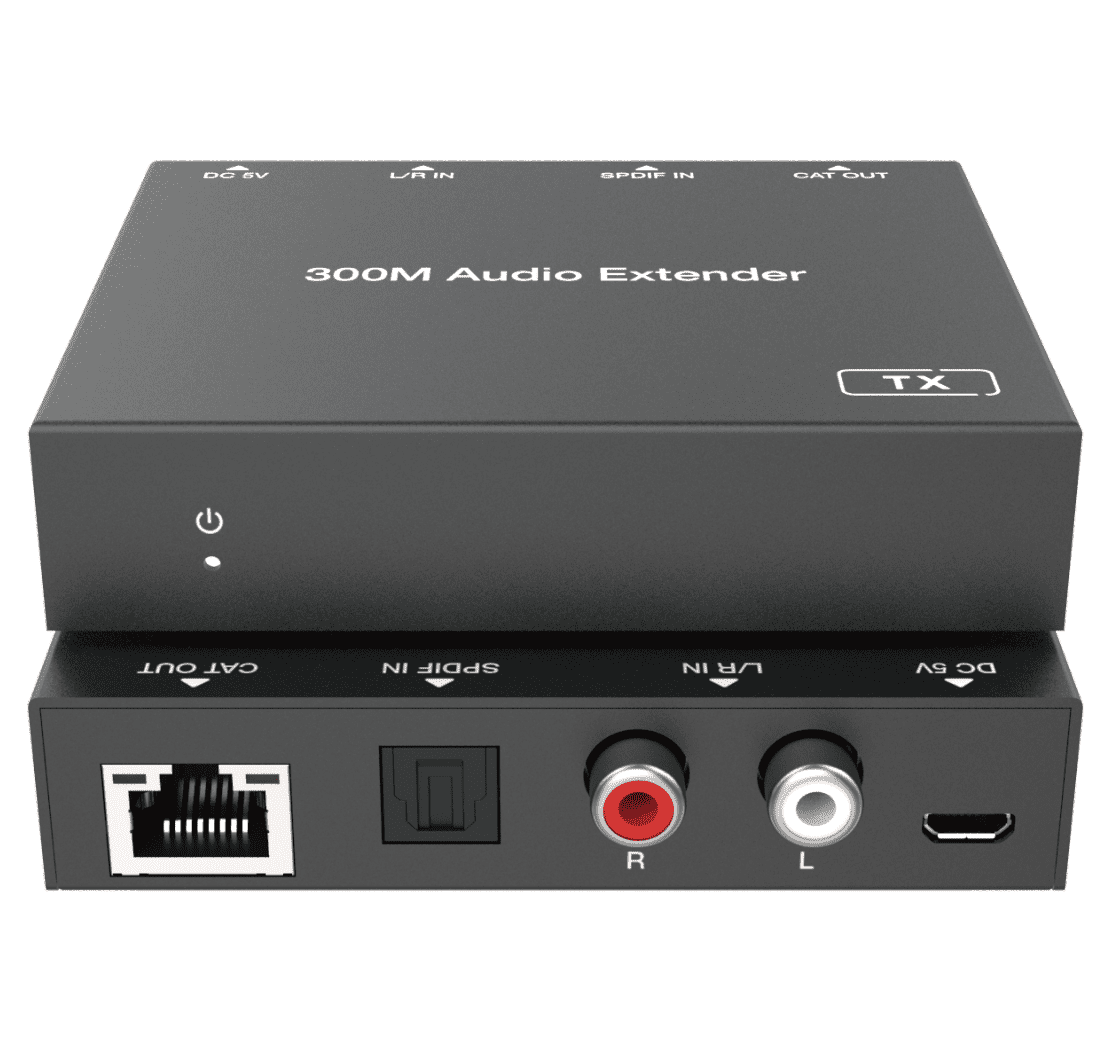

TX

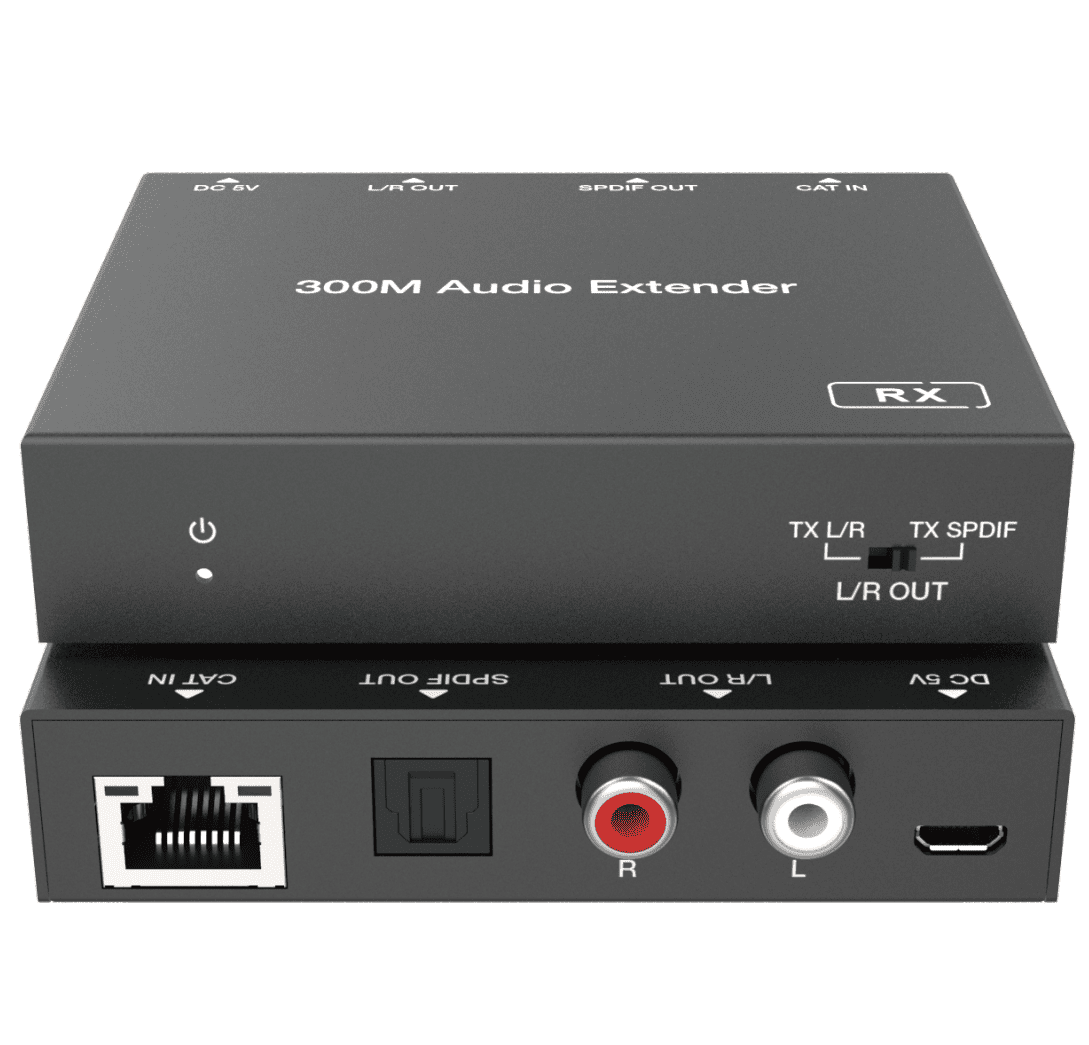

RX
Diagram
