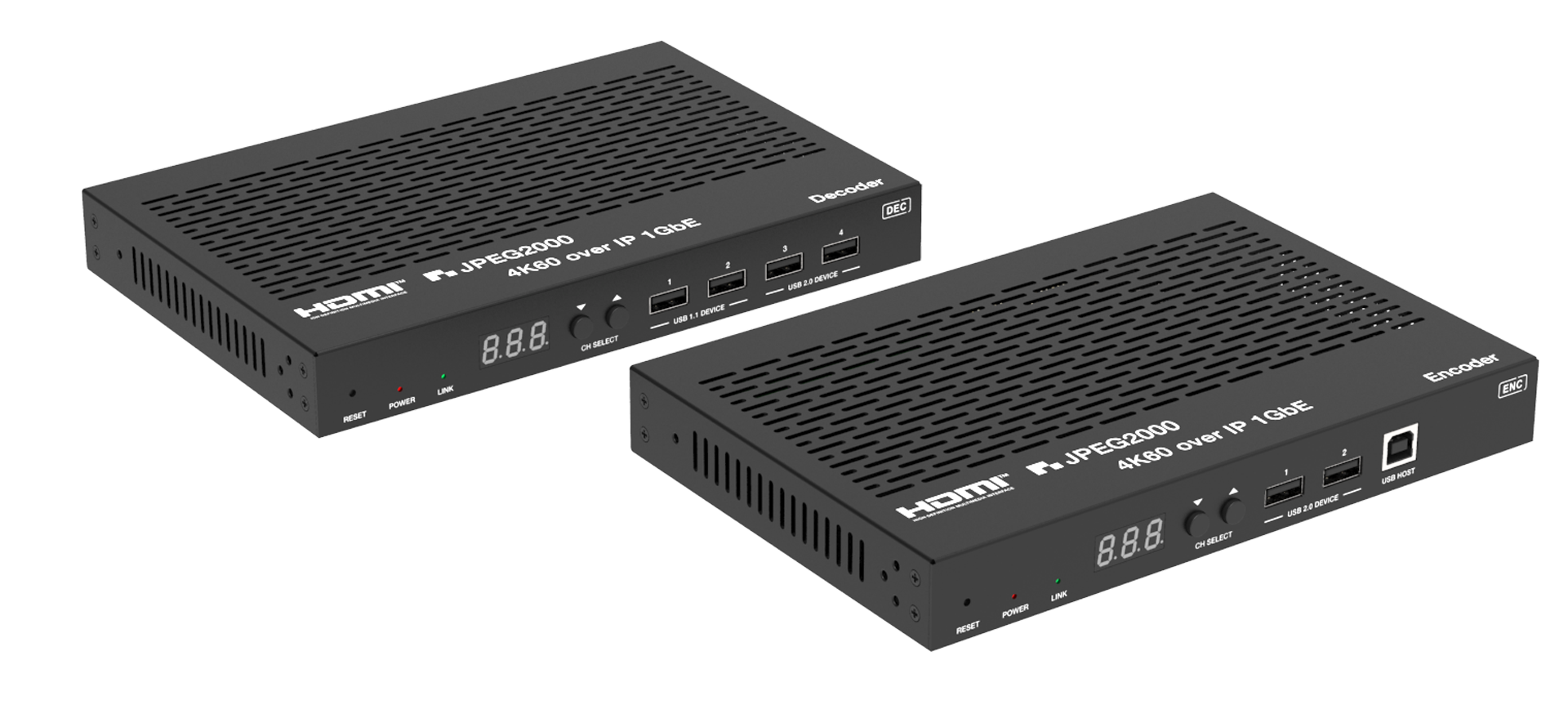

Introduction

This product is based on JPEG2000 technology. It integrates Copper port and Fiber port within a single box. Encoder input supports up to 4K60 4:4:4, audio embedding or extracting. Decoder output supports up to 4K60 4:4:4, audio extracting.

The product supports ARC/eARC/S/PDIF/Analog audio return function, also supports USB2.0/KVM/Camera, 1G Ethernet, bidirectional RS- 232, two-way IR and POE function.

Guest mode controls of RS-232, IR, CEC are supported. Built-in two channel RELAY ports and two channel I/O ports for contact control.

Dante AV-A mode is supported if the product is license activated. Built-in MJPEG Substream which supports plenty API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content.

The system is based on Linux for software development, provides flexible control methods, that are based on the intelligent networking of 1G Ethernet Switch.

Features

☆ HDCP 2.2 compliant

☆ Support 18Gbps video bandwidth

☆ Input and output video resolution is up to 4K60 4:4:4, as specified in HDMI 2.0b

☆ Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable ☆ Transmit video, analog/digital audio, IR , RS-232, CEC and USB over Ethernet

☆ Integrate Copper port and Fiber port within a single box

☆ ARC/eARC/S/PDIF/Analog audio return function

☆ Dante AV-A mode is supported if license activated

☆ Channel configuration via front panel buttons and LED screen

☆ Built-in two channel RELAY ports and two channel I/O ports for contact control

☆ Support unicast and multicast functions

☆ Support point-to-point, video matrix and video wall functions (video wall supports up to 9×9)

☆ Intelligent video wall class management

☆ Support MJPEG Substream real-time preview

☆ 1G Ethernet Switch

☆ Support POE function

☆ Built-in web page configuration and control, Telnet and SSH as well

☆ HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master

☆ Smart networking design for easy and flexible installation

Widely used in offices, huddle rooms, conference rooms, or as content contribution (trunking) between locations.

Package Contents

Encoder:

1pc 4K60 over IP 1GbE Encoder

1pc IR Receiver cable (1.5 meters)

1pc IR Blaster cable (1.5 meters)

3pcs  3-pin 3.81mm Phoenix connector

2pcs 4-pin 3.81mm Phoenix connector

1pc 12V/2.5A Locking Power adapter

2pcs Mounting ear

4pcs Machine screw (KM3*4)

1pc User Manual

Decoder:

1pc 4K60 over IP 1GbE Decoder

1pc IR Receiver cable (1.5 meters)

1pc IR Blaster cable (1.5 meters)

3pcs 3-pin 3.81mm Phoenix connector

2pcs 4-pin 3.81mm Phoenix connector

1pc 12V/2.5A Locking Power adapter

2pcs Mounting ear

4pcs Machine screw (KM3*4)

1pc User Manual

Specification

Technical
HDMI Compliant	HDMI 2.0b
HDCP Compliant	HDCP 2.2
Video Bandwidth	18Gbps
Video Compression Standard	JPEG2000
Video Network Bandwidth	1G
Video Resolution	Up to 4K@60Hz 4:4:4
Color Depth	Input: 8/10/12-bit Output: 8-bit
Color Space	RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats	LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
Transmission Distance	100M CAT5E/6/6A/7
IR Level	Default 12V, optional 5V
IR Frequency	Wideband 20K – 60KHz
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

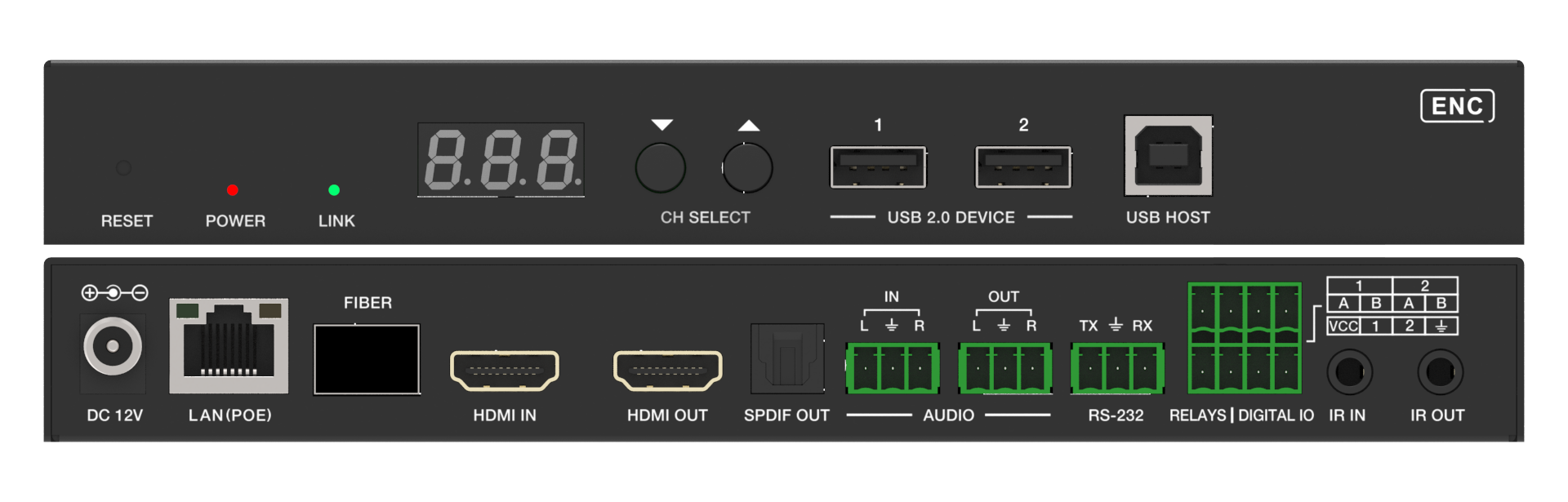

Encoder	Input: 1 x HDMI IN [Type A, 19-pin female] 1 x L/R AUDIO IN [3-pin 3.81mm Phoenix connector] Output: 1 xHDMI OUT [Type A, 19-pin female] 1 x L/R AUDIO OUT [3-pin 3.81mm Phoenix connector] 1 x SPDIF OUT [Optical audio connector] Control: 1 x RS-232 [3-pin 3.81mm Phoenix connector] 1 x LAN (POE) [RJ45 jack] 1 x FIBER [Optical fiber slot] 1 x USB 2.0 HOST [Type B, 4pin female] 2 x USB 2.0 DEVICE [Type-A, 4pin female] 2 x RELAYS [3.81mm Phoenix connector] 2 x DIGITAL IO [3.81mm Phoenix connector] 1 x IR IN [3.5mm Audio Jack] 1 x IR OUT [3.5mm Audio Jack]

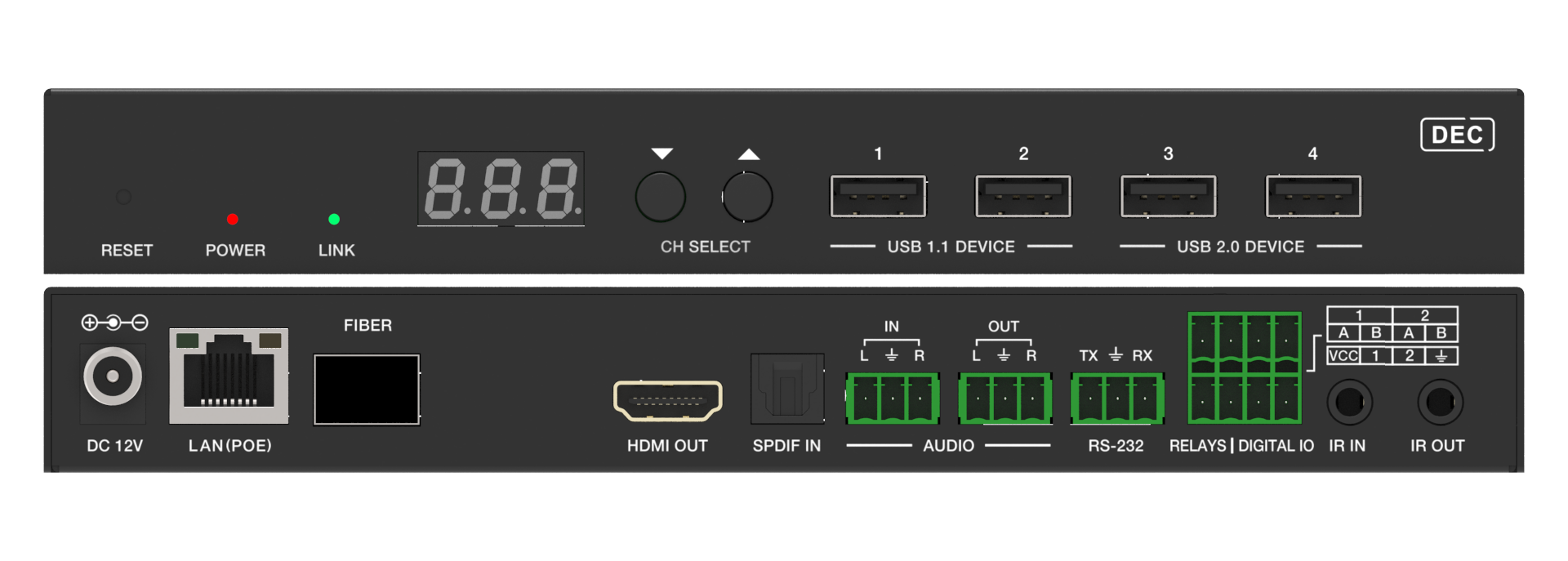

Decoder	Input: 1 x SPDIF IN [Optical audio connector] 1 x L/R AUDIO IN [3-pin 3.81mm Phoenix connector] Output: 1 xHDMI OUT [Type A, 19-pin female] 1 x L/R AUDIO OUT [3-pin 3.81mm Phoenix connector] Control: 1 x RS232 [3.81mm Phoenix connector] 1 x LAN (POE) [RJ45 jack] 1 x FIBER [Optical fiber slot] 2 x USB 1.1 DEVICE [Type-A, 4pin female] 2 x USB 2.0 DEVICE [Type-A, 4-pin female] 2 x RELAYS [3.81mm Phoenix connector] 2 x DIGITAL IO [3.81mm Phoenix connector] 1 x IR IN [3.5mm Audio Jack] 1 x IR OUT [3.5mm Audio Jack]
Mechanical
Housing	Metal enclosure
Color	Black
Dimensions	Encoder/Decoder: 204mm [W] x 136mm [D] x 25.5mm [H]
Weight	Encoder: 631g, Decoder: 626g
Power Supply	Input: AC100 – 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
Power Consumption	Encoder: 8.52W, Decoder: 7.08W (Max.)
Operating Temperature	32 – 104°F / 0 – 40°C
Storage Temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (no condensing)
Resolution / Cable Length	4K60 – Feet / Meters	4K30 – Feet / Meters	1080P60 – Feet / Meters
HDMI IN / OUT	16ft / 5M	32ft / 10M	50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

MJPEG Substream Operation Introduction

MJPEG Substream Preview/Configuration via Web Page

The product supports playing MJPEG Substream on computer through the corresponding software such as VLC media player, simultaneously you can access the Web page to configure the MJPEG Substream.

Switch Model

A network Switch used to set up the system should support below features:

1.Type of layer 3/managed network Switch.

2.Gigabit bandwidth.

3.8KB jumbo frame capability.

4.IGMP snooping.

The following Switch models are highly recommended.

Manufacturer	Model Number
CISCO	CISCO SG500
CISCO	CATALYST series
HUAWEI	S5720S-28X-PWR-LI-AC
ZyXEL	GS2210
LUXUL	AMS-4424P

Connection:

One to One Application

One to Many application

Many to One Applicaiton

Many to Many Application with Controller
