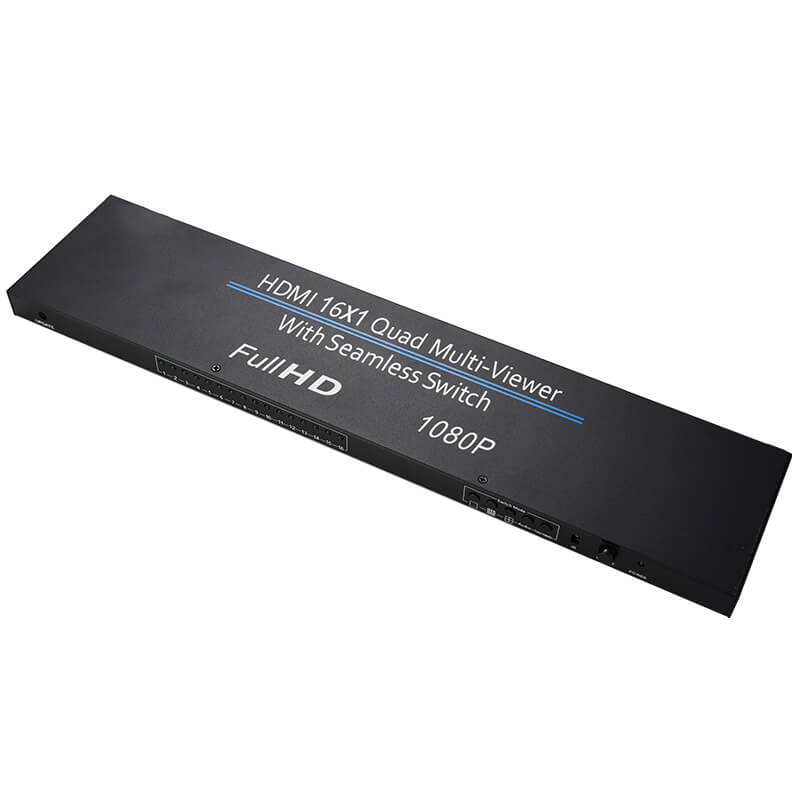

1080p 16×1 Quad/PiP/PoP Multiviewer Seamless Video Switcher

1080p seamless 16×1 multiviewer switcher



Additional information

Weight 1500 g
Dimensions 43 × 10 × 2.5 cm
HDMI Version

1.3a

Resolution

1080p

HDCP

HDCP1.2

Markets

Hospitality, Residential, Corporate, Education, Venues, Government, Retail

IR

Support 38KHz

Detailes About 1080p 16×1 Quad/PiP/PoP Multiviewer Seamless Video Switcher

1080p 16x1 quad/pip/pop multiviewer seamless video switcher

It was developed for the purpose of supporting higher output resolution (1080p) for multiple sources on a single screen.

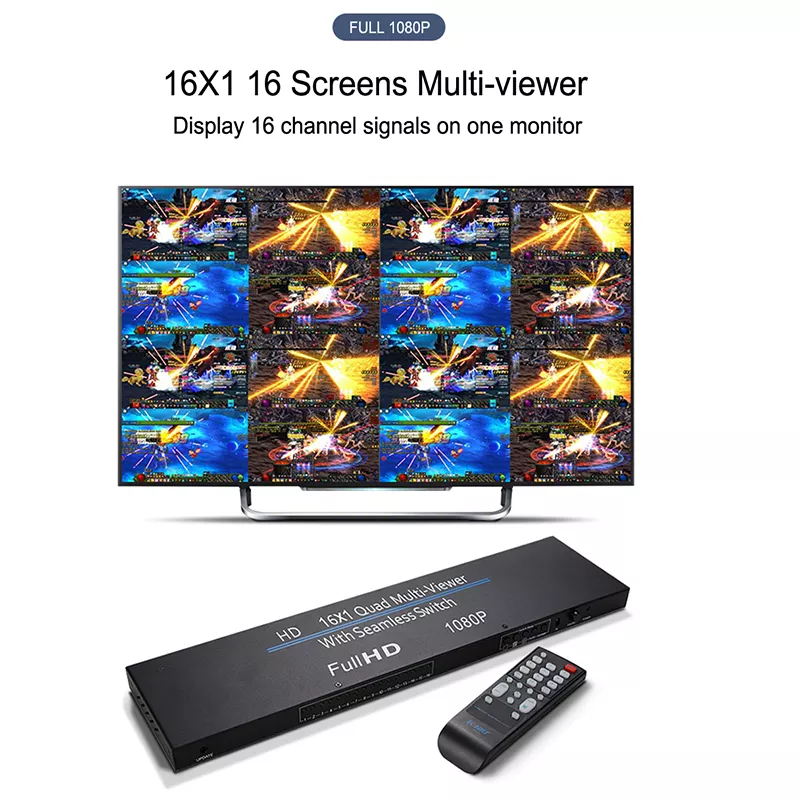

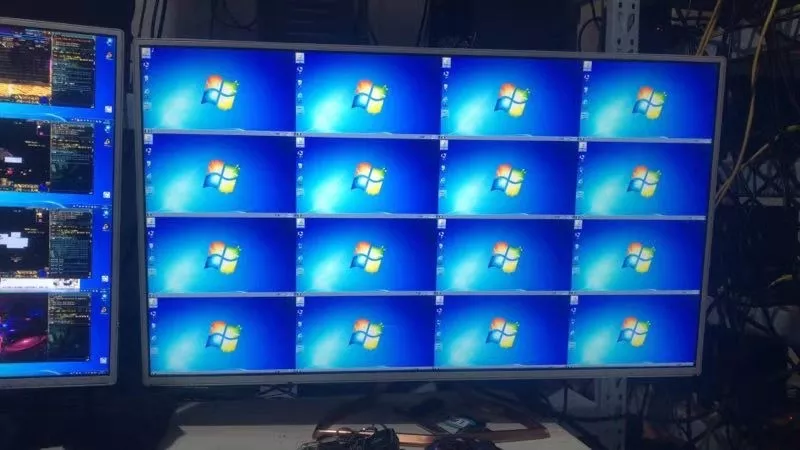

It can combine up to sixteen video signals onto a single displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the 16 inputs on a single monitor.

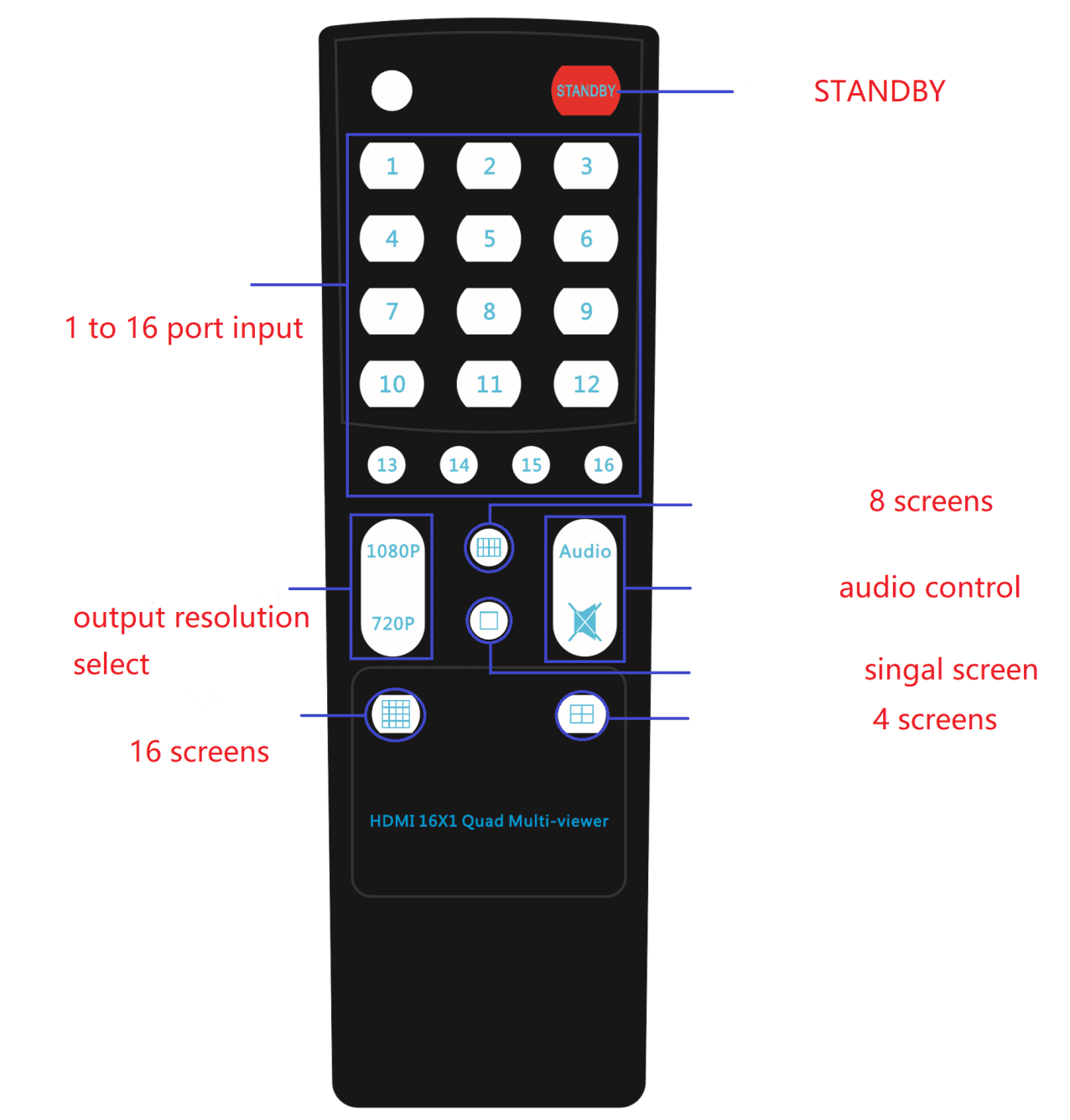

This device can be controlled via front panel buttons, IR remote.

FEATURES

  • Support 16 HDMI input, 1 HDMI output
  • Support 16 channels HDMI signal seamless switching
  • Support highest resolution up to 1080p
  • Support IR control
  • Compatible HDMI1.3a
  • Support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on
  • Support audio output format: PCM2
  • DC12V power adapter

SPECIFICATION

Technical
HDMIcompliance HDMI 1.3a
HDCPcompliance HDCP 1.2
Input Compatible DVI 1.0Version
Video Resolutions up to 1080p
IR Level 5V p-p
IR Frequency 38KHz
Support Audio Out PCM2
Cable Length Standard 26AWG, input up to 15meter,output up to 15meter
ESD Protection Human body model — ±8kV (Air-gap discharge) &
ESD Protection ±4kV (Contact discharge)
Connections
Input ports / Output Input ports 16 x HDMI IN [Type A, 19-pin female]

Output ports 1 x HDMI OUT [Type A, 19-pin female]

Control ports 1 x IR EXT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 430mm [W] x 98mm [D] x 22mm [H]
Weight 1500g
Power Supply Input: AC100 – 240V 50/60Hz

Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)

Power Consumption 10W (Max)
Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 – 90% RH (no condensation)

Package Contents:

  1. HDMI 16×1 quad multi-viewer x1
  2. 12V/ 2A power adapter x1
  3. Remote control x1
  4. User manual  x1
