Dante 2ch 150W 300W Class D Amplifier with DSP and Dante
Newest Class D Dante Amplifier with DSP and Dante,Control Via GPIO,TCP/IP,Web GUI and optional control panel
| Weight | 1880 g |
|---|---|
| Dimensions | 24 × 21 × 4.4 cm |
| Input | 1x Dante Network audio input |
| Output | 1x Dante Network audio output |
| Input Sensitivity | Full power@0.775V (0dBu) |
| Output power | DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω; 1x 150W@70V/100V |
| Max Voltage Gain | 27 – 30dB SE/39 – 42dB BTL |
| Audio Format | LINE IN [Analog audio, Balanced 2CH, Max input level 2VRMS] |
| Control | RS232,TCP/IP, Web GUI |
Detailes About Dante 2ch 150W 300W Class D Amplifier with DSP and Dante

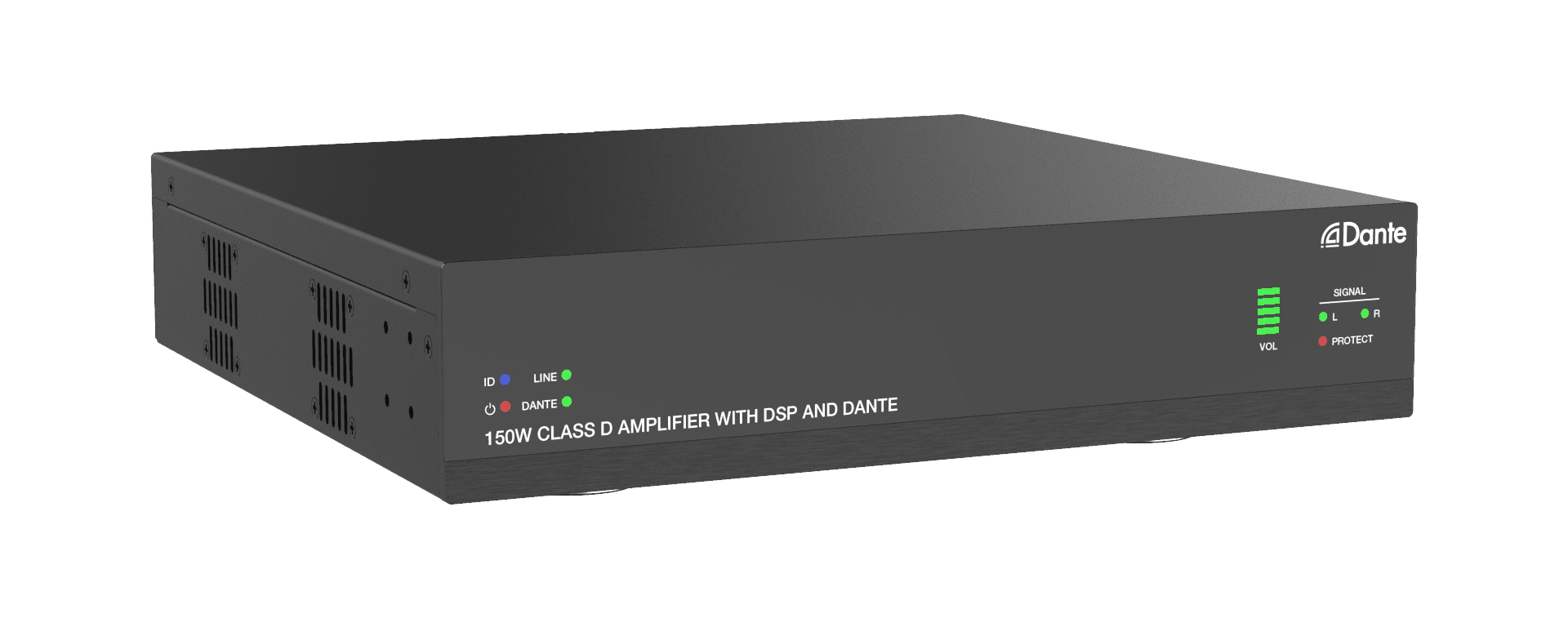

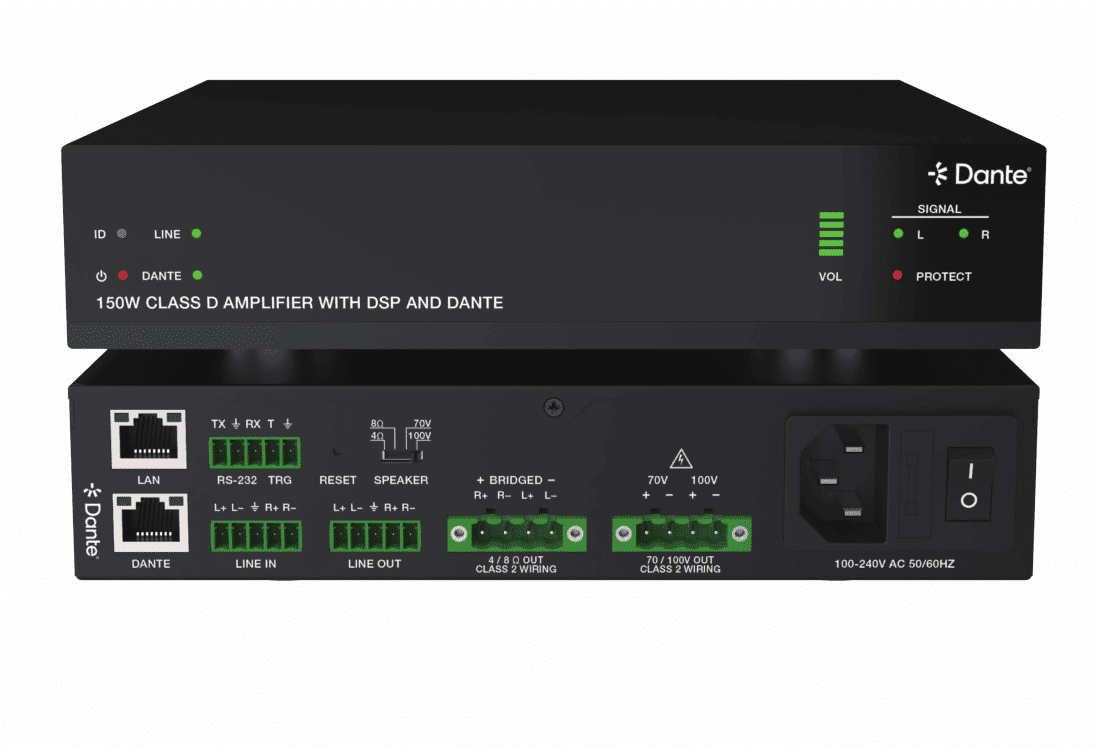

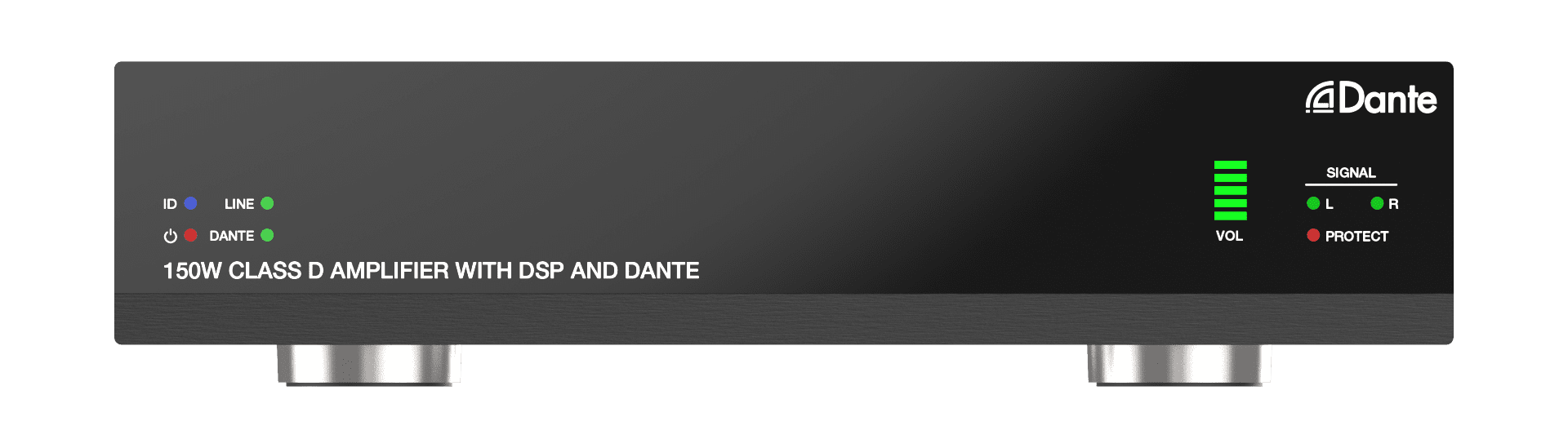

150W 300W Class D Amplifier with DSP DANTE
Introduction

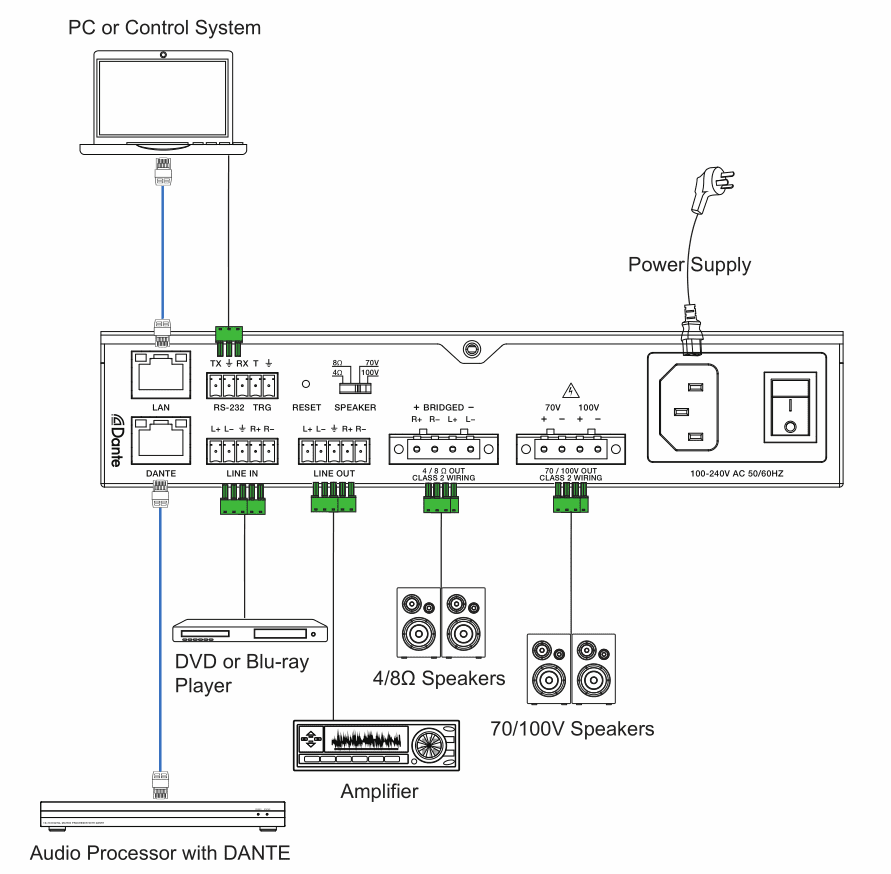

This product is designed as a two-channel amplifier using class D amplifier technology. It can be used for powering low impedance (4Ω/8Ω) stereo systems with a maximum power of 2 x 75 Watt, while bridging to a constant voltage (100V and 70V) is possible with a maximum output power of 150 Watt. It features Dante 2CH digital inputs and outputs, and balanced or unbalanced line level analog inputs and outputs. This amplifier can be controlled via RS-232, LAN and Web GUI. It also features built-in DSP, auto-standby and maximum durability. It is suitable for a vast range of AV installations.
Features

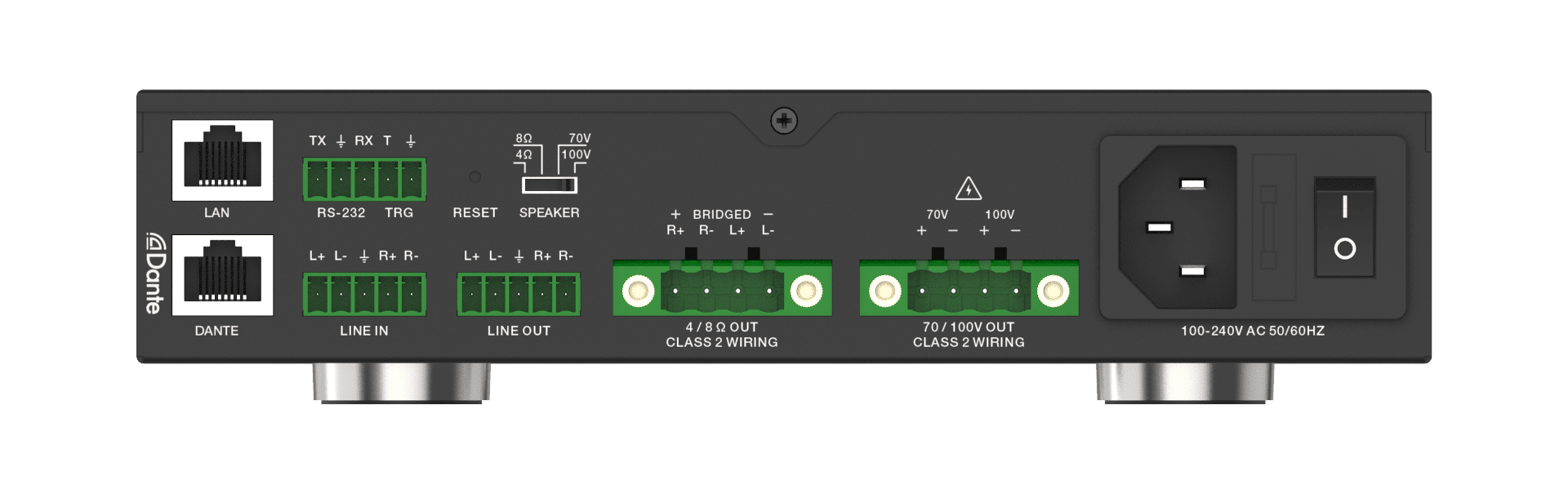

☆ Dante 2CH digital audio, balanced or unbalanced line level analog inputs
☆ Dante 2CH digital audio, balanced or unbalanced line level analog and AMP outputs
☆ Built-in audio DSP processor
☆ Switching between Lo-Z and Hi-Z can be achieved to adapt to various types of speaker installation.
In Lo-Z output mode, single-channel 150 Watt or two-channel 2 x 75 Watt 4Ω/8Ω can be selected.
In Hi-Z output mode, single-channel 150 Watt with 70V/100V can be selected.
☆ Independent input gain, output EQ and volume control
☆ 48KHz sampling rate, 24bit independent A/D and D/A converters
☆ 5-12V trigger input
☆ Auto standby
☆ Flexible control via RS-232, LAN and Web GUI
☆ Half rack design/one rack design
Package
① 1 x 150W Class D Amplifier ② 3 x 5pin-3.81mm Phoenix Connector (male) ③ 2 x 4pin-5.08mm Phoenix Connector (male) ④ 6 x Mounting Ear ⑤ 24 x Machine Screw ⑥ 1 x AC (100-240V) Multinational Power Cord (1.5 meters) ⑦ 1 x User Manual
Spec
2025 New Model
Features:
Professional-Grade Class D Audio Amplifier, Power Range 150W/300W

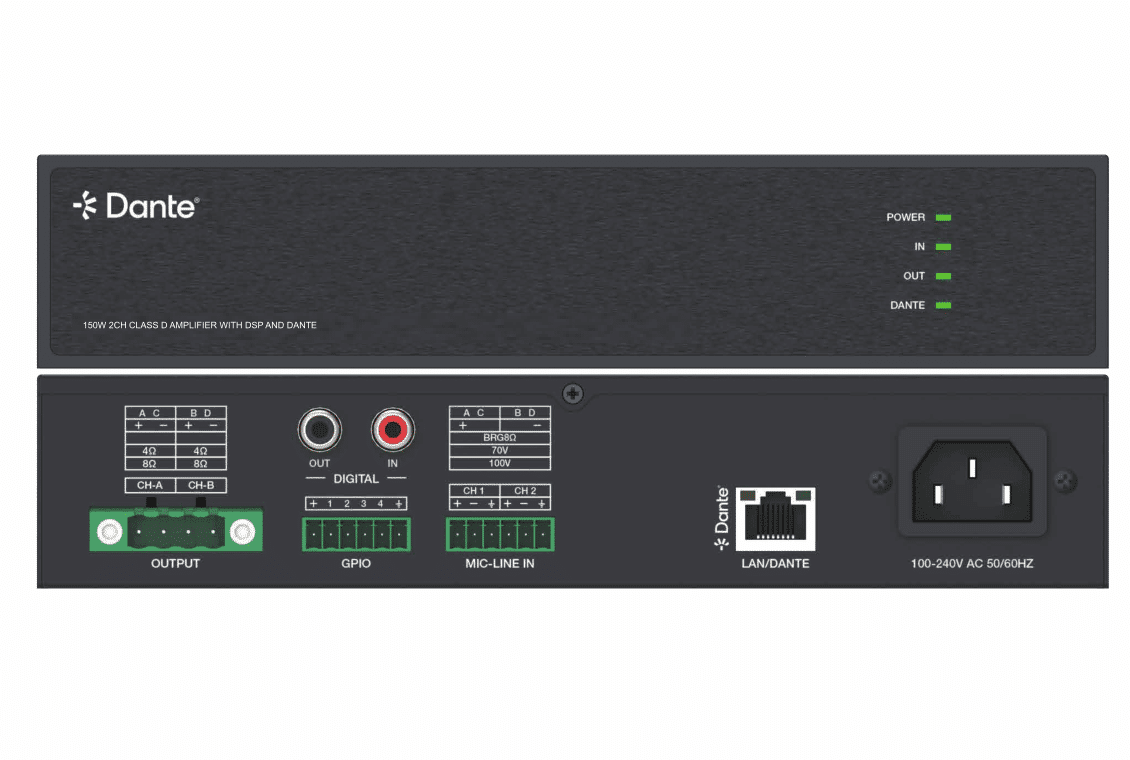

150W Single-channel 2×75W @ 4/8Ω, Bridged 1×150W @ 4/8Ω or 70/100V

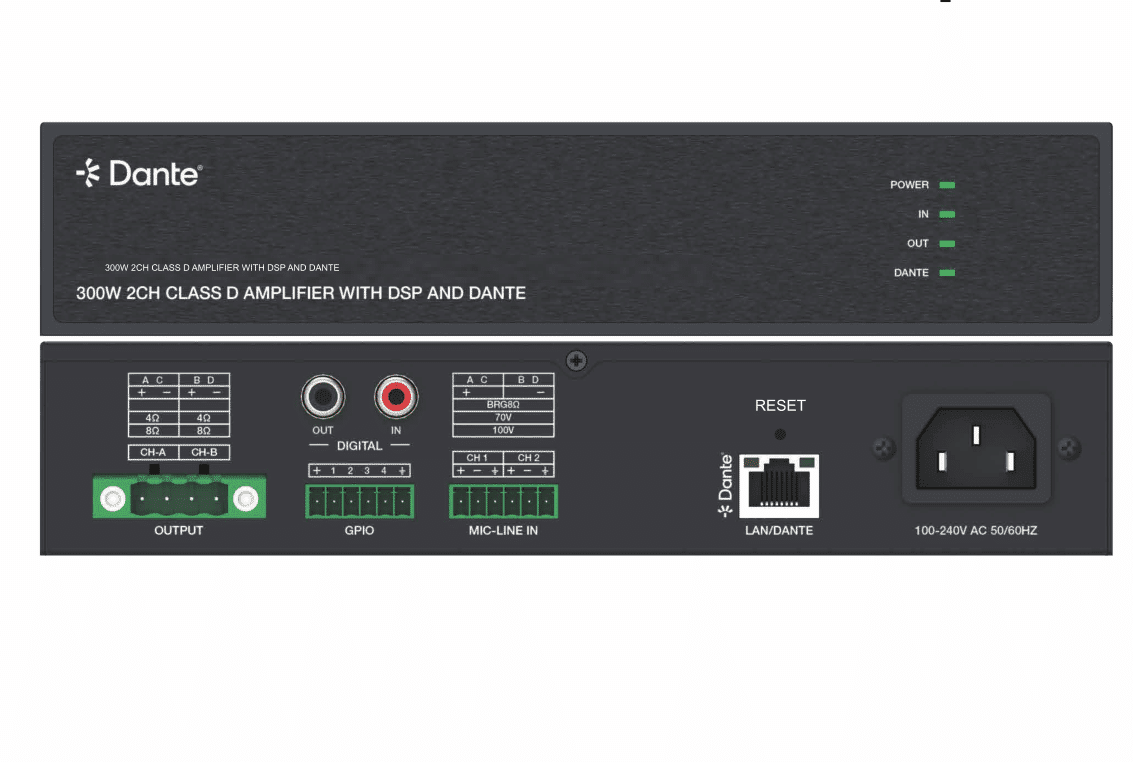

300W Single-channel 2×150W @ 4/8Ω, Bridged 1×300W @ 4/8Ω or 70/100V
Full DSP Configuration via Web GUI and API
Supports Dante Network Audio, 2×2 Channels
Audio Digital Signal Processing (DSP) Features: Gain, Ducking, Mixing, Matrix Processing, Equalizer, Volume, and Delay Control
High-Pass Filter Technology for Clear and Natural Sound Quality
Provides Digital Audio Input/Output for Cascade Connection
Each Output Supports up to 100ms Delay (34.3 meters)
Supports Low Impedance (4Ω/8Ω) and High Impedance (70V/100V) Signal Output
Control via GPIO, TCP/IP, Web GUI, and Optional Control Panel
