4 In 4 Out Configurable Digital Audio Processor Dante Processor

4×4 Digital sound processor with Dante

Additional information

Weight 2000 g
Dimensions 21.5 × 16.2 × 4.4 cm
ADSP

ADI SHARC 21489 (×1)

Audio Format

24 bits, 48 kHz sampling rates (uncompressed)

System Latency

< 3 ms

Analog I/O Channels

4×4

Dante I/O Channels

4×4

Analog Input Gain

0, 10, 20, 30, 40, 43 dB

Analog Input &Output Level

+24 dBu

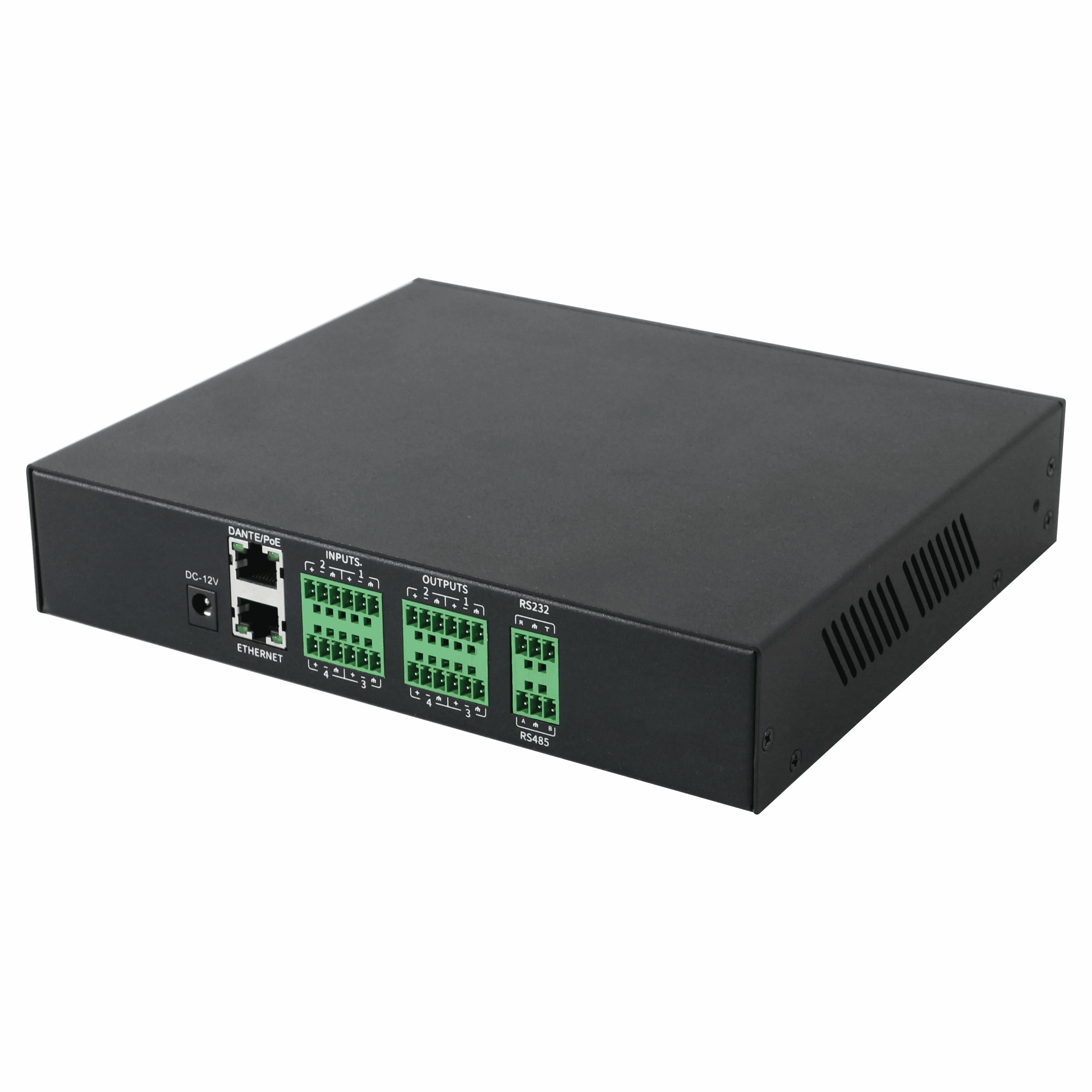

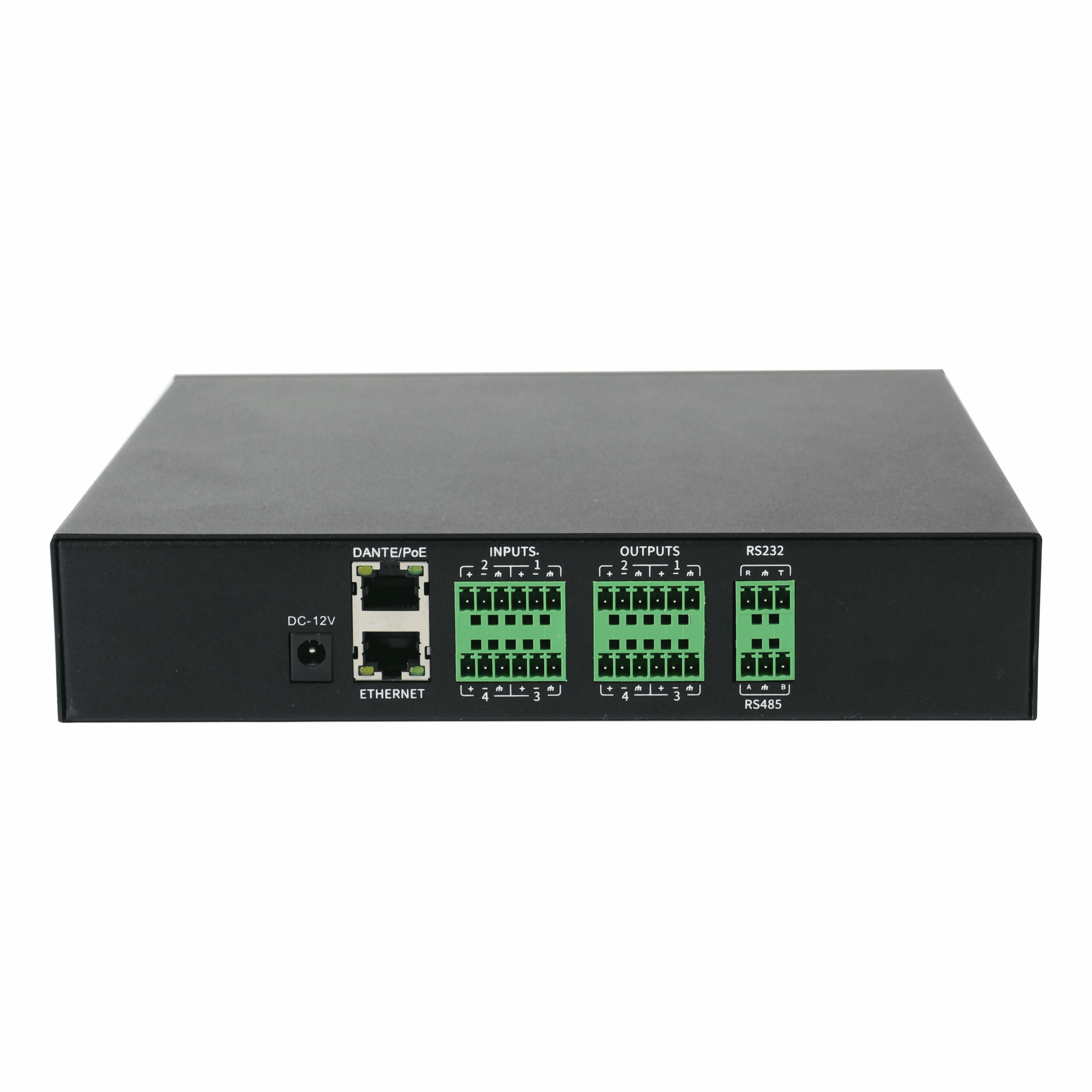

Interface

Input: 4 Analog Audio (Terminal Block)
Output:4 Analog Audio (Terminal Block),
Ethernet Port: 2 Dante Audio (RJ-45) 1 LAN (RJ-45)
USB Port:1 USB Audio (Type-A)
Serial Port:1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block)

Detailes About 4 In 4 Out Configurable Digital Audio Processor Dante Processor

Professional 4 In 4 Out DSP Dante Configurable Audio Processor With DSP Digital Echo Audio Effects

Features

1.Built-in 2 in 2 out USB sound card, supporting music playback, recording and soft video conferencing, such as: ZOOM, Tencent Meeting, DingTalk Meeting, etc;

2.Supports AFC (feedback suppression), AEC (echo cancellation), ANS (noise suppression), ANC (noise gain compensation), AGC (automatic gain), gain sharing, threshold automatic mixing.

3.8-band equalizer providing 5 filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass.

4.Provides customizable user interface, and support up to 30 devices to be managed under the same UI.

5.Supports RS232, RS485 and UDP central control.

Specification

Processor
ADI SHARC 21489@450 MHz SIMD
DSP processing power
400 MIPS, 1.6 GFLOPS
Sample Rate
48K/24bit
Number of analog input and output channels
4×4
Number of Dante input and output channels
4×4
Input Gain
0/6/12/18/24/30/36/42/48 dB
Phantom Power
+48V/10mA max
Frequency Response
20~20kHz: ±0.5dB
Max. Level
+18dBu
THD+N
<-100dB @4dBu
Input Dynamic Range
110dB
Output Dynamic Range
112dB
Channel Isolation @1kHz
108dB
Input Impedance (balanced connection)
5.4KΩ
Output Impedance (balanced connection)
600Ω
System Latency
<3ms
Power Supply
DC12V/PoE48V
Dimension
215x162x44mm
Weight
2KG
