10 Buttons Control Panel for Centrol Room Control System

Programmable Buttons Panel Control System for multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation.

Additional information

Weight 450 g
Dimensions 11.6 × 5.4 × 11.6 cm

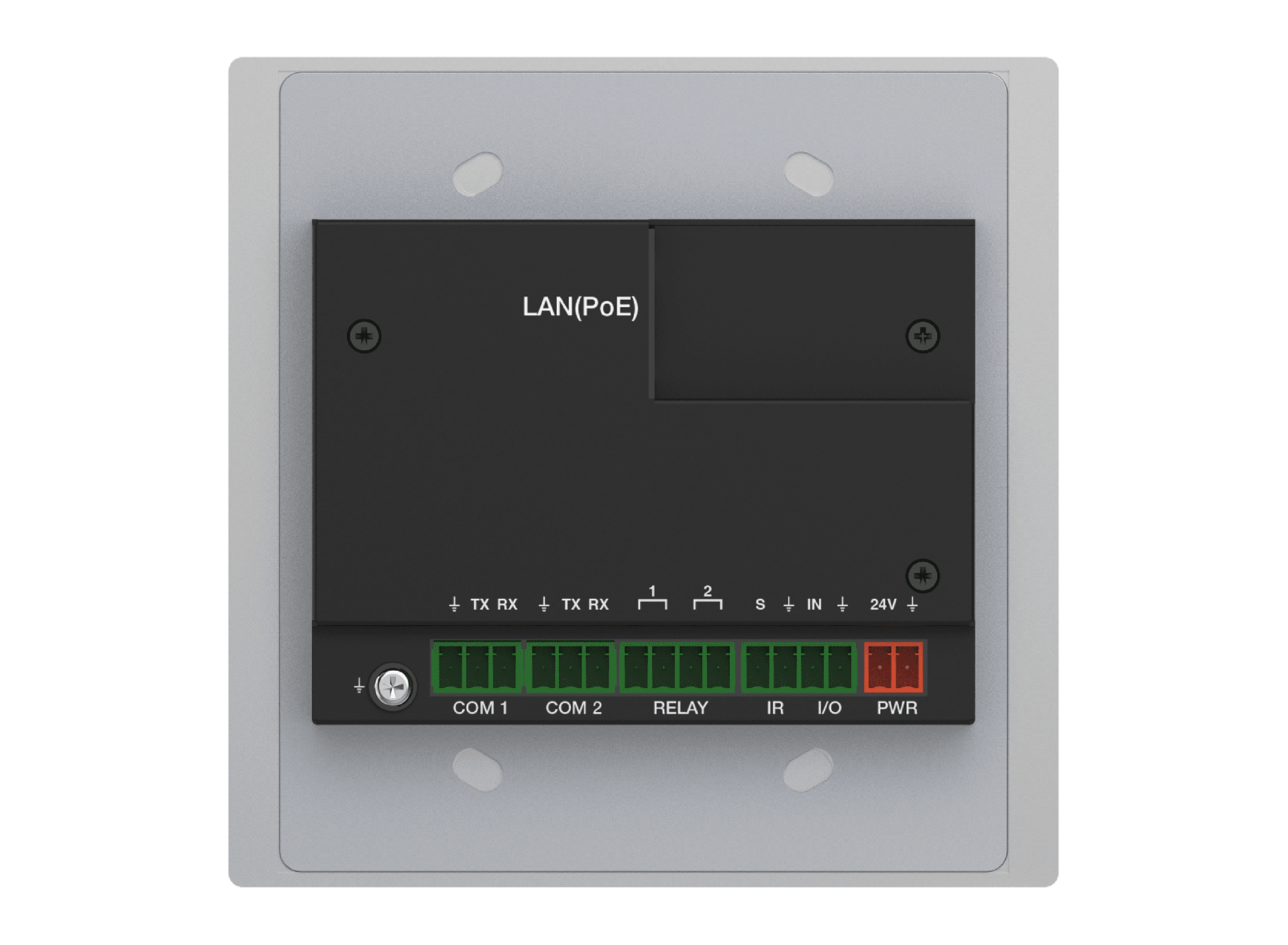

COM1/2

2x 3-pin Phoenix Connectors, for two-way RS-232 serial data communication

IR

1x 2-pin Phoenix Connectors, for IR transmitting or one-way RS-232 serial data communication

Application

multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation.

RELAY

2x 2-pin Phoenix Connectors, low-voltage relays, isolated, normally open, switching up to 30VDC, 1A / 125VAC, 0.3A

I/O

1x 2-pin Phoenix Connectors, for digital signal inputting

LAN/POE

1 standard 10M/100M/1000M Ethernet RJ45 interface,
supporting POE function

PWR

1x 2-pin Phoenix Connectors, for power supply

Buttons,Knob

10x programmable buttons
1x programmable knob

CPU

ARM Cortex-A53 1.8GHz

Operation System

Android 9

RAM,Flash Memory

2GB DDR4 RAM,8GB EMMC Flash

Resolution

720×720 Capacitive Touch Screen

Detailes About 10 Buttons Control Panel for Centrol Room Control System

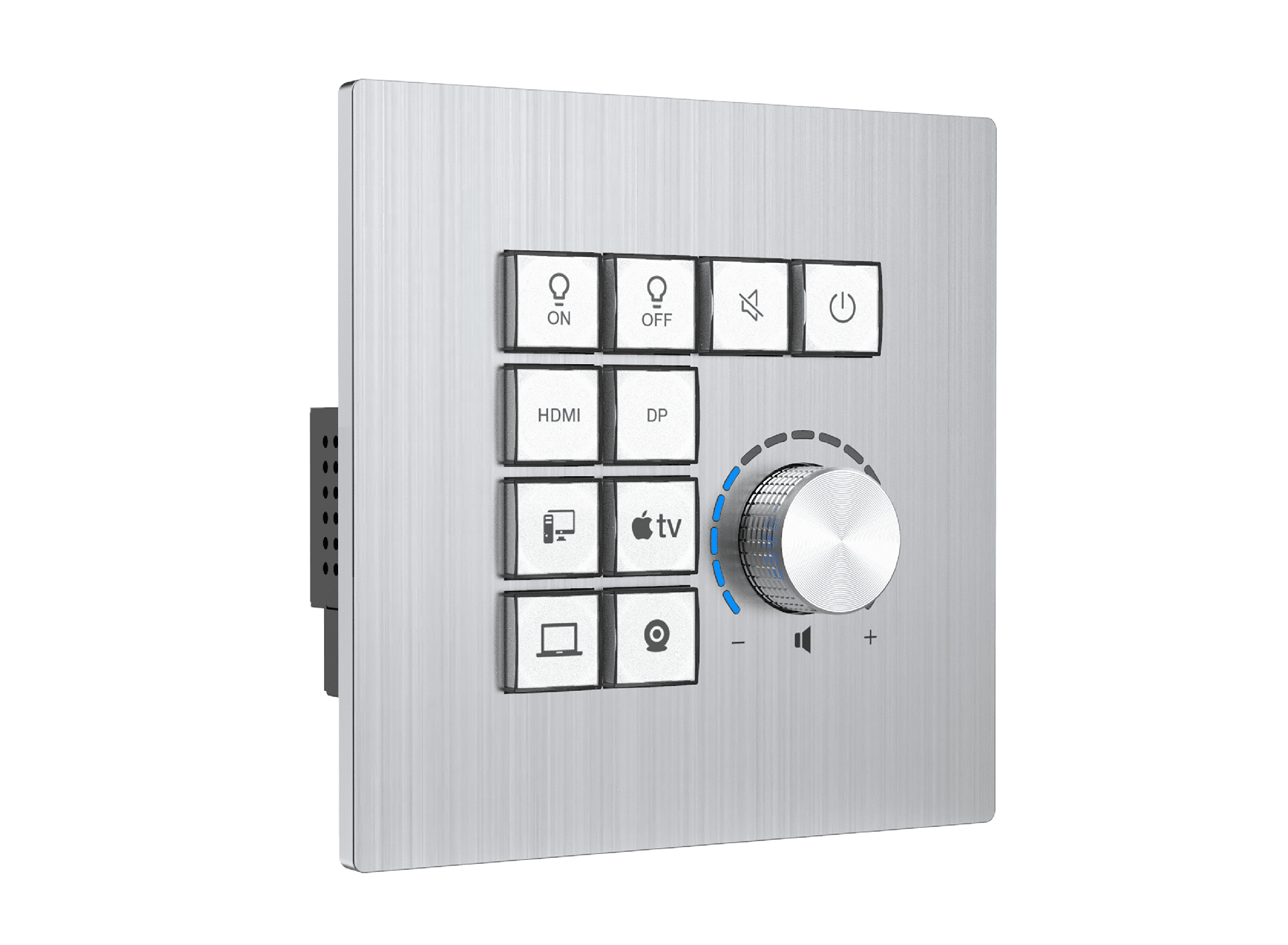

10 Keys Control Panel (Wallplate Type)



touch control panel for centrol room control system

Introduction

The programmable control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel features 10 programmable buttons, 1 programmable knob, 2 two-way serial ports, 1 IR output port, 2 Relay ports, 1 digital I/O port and 1 Ethernet port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi-functional halls, training centers, show room, broadcasting studios and industrial automation.

Features

☆ With 2 two-way serial ports to connect matrixes, projectors or other A/V devices

☆ With 1 IR output/one-way serial port to connect DVD, TV sets, or other home appliances

☆ With 2 relay ports to control lights, doors or curtains

☆ With 1 digital input port to receive sensor signals

☆ With 10 programmable buttons for custom control logic

☆ With 1 programmable knob (with light indicator), volume can be controlled through the knob

☆ Capable of connecting with Ethernet-control devices for Ethernet monitoring and control

☆ Provide a high-performance Web server, supporting on-line firmware upgrade

☆ Compliant with standard network communication protocols

☆ Password protection against unauthorized accesses

☆ Built-in sync clocks

☆ Support factory reset

touch control panel for centrol room control system
