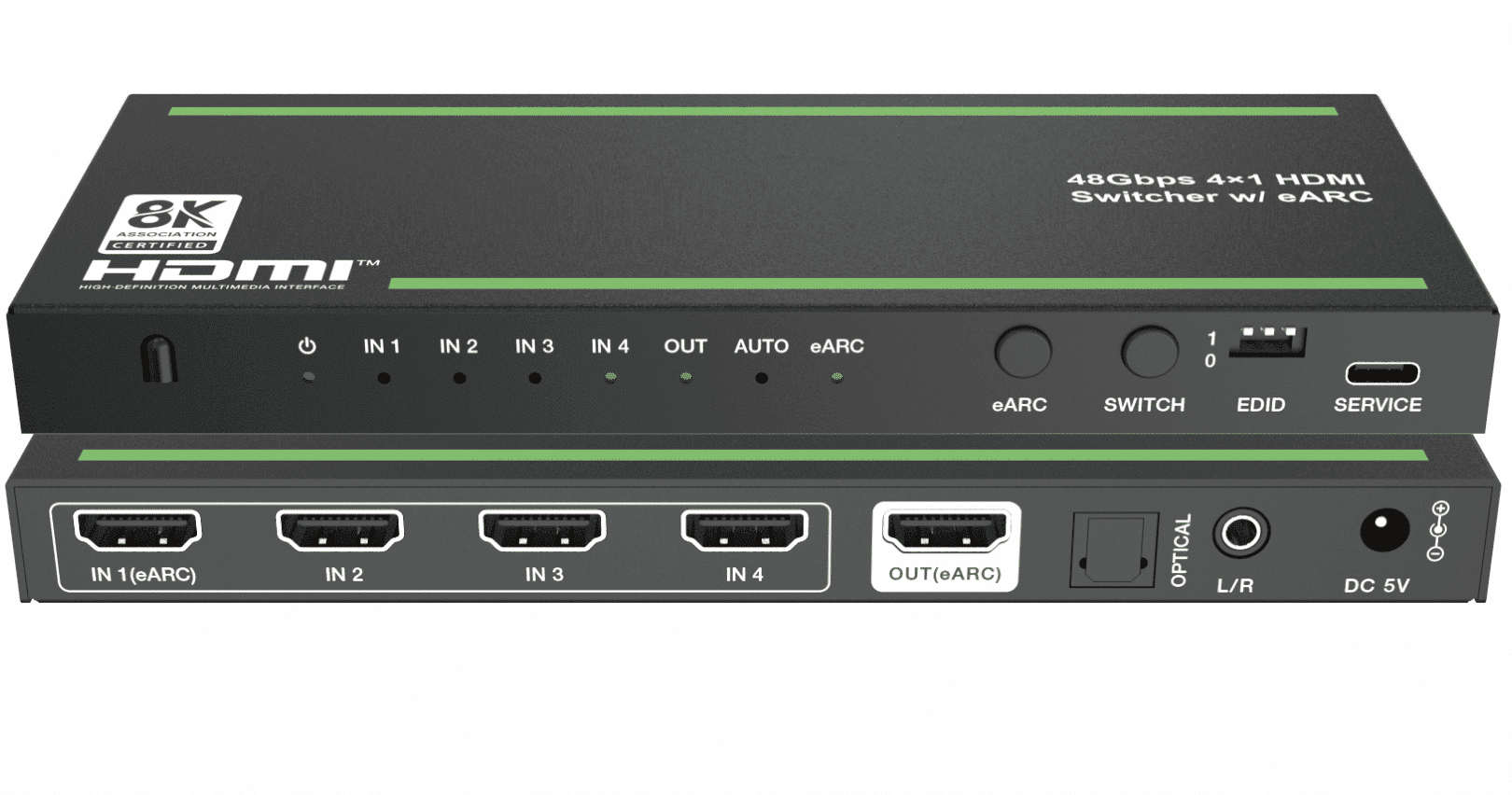

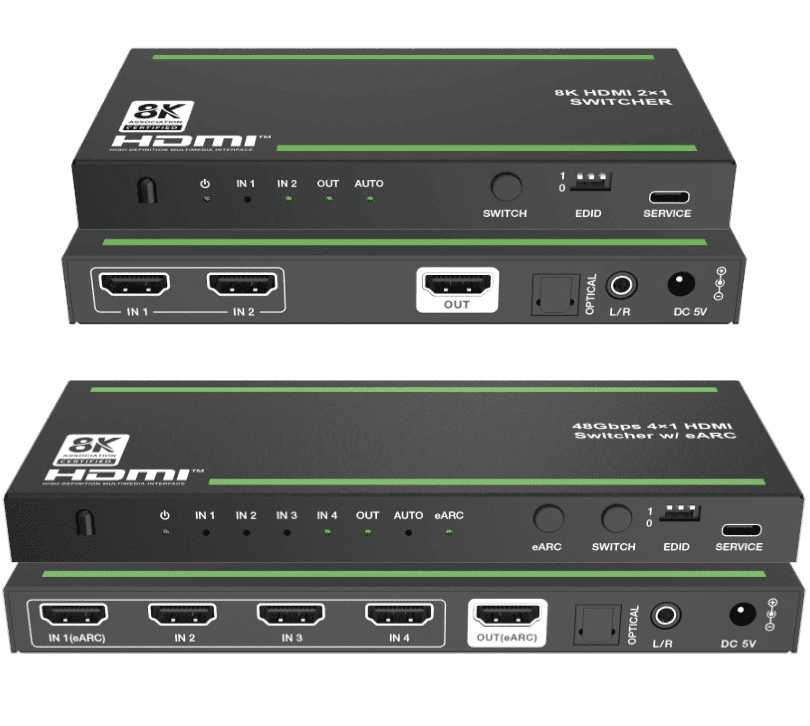

2/4 Port 8k hdmi 2.1 Switch 4 in 1 Out 4k 120hz Hdr hdmi 2.1 Switcher 2×1/4×1 Hdcp 2.3 with ARC/eARC Function

48Gbps 4×1 Switcher can switch any of the four HDMI source signals to one HDMI display, with video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management, CEC control, ARC/eARC and audio de-embedded function (Output through the optical and analog audio port). Furthermore, firmware upgrade via USB Type C port is supported. This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occassions requiring for big-screen demonstration.

Features

1) HDCP 2.3 compliant

2) Support 48Gbps FRL and 18Gbps TMDS video bandwidth

3) Video resolution is up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1

4) HDMI 2.1 protocol: VRR, ALLM, QMS, QFT, SBTM are supported

5) Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

6) Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through

7) Features 4 x HDMI inputs routed to 1 x HDMI output

8) Support HDMI input and TV eARC audio de-embedded to SPDIF and L/R audio output

9) Support HDMI input and TV eARC audio to output to SONOS ARC & Beam or any eARC soundbar

10) Support CEC control from TV at output to source at input

11)Support CEC volume control from TV to any eARC sound system

12) Support advanced EDID management

Packing list

1 × 48Gbps 4×1 Switcher

1 × 5V/1A Multinational Power Supply

1 × IR Remote

1 × User Manual

Specification

Technical
HDMI Compliance	HDMI2.1
HDCP Compliance	HDCP2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Audio Latency	No Latency
Video Latency	No Latency
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit
Color Depth	8/10/12bit
Color Space	RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Audio formats	HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X ,DSD Audio De-embedded Output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH Analog: LPCM 2.0CH
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input	4 × HDMI IN [Type A, 19-pin female]
Output	1 × HDMI OUT [Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack]
Control	1 × SERVICE [USB Type C, Update port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	176mm [W] × 68mm [D] × 18mm [H]
Power Consumption	2.5W (Max)
Relative Humidity	20~90% RH (non-condensing)

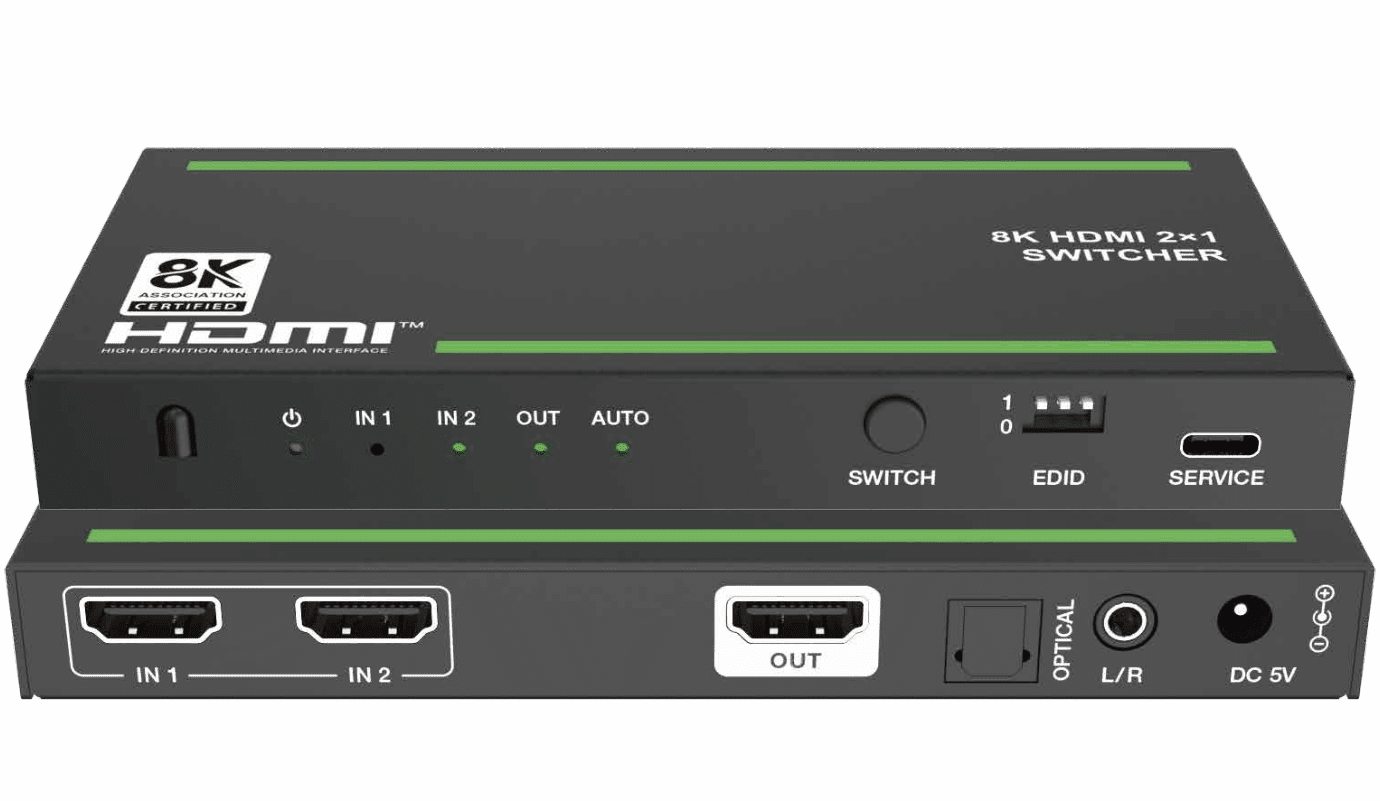

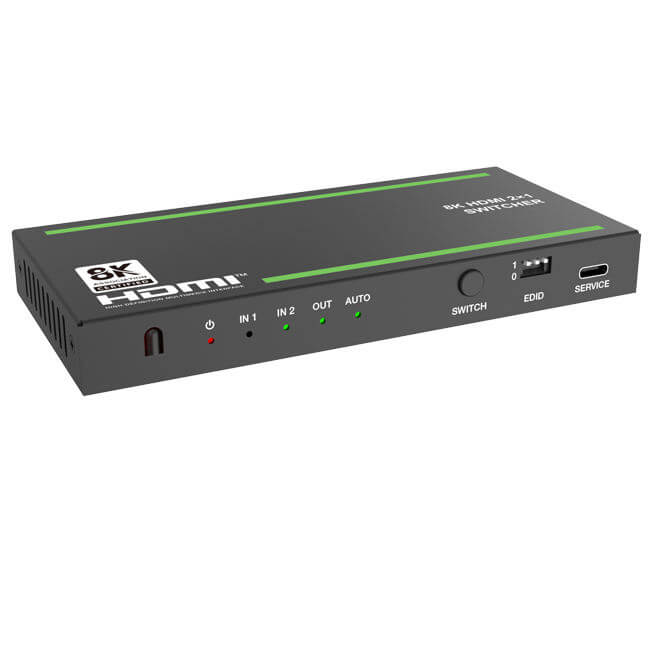

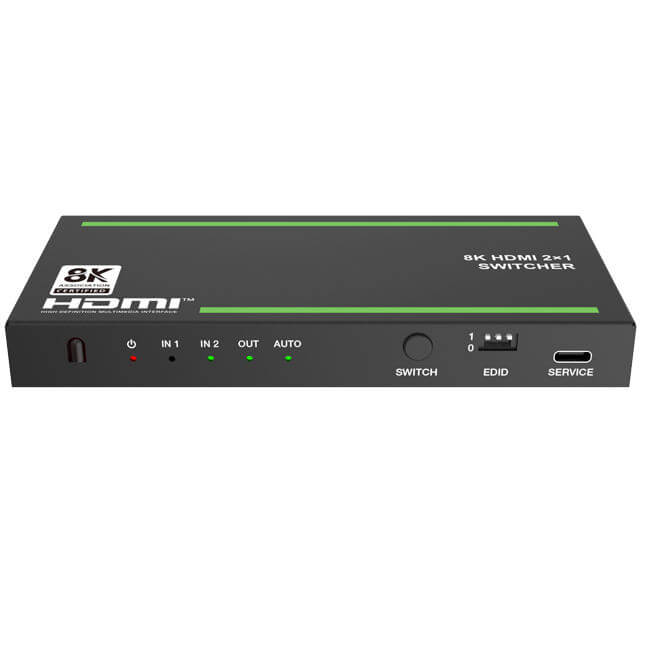

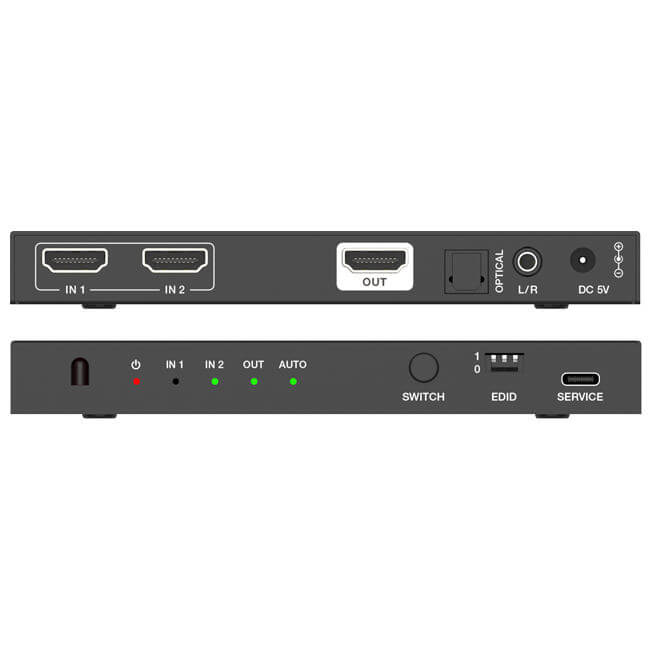

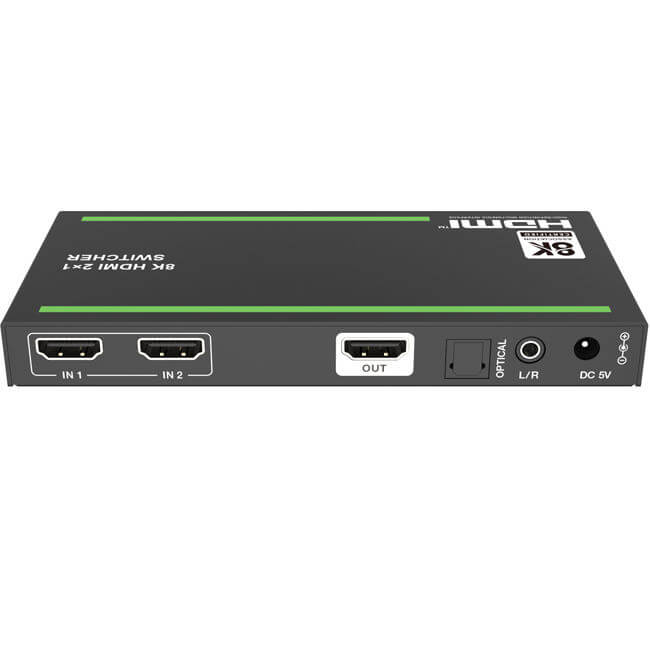

Interface 2×1 with ARC/eARC

No.	Name	Function Description
1	IR Window	IR input signal receiving window.
2	POWER LED	The power LED lights in green when the device is working, and red when the device is in standby.
3	IN LED(1~2)	When the HDMI IN 1/2 port is selected as the signal source input channel, the corresponding green LED will be on.
4	OUT LED	When the HDMI OUT port connects a display device and outputs signal, the green LED will be on.
5	AUTO LED	When the auto switching function (switch to the corresponding signal input channel when the signal source is connected.) is turned on, the green AUTO LED will be on.
6	SWITCHbutton	Used to select signal source for OUT port. Short pressing this button will allow the device to switch any of the two HDMI input signals to the OUT port. Long pressing this button for 3 seconds will turn on/off the auto switching function.

7	EDID DIP switch	Use the DIP switch to set EDID. 111- Copy OUT port sink EDID (as factory default) 110- 4K@60Hz 4:4:4, Audio 2ch PCM 101- FRL 12G_8K_HDR, Audio 2ch PCM 100- FRL 12G_8K_HDR, Audio 5.1ch PCM/DTS/DOLBY 011- FRL 12G_8K_HDR, Audio 7.1ch PCM/DTS/DOLBY/HD 010- FRL 10G_8K_HDR, Audio 2ch PCM 001- FRL 10G_8K_HDR, Audio 5.1ch PCM/DTS/DOLBY 000- FRL 10G_8K_HDR, Audio 7.1ch PCM/DTS/DOLBY/HD
8	SERVICE	Firmware update and debug port.
9	IN port (1~2)	HDMI signal input port, connecting to HDMI source device such as DVD or PS5 with an HDMI cable.
10	OUT port	HDMI signal output port, connecting to HDMI display device such as TV or Monitor with an HDMI cable.
11	OPTICAL	Optical fiber audio output port.
12	L/R	Analog audio output port.
13	DC 5V	DC 5V/1A Power input port.

Connection diagram

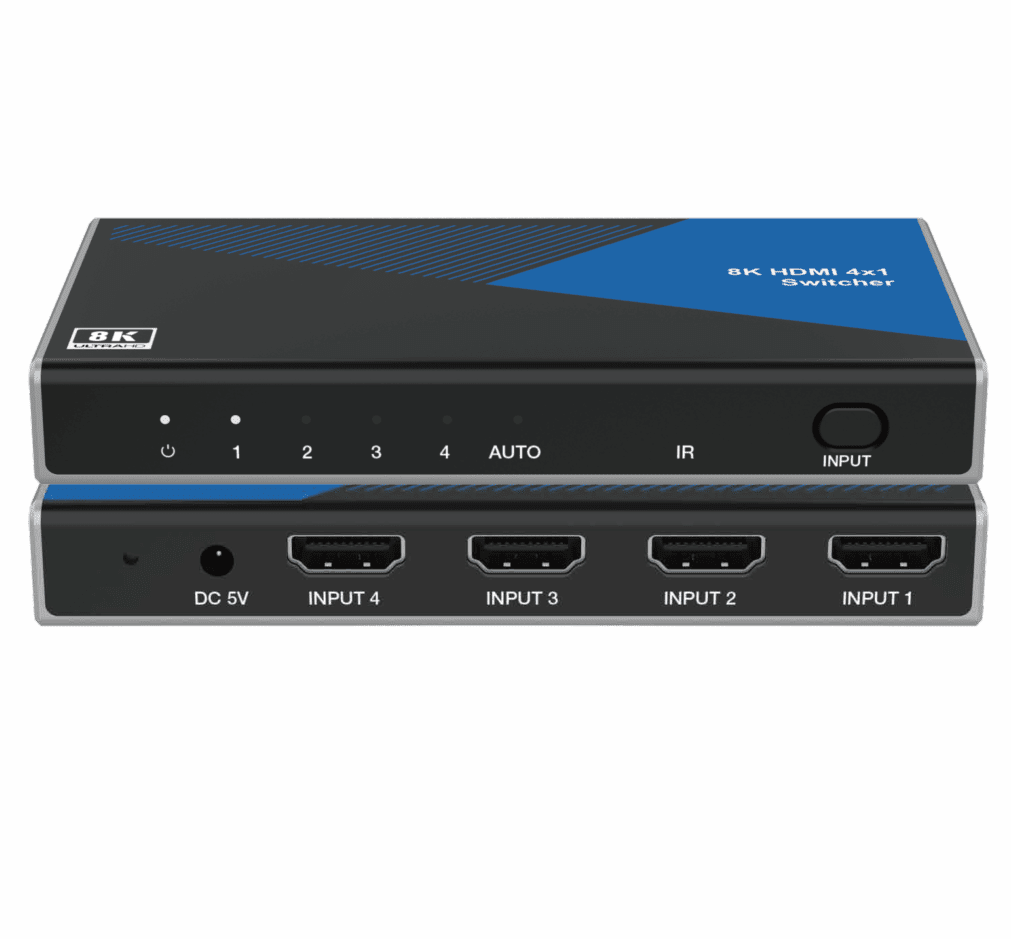

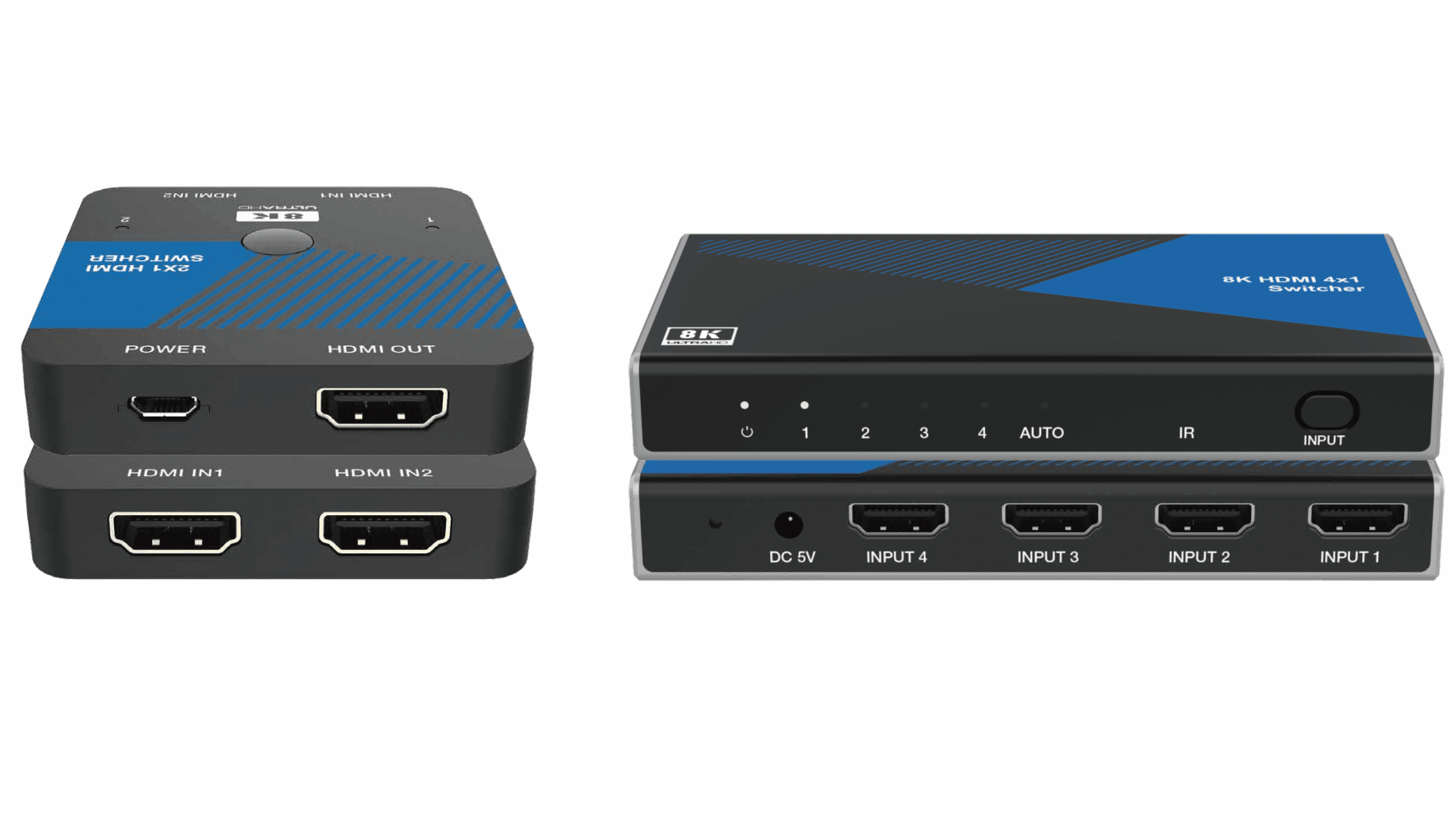

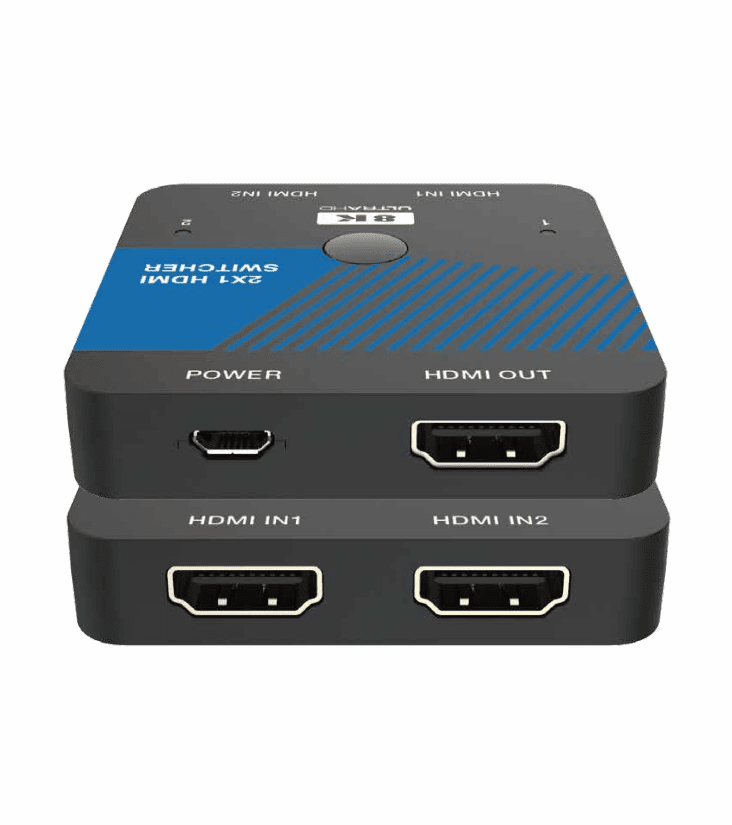

Basic 48Gbps 2X1 4X1 Switch 8K60Hz 4:4:4

This 8K HDMI 4×1 Switcher can switch any of 4 HDMI sources to 1 HDMI display. It supports video resolution up to 8K@60Hz 4:4:4, 48Gbps video bandwidth. It is suitable for outdoor display, video conference, security monitoring, home theater and other applications. By using this HDMI 8K switcher, you are allowed to connect from four HDMI INPUT ports to four HDMI source devices via an individual HDMI cable, then connect from HDMI OUTPUT port to your external monitor (such as HDMI projector, HDMI TV or HDMI ordinary display). You can switch between four sources by pressing the switch button on the front panel of the switcher. Please pay attention that this switcher is not a bi-directional switcher, you can only use from four sources to one display (only 4 in 1 out, not 1 in 4 out). It can work well with xbox or PS5 to achieve 4K@120hz on your TVs or relative monitors.

Features:

☆ HDMI 2.1 and HDCP 2.3 compliant

☆ Support 48Gbps video bandwidth

☆ 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support

☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through

☆ VRR, FVA, ALLM support

☆ Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

☆ 4×1 switch output, auto switch is supported

☆ Built-in Equalizer and Driver

☆ Auto EDID management

☆ Compact design for easy and flexible installation

Specification

Specifications	Technical
	HDMI Compliance	HDMI 2.1
	HDCP Compliance	HDCP 2.3
	Video Bandwidth	48Gbps
	Video Resolution	Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
	Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
	Color Depth	8-bit,10-bit,12-bit
	HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
	Connections
	Input ports	4x HDMI INPUT [Type A, 19-pin female]
	Output ports	1x HDMI OUTPUT [Type A, 19-pin female]
	Mechanical
	Housing	Plastic Enclosure
	Silkscreen Color	Black
	Dimensions	122mm (W) x 65mm (D) x 19mm (H)
	Weight	88g
	Power Supply	Input: AC100 – 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
	Power Consumption	3.4W (Max)
	Operation Temperature	32°F – 104°F / 0°C – 40°C
	Storage temperature	-4°F – 140°F / -20°C – 60°C
	Relative Humidity	20 – 90% RH (no condensation)
