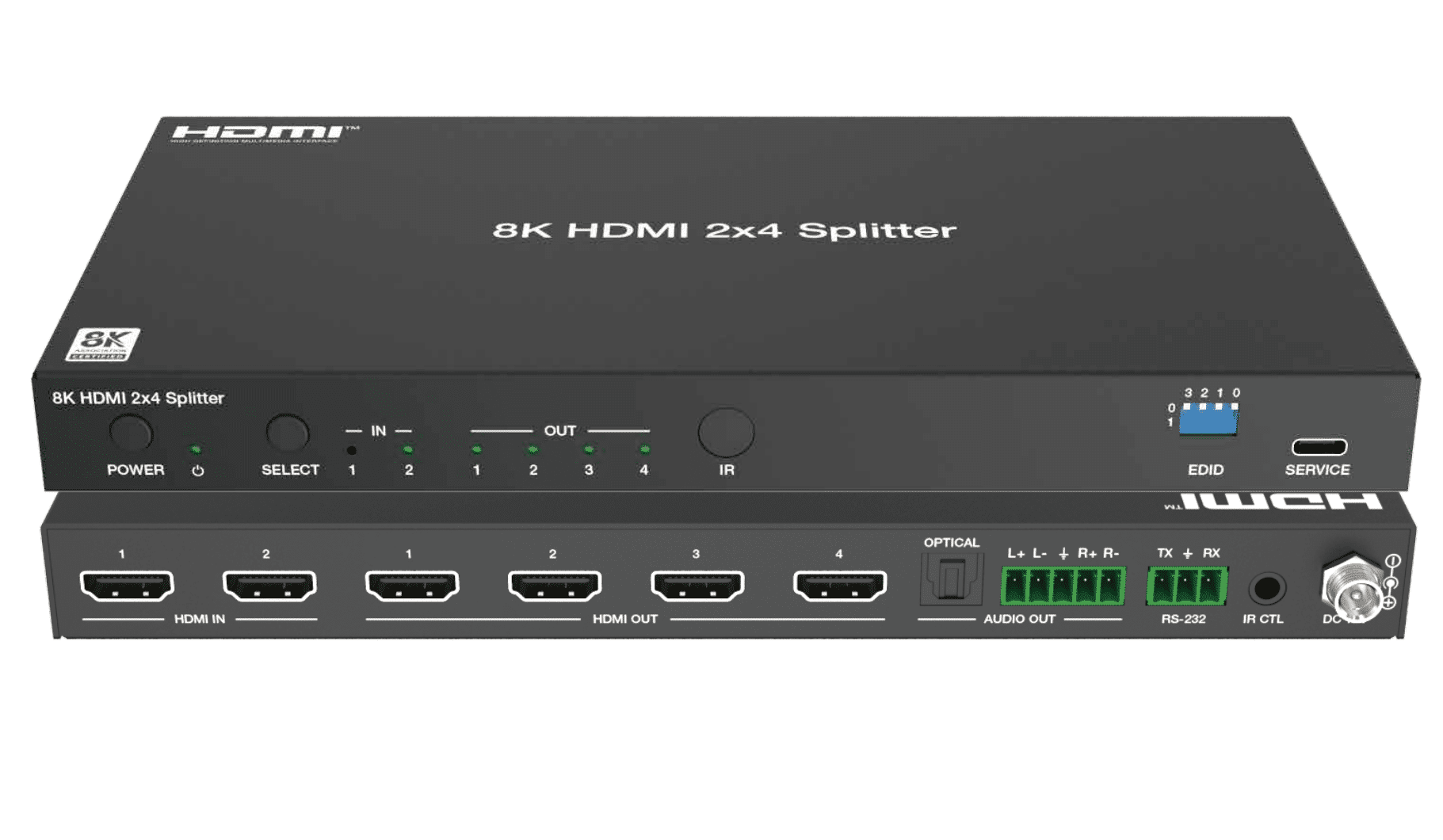

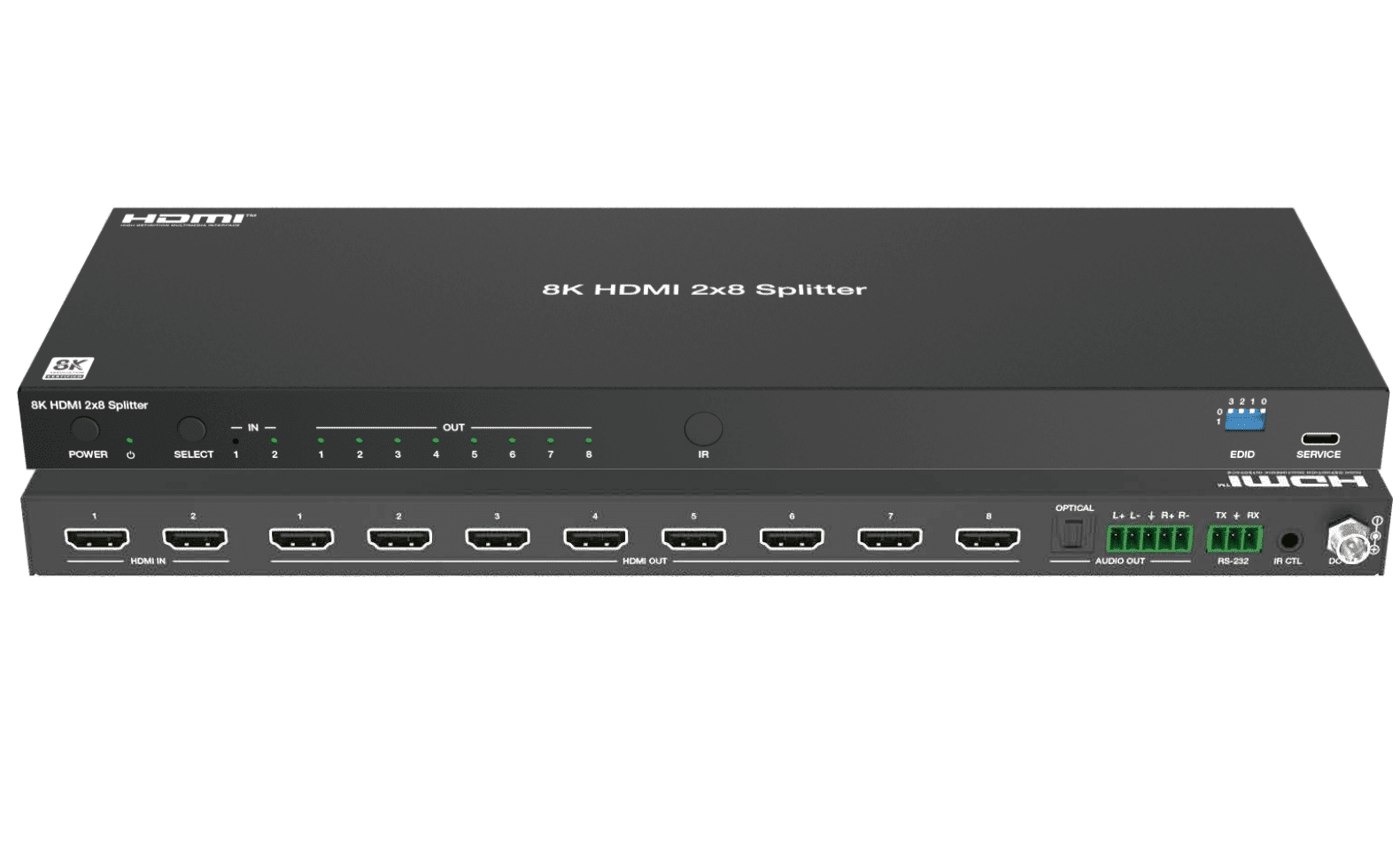

8K60Hz 2×1 1×4 1×8 2×4 2×8 HDMI Splitter with Audio and RS232 Control
2×1/1×4 2×1/1×8 HDMI 8K60 Splitter with RS232 Control and Audio De-embedded,8K to 4K/2K
| Weight | 600 g |
|---|---|
| Dimensions | 22 × 10 × 3 cm |
| HDMI Version | HDMI 2.1 |
| Resolution | Up to 8K@60Hz 48Gbps |
| HDCP | HDCP 2.3 |
| Audio | LPCM 7.1ch,Dolby TrueHD,DTS-HD Master |
| Control | Front button panel, IR Remote control and RS232 |
Detailes About 8K60Hz 2×1 1×4 1×8 2×4 2×8 HDMI Splitter with Audio and RS232 Control
Features:
Complies with HDMI 2.1 and HDCP 2.3 specifications
Video resolution up to 8K60Hz
Video bandwidth up to 48Gbps
Supports LPCM 7.1ch, Dolby TrueHD and
DTS-HD Master audio transparent transmission
Each output supports video scaling from 8K to 4K/2K
Built-in equalizer, scaling, retiming and drivers
Audio de-embedding
EDID management
Front panel push button, infrared and RS-232 control
