New 8K HDMI over Fiber Extender up to 300meter Fiber module included

8K 40Gbps HDMI over Fiber Extender (300m)

Additional information

Weight 50 g
Dimensions 5 × 2 × 1.8 cm
HDMI Version

8K 40Gbps

Resolution

Up to 8K30 4:4:4

HDCP

HDCP2.3 and HDMI 2.1

Transmission distance

Up to 984ft/300 meters over a multi-mode fiber
cable (50/125um/OM3/OM4), no latency

Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Cable specification

850nm 50/125um OM4 LC-LC multi-mode optical
fiber cable

ESD Protection

Human body model — ±8kV (Air-gap discharge) &
ESD Protection ±4kV (Contact discharge)

Detailes About New 8K HDMI over Fiber Extender up to 300meter Fiber module included

Overview

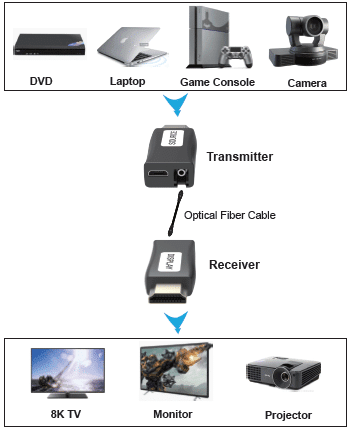

This 8K 40Gbps HDMI over Fiber Extender can extend HDMI signal up to 984ft/300 meters over a multi-mode fiber cable (50/125um/OM3/OM4). The video resolution is up to 8K30 4:4:4.

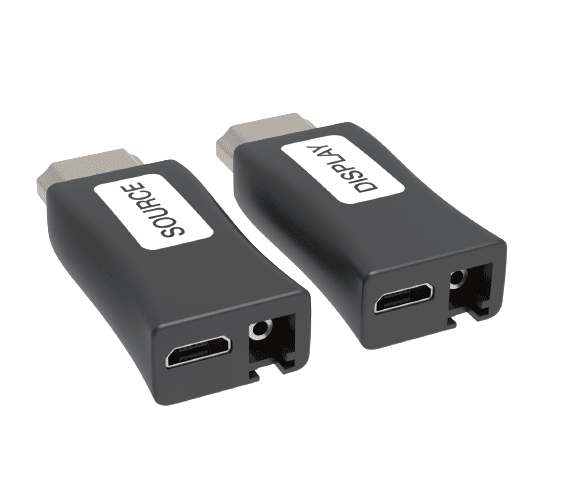

It supports HDMI HDP/DDC/CEC/ARC transmission. The transmitter features one HDMI input, one fiber optical output and one Micro USB power supply port (TX also can be powered by the connected HDMI source device).

The receiver features one HDMI output, one fiber optical input and one Micro USB power supply port.

This product has the advantages of strong anti-interference, high safety performance, small size and light weight, and has incomparable advantages in long-distance transmission.



Features:

☆ HDMI 2.1, HDCP 2.3 compliant 40Gbps
☆ Up to 8K60 YCbCr 4:2:0 10bit, 8K30 RGB/YCbCr 4:4:4 10bit or 4K120 RGB/YCbCr 4:4:4 10bit
☆ VRR, ALLM, QMS, QFT, SBTM pass-through
☆ HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
☆ CEC/HPD/DDC/ARC pass-through
☆ Standard single Fiber LC connector
☆ Up to 984ft/300 meters over a multi-mode fiber cable (50/125um/ OM3/OM4)
☆ Fiber module included (Embedded)
☆ Micro USB power supply
☆ 2x USB cables and 2x 15cm HDMI female to male cables included

 Package Contents

① 1 × 8K 40Gbps HDMI over Fiber Extender (Transmitter)
② 1 × 8K 40Gbps HDMI over Fiber Extender (Receiver)
③ 2 × HDMI Adapter Cable (male to female, 15cm)
④ 2 × USB Cable (USB A to Micro USB, 1m, shielded)
⑤ 1 × User Manual
