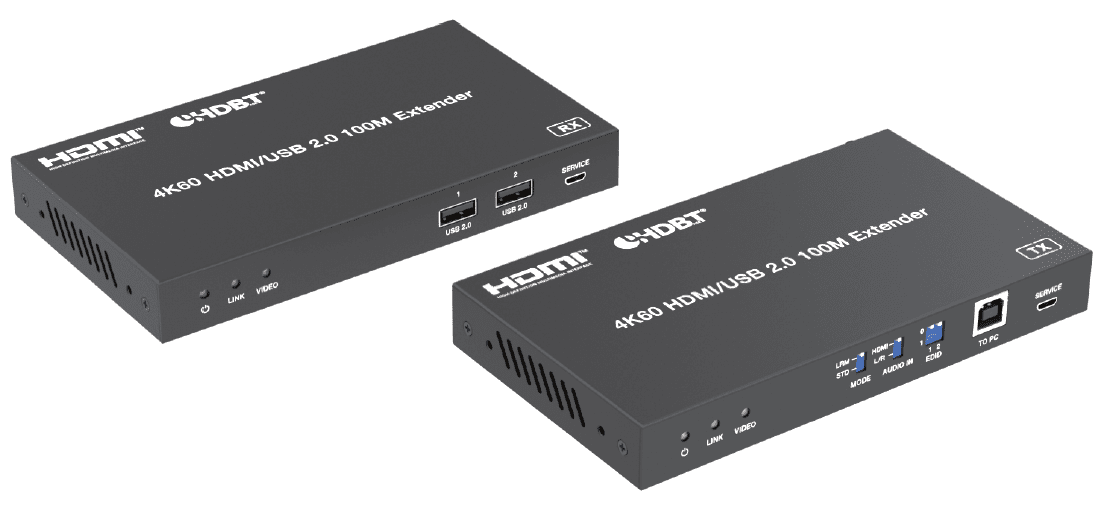

4K@60Hz HDMI KVM Extender USB 2.0 Over One Cat6 Up To 100meter 18Gbps IR RS232

18Gbps 2.0 HDMI KVM Extender over One Cat 6 up to 100m with Bi-direction IR, Bi-direction RS232 control

Additional information

Weight 700 g
Dimensions 16 × 9 × 3 cm
HDMI Version

HDMI 2.0b

Resolution

4K@60Hz 4:4:4

HDCP

HDCP2.2 and HDCP 1.4

Transmission Distance

HBT mode: Audio and video signals can be transmitted up to 328ft/100m for 4K60/4K30/1080P
LRM mode: Audio and video signals can be transmitted up to 492ft/150m for 4K30/1080P

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz

Bi-direction IR & RS232

Support

Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Detailes About 4K@60Hz HDMI KVM Extender USB 2.0 Over One Cat6 Up To 100meter 18Gbps IR RS232



Overview

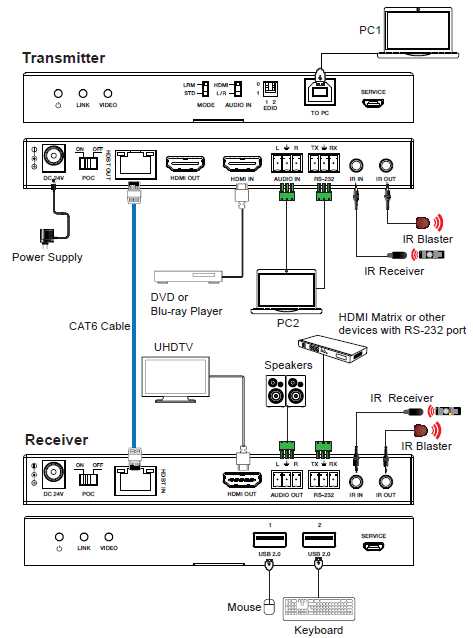

The 4K60 HDMI/USB 2.0 HDBT Extender can transmit HDMI high-definition signal, bidirectional IR control signal, bidirectional RS-232 control signal and USB 2.0 signal over CAT6 cable to the distance up to 328ft/100m (HBT mode) or 492ft/150m (LRM mode). Video resolution is up to 4K2K@60Hz (4:4:4).

Transmitter supports audio embedding, and Receiver supports audio deembedding. Audio pass-through is available when no video signal is transmitted. This product converts HDMI signal to standard HDBaseT signal and
transmits it through LAN cable.

It can easily control signal source device or display device from the remote end through bi-directional IR signal passthrough function. It supports EDID management (COPY TV/ Built-in) and
POC function with POC control switch.

The Extender can be widely used in other fields such as video conference system, multimedia signal broadcasting, HDMI signal extension, etc.





Features:

☆ HDMI 2.0b and HDCP 2.2/1.x compliant
☆ Support video resolution up to 4K2K@60Hz (4:4:4), 18Gbps video bandwidth
☆ Up to 7.1 channels HD audio
☆ Built-in mode DIP switch for selecting the HBT mode or LRM mode HBT mode: Audio and video signals can be transmitted up to 328ft/100m for 4K60/4K30/1080P
LRM mode: Audio and video signals can be transmitted up to 492ft/150m for 4K30/1080P
☆ Built-in EDID DIP switch supports intelligent EDID management
☆ Built-in audio DIP switch supports analog audio embedding
☆ Built-in POC switches, when both POC switches of TX and RX are turned on, the Extender supports bidirectional 24V POC function, that is, either TX or RX is powered by 24V1A power supply, the another does not need power supply from the DC jack. (See the Description 1)
☆ Transmit bidirectional Infrared control signal together with the HDMI signal. (See the Description 2) IR IN is a 5V power supply level
☆ Transmit bidirectional RS-232 control signal together with the HDMI signal. (See the Description 3)
☆ Supports USB 2.0 signal transmission
☆ Compact design for easy and flexible installation
4k@60hz hdmi extender over fiber optic cable up to 1km 3300ft 18gbps ir rs232
Packing List
① 1 x 4K60 HDMI/USB 2.0 HDBT Extender
② 1 x HDBT Receiver
③ 4 x 3pin-3.81mm Phoenix connector (male)
④ 1 x Wideband IR Receiver cable (1.5 meters)
⑤ 1 x IR Blaster cable (1.5 meters)
⑥ 4 x Mounting Ears
⑦ 8 x Machine Screws-M3*4
⑧ 1 x 24V/1A Locking Power Supply
⑨ 1 x User Manual
