8K@60Hz HDMI Extender Over Fiber Optic Cable Up To 300Meter with RS232 IR Control

48Gbps 2.1 HDMI Fiber Extender over One Fiber(multi mode) up to 300meter

Weight 1000 g
Dimensions 17.5 × 10 × 3 cm
HDMI Version

HDMI 2.1
Video Resolution

Up to 8K@60 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit
HDCP

HDCP2.3
Transmission Distance

OM2: 40m/131ft
OM3: 200m/656ft
OM4: 300m/985ft
(over 850nm OM2/3/4 multi-mode fiber optic cable)
Video Bandwidth

48Gbps FRL and 18Gbps TMDS
IR level

IR IN: 12V; Level: 3.2.04.00219
IR OUT: 5V; Level: 3.2.04.00093
IR frequency

Wideband 20k-60khz
Audio Formats

HDMI IN/OUT:
PCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K)
(16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS
Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X;
AUDIO BREAKOUT:
L/R OUT: PCM 2.0CH
Color Space

RGB 4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth

8/10/12-bit
Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Get Free Quote & Catalog

Privacy Policy: Security and Privacy Guaranteed 100%!
Quote Now

Detailes About 8K@60Hz HDMI Extender Over Fiber Optic Cable Up To 300Meter with RS232 IR Control

48Gbps HDMI over FIBER Extender (300m)

8k@60hz hdmi extender over fiber optic cable up to 300meter with rs232 ir control

Introduction

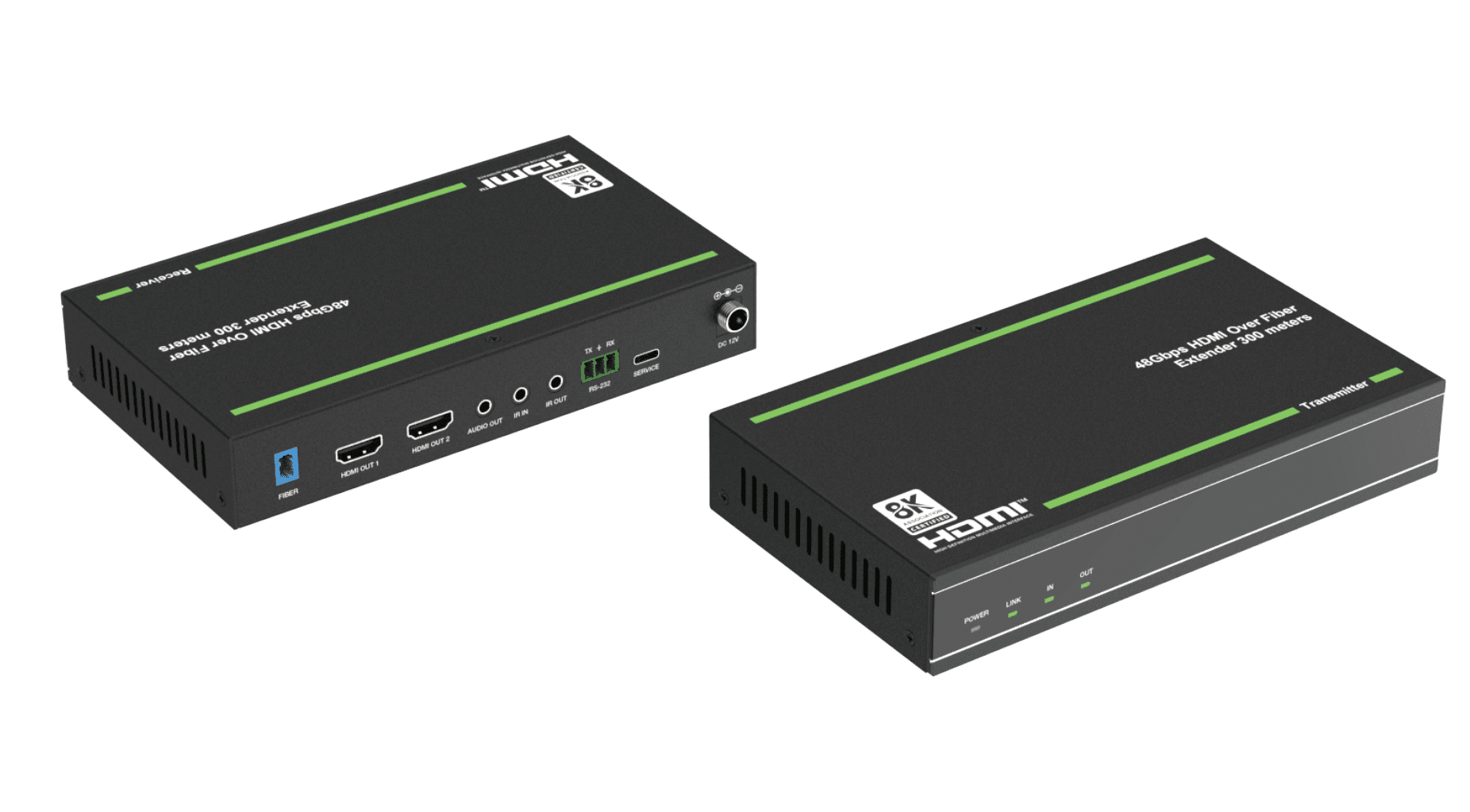

This is a pair of transmitter and receiver modules which can extend HDMI 2.1 video and audio signal up to 300m/984ft, over an OM4 fiber optic cable.
It supports video resolution up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4.
It features Auto Low Latency and Variable Refresh Rate, along with 16 EDID presets.
This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occasions.

Features:

☆ Compliant with HDCP 2.3
☆ Support video bandwidth up to 48Gbps FRL and 18Gbps TMDS
☆ Video resolution up to 8K@60 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit, as specified in HDMI 2.1
☆ Transmission distance can be up to 300m/984ft over an OM4 fiber optic cable
☆ Multi-mode fiber grade OM2/3/4 compliant ☆ Support EDID learning function on Transmitter
☆ Support analog audio de-embedding on Receiver
☆ VRR, ALLM, QMS, QFT, SBTM are supported
☆ HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through are supported
☆ HDMI audio formats support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
☆ Bi-directional IR & RS-232 pass-through

Packing list:

① 1× 48Gbps HDMI over FIBER Extender (TX)
② 1× 48Gbps HDMI over FIBER Extender (RX)
③ 1× IR Wideband Blaster Cable (1.5m)
④ 1× IR Wideband Receiver Cable (1.5m)
⑤ 2× 12V/1A Multinational Power Supply
⑥ 2× Power Adapter
⑦ 4× Mounting Ear
⑧ 8× Machine Screw (KM3*4)
⑨ 2× 3pin-3.5mm Phoenix Connector (male)
⑩ 1× User Manual

Specification

8k@60hz hdmi extender over fiber optic cable up to 300meter with rs232 ir control
8k@60hz hdmi extender over fiber optic cable up to 300meter with rs232 ir control
8k@60hz hdmi extender over fiber optic cable up to 300meter with rs232 ir control

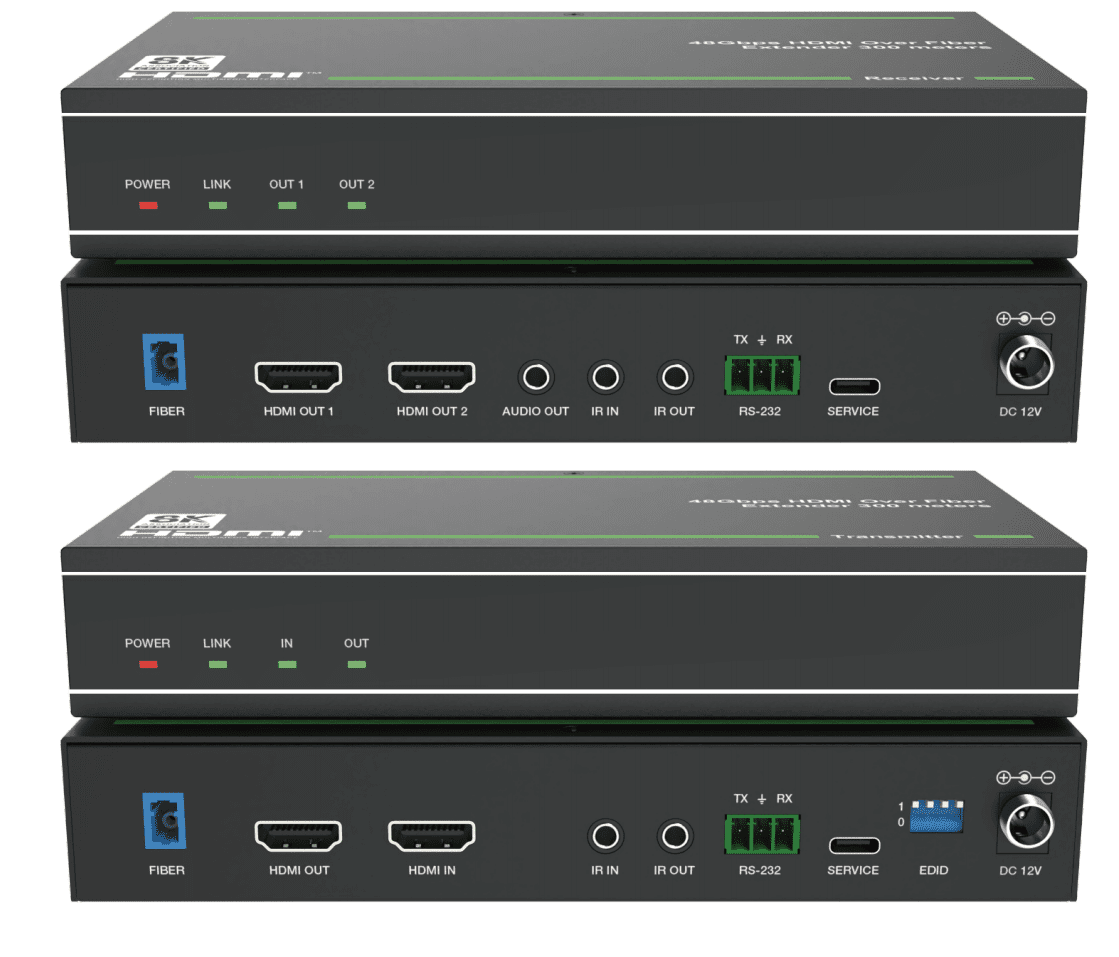

Interface

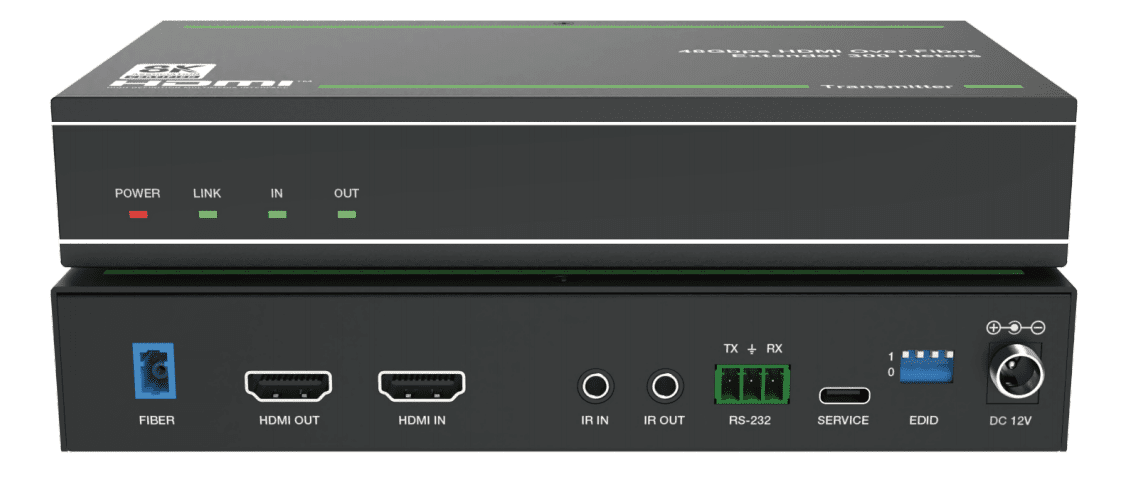

Transmitter

8k@60hz hdmi extender over fiber optic cable up to 300meter with rs232 ir control

EDID

8k@60hz hdmi extender over fiber optic cable up to 300meter with rs232 ir control

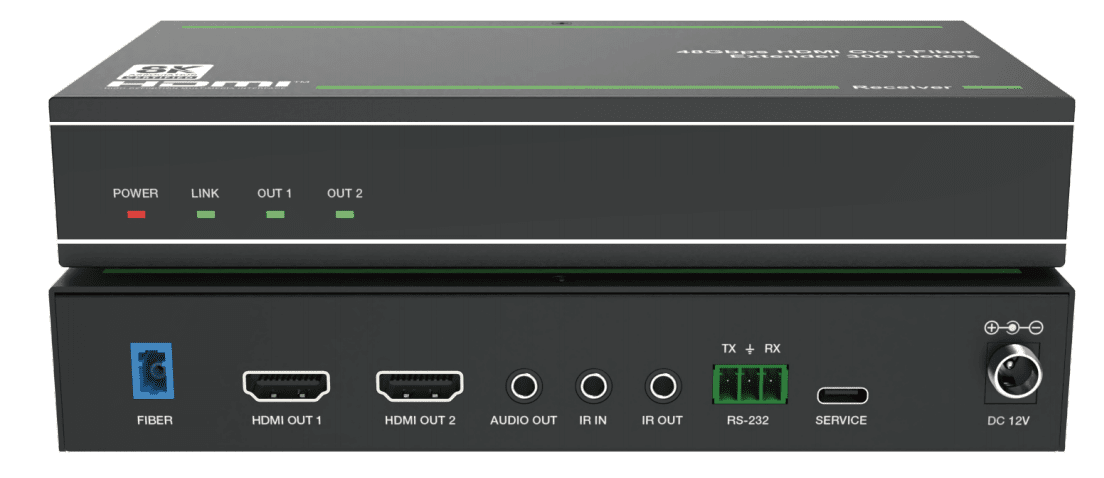

Receiver

8k@60hz hdmi extender over fiber optic cable up to 300meter with rs232 ir control
