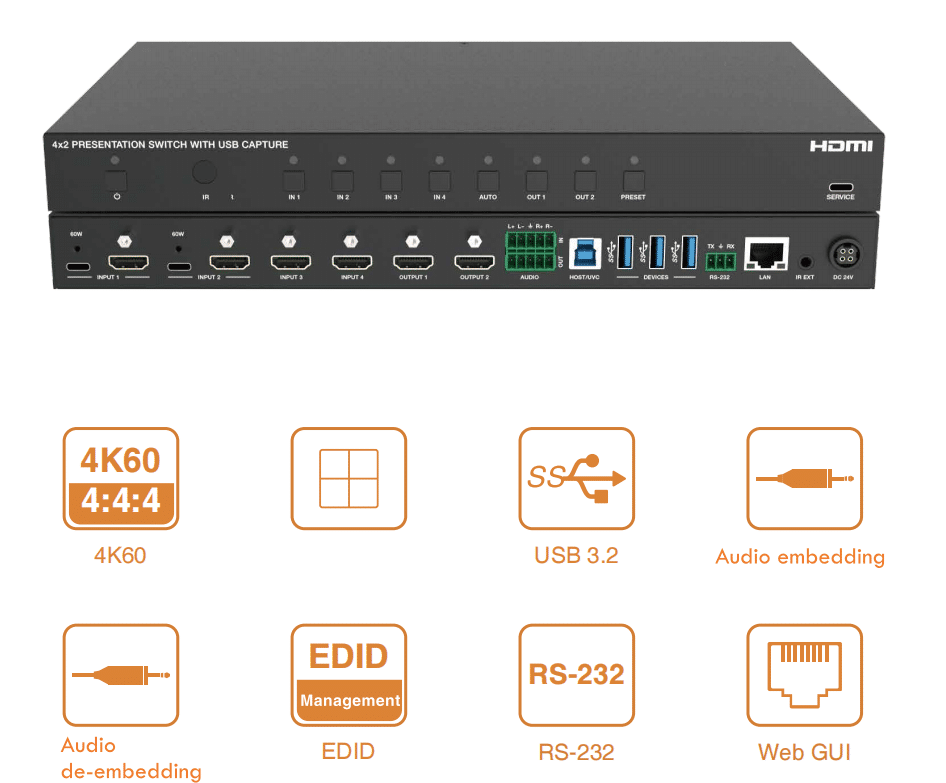

4k60hz 4×2 Presentation Switcher+Multiviewer with USB 3.2 Capture
Presentation System 4×2 seamless switcher with multiviewer , RS232 Control,USB-C support
| Weight | 1200 g |
|---|---|
| Dimensions | 23 × 10 × 3 cm |
| HDMI Version | HDMI 2.0b |
| Resolution | up to 3840×2160@60hz |
| HDCP | HDCP2.2 |
| USB | 4K video capture via USB 3.2 Gen 1, compliant with standard UVC/UAC protocol |
| Multiview | Full Screen PIP/PAP/Tri/Quad-view Multiview 5 configurable display modes |
| Video Resolution | Up to 4K2K@50/60Hz(YUV4:4:4) |
| Inputs | 2 USB-C/HDMI, 2 HDMI, 1 analog audio, 1 USB 3.2 Gen 1 host |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 4k60hz 4×2 Presentation Switcher+Multiviewer with USB 3.2 Capture

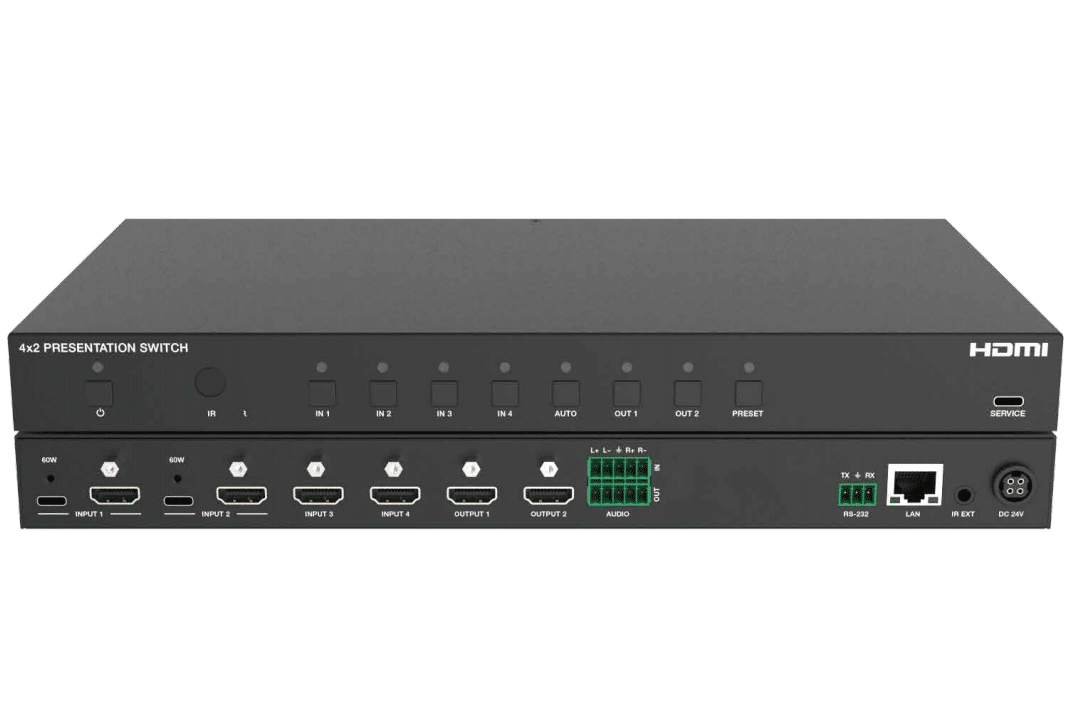

4X2 Seamless Matrix Switcher with Multiviewer
4X2 Seamless Matrix Switcher with Multiviewer and USB 3.2 Video Capture
Compliant with HDMI 2.0b, HDCP 2.2, DisplayPort 1.4 specifications
Video resolution up to 18Gbps 4K@60Hz 4:4:4
Input: 2 USB-C/HDMI, 2 HDMI, 1 analog audio, 1 USB 3.2 Gen 1 host
Output: 2 HDMI, 1 analog audio, 3 USB 3.2 Gen 1 devices
Multi-screen split display supports single screen, picture-in-picture (PIP), double screen (PBP), triple screen, quad screen and custom layout
Automatic or manual switching mode
Seamless switching without black screen or tearing screen phenomenon (matrix mode)
USB-C supports DisplayPort alternative mode for audio and video transmission and 60W charging
4K video capture via USB 3.2 Gen 1, compliant with standard UVC/UAC protocol
Native USB 3.2 Gen 1 hub
Audio embedding and de-embedding
Audio matrix and DSP functions for gain, equalization, volume and delay control
Intelligent EDID management
Front panel buttons, remote control, RS-232, TCP/IP and Web GUI control
The Switcher support 5 Multiview display modes
SINGLE, PIP, PBP, 3xWIN, 4Xwin
Users can select different operations for different Multiview modes as following:
SINGLE and 4xWIN: Inputs selection
PBP and 3xWIN: Inputs selection, Display Ratio selection
PIP: Inputs selection, Display Ratio selection, Sub window size and position selection
