4K@60Hz 4:4:4 USB-C HDBaset 3.0 KVM Extender Over a single CAT6A/7 cable 100m
18Gbps HDBaset 3.0 KVM USB2.0 Extender over One Cat6a up to 100m with IR, RS232 control,POC with USB-C input
| Weight | 800 g |
|---|---|
| Dimensions | 15 × 8 × 3 cm |
| HDMI Version | HDMI 2.0b |
| Resolution | 4K@60Hz 4:4:4 |
| HDCP | HDCP2.3 |
| Transmission Distance | HDBT Standard Mode (4K60/4K30/1080P): 328ft/100m (CAT6A/7) |
| Video Bandwidth | 18Gbps |
| IR & RS232 | Support Wideband IR 20k-60khz and RS232 control |
| Audio Formats | HDMI/USB-C/HDBT: |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 4K@60Hz 4:4:4 USB-C HDBaset 3.0 KVM Extender Over a single CAT6A/7 cable 100m
HDMI 4K60 100M HDBaset 3.0 with
USB-C and HDMI input
Introduction
This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals up to 328ft/100m via a single CAT6A/7 cable.
Video resolution is up to 4K2K@60Hz YUV 4:4:4. The transmitter features with 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host and 3x USB Device ports.
It can switch between HDBT Standard Mode (as factory default) and HDBT Long Reach Mode. The receiver features with 1x HDMI output, 2x USB Device ports. Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, bi-directional IR and RS-232 signal pass-through.
This product supports bi-directional 24V POC function. The Extender offers the most convenient solution for video extension via a single CAT cable with long distance capability, and it is the perfect solution for home/commercial application.
Features:
☆ Compliant with HDCP 2.3, 18Gbps video bandwidth
☆ HDBaseT 3.0 VS3000 chipset based design
☆ Support video resolution up to 4K2K@60Hz (YUV 4:4:4) as specified in HDMI 2.0b
☆ 4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)
☆ 1080P 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)
☆ TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x USB 2.0 host and 3x USB 2.0 clients
☆ RX features with 1x HDMI output, 2x USB 2.0 clients
☆ USB-C and HDMI signal inputs support auto or manual switching mode
☆ Auto switching supports HDMI 5V or signal detect selection
☆ USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
☆ TX/RX USB-A client ports VBUS on or off depends on USB host is connected or not
☆ HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
☆ 4K to 1080p downscaling features on HDMI output, no frame rate conversion
☆ Both TX and RX support analog audio de-embedding
☆ RS-232 signal pass-through and guest-mode control
☆ Support bi-directional IR signal pass-through, USB 2.0 signal transmission
☆ Advanced EDID management
☆ Each USB-A port provides power up to 5V/500mA
☆Support bi-directional 24V POC, with POC switch
☆ Compact design for easy and flexible installation
Packing list

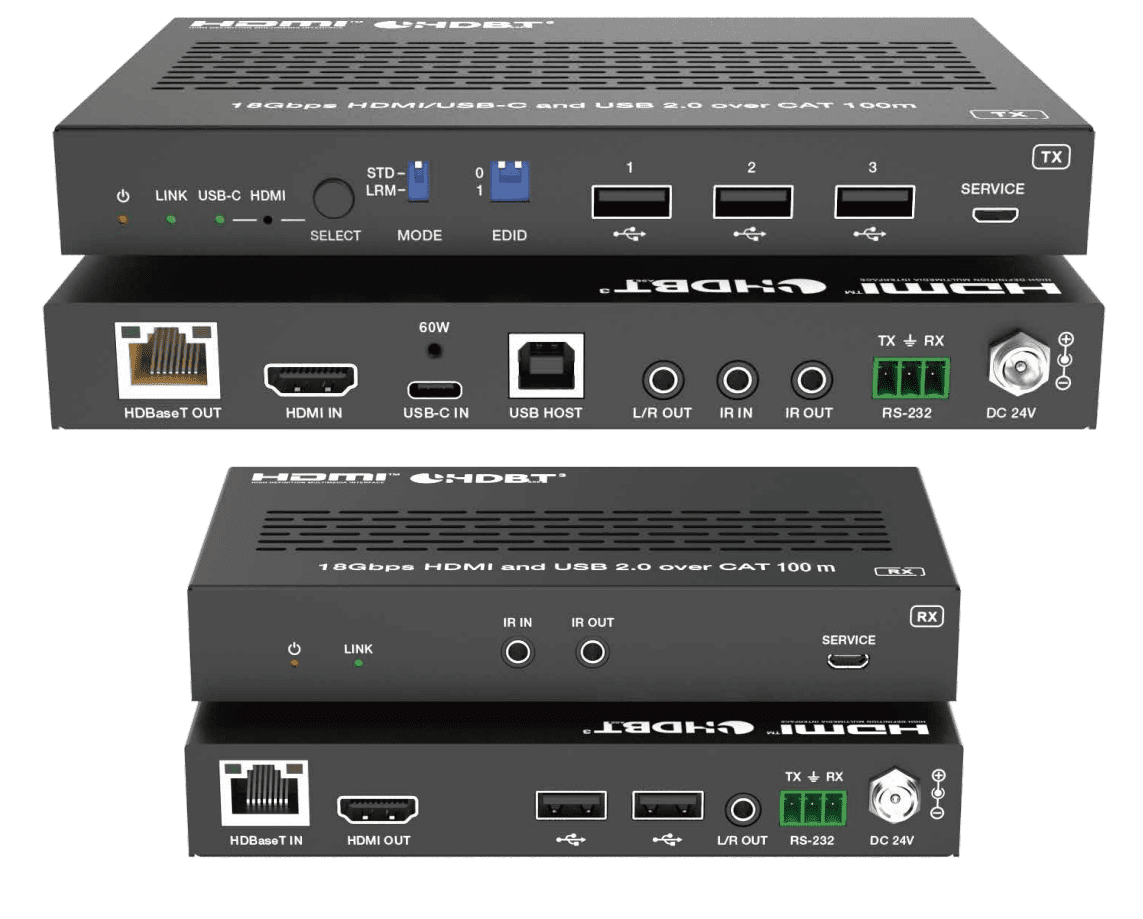

① 1 × 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter)
② 1 × 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Receiver)
③ 1 × IR Blaster Cable (1.5 meters)
④ 1 × IR Wideband Receiver Cable (1.5 meters)
⑤ 2 × 3pin-3.81mm Phoenix Connector (male)
⑥ 4 × Mounting Ear
⑦ 8 × Machine Screw (KM3*4)
⑧ 1 × 24V/3.75A Desktop Power Supply
⑨ 1 × User Manual
Specification
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.3
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz 4:4:4
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12bit
Audio Formats
HDMI/USB-C/HDBT:
LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
3.5mm Analog Audio: LPCM 2CH
HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
USB Compliance USB 2.0
ESD Protection:
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Transmission Distance : HDBT Standard Mode (4K60/4K30/1080P): 328ft/100m (CAT6A/7)
HDBT Long Reach Mode (1080P 8bit): 492ft/150m (CAT6A/7)
IR Level 12Vp-p
IR Frequency Wideband 20K-60KHz

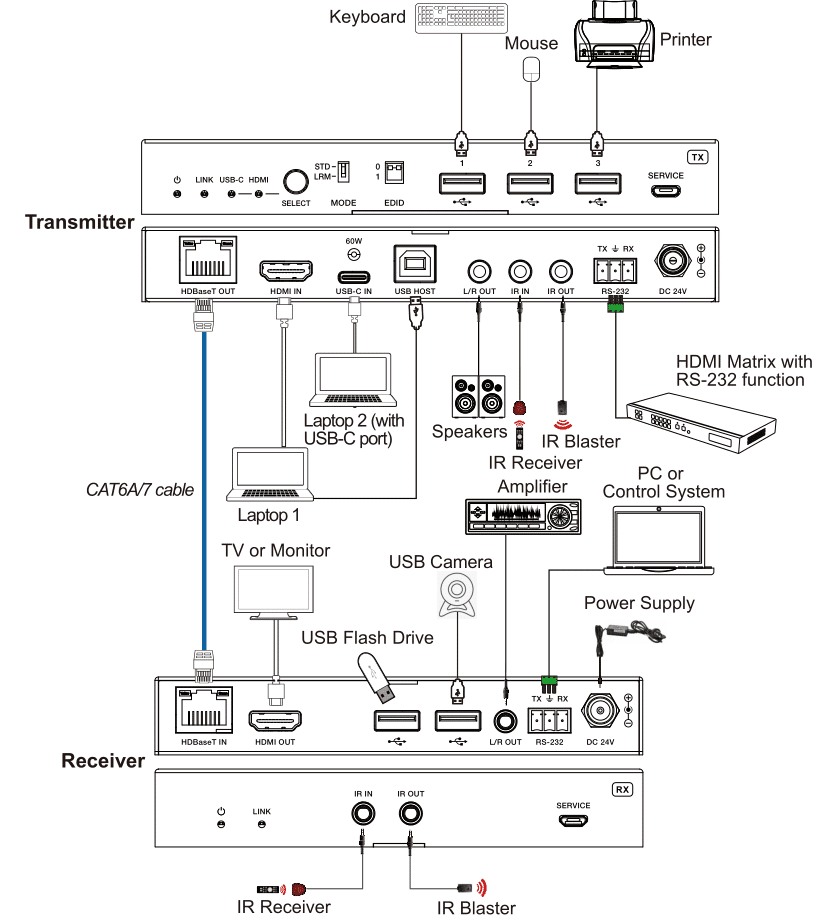

Connection
Transmitter

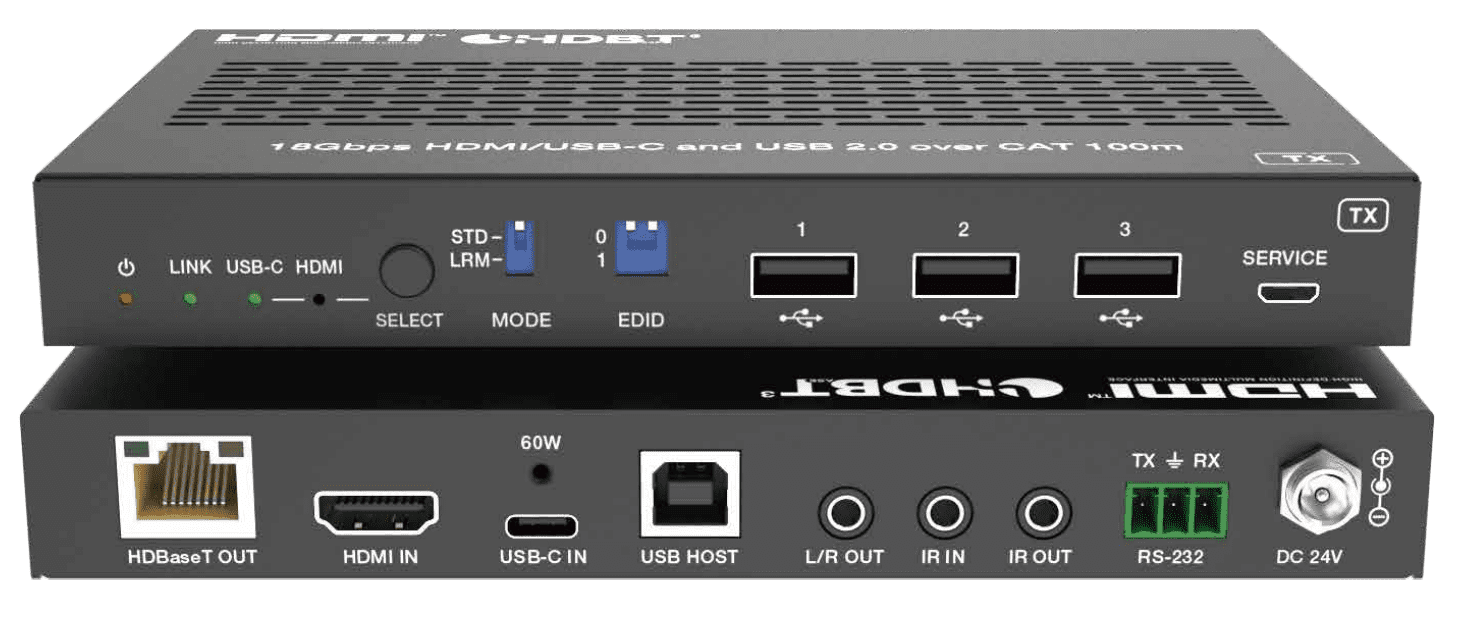

Input: 1 x HDMI IN [Type A, 19-pin female] 1 x USB-C IN [USB Type C, 24-pin female]
Output: 1 x HDBaseT OUT [RJ45, 8-pin female] 1 x L/R OUT [3.5mm Stereo Mini-jack]
Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x SERVICE [Micro USB, 5-pin female] 1 x USB HOST [USB Type B, 4-pin female] 3 x USB Devices [USB Type A, 4-pin female]
Note: In the HDBT Long Reach Mode, due to bandwidth limitations, USB cannot transmit USB 2.0 devices, but only can transmit USB HID devices (such as mice and keyboards). When using the USB pass-through function, the serial baud rate may also be limited.
Receiver:

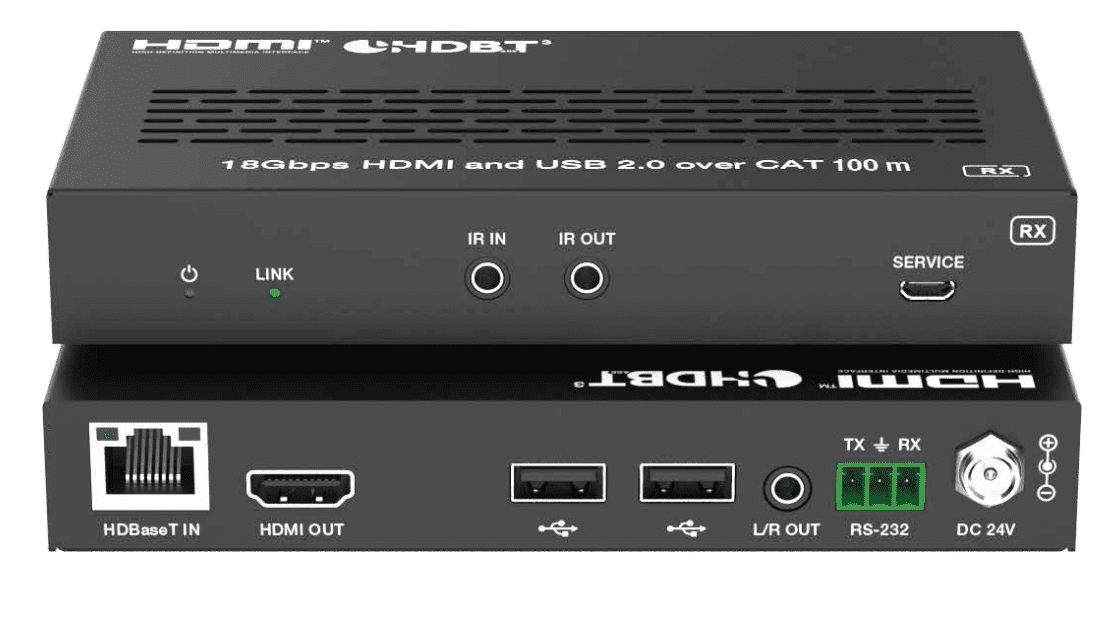

Input: 1 x HDBaseT IN [RJ45, 8-pin female]
Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUT [3.5mm Stereo Mini-jack]
Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x SERVICE [Micro USB, 5-pin female] 2 x USB Devices [USB Type A, 4-pin female]
