4K@60Hz 4:4:4 HDBaset 3.0 70m USB-C,Over a single CAT6A/7 cable
18Gbps HDBaset 3.0 Extender over One Cat6a/7 up to 70m with USB 2.0 Hub ,USB-C 100W charging,RS232,POC
| Weight | 600 g |
|---|---|
| Dimensions | 15 × 8 × 3 cm |
| HDMI Version | HDMI 2.0b |
| Resolution | 4K@60Hz 4:4:4 |
| HDCP | HDCP2.2 |
| Transmission Distance | 70m (via a single CAT 6A/7 cable) |
| Video Bandwidth | 18Gbps |
| Transmitter | TX supports USB 2.0 Hub with 2 local USB client ports |
| Receiver | RX supports USB 2.0 Hub with 4 local USB client ports |
| USB-C Charging | USB-C in with DP-ALT for A/V, USB 2.0 data and up to 100 watts charging |
| POC Power Supply | Input: AC 100 – 240V 50/60Hz |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 4K@60Hz 4:4:4 HDBaset 3.0 70m USB-C,Over a single CAT6A/7 cable

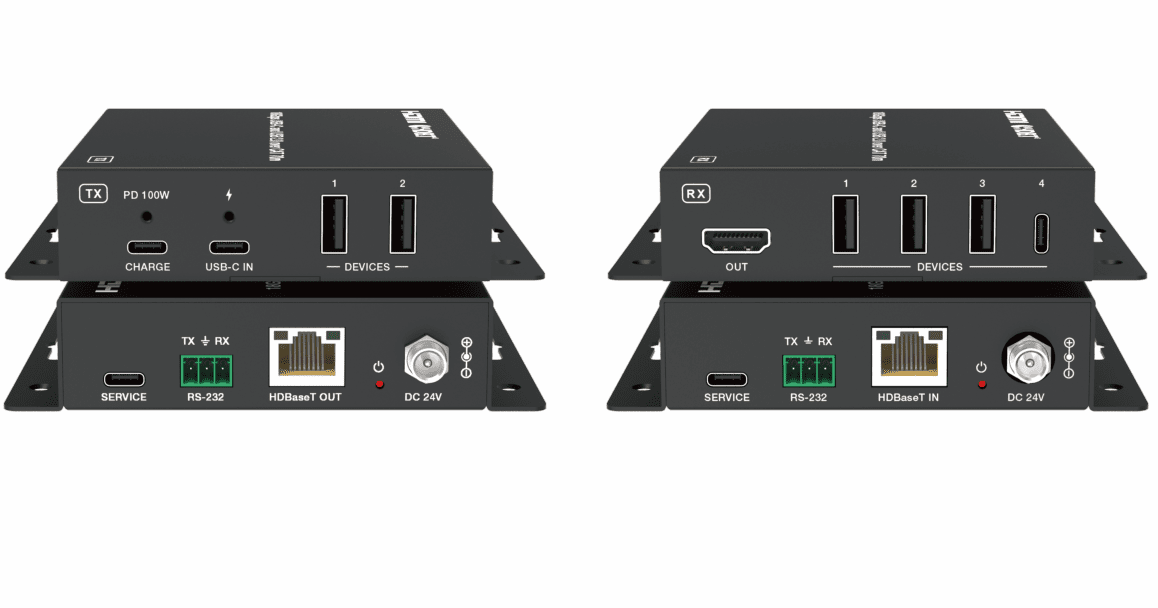

HDMI 4K60 70M HDBaset 3.0 with USB-C Input/HDMI Output
Features:
HDCP 2.2 compliant, 18Gbps video bandwidth
Uncompressed 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 over CAT
HDR, HDR10, HDR10+,Dolby Vision pass through
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
4K30/1080P up to 70 meters using CAT6A cable
4K60 up to 40 meters using CAT6A cable
USB-C in with DP-ALT for A/V, USB 2.0 data and up to 100 watts charging
Dedicated USB-C charge port to connect external USB-C charger
TX supports USB 2.0 Hub with 2 local USB client ports
RX supports USB 2.0 Hub with 4 local USB client ports
USB 2.0 high speed and RS-232 transmission
Two-way 24V POC (Power over Cable)

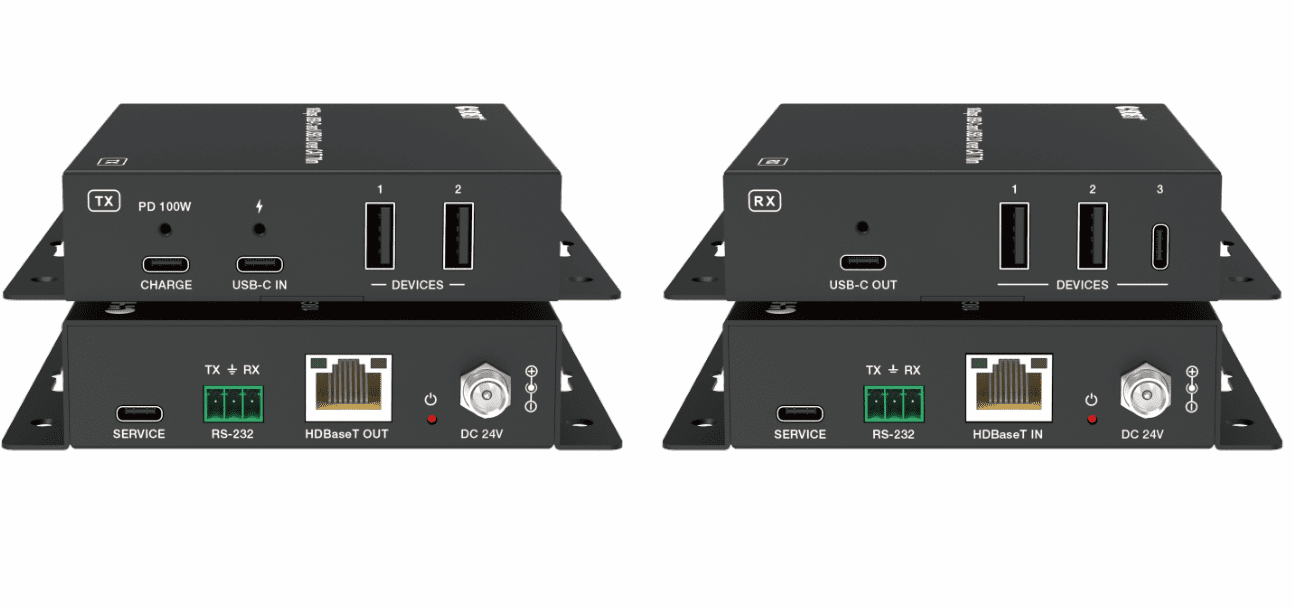

HDMI 4K60 70M HDBaset 3.0 with USB-C Input/USB-C Output
Features:
DP 1.2, HDCP 2.2 compliant
Uncompressed 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 over CAT
HDR, HDR10, HDR10+, Dolby Vision pass through
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
4K30/1080P up to 70 meters using CAT6A cable
4K60 up to 40 meters using CAT6A cable
USB-C in with DP-ALT for A/V, USB 2.0 data and up to 100 watts charging
Dedicated USB-C charge port to connect external USB-C charger
TX supports USB 2.0 Hub with 2 local USB client ports
RX USB-C out with DP-ALT for A/V and USB 2.0 data
RX supports USB 2.0 Hub with 3 local USB client ports
USB 2.0 high speed and RS-232 transmission
Two-way 24V POC (Power over Cable)
