4K60 HDMI™ over Cat6a or Fiber Extender with USB 2.0 via Cat6a 150meter/

Fiber (single mode 10km,multi mode 300m)

4K HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable. A complete set of extender including Transmitter and Receiver . The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, mouse,
audio player and other USB devices.
The Extender supports signal transmission over fiber optic cable or Cat5 cable, it supports single-mode and multi-mode optical fiber, the maximum
transmission distance of single mode is 10km, for multimode thetransmission distance is up to 300m. If you connect the TX and RX with a Cat5 cable, the transmitting distance is up to 120m,Cat6a 150m. It supports the transmission of 1 channel 4K HDMI signals and has a wide range of applications

*Note: The bandwidth of the optical module must reach 1.25Gbit/sec.

Features

FHD HDMI video transmission, resolution is up to 3840×2160@60Hz (YCbCr 4:4:4)
Ultra-lowlatency: 8ms @60fps
Transmission bandwidth: ~900Mbit/s
Supports1000MLANport
Supports optical fiber transmission
The longest transmission distance is up to 150 meters with STP. (Cat5e supports 120 meters, Cat6a and above support 150 meters).
Network cables must not be run along side high-voltage power lines
Supports USB 2.0–Supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices, connect via the built-in 2 USB hub
Bidirectional Analog Audio: line in/out with microphone and headphone support
Support HDMI built-in audio
Supports HDMI interface loop-out on the transmitter (TX)
Supports 1-channel as ynchronous serial transmission
Supports connect to a switch(1000M)
Supports point-to-point dial-up connection
Built-in ESD protection

Packing list

• 1x Transmitter
• 1x Receiver
• 1x HDMI cable
• 1x Audio cable (1.5m)
• 1x USB cable (USB-A female to USB-B female, 1.5m)
• 2x Power Adapter
• 2x Power Cords (Regional)
• 1x Mounting Kit
• 1x User Manual

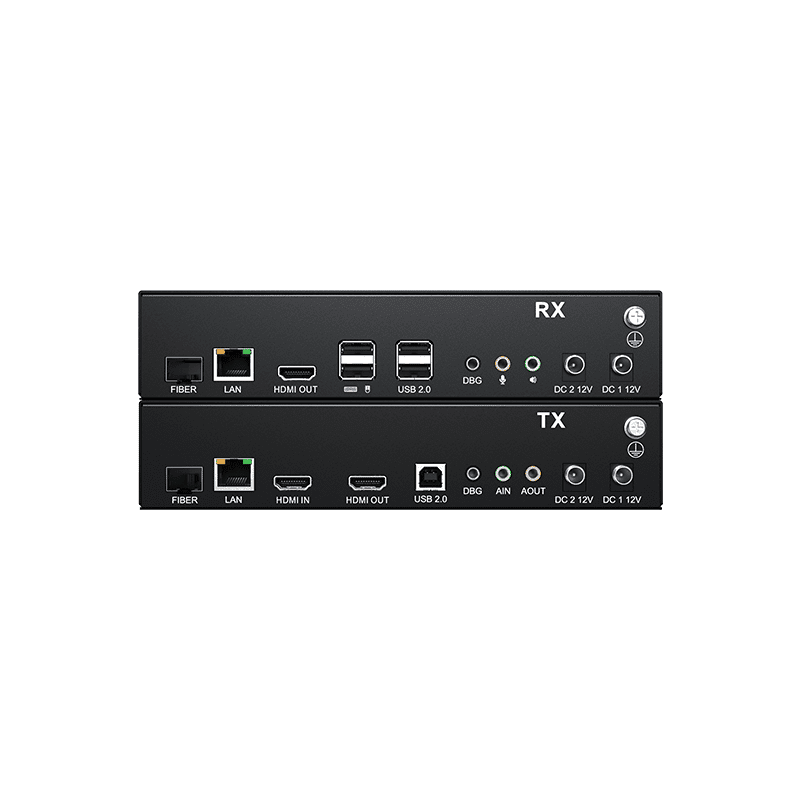

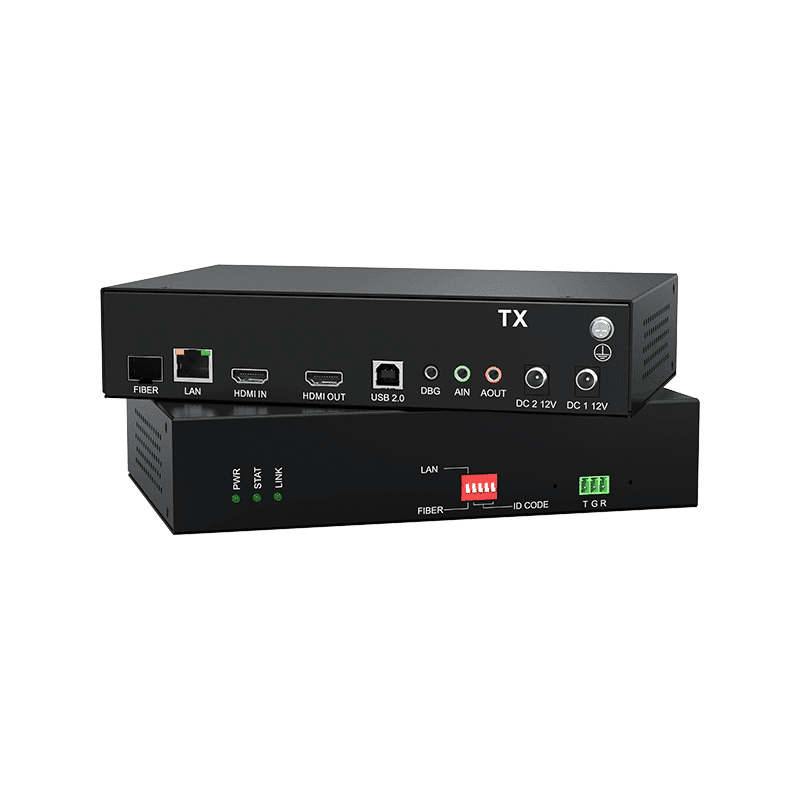

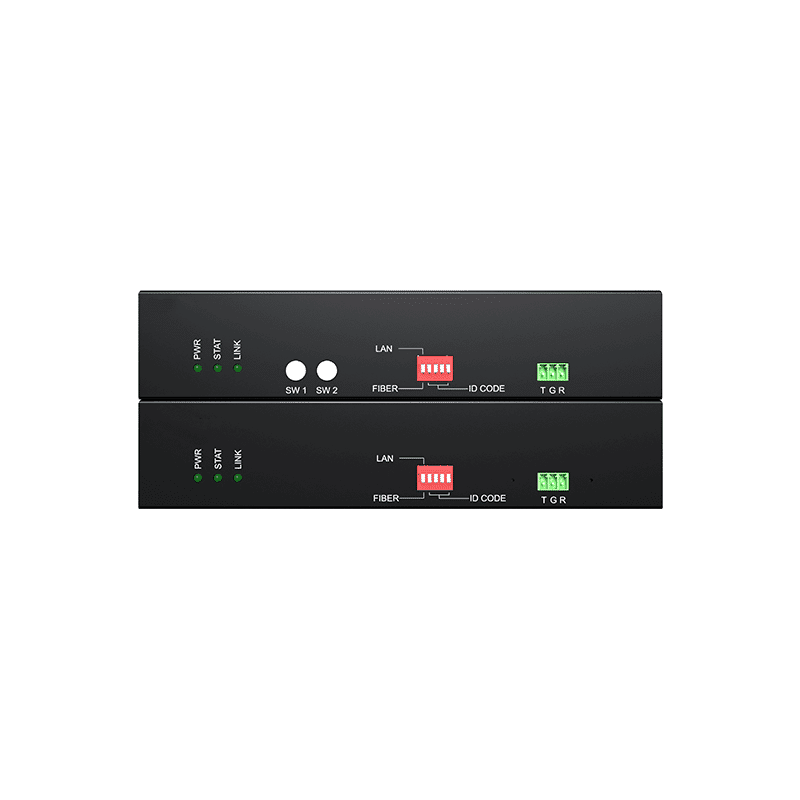

Interface (TX)

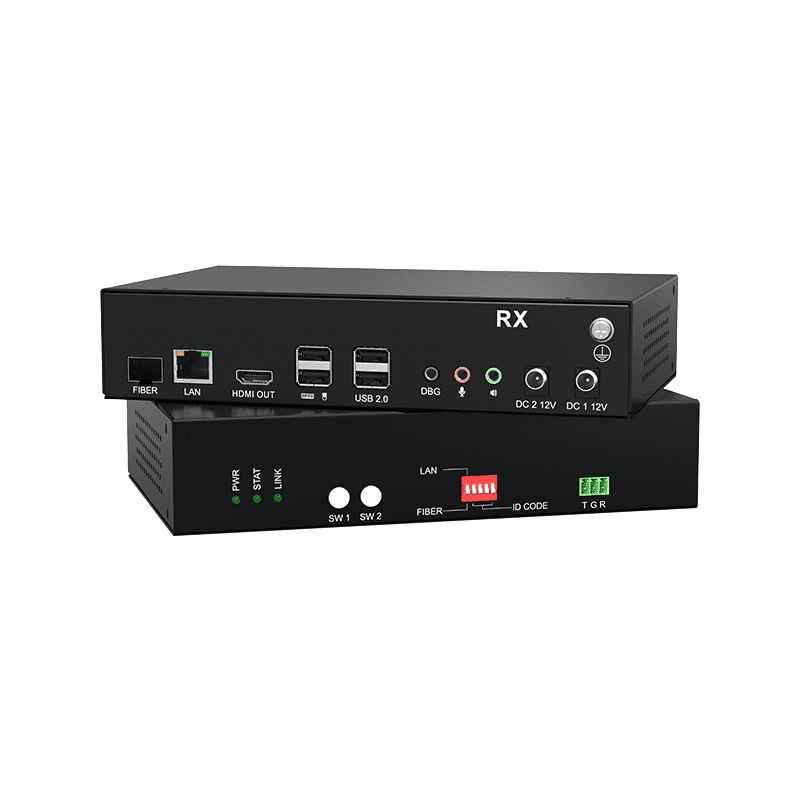

RX

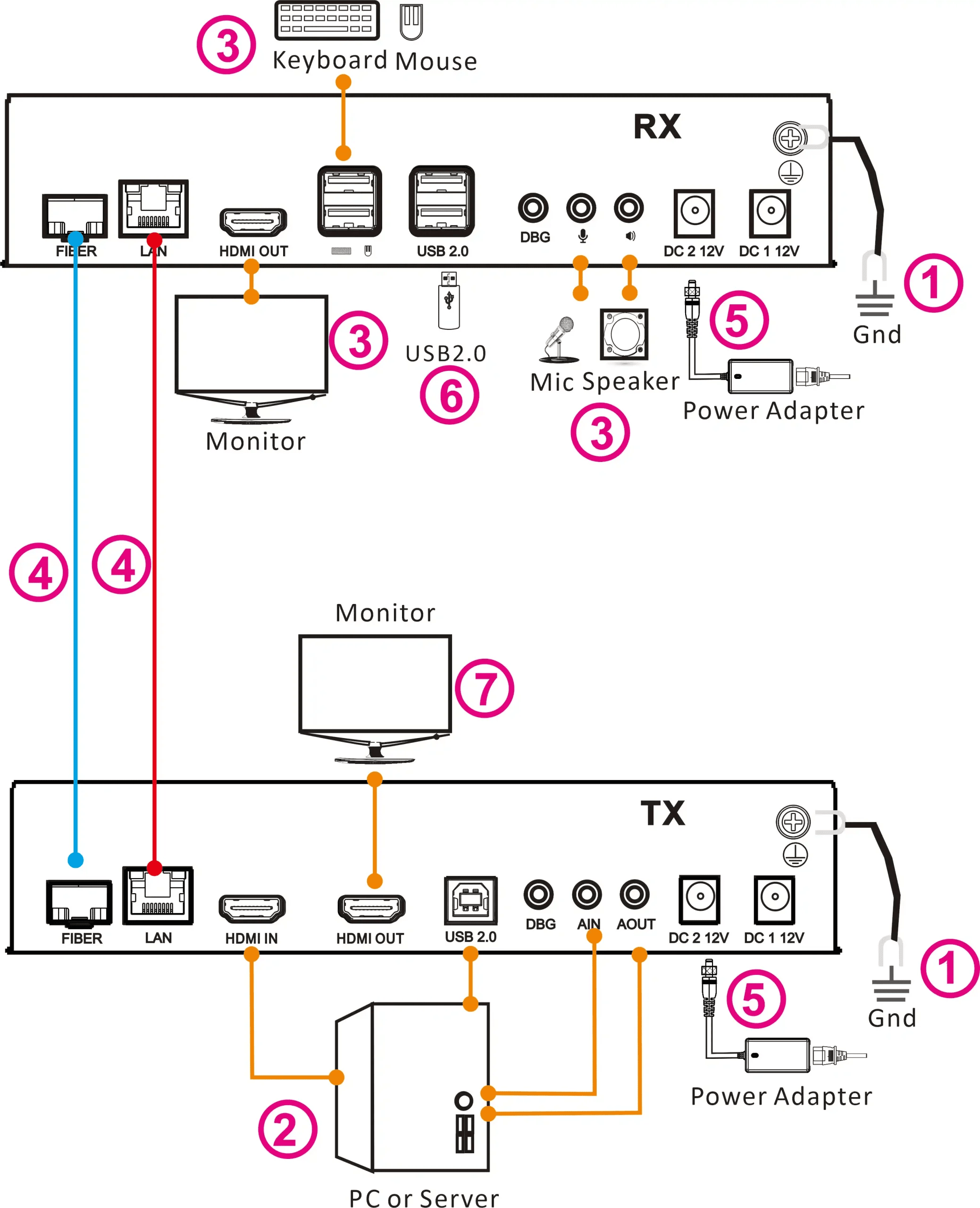

1. Before connecting the cables, ground the transmitter (TX) and receiver (RX) (Figure ①).
2. Connect the transmitter (TX) to a PC or server (Figure ②).
3. Connect keyboard, mouse, monitor, and audio equipment to the receiver (Figure ③).
4. Connect the transmitter (TX) and receiver (RX) via optical fiber or network cable (Figure ④).
Note: The first pin on the ID CODE is for the FIBER / LAN connection
ID CODE Pin 1 is for FIBER connection
The ID CODE onTX and RX must be in the same section.
ID CODE Pin 1 is for LAN connection
5. Power on the transmitter and receiver (Figure ⑤).
6. Connect the USB peripheral to the receiver (RX) (Figure ⑥).
7. Connect an external monitor to transmitter (TX) (Figure ⑦).

Specification

Specifications		TX	RX
Connections	DisplayPort input	1	N/A
	DisplayPort output	1	1
	Power	1x 12V	1x 12V
	LAN port	1x RJ45	1x RJ45
	SFP	1x SFP	1x SFP
	Mic	3.5mm Stereo Jack (Pink) x 1	3.5mm Stereo Jack (Pink) x 1
	Speaker	3.5mm Stereo Jack (Green) x 1	3.5mm Stereo Jack (Green) x 1
	USB Type B	1	N/A
	USB Type A	N/A	4
Resolution		3840×2160@60Hz
Cable		CAT5e/6/7 or Optical Fiber Cable
I/R Value		DC12V / 2A	DC12V / 2A
Power consumption		10W	12W
Operating temperature		0—50 ℃
Storage temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Material		Metal
Net weight(kg)		0.82 kg	0.82 kg
Product dimension (W × D × H)		210mm x 132.2 mm x 44mm
Package dimension (W × D × H)		395 mm x 274 mm x 110mm	395 mm x 274 mm x 110mm
