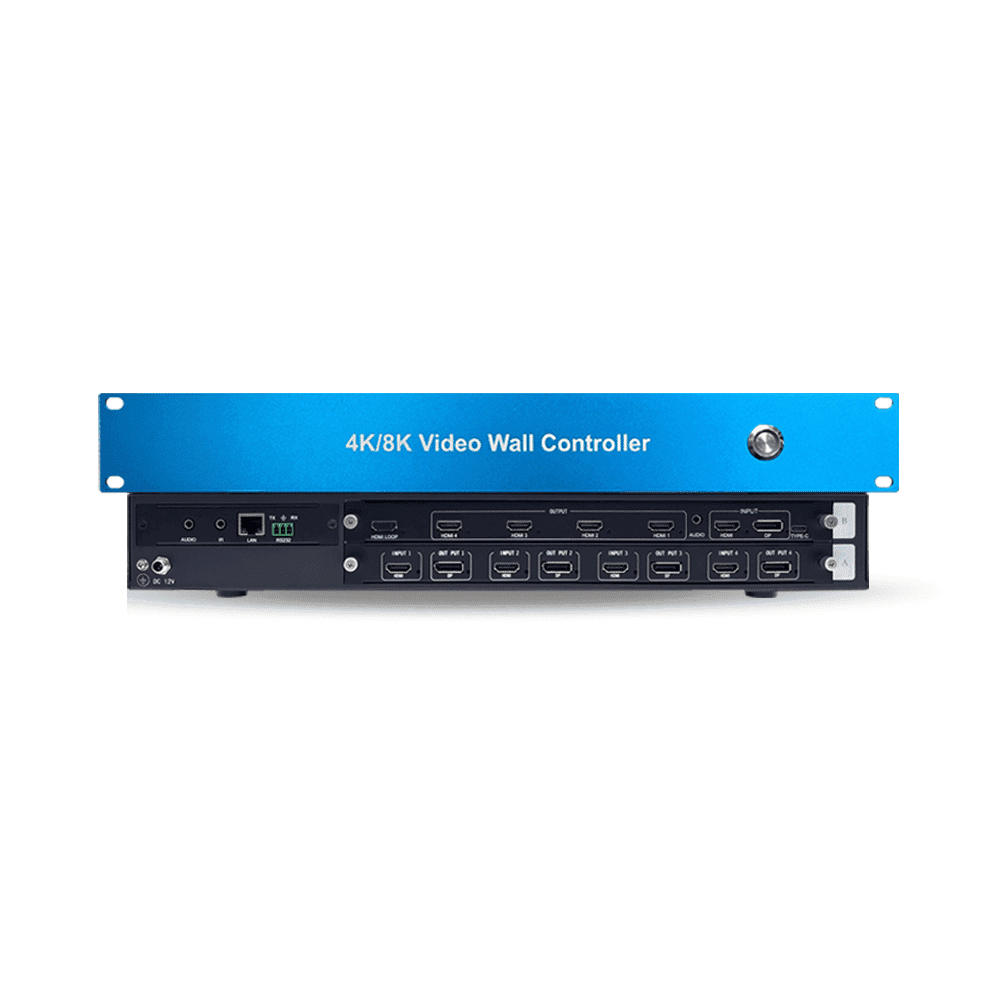

4K60 Multi-Projector Edge Blending Processor ,FPGA Hardware with Blending Software
4K8K Edge Blending Processor Multi-projection Fusion Hardware Video Wall Controller,HDMI 2.0 Input 7680*4800, Projector Edge blending processor,Embedded Projection Fusion Server,Wireless 4K60 HDMI Edge Blending Processor Box
| Weight | 4500 g |
|---|---|

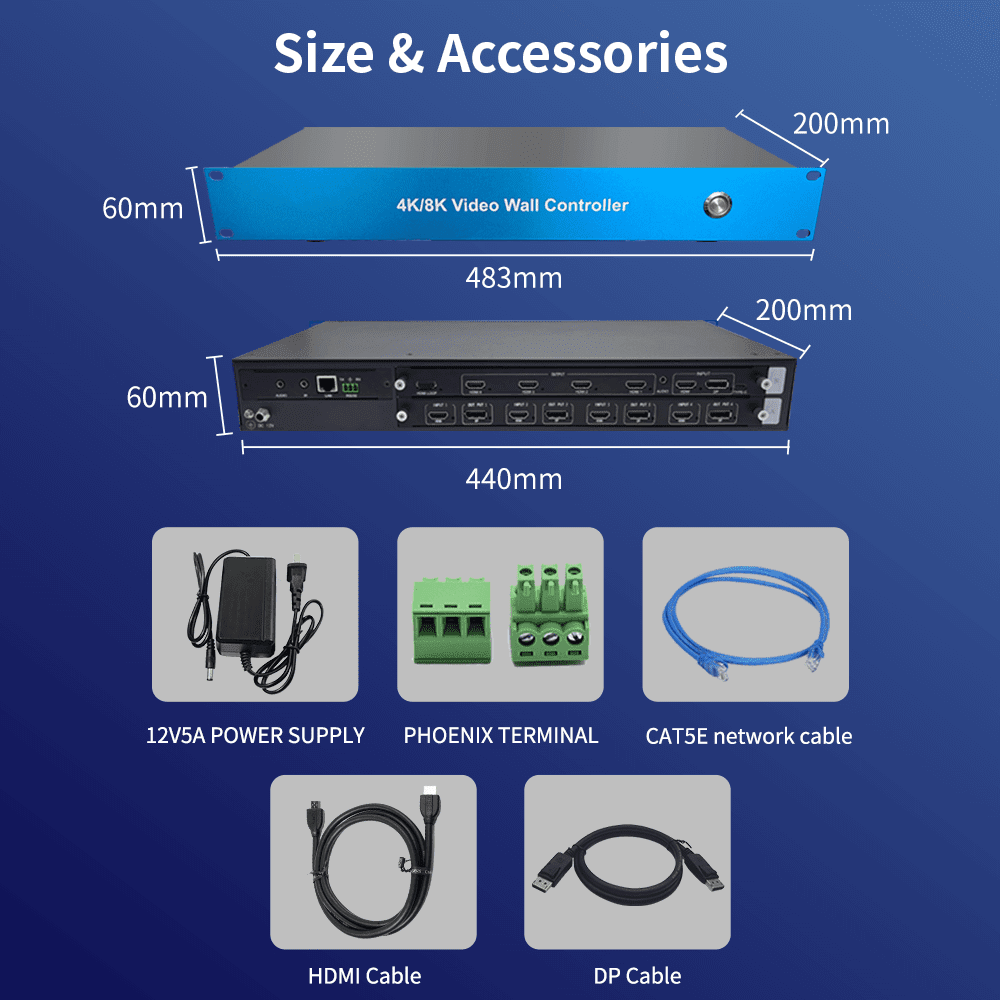

| Dimensions | 44 × 20 × 6 cm |

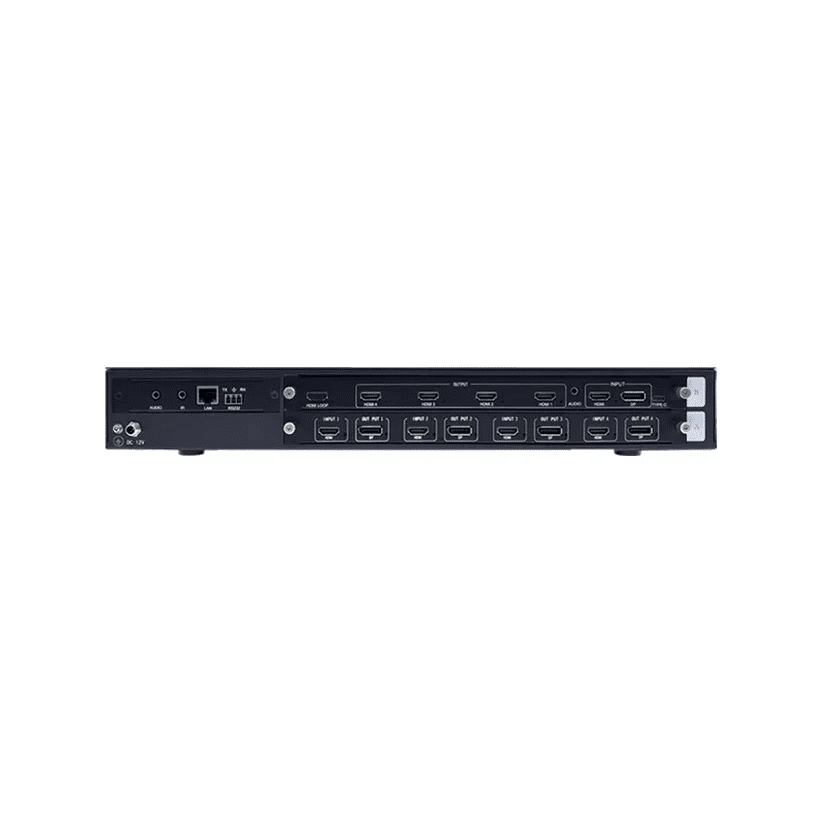

| Interface | 4 Channel 104Pro 1*HDMI2.0 4K60, HDMI/DP Input, 4*HDMI 1.3 2K Output,3.5MM Audio,LAN Port, RS232 port, Optional HDMI/DP Adapter board 4*HDMI Input, 4*DP Output |
| Built-in Software | Edge Blending Software,Color and Brightness Adjustment,Geometric Correction |
| Features | feathering, color correction, and geometric correction |
| Color and Brightness Adjustment | customizable for various projection technologies (LCD, DLP, Laser), the hardware ensures seamless, consistent, and unified projection image intensities, even with overlapping areas. |
| Geometric Correction Mastery | setups such as spherical, dome-shaped, or wavy screens,allows pixel-level adjustments on any arbitrary surface, supporting a variety of unique fusion modes. |
| Innovative 3D and Synchronization Technologies | Facilitates passive 3D fusion for larger and higher-resolution 3D effects,ensuring synchronous data handling to prevent signal discrepancies. Its dual-buffering technique guarantees synced and seamless visual outputs, devoid of tearing, flickering, or any anomalies. |
| Application | Engineering display, multi-channel 4K projection, exhibition hall exhibitions, virtual reality, and circular screen cinemas. |
| Network port | support computer software control, Pure hardware integration,no software required. |
| EDID | Support customize the input of EDID and EDID Management |
| Projection fusion | Support 4 channel horizontal and vertical projection fusion. |
| Complex grid debugging | Support complex grid debugging,maximum of 33 columns and 17 rows of geometric correction adjustment points. |
| Chips and PCB Board | Imported industrial-grade chips,reliable 28nm process. heat dissipation design and protect long time stable operation. 6 layer PCB board 16KV super anti-static capability |

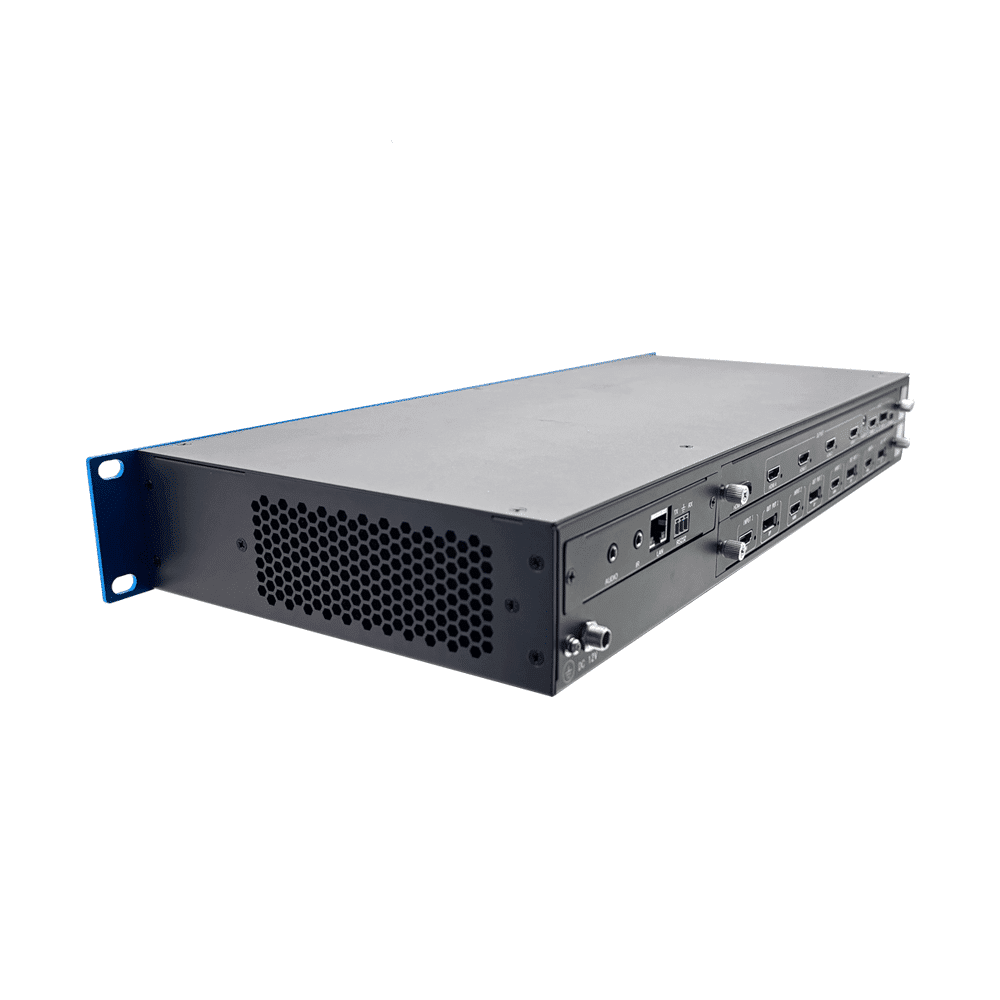

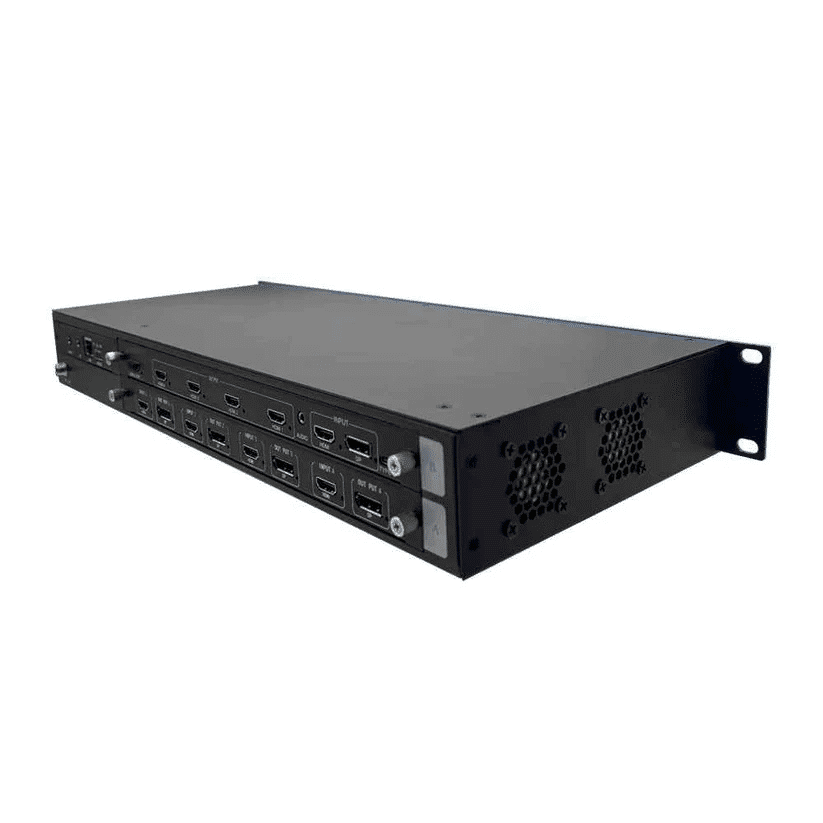

Detailes About 4K60 Multi-Projector Edge Blending Processor ,FPGA Hardware with Blending Software
It is a 4K60 pure hardware fusion device specifically designed for multi-channel and high-resolution display systems, capable of achieving seamless edge fusion effects. It supports 1 4K60 input channel, providing HDMI and DP interface inputs, allowing for free selection based on the type of input source interface. It also features 4 2K output HDMI interfaces, which are downward compatible with conventional resolutions and can stably output clear and smooth images. It is widely applied in multiple fields such as engineering display, multi-channel 4K projection, exhibition hall exhibitions, virtual
reality, and circular screen cinemas.
Features:

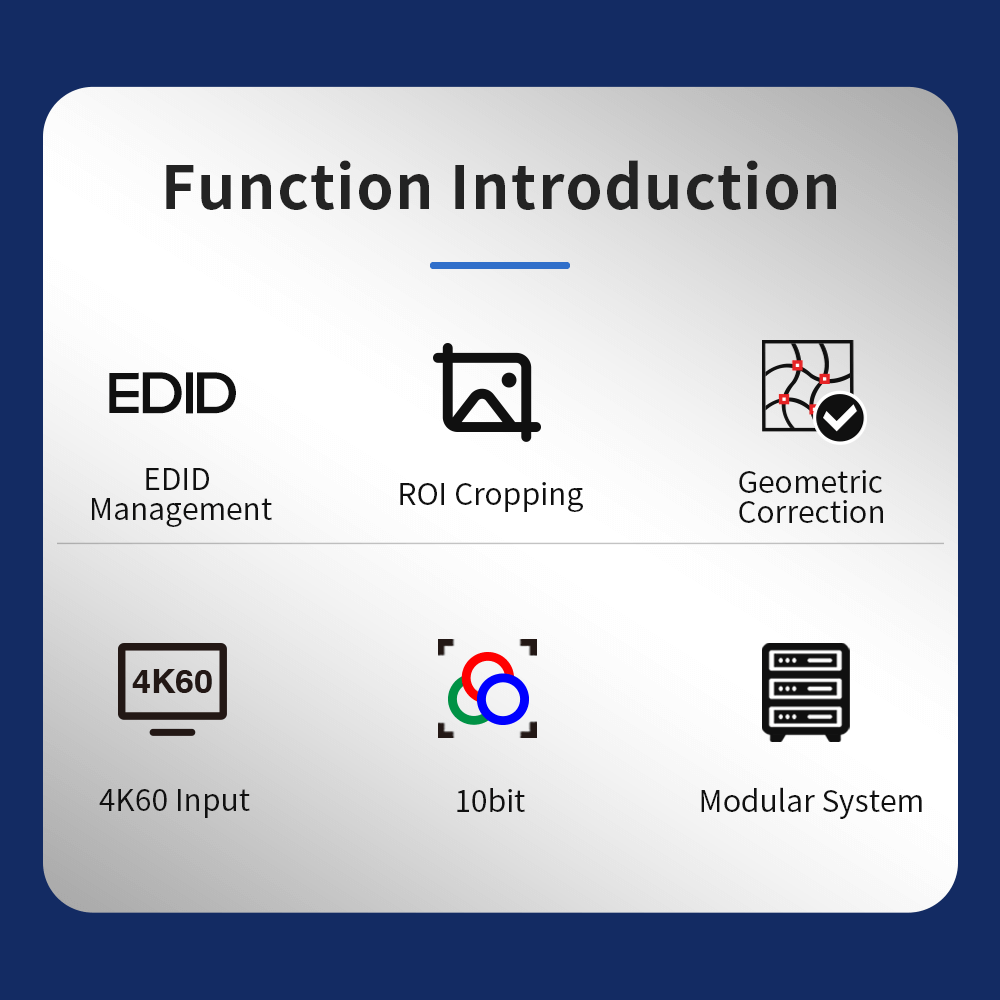

Supports 1 channel of 4K60 signal input, with the option to choose between HDMI and DP. At the same time, the HDMI interface is prioritized for connection, providing diverse support to ensure clear images and rich details.
Under the equivalent bandwidth, the device supports full-link 10-bit color depth processing,resulting in clearer images and better effects.
Supports 4-channel 2K signal output, HDMI interface, compatible with various display devices and resolution requirements. It can be flexibly adjusted according to specific application needs and device configurations, providing more choices and adaptability.
Support network port upper computer software control.
Purehardware integration, no software required, supports multiple input signals.
Support EDID management and customize the input of EDID.
Supports 4-channel horizontal and vertical projection fusion.
Supports geometric correction for plane, curved surface and folded surface projections.
Supports horizontal and vertical fusion bands with adjustable pixels ranging from 0 to 1200.
Supports the full-chain ITU709 color gamut standard, offering superior display capabilities and delivering better color expression.
Support saving, exporting and loading configuration files.
Built-in output signal enhancement ensures the stability and clarity of the signal during long-distance transmission.
Perform multiple line scaling display on image signals and double frequency enhancement display on low frame rate signals to achieve perfect enhanced echo for low-resolution and low frame rate signals.
The position of the picture can be customized. It can roam freely within the output background picture to display any position on the large screen.
It adopts imported industrial-grade chips, with a stable and reliable 28nm process. It features an excellent heat dissipation design and protection measures to ensure long-term stable operation.
Industrial-grade design, thickened 6-layer PCB board, 16KV super anti-static capability, and outstanding product stability.
All-hardware real-time processing architecture, no operating system, ultra-fast processing speed without delay, safe and virus-free.
The safe working hours are long.
With a flexible structural design, the board card can be expanded to achieve more output.
Low-powerconsumption, energy-saving and environmentally friendly design, with overheat protection and anti-interference design, made of 18W thermal conductivity material.
Internal heat dissipation ensures the long-term stable operation of the equipment and is suitable for long-term use in various environments

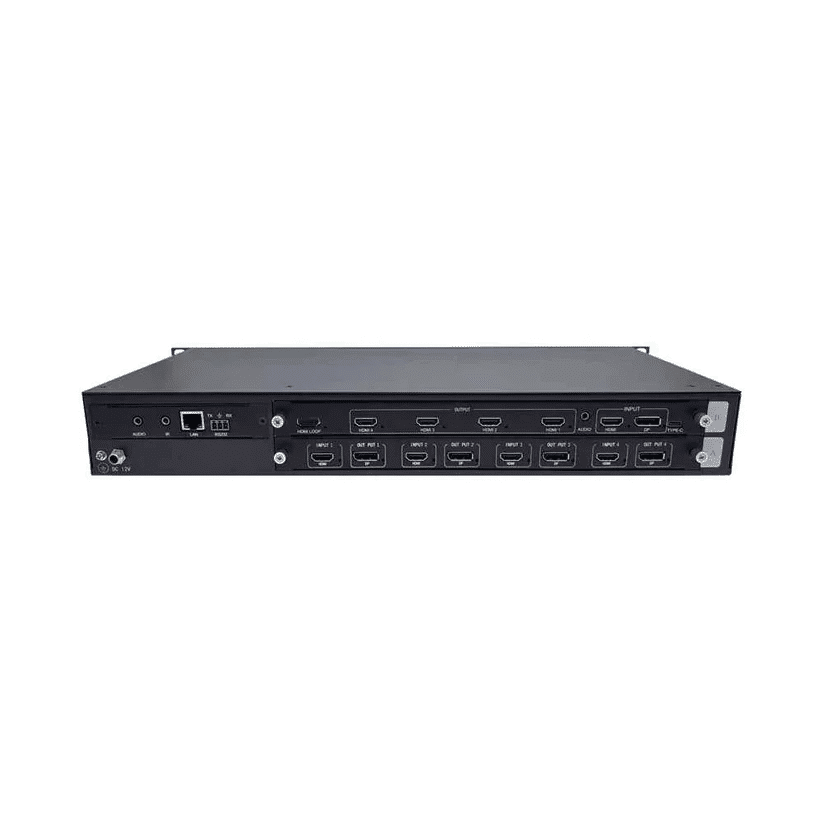

Interface
is arbitrary, but they are all the same. The positions of the matrices captured from each port are arbitrary, and they can overlap with each other without any positional restrictions
picture.
and its value must not exceed 16.6 x 10^6 (i.e., 16,600,000).
Set up：Select the IP address of the connected computer and then click
“Set Network Card”.
Refresh：Click “Refresh” to display the number of channels of the current device.
Graphic adjustment：Grid adj、Fusion、Color adj.
Configuration：Splicing、Backgroud、Network、EDID；
System setting：Upgrade、Save、Load
Grid adj
192.168.1.192-1-1920×1080：The first channel of the current device has a resolution of 1920×1080P60, select the channel you want to adjust here, and click Grid Adjustment to enter.
Add rows: Increase the number of grid levels;
Delete line: Delete the number of grid levels;
Add columns: Increase the number of vertical grids;
Delete column: Delete the vertical number of grids;
arc：At this point, it is arc adjustment. Click to enter linear adjustment;
+：Increase the step size of keyboard shortcuts to 0.1 as one unit;
5.0：The step size of keyboard shortcuts is retained to one decimal place and supports custom input;
-：The step size for deleting keyboard shortcuts is 0.1 as one unit.
Previous step: Return to the previous step;
Reset: Reset the grid
The grid close: When the grid is open, click to close the grid.
128 pixels：Open a single grid of 128×128 pixels;
64 pixels：Open a single grid of 64×64 pixels；
32 pixels：Open a single grid of 32×32 pixels；
16 pixels：Open a single grid of 16×16 pixels；
8 pixels：Open a single grid of 8×8 pixels；
Point adjustment: When selected, it is for adjustment of a single point.
Row adjustment: When selected, it is for adjustment of the entire row.
Column adjustment: When selected, it is for adjustment of the entire column;
Grid transparency: The strike only displays the grid and does not show the input signal.
Meshcolor: Click to change the mesh color. There are a total of 6 loops.
Back up to machine: Click to back up the current configuration to the device to ensure it remains effective after a restart.
Data synchronization: Synchronize the configuration of the device to the upper computer software
If your project don’t have your own blending software, you can choose this model ,every output port with software. 8K edge blending processor will coming soon.
If you have blending software, then we also have another processor which can meet your requirement with wholesale price, whether your projector with HDBaset port or without, we can offer you HDBaset port processor for your application.All is FPGA chip set, it’s stable and easy operation.
We also have wireless 4K60 HDMI Edge Blending Processor Box.
