New 4K60hz HDMI USB-C KVM Switch 4×2 with HDBaset 3.0 100m,USB3.2 Host and local Hub
4K 60hz HDMI USB-C KVM Switch 4×2 with Audio,USB3.2,CEC,RS232,TCP/GPIO,HDBaset 3.0 100m,3rd party control driver included
| Weight | 450 g |
|---|---|
| Dimensions | 18 × 8 × 2 cm |
| HDMI Version | 4K 60hz |
| HDCP | HDCP2.3 and HDMI 2.0b |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
| USB | USB-C with DP Alt mode up to 4K60Hz 4:4:4(DP 1.4a, HDCP 2.3), USB 3.2 Gen 1 5Gbps, 1G ethernet and 100W charging |
| Control | RS-232, TCP/IP and Web GUI control,External device control through CEC/IR/RS-232/TCP/GPIO |
| Audio | Balanced/un-balanced analog audio input to USB audio /breakout from HDMI audio or USB |
Detailes About New 4K60hz HDMI USB-C KVM Switch 4×2 with HDBaset 3.0 100m,USB3.2 Host and local Hub

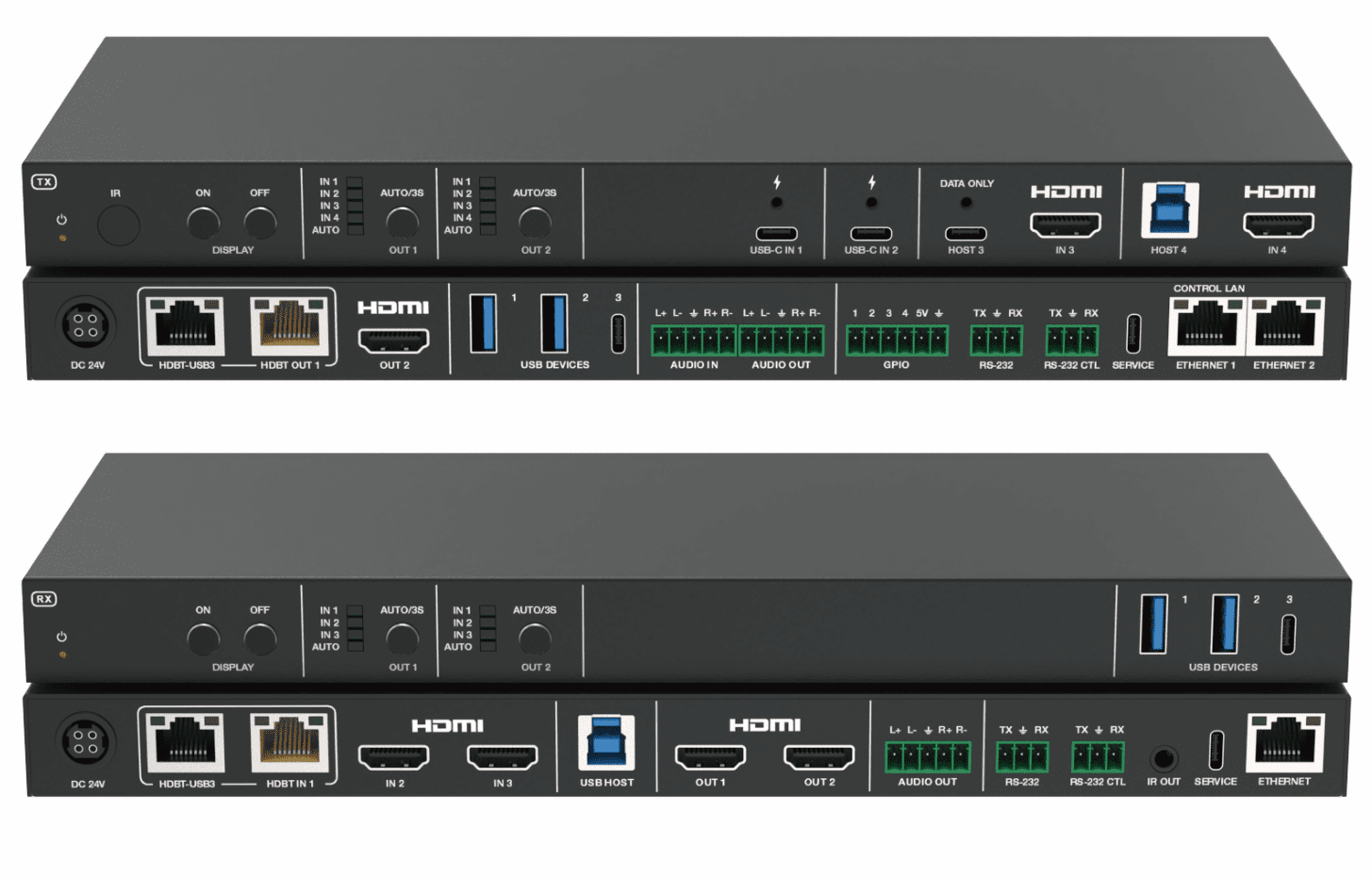

4×2 4K60 Huddle Room Matrix Switcher with HDBaseT 3.0/USB 3.2 100m
Features:
4×2 huddle room matrix switch with HDBaseT 3.0 and USB 3.2 100m
TX: 4×2 RX: 3×2 matrix output
HDMI 2.0b, HDCP 2.3, up to 4K60@4:4:4
USB-C with DP Alt mode up to 4K60Hz 4:4:4 (DP 1.4a, HDCP 2.3), USB 3.2 Gen 1 (5Gbps),1G ethernet and 100 watts charging
Fast switch with auto and manual switching modes
USB 3.2 Gen 1 (5Gbps) host and local hub
Balanced/un-balanced analog audio audio embedding to USB or HDMI audio
Balanced/un-balanced analog audio de-embedding from USB or HDMI audio
EDID management
User defined welcome screen and no signal display image
Dual 1G Ethernet ports with 802.1x and VLAN supported
IR eye for IR learning and control
Auto display on/off control
External device control through CEC/IR/ RS-232/TCP/GPIO
Front panel button, RS-232, TCP/IP and Web GUI control

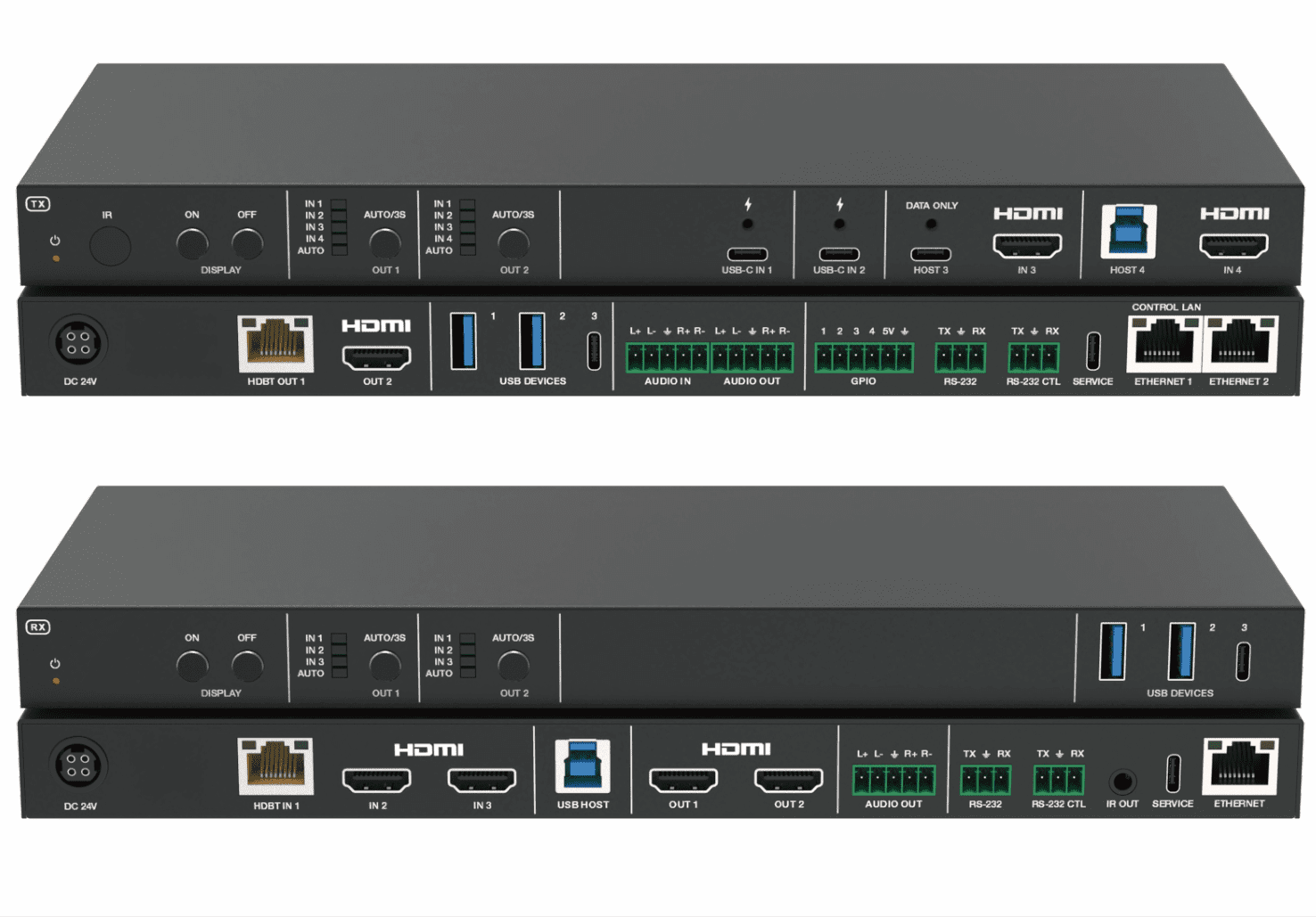

4×2 4K60 Huddle Room Matrix Switcher with HDBaseT 3.0 100m
Features:
4×2 huddle room matrix switch with HDBaseT 3.0 100m
TX: 4×2 RX: 3×2 matrix output
HDMI 2.0b, HDCP 2.3, up to 4K60@4:4:4
USB-C with DP Alt mode up to 4K60Hz 4:4:4 (DP 1.4a, HDCP 2.3), USB 3.2 Gen 1 (5Gbps), 1G ethernet and 100 watts charging
Fast switch with auto and manual switching modes
USB 3.2 Gen 1 (5Gbps) host and local hub
Balanced/un-balanced analog audio embedding to USB or HDMI audio
Balanced/un-balanced analog audio de-embedding breakout from USB or HDMI audio
EDID management
User defined welcome screen and no signal display image
Dual 1G Ethernet ports with 802.1x and VLAN supported
IR eye for IR learning and control
Auto display on/off control
External device control through CEC/IR/ RS-232/TCP/GPIO
Front panel button, RS-232, TCP/IP and Web GUI control
