New 70m 4K30Hz /60Hz HDMI Splitter Extender 1×2 1×4 over One Ethernet Cat6 230ft,HDMI Loop Out,EDID,POC
4K30hz or 4K60hz 1×2 1×4 HDMI Splitter Extender By Single Cat 6/ With POC, EDID management
| Weight | 900 g |
|---|---|
| Dimensions | 21 × 8.3 × 1.8 cm |
| HDMI Version | 1.4, 10.2Gbps 4k30hz |
| Resolution | 480i ~1080p50/60Hz, 4Kx2K@30Hz 60hz (4:4:4) |
| HDCP | HDCP1.4.HDCP 2.2 |
| EDID | Support |
| Markets | Retail, Residential, Hospitality, Corporate, Education |
| Cat6 Cable Perfomance | 70Meter, 230 Feet 4K30HZ |
| POC | Support |
Detailes About New 70m 4K30Hz /60Hz HDMI Splitter Extender 1×2 1×4 over One Ethernet Cat6 230ft,HDMI Loop Out,EDID,POC
This extender can extend and connect one HD Source to TWO / Four HD Displays or Projectors by one piece of cat6 at the same time. The extending distance can reach 70m via one Ethernet Cat6 cable. This extender meets the needs of multi-route and low-cost HD Signal long-distance transmission well.

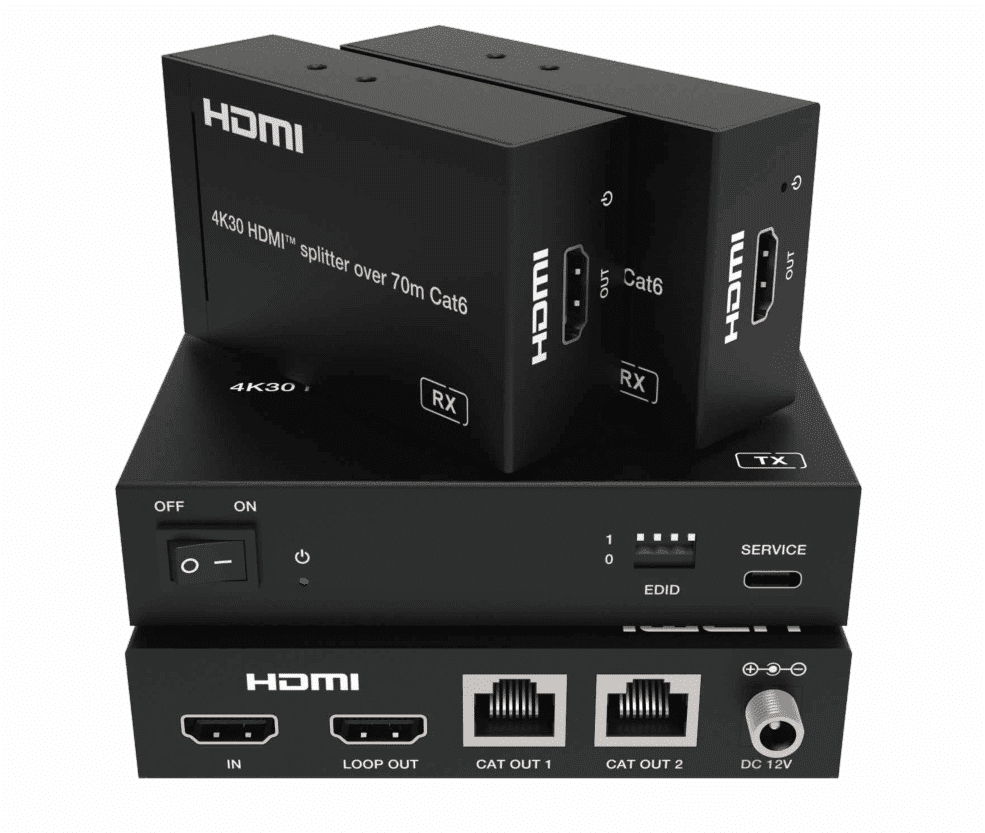

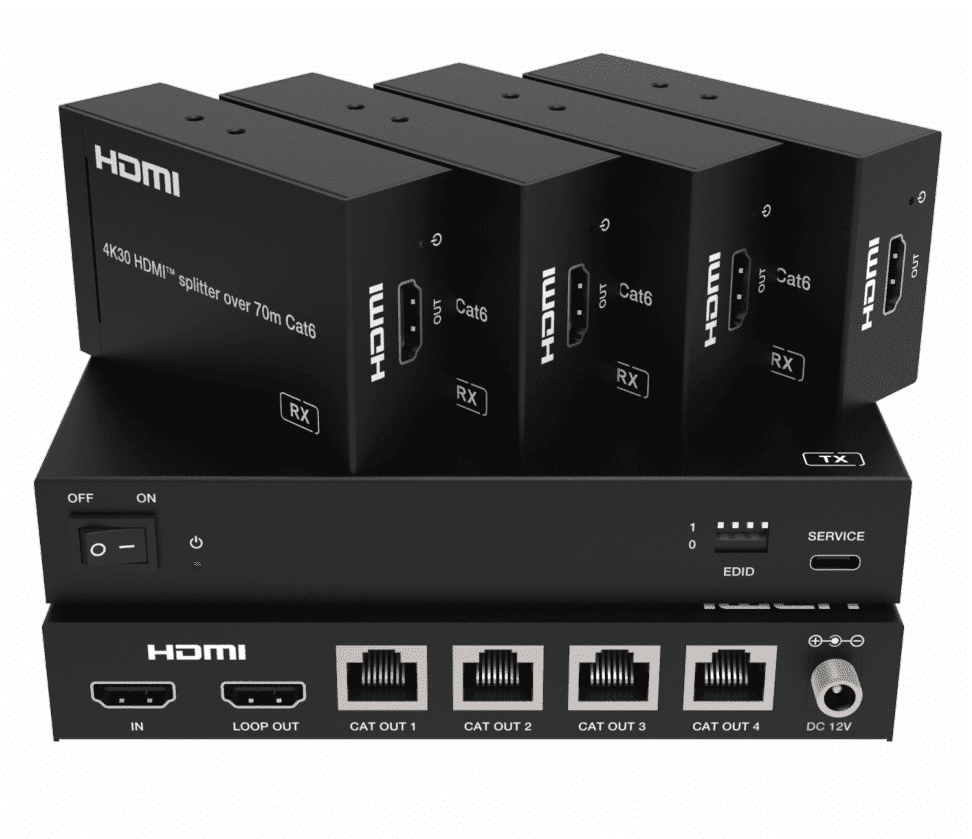

4k30hz 1×2 1×4 splitter extenders Features:
HDCP 1.4 compliant
Video resolution is up to 4K@30Hz
The transmission distance is up to 230ft/70m for 4K@30Hz via a single CAT6 cable
1 HDMI input, 1 HDMI loop output & 2 CAT outputs/ 4 Cat outputs
HDMI audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
PoC function
Advanced EDID management
Compact design for easy and flexible installation

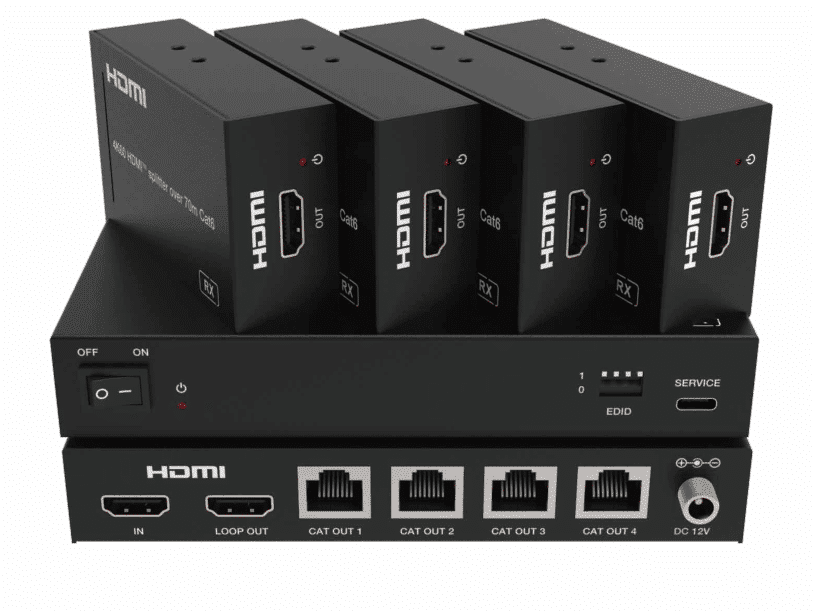

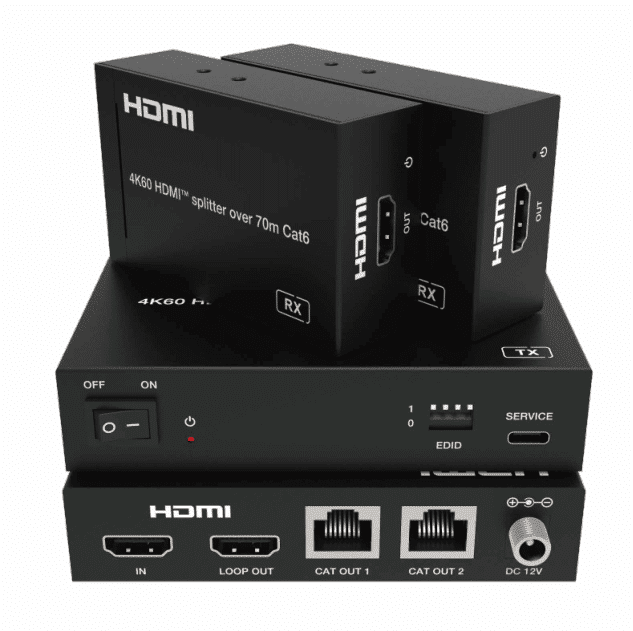

4K60Hz 1×2 1×4 splitter extender 70meter Features
HDCP 2.2 compliant
Video resolution is up to 4K@60Hz
The transmission distance is up to 230ft/70m for 4K@30Hz, 197ft/60m for 4K@60Hz via a single CAT6 cable
1 HDMI input, 1 HDMI loop output & 2 Cat/ 4 CAT outputs
HDMI audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
POC function
Advanced EDID management
Compact design for easy and flexible installation
