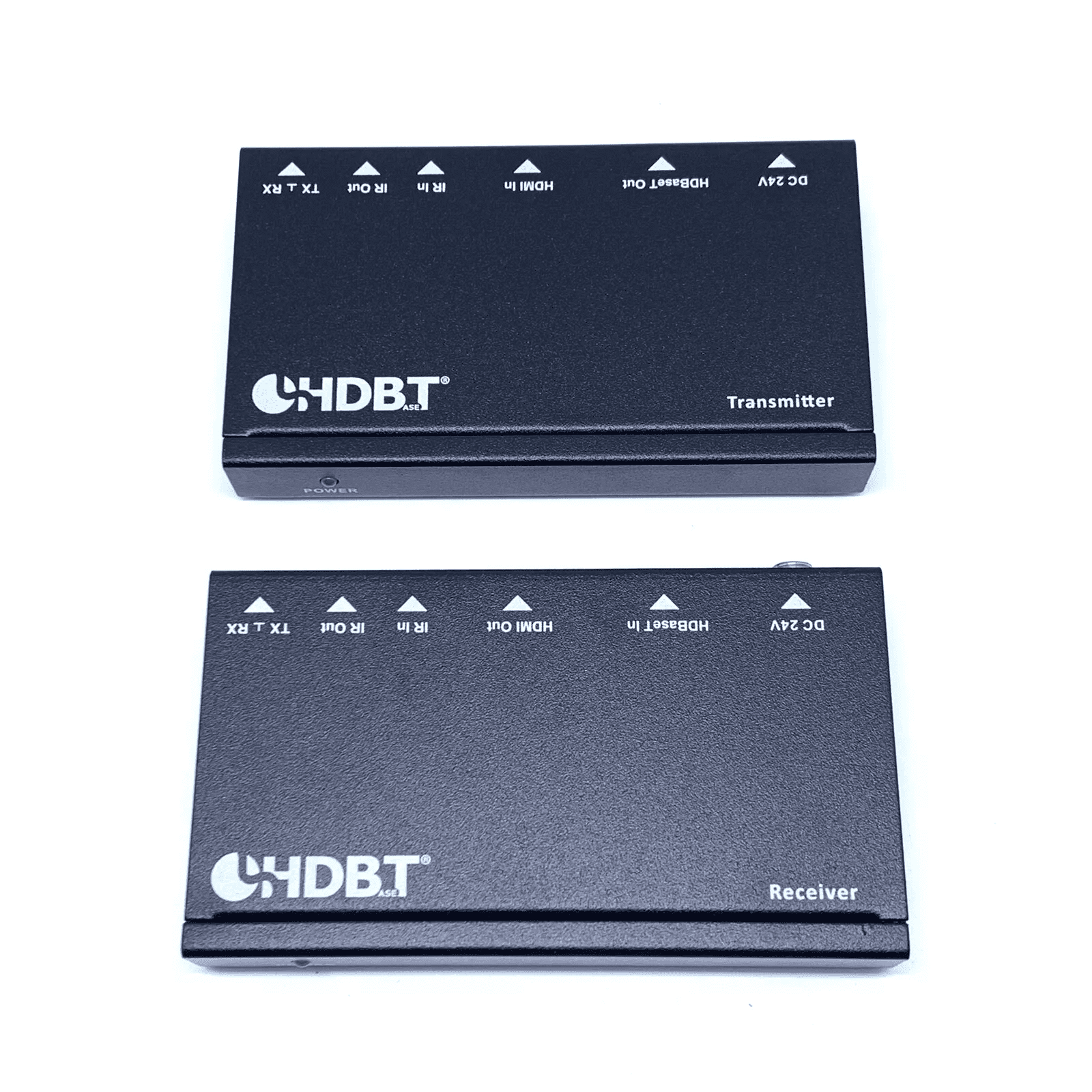

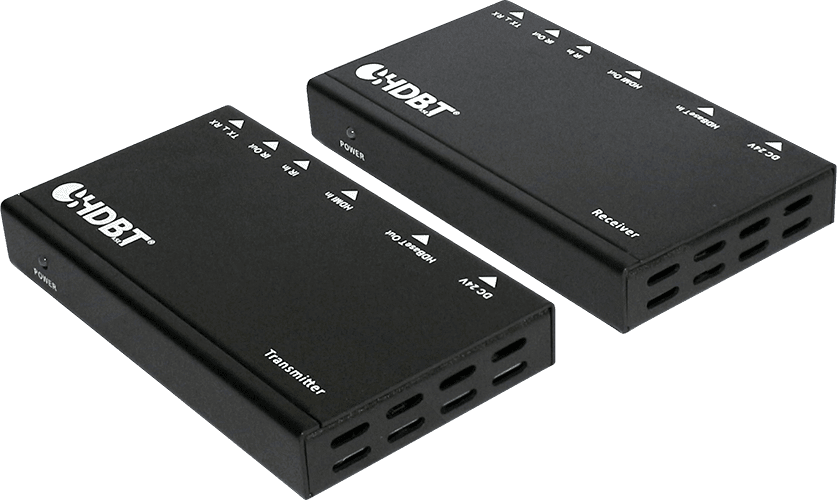

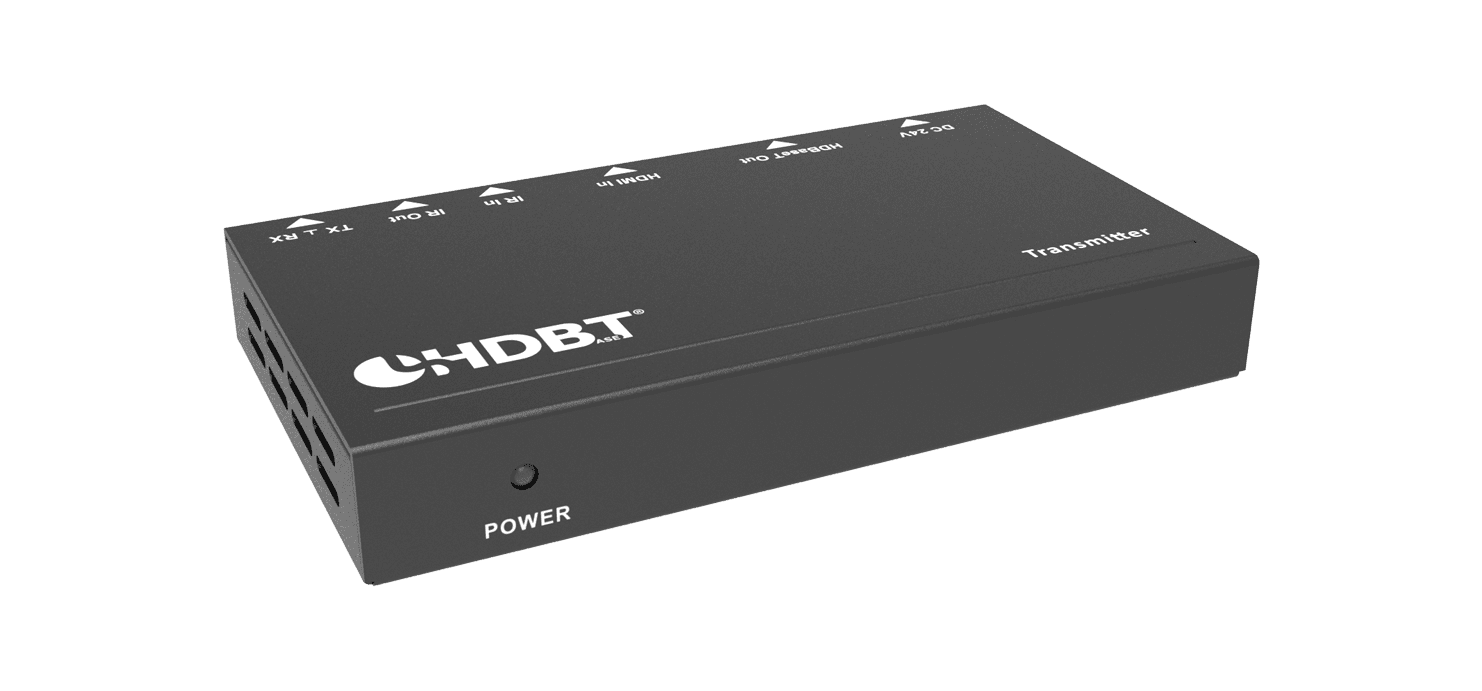

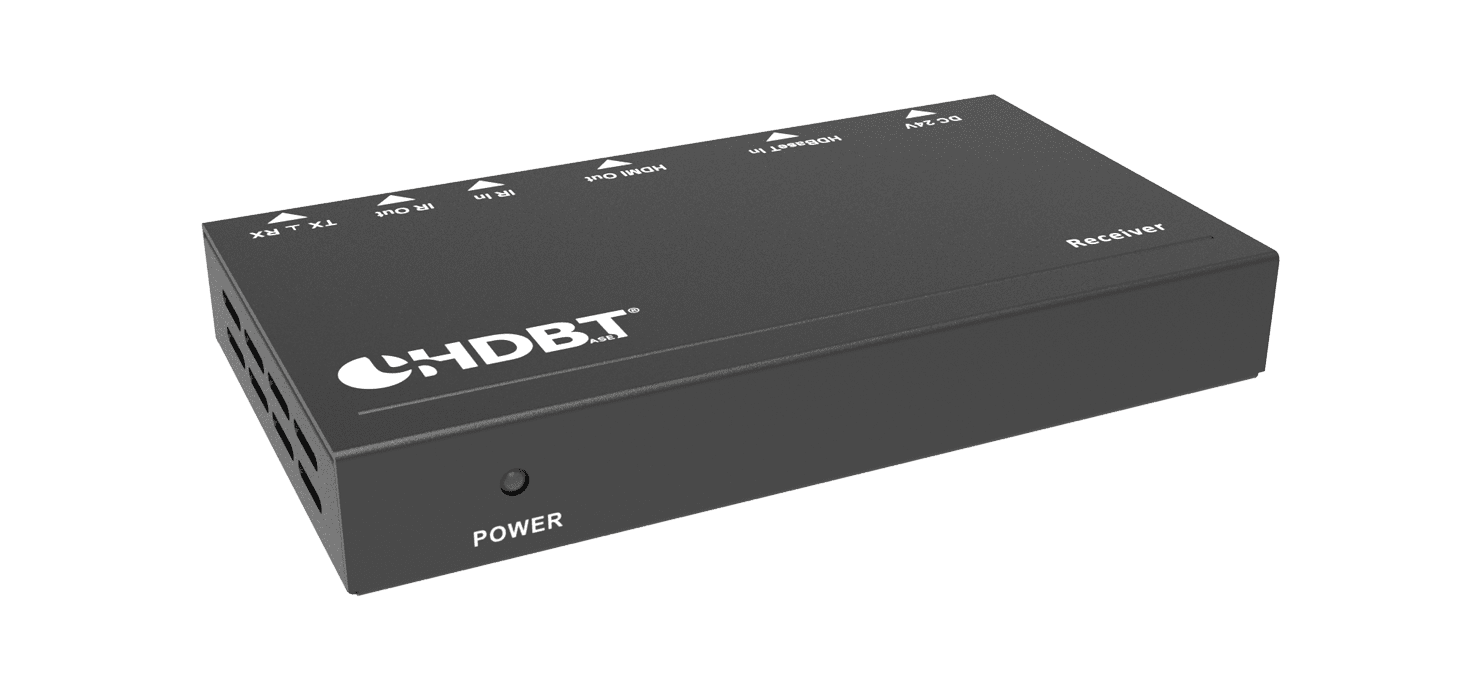

4K@30Hz 70m HDBaseT-Lite Technology HDMI Extender Transmitter Receiver
Classic type 4K 70meter HDBaseT-Lite Technology HDMI Extender Transmitter
| Weight | 800 g |
|---|---|
| Dimensions | 15 × 8 × 3 cm |
| HDMI Version | HDMI 1.4 |
| Resolution | 4K@30Hz |
| Frequency bandwidth | 297MHz (10.2Gbps) |
| Transmission Distance | ※Over CAT6 cable |
| POC | Support Power over cable , power consumption is less than 10w |
| Full HD Support | 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 4K@30Hz 70m HDBaseT-Lite Technology HDMI Extender Transmitter Receiver
HDMI 4K30 70M HDBaset extender
The HDMI extender over single CAT5e/6/7 with Bi-directional IR, RS-232 and Bi-directional PoC can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 230ft/70m. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.
Features:
- HDBaseT-Lite Technology up to 230ft/70m distance
- Simple plug-and-play for easy connection – no set up/drivers/software required
- Supports High Definition resolutions up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
- Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Supports Bi-directional wideband IR control from source to display or from display to source
- Supports Bi-directional 24V PoC
- Compact design for an easy and flexible installation
☆ POC (Power Over Cable) function is supported, either TX or RX is powered by24V@1A power supply,
the another does not need power supply from the DC jack. POC Power consumption is less than 10W.
☆ Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
☆ UTP termination follows the standard of direct interconnection method.
☆ Transmission distance: ※Over CAT6 cable
70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
☆ Support display resolutions up to 4K x 2K@30Hz
☆ Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
☆ Transfer Bidirectional Infrared control signal together with the HDMI signal.
☆ Transfer Bidirectional RS232 control signal together with the HDMI signal.
Tech specification
- Extender Type – HDMI
- HDBaseT – Yes
- Operating Temperature (Maximum): 104 F
- Operating Temperature (Minimum): 32 F
- Transmission Range: 230 ft
- AC Voltage (Maximum): 240 Volts
- AC Voltage (Minimum): 100 Volts
- Active Power: 12 Watt
- DC Voltage: 24 Volts
- Depth: 4.53 in
- Height: 0.67 in
- Width: 2.56 in
- Product Weight: 0.44 lbs
| Specifications | Technical | |||
| Frequency Bandwidth | 297MHz[10.2Gbps] | |||

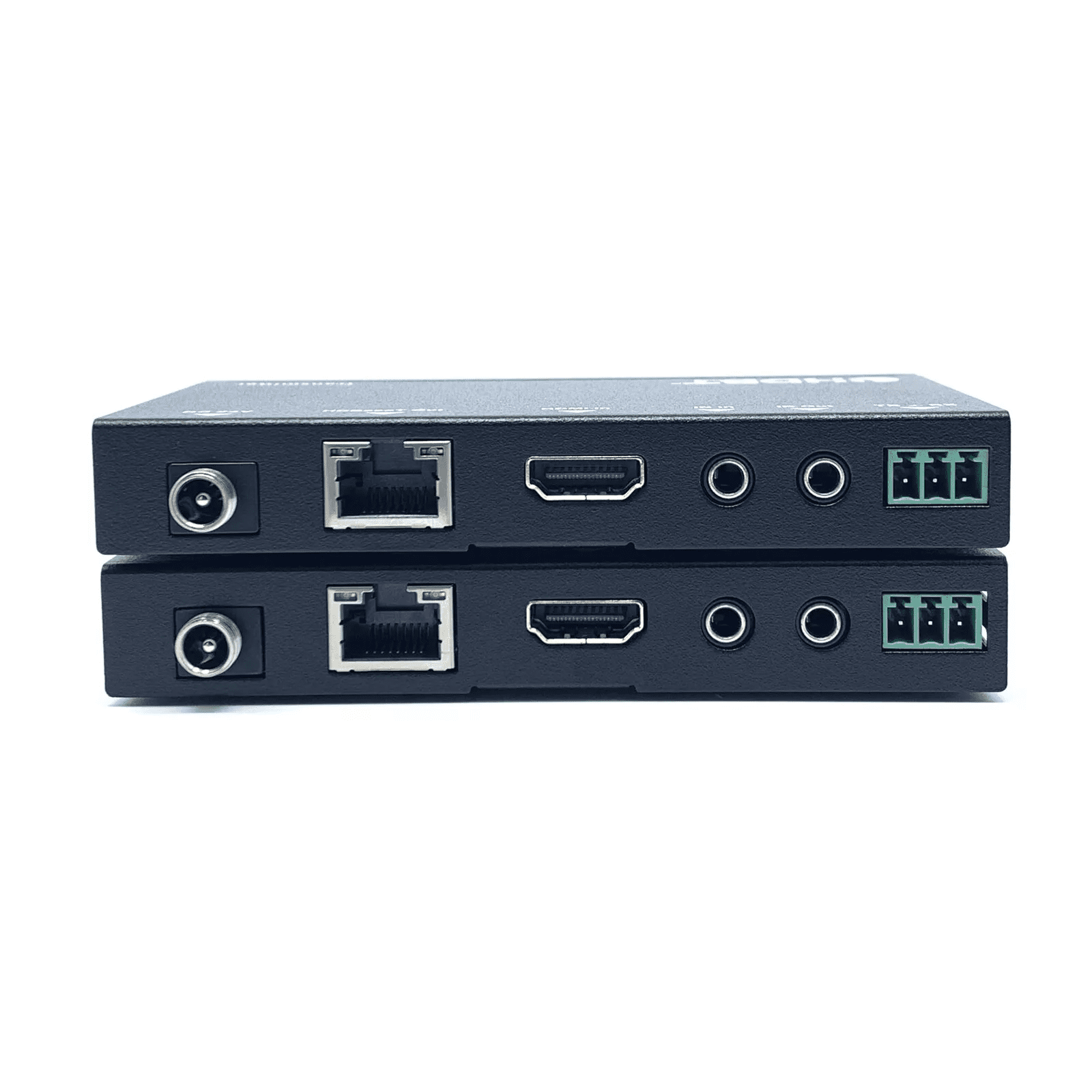

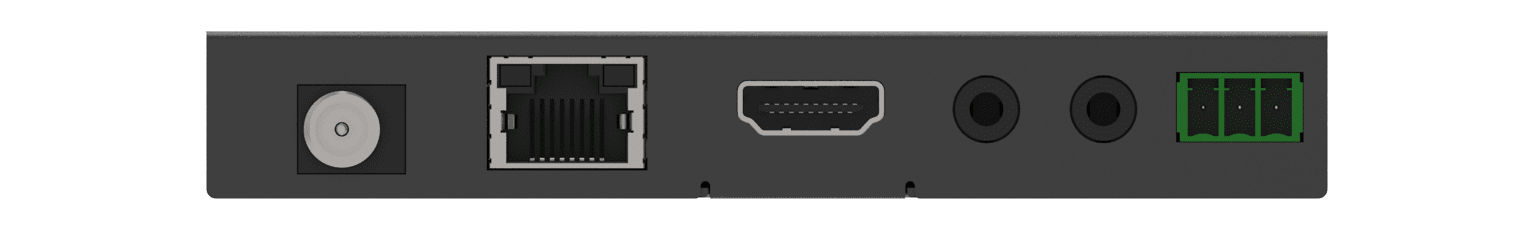

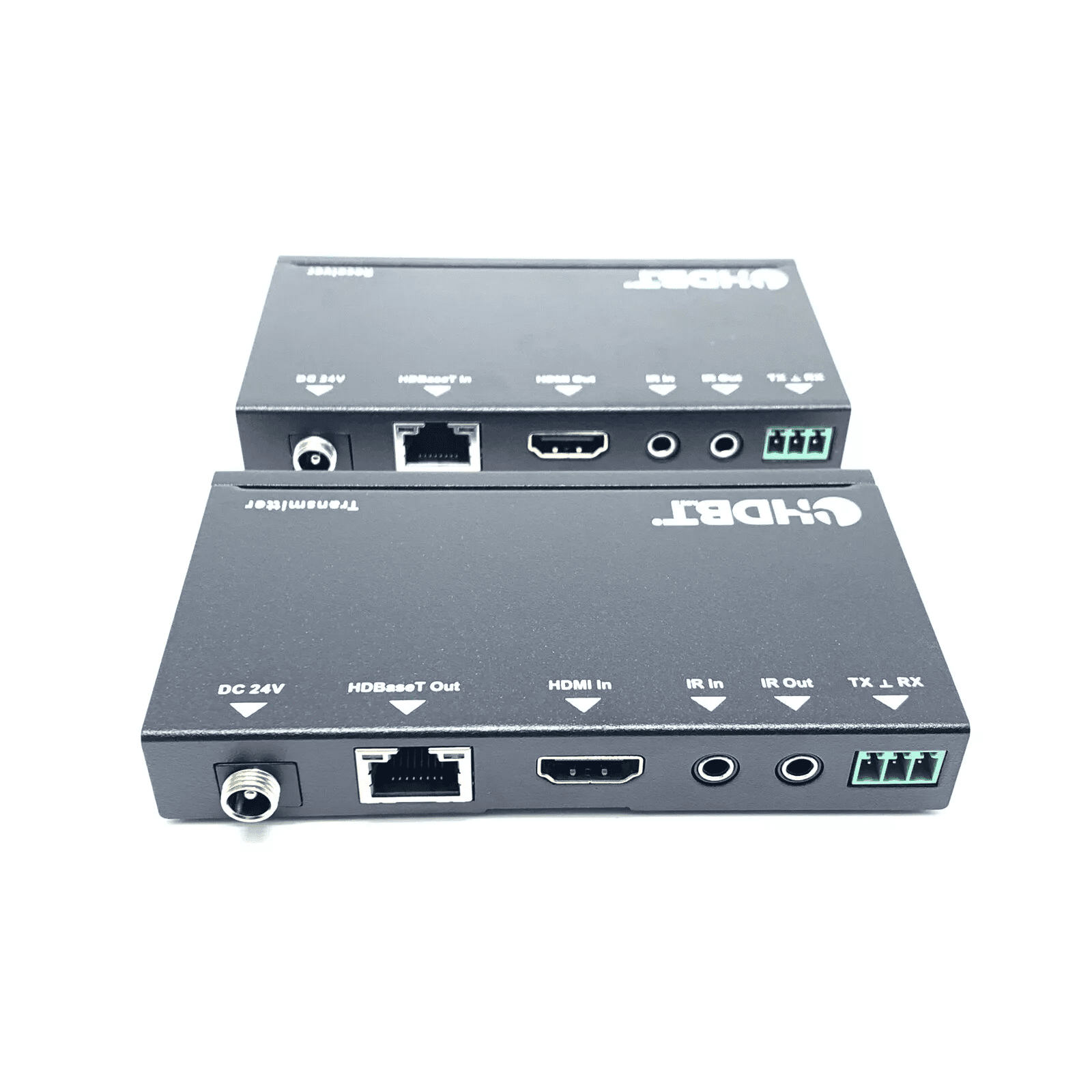

| Transmitter Input/Output | 1x HDMI Female port/1xCAT6 1x IR Tx/1x IR Rx/1xPhoenix | |||
| Receiver Input/Output Ports | 1x HDMI Female port/1xCAT6 1x IR Tx/1x IR Rx/1xPhoenix | |||
| Power Supply | DC 24V 1A | |||
| ESD Protection | Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) | |||
| Dimensions (mm) | 65[W] x 115 [D] x 17 [H] | |||
| Weight | 200g x 2 | |||
| Operating Temperature | 32°F – 104°F / 0°C – 40°C | |||
| Storage Temperature | -4°F – 140°F / -20°C – 60°C | |||
| Relative Humidity | 20~90% RH (Non-condensing) | |||
| Power Consumption | 20W (Max) | |||
Diagram
