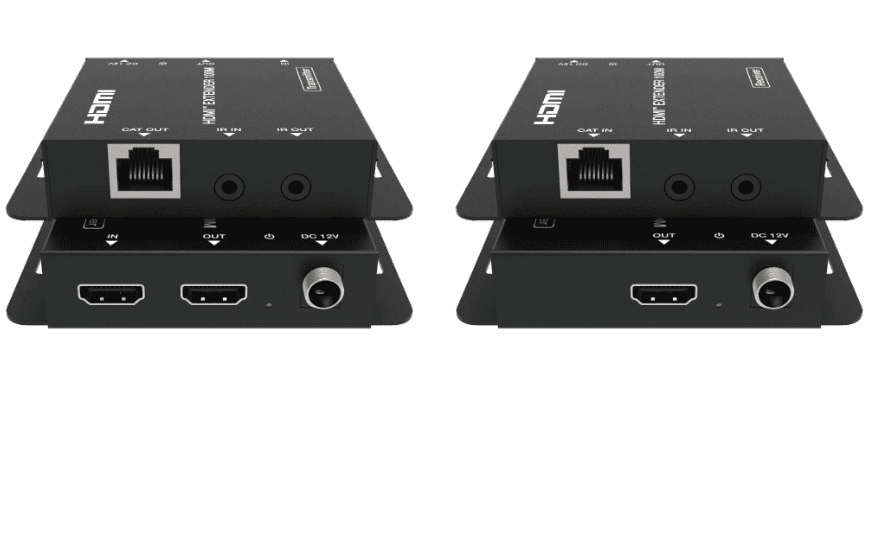

4K30 HDMI®Extender Over Cat5e/6/6A with IR,POC ‑ 70m/230ft or 100m/328ft
HDMI Extender over One Cat 5e/6/6a up to 70m or 100m with Bi-direction IR Control,POC
| Weight | 262 g |
|---|---|
| Dimensions | 7.95 × 6.9 × 1.65 cm |
| Transmission distance | CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 |
| Version | HDMI 1.4,HDCP1.4,DVI 1.0 |
| Video bandwidth | 10.2Gbps |
| Audio Support | Up to 7.1CH HD audio |
| EDID | Support copying EDID from receiver display or loop out display |
| IR | One-way IR signal transmission or Bi-direction IR pass-through |
| POC | Support one-way POC functionality (from transmitter to receiver) |

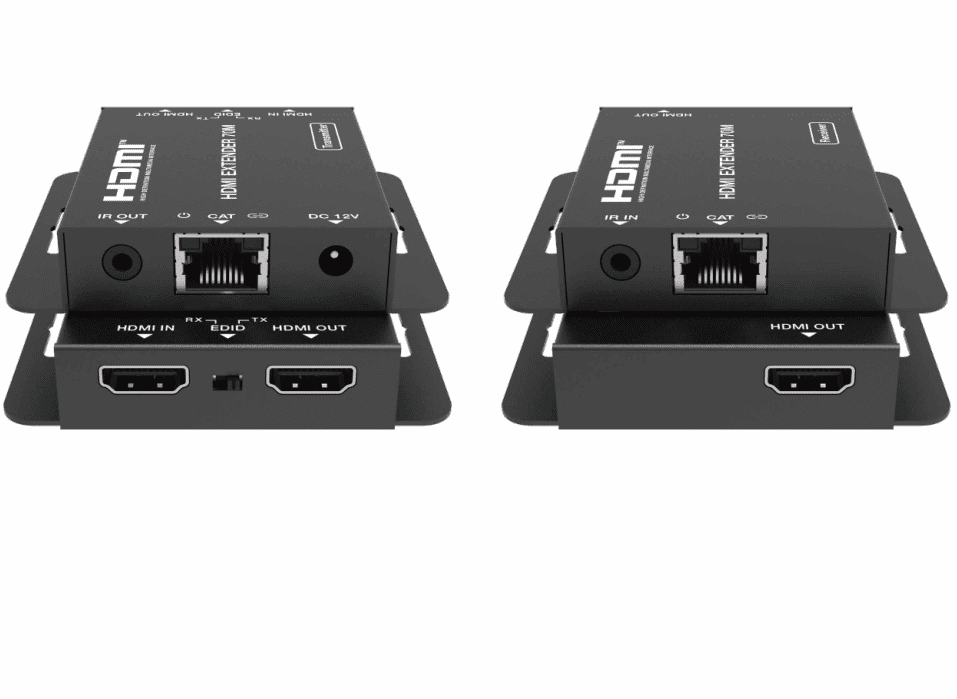

Detailes About 4K30 HDMI®Extender Over Cat5e/6/6A with IR,POC ‑ 70m/230ft or 100m/328ft
Overview
This HDMI Extender can extend high definition video/audio signal and IR control signal up to 230ft/70m for 1080p resolution, and 131ft/40m for 4K30 resolution via a single CAT6 cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver.
This extender with HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz.
It supports EDID copy function (you can choose local or remote EDID).
It supports audio formats up to PCM7.1, Dolby True HD, DTS HD.
This product can be widely used in multi- media conference halls, TV teaching and large-screen displays.
Features:
☆ HDCP 1.4 and DVI 1.0 compliant
☆ Support video resolution up to 4k2k@30Hz YUV 4:4:4, as specified in HDMI 1.4
☆ The maximum transmission distance via a single CAT6/5E cable is as follows:
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
☆ Support copying EDID from receiver display or loop out display
☆ Allow for cascading via additional HDMI loop out port
☆ Support one-way POC functionality (from transmitter to receiver)
☆ One-way IR signal transmission
☆ Compact design for easy and flexible installation
Packing list
① 1 × HDMI Transmitter
② 1 × HDMI Receiver
③ 1 × IR Blaster Cable (1.5 meters)
④ 1 × IR Receiver Cable (1.5 meters)
⑤ 1 × 12V/1A DC Power Adapter
⑥ 1 × User Manual
HDMI Extender Over CAT6/6a Cable 100m 4k@30Hz bi-Directional PoC and IR EDID Copy HDMI 1.4 HDCP 1.4
This 4K30 HDMI Extender can extend HDMI high-definition signal up to 100m/328ft over CAT6/6a cable, achieving zero-delay, uncompressed long-distance transmission between the signal sources and display devices.
Video resolution is up to 4K@30Hz, and audio format is up to LPCM/Dolby/DTS 5.1CH. It supports HDMI 3D video. PoC (Power over Cable) function and EDID copy pass-through between the signal sources and display devices are also supported.
This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occassions.
Features :
Compliant with HDCP 1.4
Video bandwidth is 10.2Gbps
Video resolution is up to 4K@30Hz, 1080P@60Hz, 1920×1200@60Hz
Transmission distance can be up to 100m/328ft over CAT6/6a cable
Support bi-directional PoC function and IR pass-through
Audio formats is up to LPCM 2.0, Dolby 5.1,DD+7.1, DTS 5.1
EDID copy pass-through between the signal sources and display devices
