This product utilizes advanced HDBase-T transmission technology. It can transmit high-definition audio and video signals, IR signals, RS232 control signals, USB 2.0, bidirectional audio, and power through a single network cable without delay or compression up to 100 meters. The transmitter unit supports local loop-out and EDID DIP switching. After DIP switch configuration, it supports software screen locking; locking the resolution can resolve issues like resolution jumping and no display on startup, ensuring excellent device compatibility. The product features a precision metal casing for a superior look and feel. The power supply uses an industrial locking nut type connector for a secure, non-loosening connection.
It is widely used in demanding video applications such as exhibitions, rail transit, broadcast television, video conferencing, medical teaching,educational recording, and projection blending.

Features:

Supports resolutions up to 4K2K@60Hz (4:2:0), 4K2K@30Hz, and is backward compatible with 1920*1200@60Hz, 1080P@60Hz for transmission up to 100 meters over Cat6 cables.
Supports up to 7.1 channels and audio formats like LPCM, DTS-HD Master Audio.
Supports EDID & HDCP pass-through, compatible with various HDMI devices.
Supports RS232 pass-through with baud rate range of 110~115200bps.
Compliant with HDMI2.0 and HDCP2.2 standards.
Supports bidirectional IR control function.
Easy installation, plug-and-play.
Supports POC single-end power supply; power can be supplied to either the receiver or the transmitter.
Locking nut power connector for a secure, non-loosening connection.

Transmitter supports local loop-out and EDID DIP switching. DIP switch configuration supports software resolution locking, solving issues like
resolution jumping and no display on startup.
Supports USB2.0 pass-through, compatible with touchscreens, USB drives, cameras, printers, mice, keyboards, etc.
Built-in ESD protection circuit effectively prevents electrostatic damage.
Supports bidirectional audio pass-through.

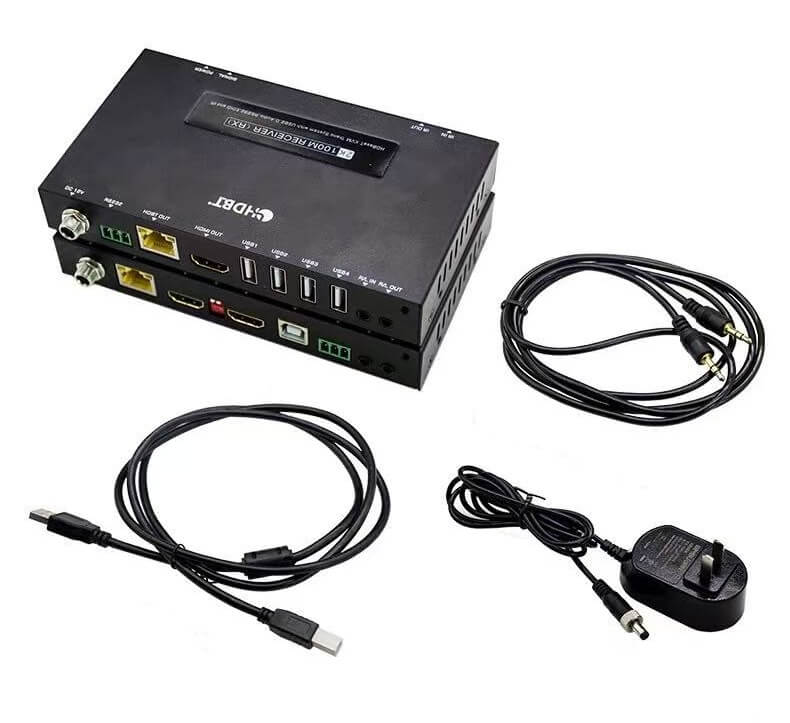

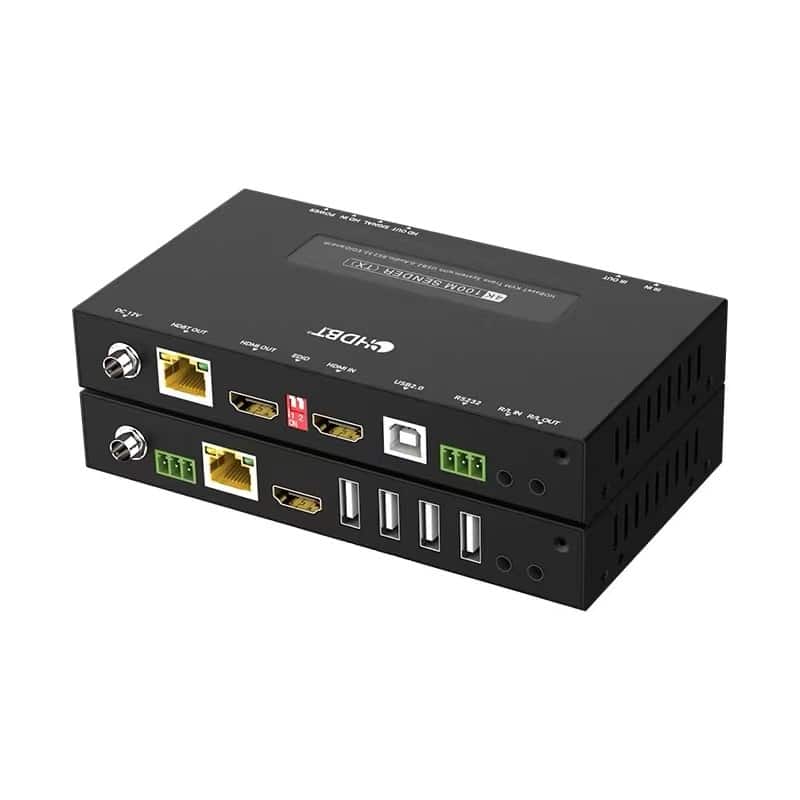

Single transmitter/receiver dimensions: 150*85*25mm

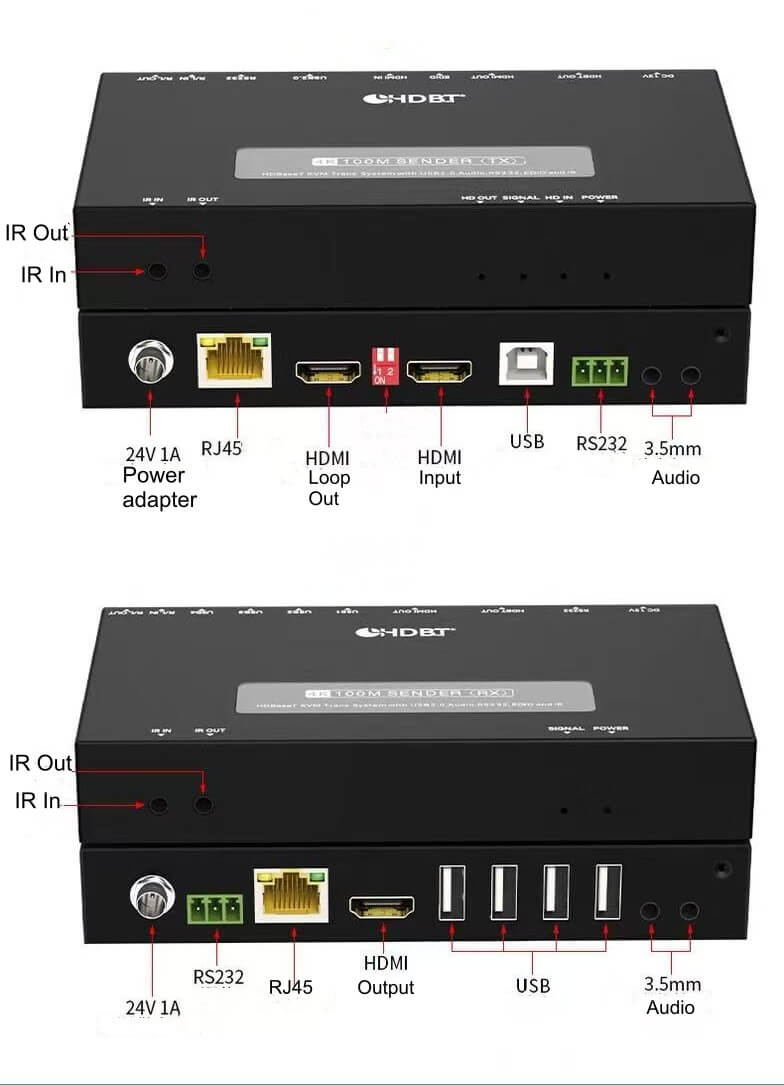

Transmitter Interface

P/W Power indicator, constantly on when powered.
HDMI IN  HDMI signal input indicator, constantly on when signal is detected.
HDCP  Remote signal indicator, flashes rapidly when a signal is detected by the remote TV or projector.
HDMI OUT   HDMI loop-out signal indicator, constantly on when loop-out signal is present.
IR OUT   IR output, connect to the IR OUT extension cable.
IR IN  IR input port, connect to the IR IN extension cable.
DC 12V  Power connector, insert the supplied 12V 2A power adapter.
HDBT OUT  HDBaseT output port, connect network cable. Orange LED flashes once per second normally; Green LED constantly on indicates a link is established.
HDMI OUT  HDMI signal local loop-out.
EDID    EDID DIP switch: 1 Up/2 Up: Pass-through; 1 Down/2 Up: 1080P; 1 Up/2 Down: 1200P; 1 Down/2 Down: 4K30Hz.
HDMI IN  HDMI signal input.
USB2.0  USB signal input, connect to PC.
RS232  RS232 serial pass-through.
R/L IN  3.5mm audio input.
R/L OUT  3.5mm audio output.

Receiver interface

P/W  Power indicator, constantly on when powered.
HDCP  Remote signal indicator, flashes rapidly when a signal is detected by the remote TV or projector.
IR OUT  IR output, connect to the IR OUT extension cable.
IR IN  IR input port, connect to the IR IN extension cable.
RS232  RS232 serial pass-through.
DC 12V  Power connector, insert the supplied 12V 2A power adapter.
HDBT IN  HDBaseT input port, connect network cable. Orange LED flashes once per second normally; Green LED constantly on indicates a link is established.
HDMI OUT  HDMI signal output interface.
USB1  USB2.0 port. Can connect touchscreen, USB drive, printer, camera, mouse, and other devices.
USB2  USB2.0 port. Can connect touchscreen, USB drive, printer, camera, mouse, and other devices.
USB3  USB2.0 port. Can connect touchscreen, USB drive, printer, camera, mouse, and other devices.
USB4  USB2.0 port. Can connect touchscreen, USB drive, printer, camera, mouse, and other devices.
R/L IN  3.5mm audio input.
R/L OUT  3.5mm audio output

Specification

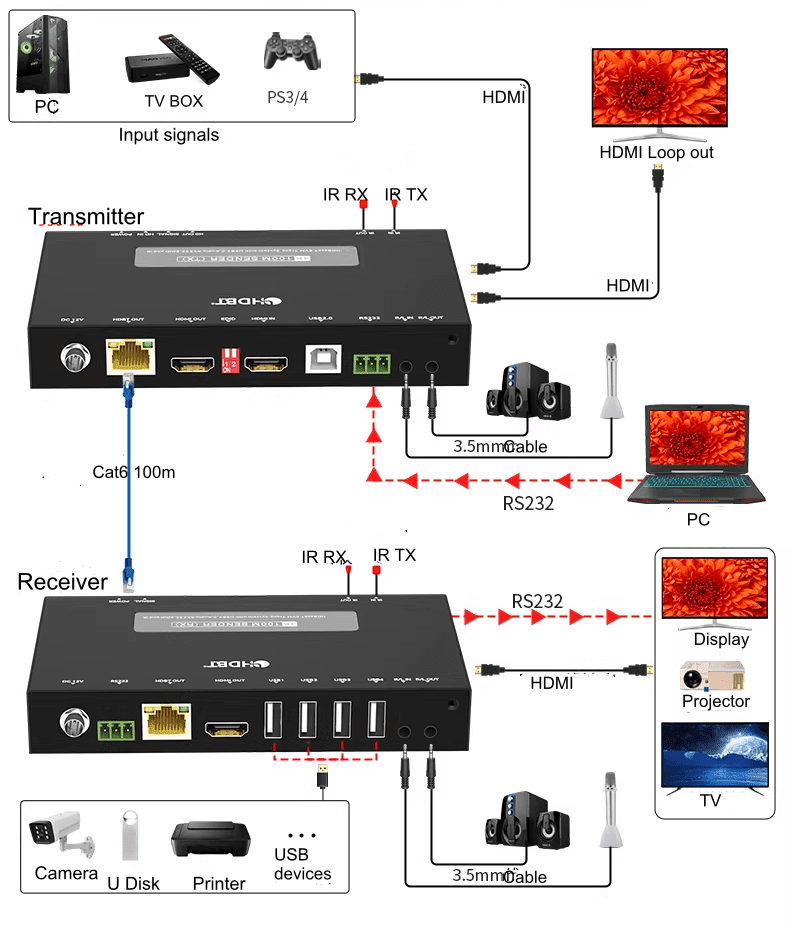

System Connection
