New 4K DVI over Fiber Extender up to 2000m/6562ft over single mode Fiber cable

4K DVI Extender over one Fiber cable up to 2000meter

Additional information

Weight 500 g
Dimensions 76 × 42 × 17 cm
HDMI Version

4K 18Gbps

Resolution

Up to 4K60 4:4:4

HDCP

HDCP2.3 and HDMI 2.0b

Transmission distance

2000m / 6562ft (over a single-mode fiber cable)
OM2: 40m / 131ft
OM3: 200m / 656ft
OM4: 300m / 985ft
(over 850nm OM2/3/4 multi-mode optical fiber)

Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

ESD Protection

Human body model — ±8kV (Air-gap discharge) &
ESD Protection ±4kV (Contact discharge)

Detailes About New 4K DVI over Fiber Extender up to 2000m/6562ft over single mode Fiber cable

4K HDMI 2.0 Fiber Optical Extender

Overview

This DVI over Fiber Extender can extend DVI signal up to 2000m / 6562ft over a single-mode fiber cable, and multi-mode fiber cable grade OM2/3/4 is compatible. Support video resolution up to 4K@60Hz. The transmitter supports EDID learning function. This product has the advantages of strong anti-interference, high safety performance, small size and light weight, and has incomparable advantages in long-distance transmission.



Features:

☆ Compliant with HDMI 2.0b, HDCP 2.3 and DVI 1.0
☆ Support 18Gbps video bandwidth
☆ Video resolution up to 4K@60Hz
☆ Signal transmission distance can be extended up to 2000m / 6562ft over a single-mode fiber cable
☆ Multi-mode fiber grade OM2/3/4 Compliant
☆ Transmitter supports EDID learning function
☆ Audio formats support LPCM, Dolby Digital / Plus / EX, Dolby True HD, DTS, DTS-EX, DTS-96 / 24, DTS High Res, DTS-HD Master Audio, DSD
☆ Compact design for easy and flexible installation

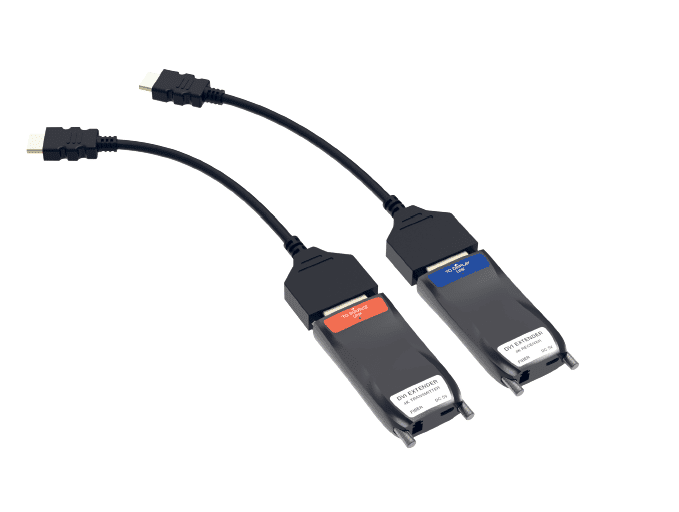

 Package Contents

① 1 × DVI over Fiber Extender (Transmitter)
② 1 × DVI over Fiber Extender (Receiver)
③ 2 × USB Cables (1m)
④ 2 × HDMI to DVI Connection Cable (24cm)
⑤ 1 × User Manual

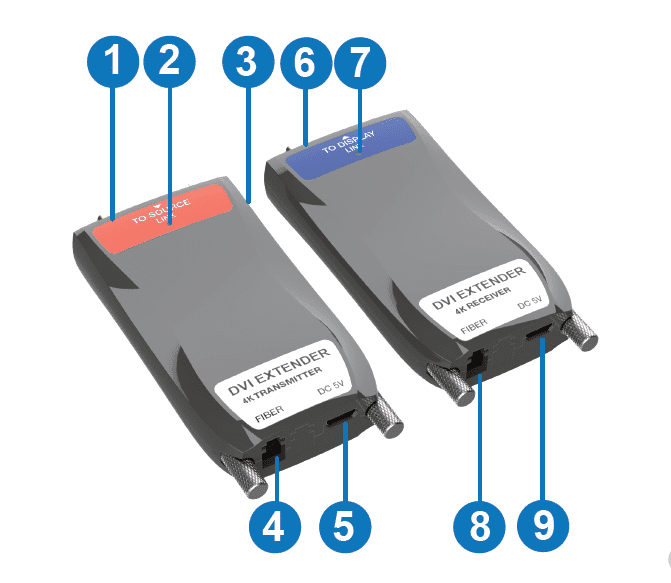

Function description

new 4k dvi over fiber extender up to 2000m/6562ft over single mode fiber cable
new 4k dvi over fiber extender up to 2000m/6562ft over single mode fiber cable

Application Example :

Step
1: Learning EDID 1. Connect the DVI input port on transmitter to the sink HDMI input port via HDMI to DVI cable.
2. Connect the USB port on transmitter to the provided power adapter.
3. Press and hold the EDID learning button for 3 seconds, and the transmitter will learn the sink EDID. If EDID learning succeeds, the link LED on transmitter will flash in green.
new 4k dvi over fiber extender up to 2000m/6562ft over single mode fiber cable

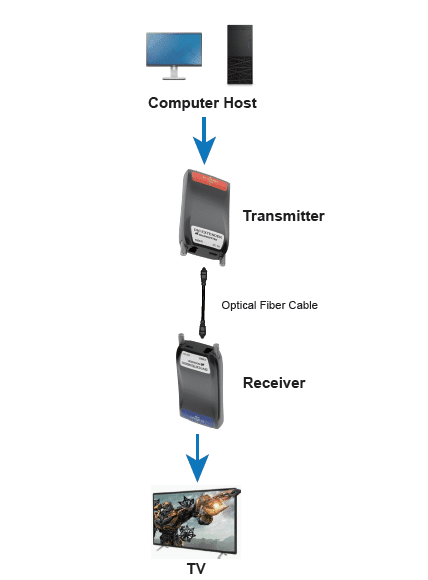

Step 2: Operation and connection diagram
1. Plug USB cable into the transmitter and receiver.
2. Plug both transmitter HDMI and USB cables into the HDMI video source.
3. Plug both receiver HDMI and USB cables into the HDMI display.
4. Plug one end of the SC fiber cable into the transmitter and the other end into the receiver.
5. Power on all the devices.
new 4k dvi over fiber extender up to 2000m/6562ft over single mode fiber cable
