Overview

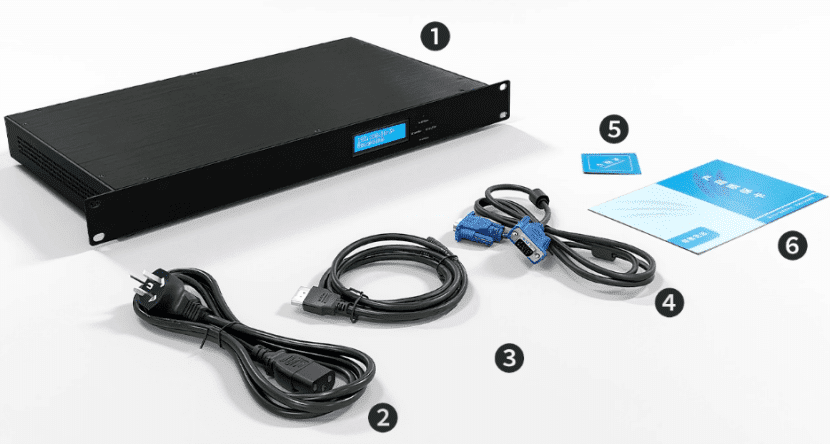

Highly integrated display, coding and storage integrated equipment, supporting two-way audio and video 4K interaction, and supporting 6 channels (5*HDMI+1*IP) recording, living and web vod. Support local/remote picture direct. Support VGA+2 * HDMI 3-screen display.

Full series of 6CH 4K Interaction Recorder All in one Video switcher,recording,live broadcasting,streaming devices with HDMI , SDI ports for different application.

classification	Product model
6 CH(5*HDMI)	6 CH(5*HDMI)

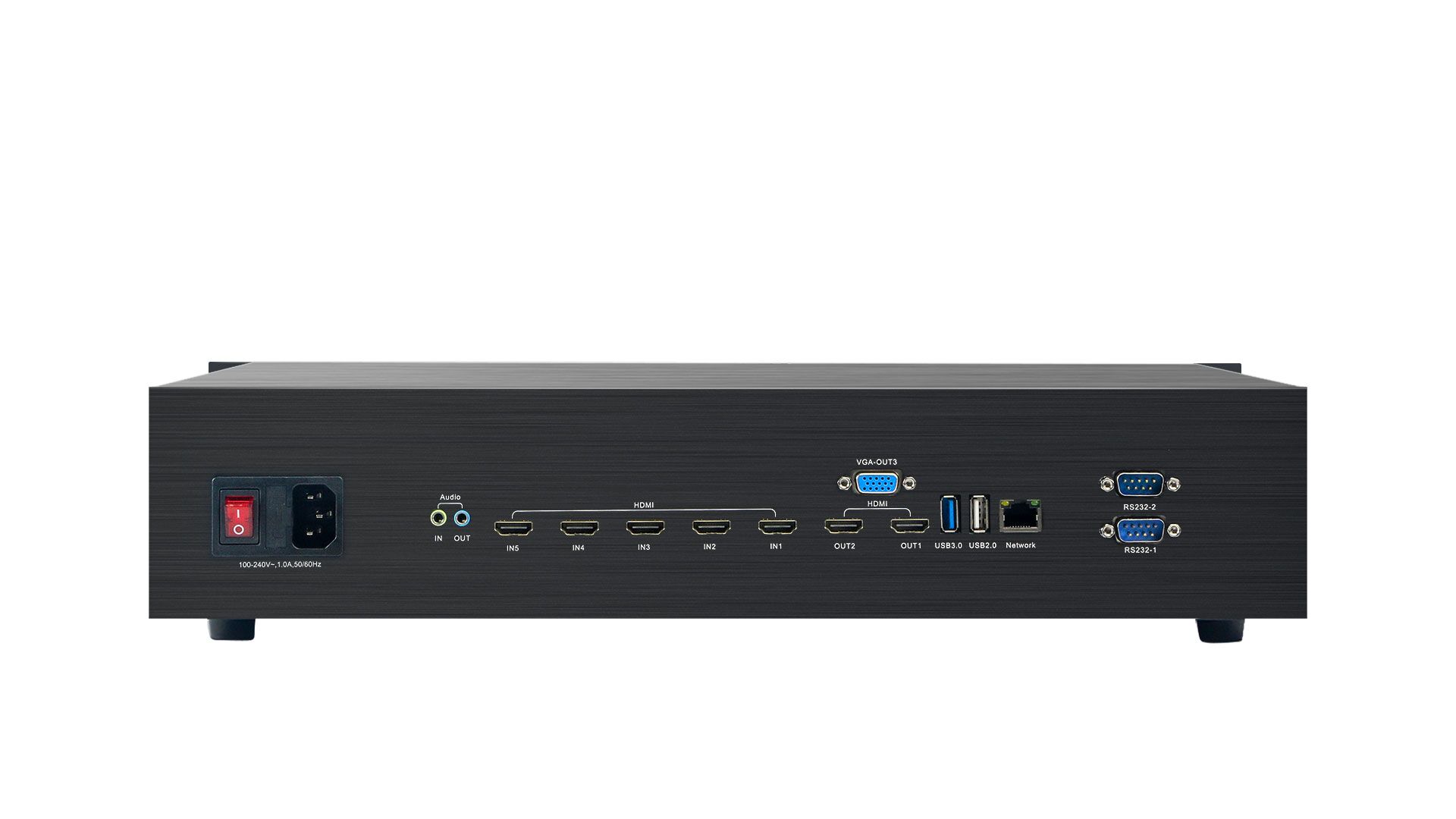

	6 CH(5*HDMI) 2U

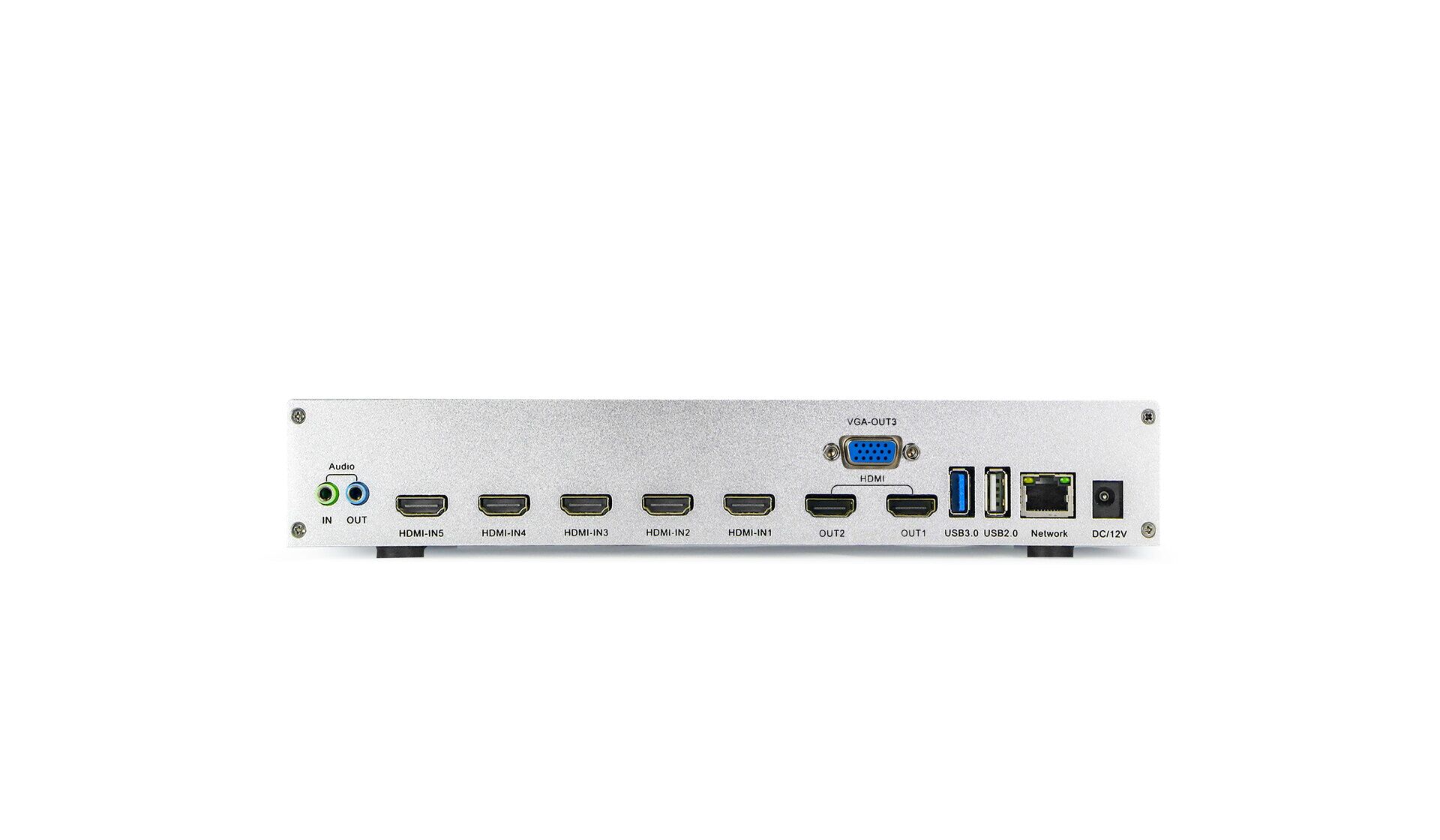

	6 CH(5*HDMI) MINI

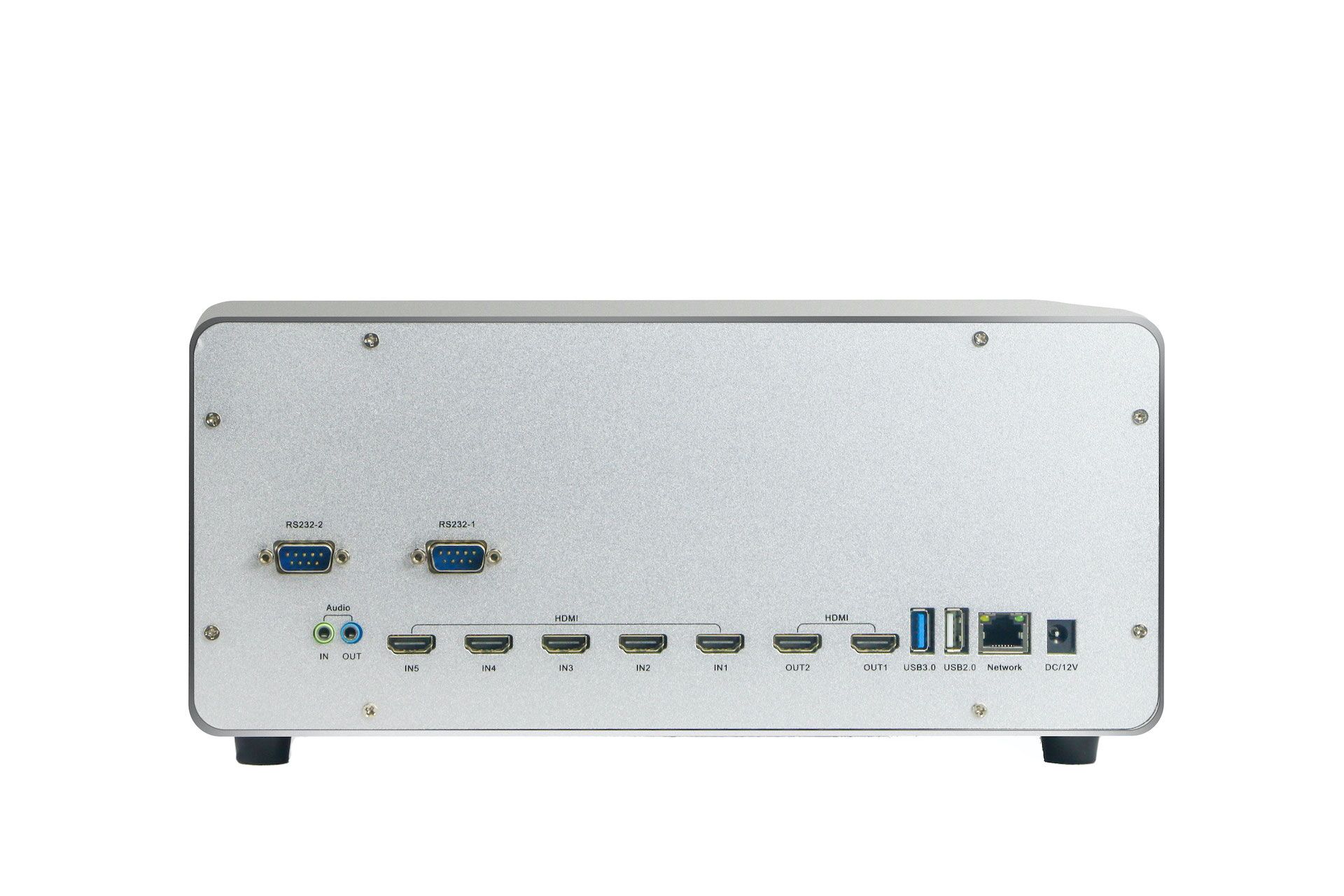

	6 CH(5*HDMI) PLUS

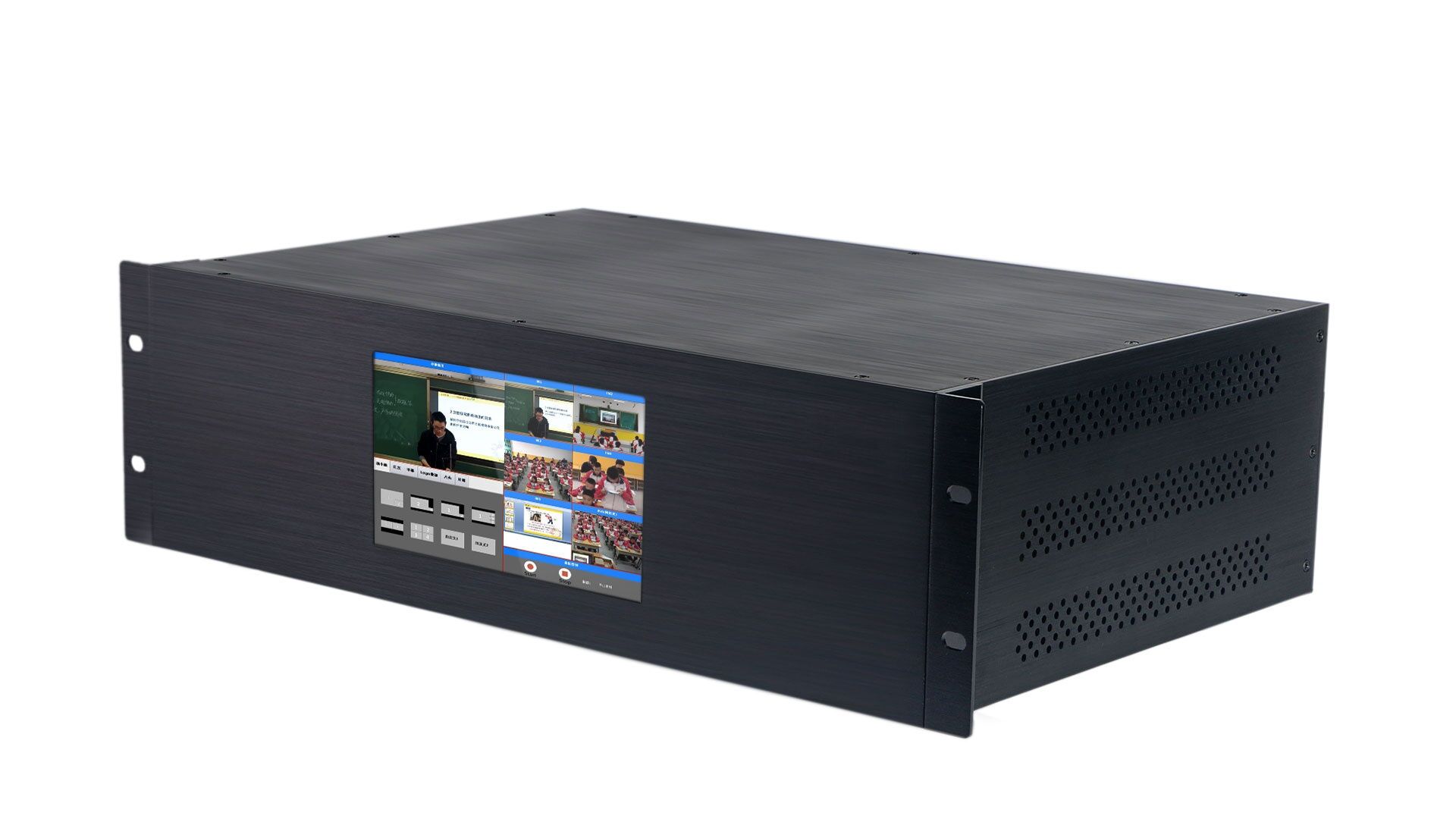

	6 CH(5*HDMI) 3U

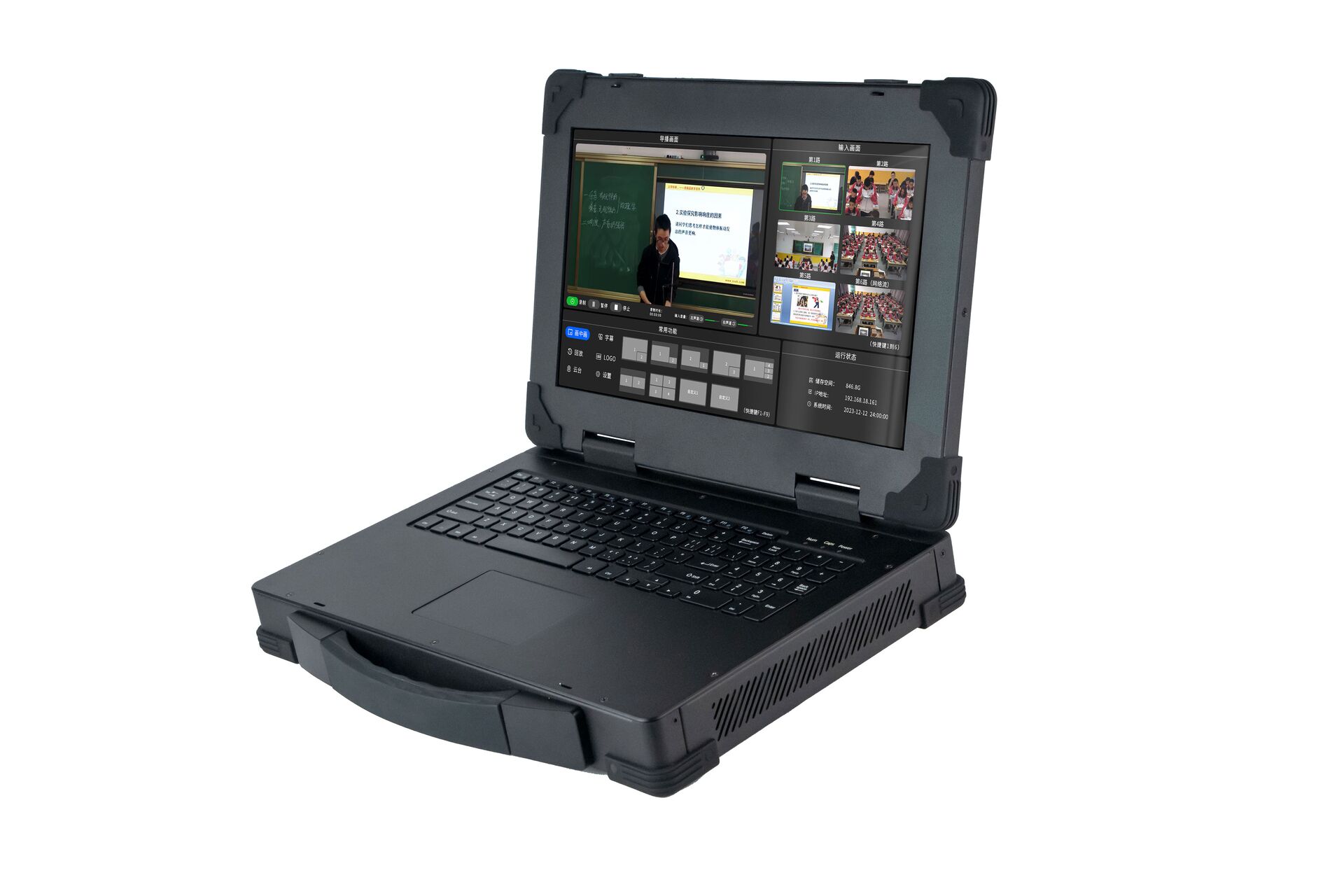

	6 CH(5*HDMI) MAX

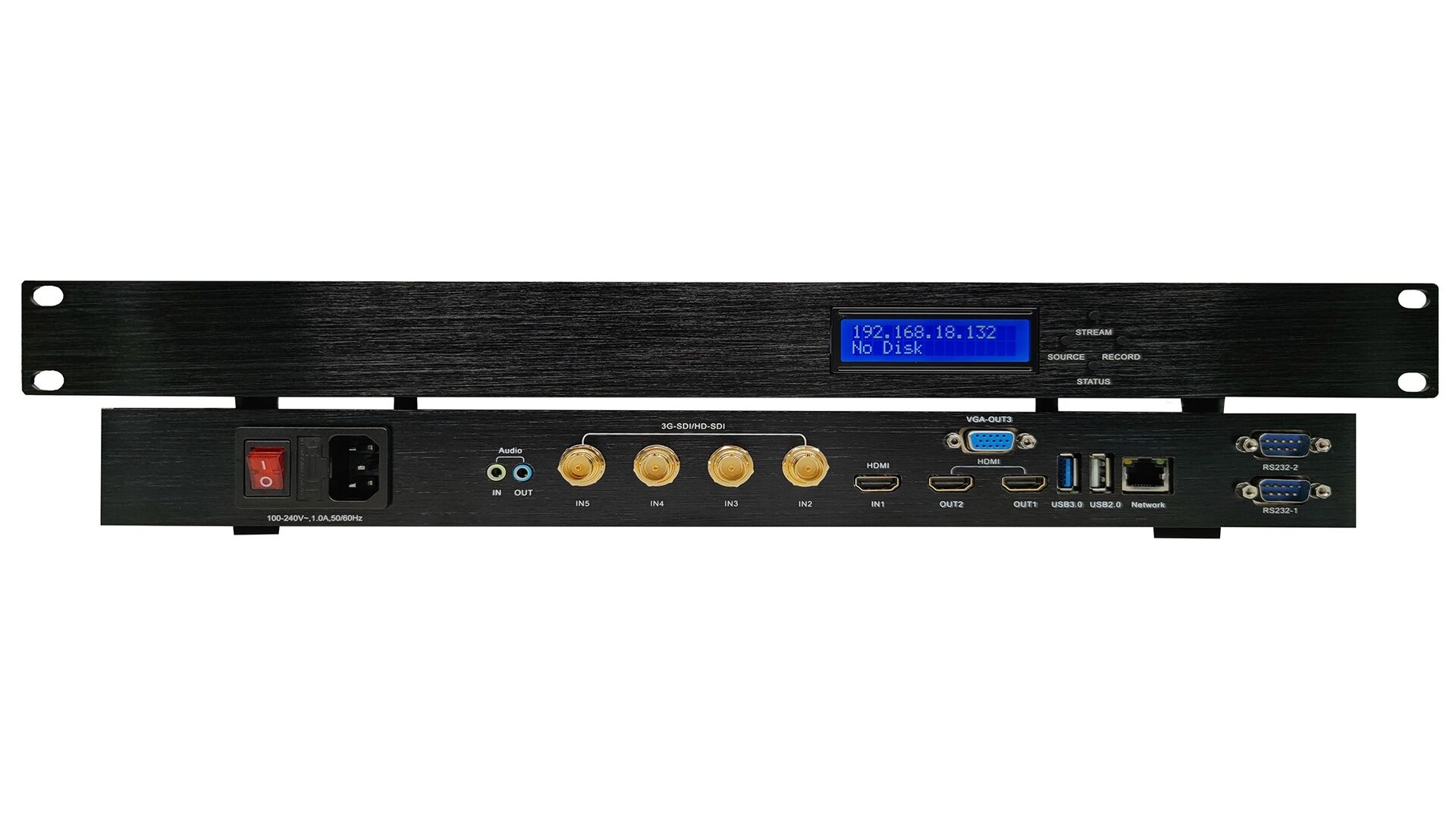

6 CH(4*SDI+HDMI)	6 CH(4*SDI+HDMI)

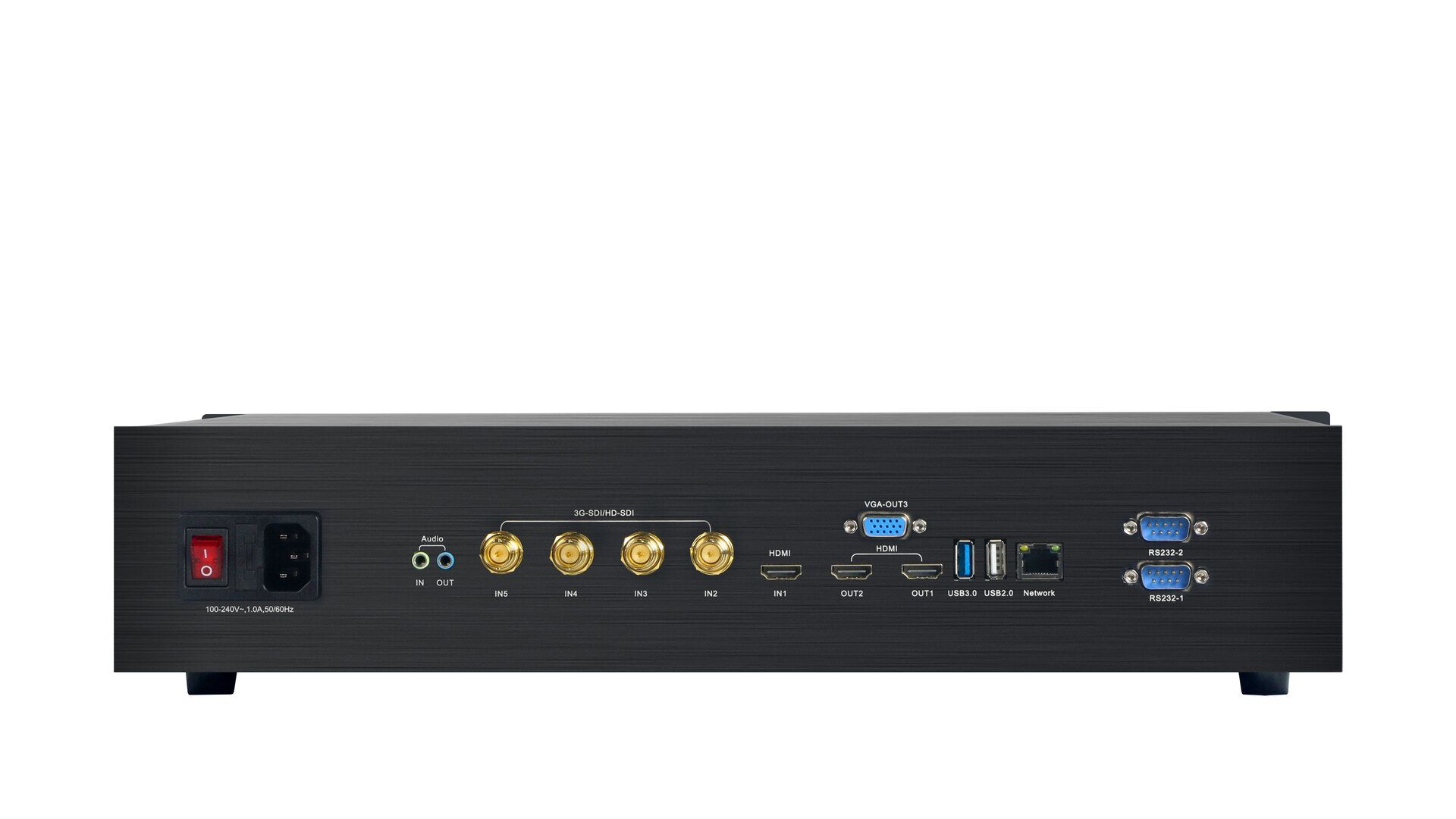

	6 CH(4*SDI+HDMI) 2U

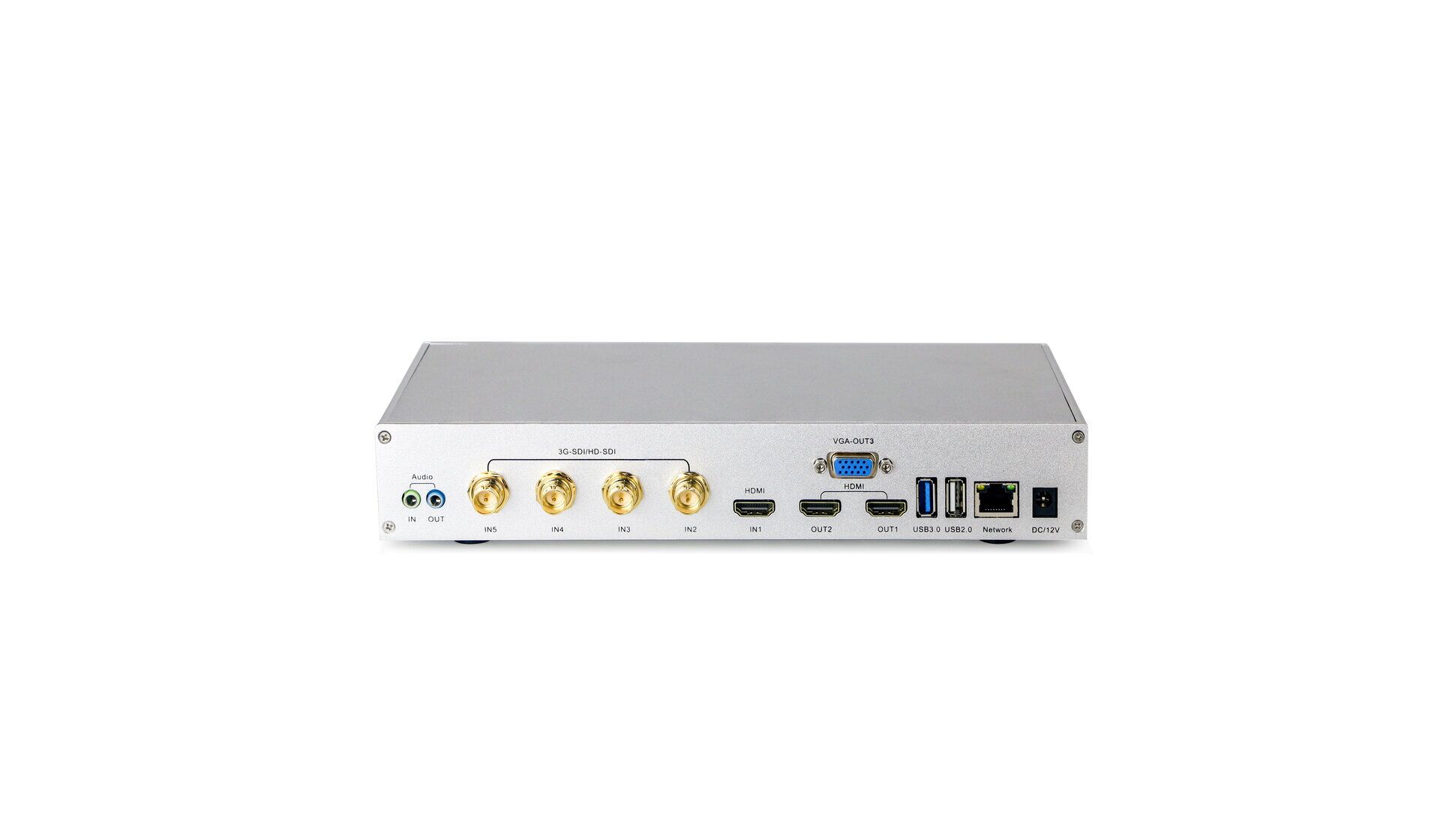

	6 CH(4*SDI+HDMI) MINI

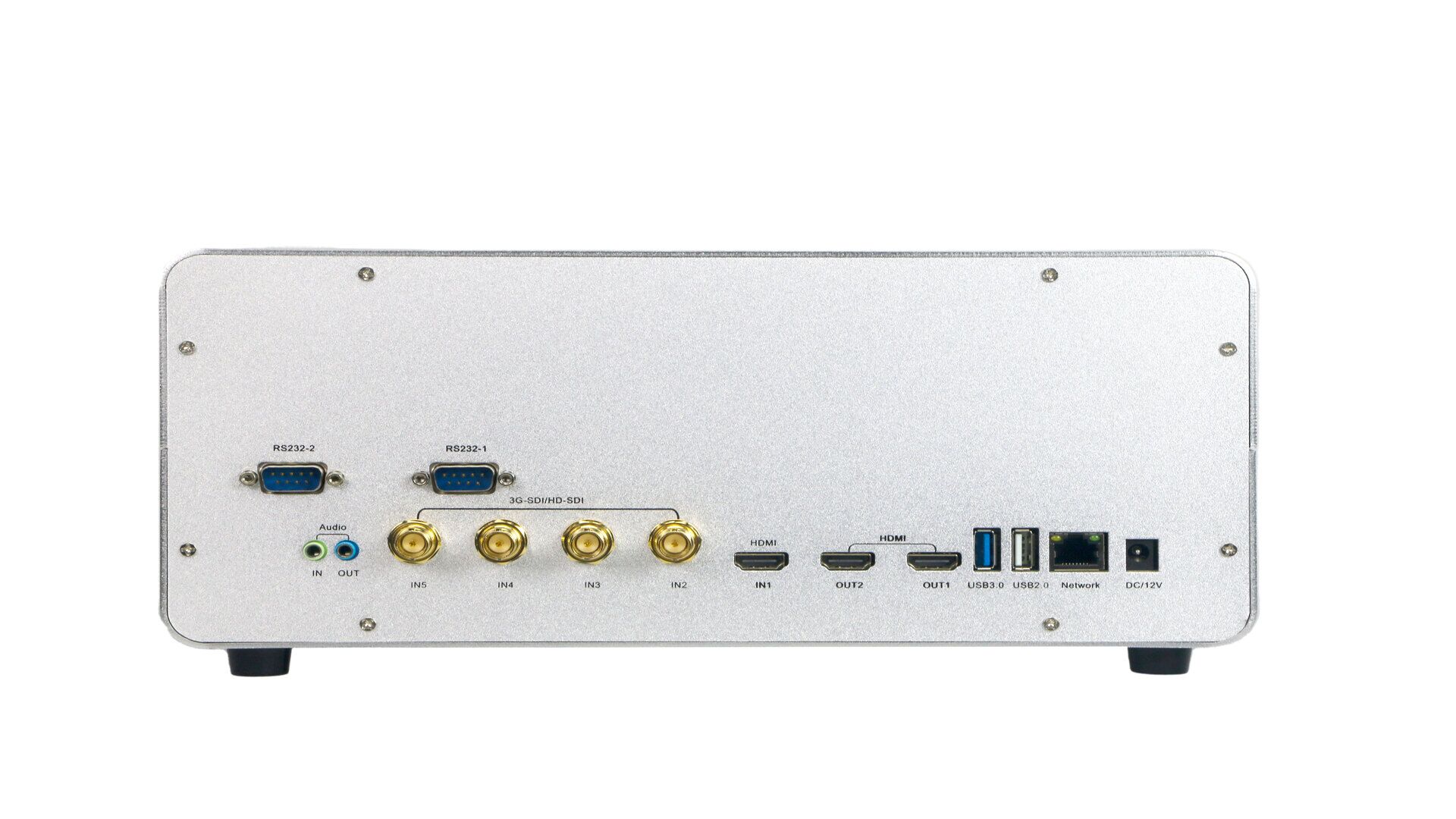

	6 CH(4*SDI+HDMI) PLUS

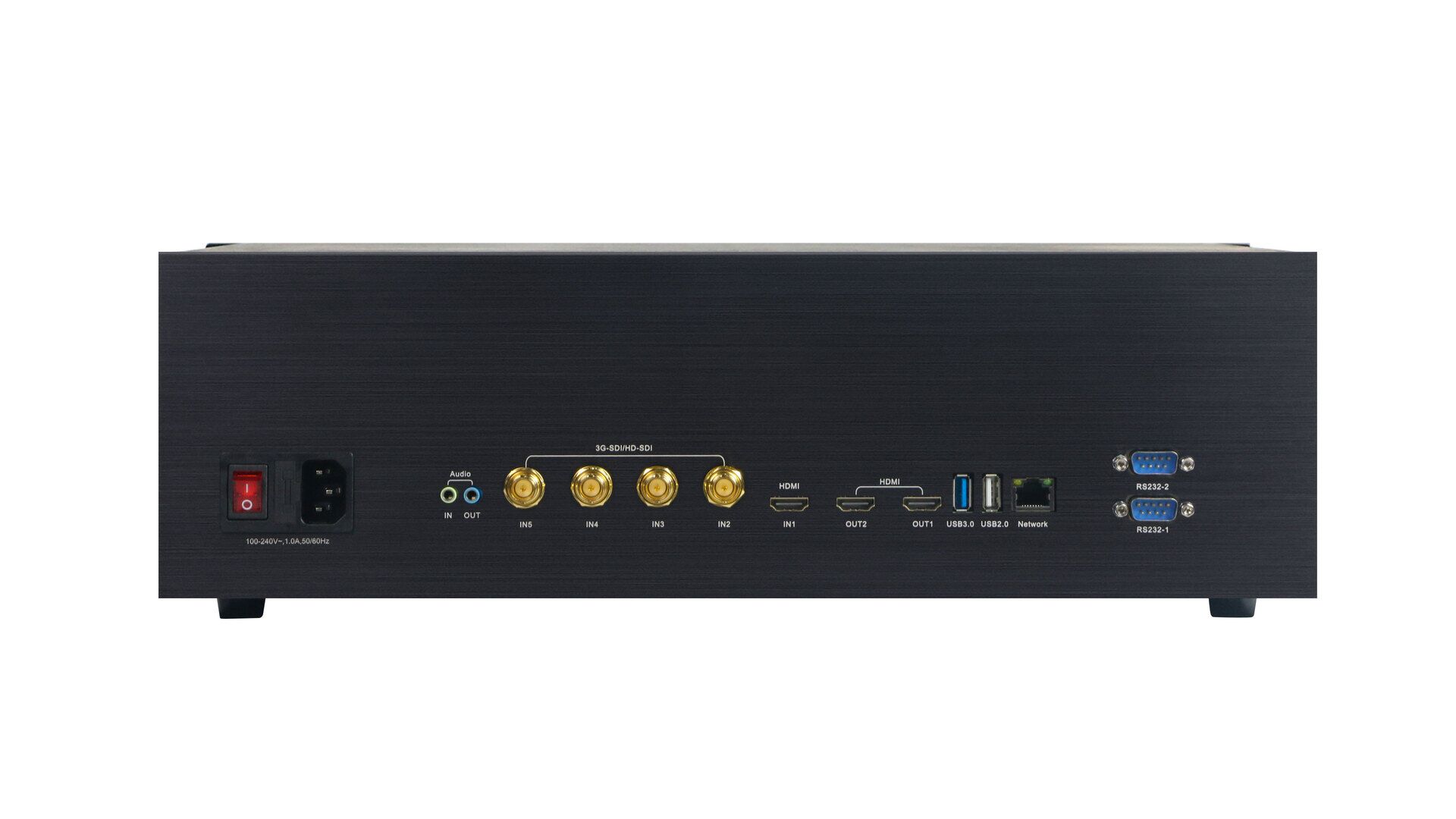

	6 CH(4*SDI+HDMI) 3U
	6 CH(4*SDI+HDMI) MAX

Features

• Video input interface: HDMI * 5 (support 4KP30 or 1080P60)+ 1*IP
  • Input resolution: HDMI 4K@30
  • Audio input interface: 48khz sampling, AAC coding
  • Output interface: HDMI * 2 (support 4KP60+4KP30), VGA * 1 (support 1920 * 1200)
  • Network: 1 * 1000M
  • Serial port: 2 * RS232
  • Network flow coal body delay:<=1sec
  • Recording format: MP4
  • Recording mode: multi-stream multi-screen (resource mode)/single-stream single-screen (movie mode)/single-stream multi-screen (picture-in-picture)
  • Apple and Android APP
  • Equipment height: 1U

Three-screen display, flexible selection

Supports three-screen display, local directing, full-screen directing, and simultaneous viewing of different screens; supports 4KP 30fps output.

Specification

Video/AUDIO Input	Video Input 5*HDMI(4KP30)+1*IP Format HDMI：4K@30、2560P，1080P60、1920*1200、1080P50、1080P30、1080P25、720P60、720P50 AUDIO 1*Line In；1*HDMI AUDIO
Video/AUDIO Output	Video Out HDMI*2(4KP60+4KP30),VGA*1 Audio Out 1*Line OUT
Video/AUDIO Encode/Decode	Encode H.265 MP;H.264 HP5.1/MP/BP Format 3840*2160/1920*1080/1280*720/2560*1536/1920*1200 Auto Detect support Bitrate 128Kbps-20Mbps FPS 5—60 Audio Encode AAC Audio Bitrate 16kbps-256kbps
Recording	Mode Multi-stream and multi-screen (resource mode) Single-stream single-screen (movie mode) Single-stream multi-screen (picture-in-picture) Remote Director support Local Director Touch Screen/Mouse Manage Start/Stop/Status Autio Section support Circular coverage support Camera Control 6 channel VISCA Phone/PAD Apple/Android
Record File	Format MP4 Manage Web Browser/ftp Space Support 1-128T,install self
External interface	Serial 2 * RS-232 Network 1 * 100/1000M USB 1*USB3.0;1*USB2.0
Network	Protocol TCP/IP、UDP、IPv4、IPv6; RTMP/RTMP server/RTSP/TCP; HTTP、FTP、NTP;

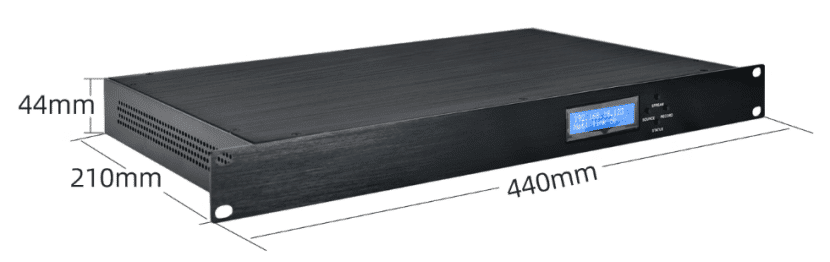

Other	Power AC100-240V System Linux DISK 3.5*1 Power consumption ≤25W Temperature -10℃–＋55℃ Humidity 10％～90％，non-condensing Size 440mm ×210mm ×44mm Weight ≤2Kg

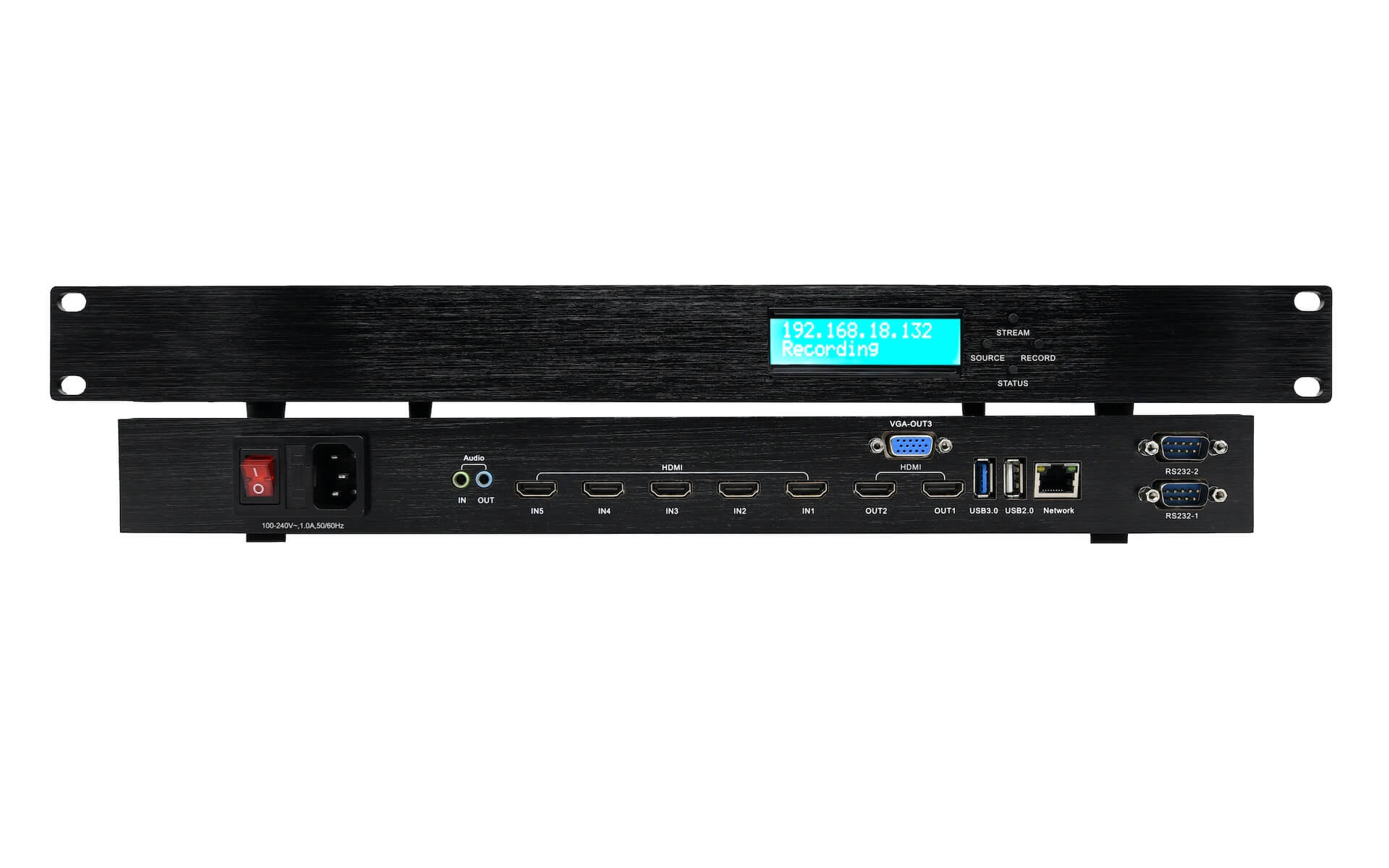

Interface

Serial Number	name	illustrate
1	power supply	100-240V AC power input, with a red indicator light at the switch. When turned on, it will light up, and when turned off, it will turn off，Built in fuse, can be removed and replaced
2	AUDIO IN	Audio In to 3.5 stereo input
	AUDIO OUT	Audio Out to 3.5 stereo output。On the local Director interface (default screen for startup): output the 6th network stream decoding sound; Enter the playback interface: output playback file sound
3	HDMI IN1-IN5	Indicates 1-5 HDMI input interfaces (in order from right to left)
4	HDMI-OUT1 HDMI-OUT2 VGA-OUT3	Indicates 1-5 CH(in order from right to left) HDMI input interface HDMI-OUT1 supports up to 4KP60 output, HDMI-OUT2 supports up to 4KP30 output, and VGA-OUT3 supports 1080P60 output (1 HDMI-OUT1 embedded audio output on the local Director interface (default screen when turned on): output the 6th network stream decoded sound; Enter the playback interface: output playback file sound 2. HDMI-OUT2 embedded audio fixed loop output AUDIO-IN (3.5 input audio port) audio, unable to turn on and off control)
5	USB3.0	External mobile hard drive or USB flash drive (capacity needs to be>=16GB) USB3.0 interface
6	USB2.0	USB2.0 interface, connected to mouse, touch screen
7	Network interface	100M/1000M adaptive network port, two lights are Link light and Data light respectively
8	display screen	Can display recording status and IP
9	SOURCE	reserve
10	STREAM	reserve
11	STATUS	Status update
12	RECORD	Control recording start and stop
13	RS232 serial port	RS232-1 serial port, local serial port; Equipment can be controlled according to the code table, usually connected to the central control; RS232-2 serial port, which is a transparent network port. Usually connected to a pan tilt camera;

Application diagram

Features

High configuration Chipset,Embedded Linux system, stable and immune to viruses and crashes. Primarily used in industrial products, capable of long-term operation without requiring a reboot.

Power-off protection, worry-free recording. Recorded data is protected in real-time; it automatically recovers data in progress in case of sudden power outages or other abnormal situations.

Dual-disk simultaneous recording, easy export.

Simultaneous recording from both an internal SATA hard drive and an external USB 3.0 drive supports playback and USB drive export.

Supports H.265/H.264 codec technology

Making video clearer and smoother

Using less bitrate to transmit data at the same video quality, saving storage space and transmission time.

Virtual keying for easy recording

Effortlessly replace backgrounds and blend scenes

Bringing you richer, more realistic visual effects

Face recognition with automatic tracking

Built-in 1.2T neural network inference engine for face detection, recognition, and target detection/tracking

Homepage

Director’s Screen,Input Screen,Common Functions,Running Status

Local interface with customizable styles

Switch freely between medical, educational, and conference scenarios

Connect to a mouse/touchscreen for intuitive operation, making video recording simple and efficient.

The recording page allows for local playback of recorded videos, supporting 16x and 32x speeds.

The picture-in-picture page includes 7 common modes and 2 custom modes.

PTZ Camera

The chroma keying page includes four common scene images plus one custom background.

First pass: Background image

Second pass: Chromatography image

Chromatography composite image

Settings Page

System Settings, Network Settings, Disk Management, Network Stream Configuration, User Management, Video Input Settings, Director-Related Settings

Settings Page

System Settings, Network Settings, Disk Management, Network Stream Configuration, User Management, Video Input Settings, Director-Related Settings

Record,Record (green),Pause (blue),Stop (red)
