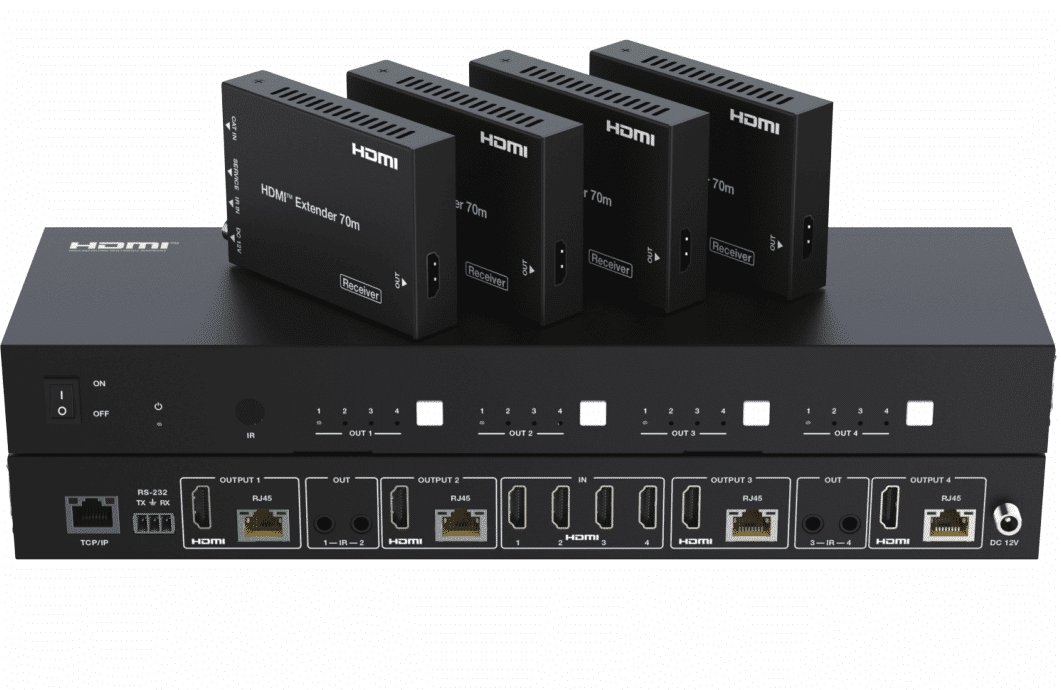

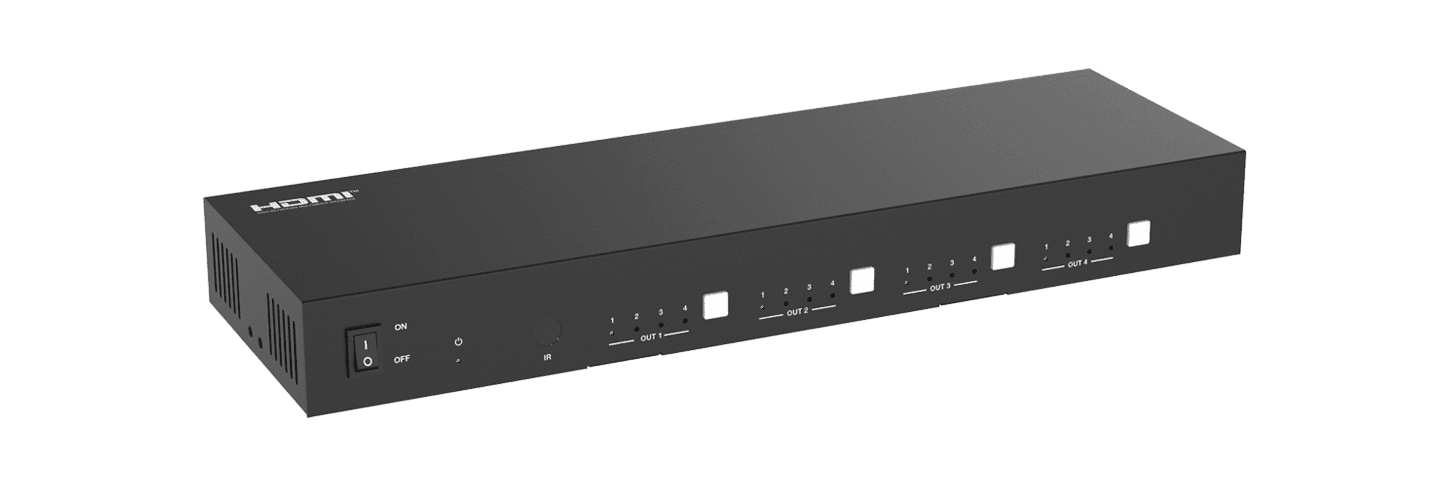

4×4 4K UHD HDMI Matrix Kit with 4 Receivers

The 18Gbps 4×4 HDMI Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.

Connect a CAT Receiver to each of the CAT-Cable outputs to extend the HDMI signal up to 230ft/70m for multi-room connectivity. Each HDMI output supports 4K2K to 1080P downscaler independently.

The product supports one-way IR matrix function. Besides, it can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Features:

☆ HDMI 2.0b and HDCP 2.2/1.x compliant

☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports

☆ 4 HDMI inputs, 4 HDMI & CAT mirrored outputs

☆ HDMI ports support 18Gbps lossless uncompressed video bandwidth

☆ Support 4K->1080P Down Scaler for each output port

☆ HDR, HDR10, HDR10+, Dolby Vision, HLG are supported

☆ CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable

☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

☆ Advanced EDID management and CEC control are supported

☆ 12V POC on all CAT ports

☆ Support one-way IR matrix function

☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

Specification

Technical
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@50/60Hz (4:4:4)
Color Space	RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth	8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit，10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
HDR	HDR10, HDR10+, Dolby Vision, HLG
Transmission Distance	230ft/70m (via a single CAT6 cable)
ESD Protection	Human body model:  ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections

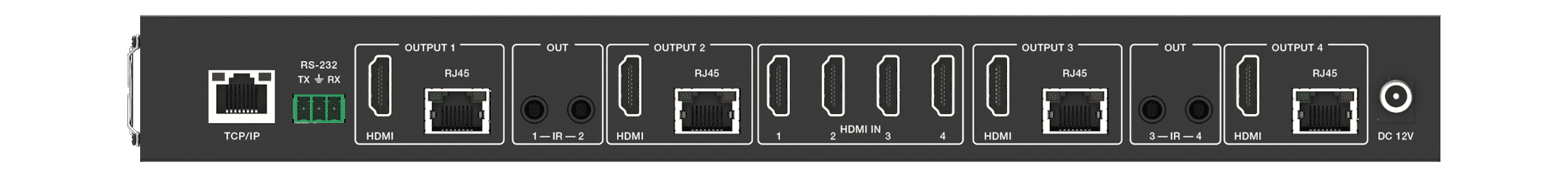

Matrix	Inputs: 4x HDMI Type A [19-pin female] Outputs: 4x HDMI Type A [19-pin female] 4x CAT port [RJ45] 4x IR OUT [3.5mm Stereo Mini-jack] Controls: 1 x TCP/IP [RJ45] 1x RS-232 [3-pin phoenix connector]
CAT Receiver	Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT port [RJ45] Output: 1x HDMI Type A [19-pin female] Control: 1x SERVICE [Micro USB, Update port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Matrix: 320mm [W] x 100mm [D]x 36mm [H] Receiver: 61mm [W] x 88mm [D] x 18mm [H]
Weight	Matrix: 915g, Receiver: 155g
Power Supply	Input: AC 90 – 260V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max)	19.68W (Max)
Operation Temperature	32°F – 104°F / 0°C – 40°C
Storage temperature	-4°F – 140°F / -20°C – 60°C
Relative Humidity	20- 90% RH (no condensation)
Resolution / Cable length	4K60 -Feet / Meters	4K30-Feet / Meters	1080P60 – Feet / Meters
HDMI IN / OUT	16ft / 5M	32ft / 10M	50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

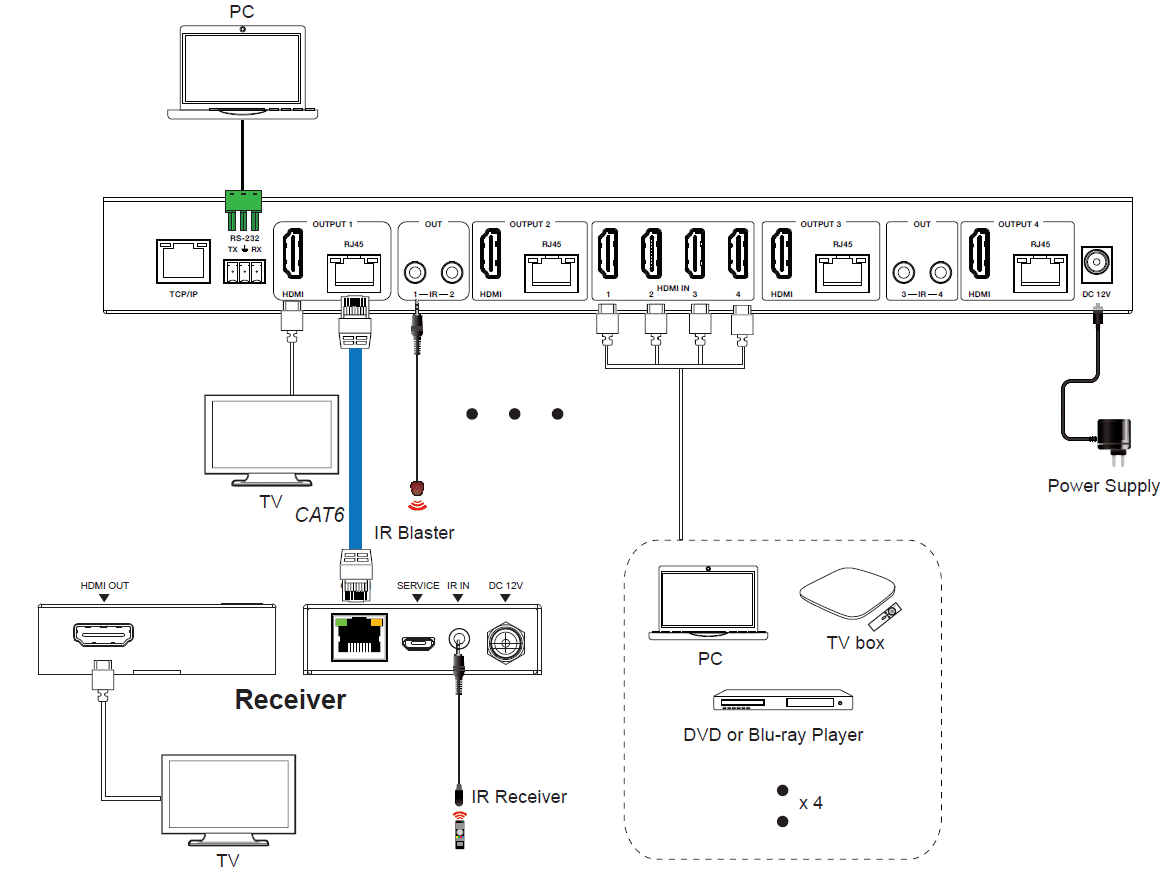

Diagram
