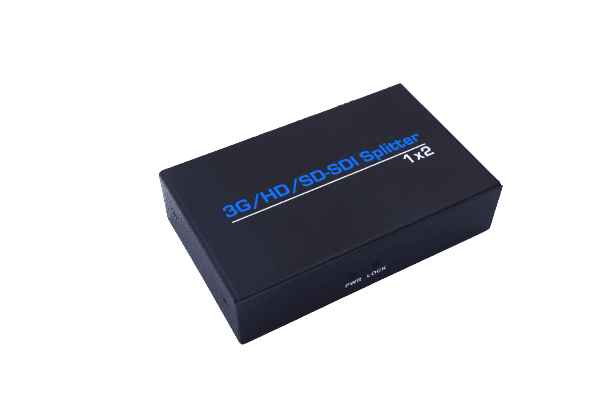

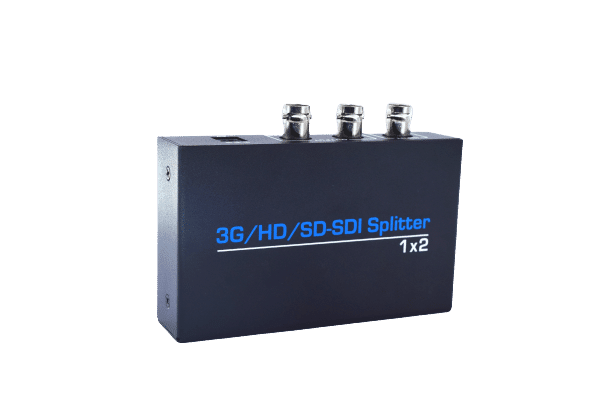

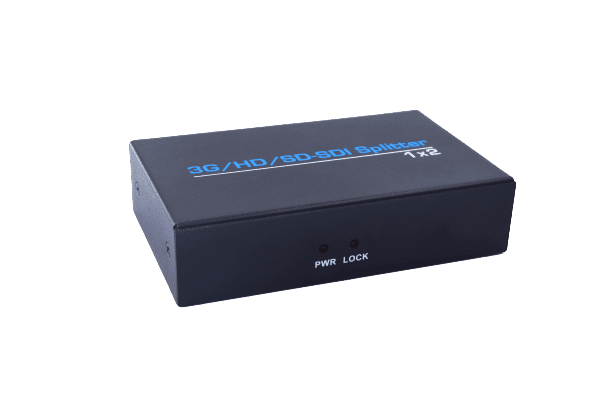

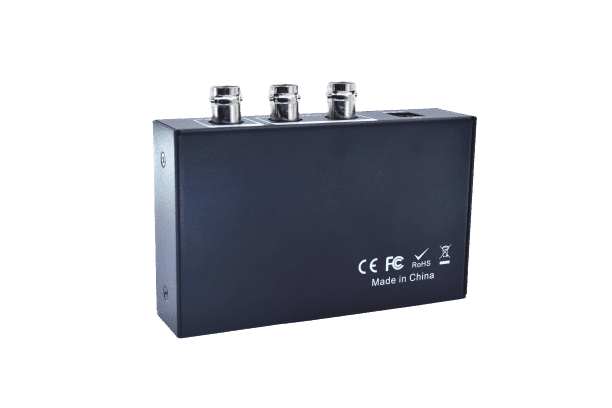

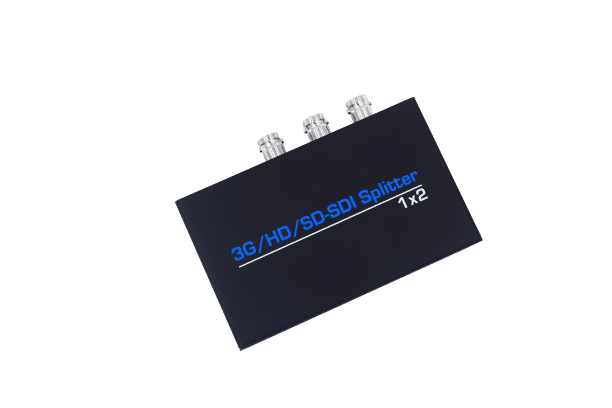

3G HD SD_SDI Splitter 1 x2

SDI Splitter 1×2 with lossless transmission over long distances



Additional information

Weight 195 g
Dimensions 6.5 × 10.7 × 2.5 cm
Video Format

SD-SDI(270Mb/s)
HD-SDI(1.485Gb/s)
3G-SDI(2.97Gb/s)

Resolution

1920×[email protected]

Distance

300m for SD signals
200m for HD signals
100m for 3G signals

Ports

2 Ports, 4 Ports, 8 Ports

Output Ports

2 Ports, 4 Ports, 8 Ports

Detailes About 3G HD SD_SDI Splitter 1 x2

2 SDI splitter distributes allows1SDI, HD-SDI or 3G-SDI video source to2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth and supports lossless transmission over long distances.

Features:

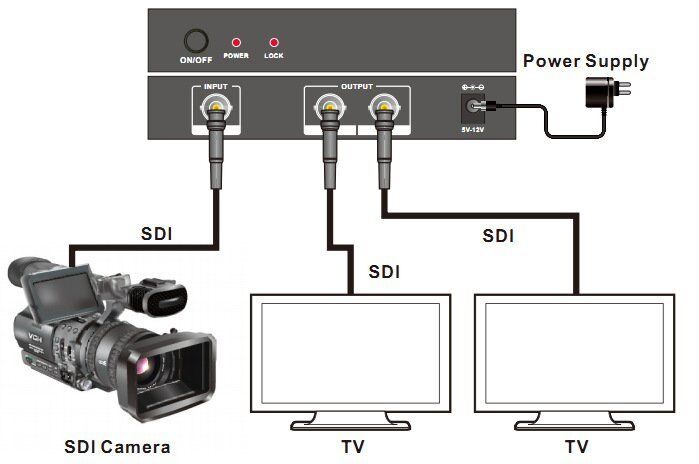

1. 1 SDI input signal split to 2 SDI sink devices.

2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

3. Built-in cable equilibrium, clock recovery, and drive.

4. Supports resolutions up to 1920×[email protected]

5. Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals, and 100m for 3G signals.

6. Supports 5V voltage input.

Specifications

1. Frequency Bandwidth                3Gbps

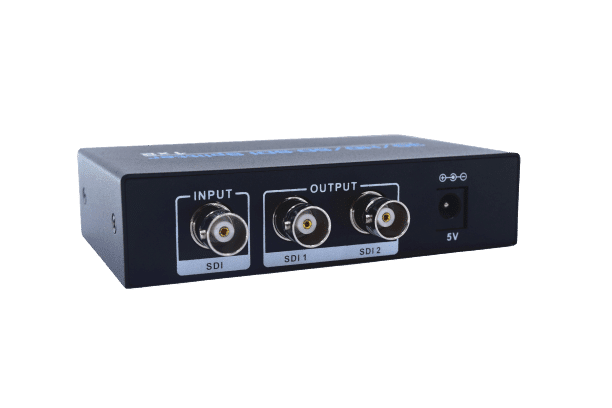

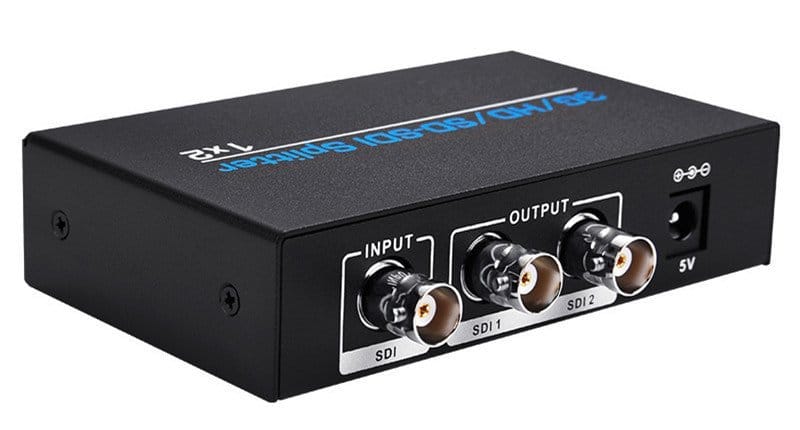

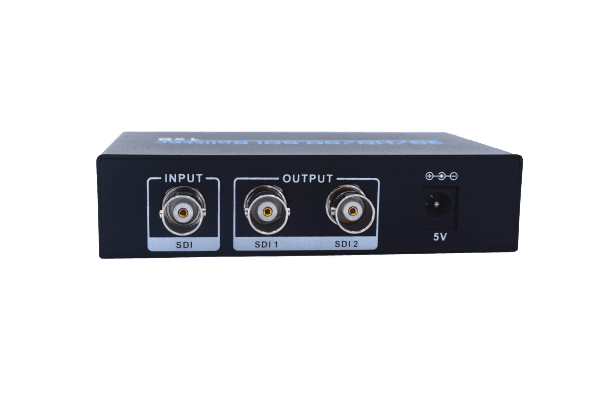

2. SDI Splitter Input Ports               1 BNC Femaleinputport

3. SDI Splitter Output Ports              2 BNC Femaleoutputports

4. Power Supply                       DC5V1A

5. ESD Protection Human Body Model:    ± 8kV (air-gap discharge)

± 4kV (contact discharge)

6. Dimensions (mm)                   65(W) X107 (D) X25 (H)

7. Weight                     195g

8. Operating Temperature              0°C ~ 40°C / 32°F ~ 104°F

9. Storage Temperature             -20°C ~ 60°C / -4°F ~ 140°F

10. Relative Humidity                  20 ~ 90% RH (Non-condensing)
