HDMI2.0 4K60Hz seamless 4×2 multiviewer switcher UHD TV
| Weight | 900 g |
|---|---|
| Dimensions | 32 × 10 × 3 cm |
| HDMI Version | 2.0 |
| Resolution | 4K2K@60Hz 4:4:4, 18Gbps |
| HDCP | HDCP2.2 |
| Markets | Hospitality, Residential, Corporate, Education, Venues, Government, Retail |
| IR | Support 38KHz |
| RS232 | Support |
| Audio | Support |
It was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on two screens.

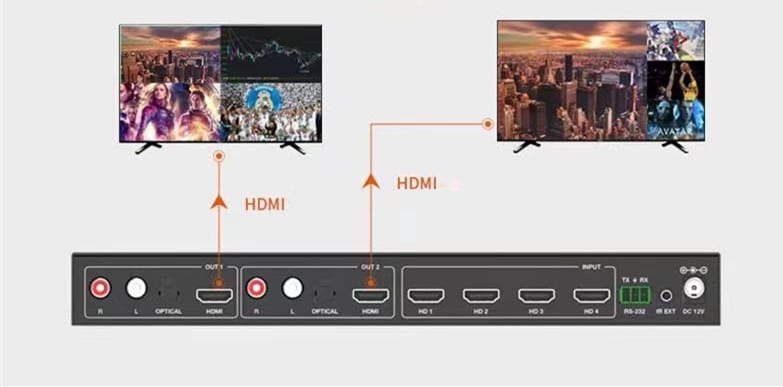

It can combine up to four video signals onto two UHD or HD displayers. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the four inputs on two monitor.

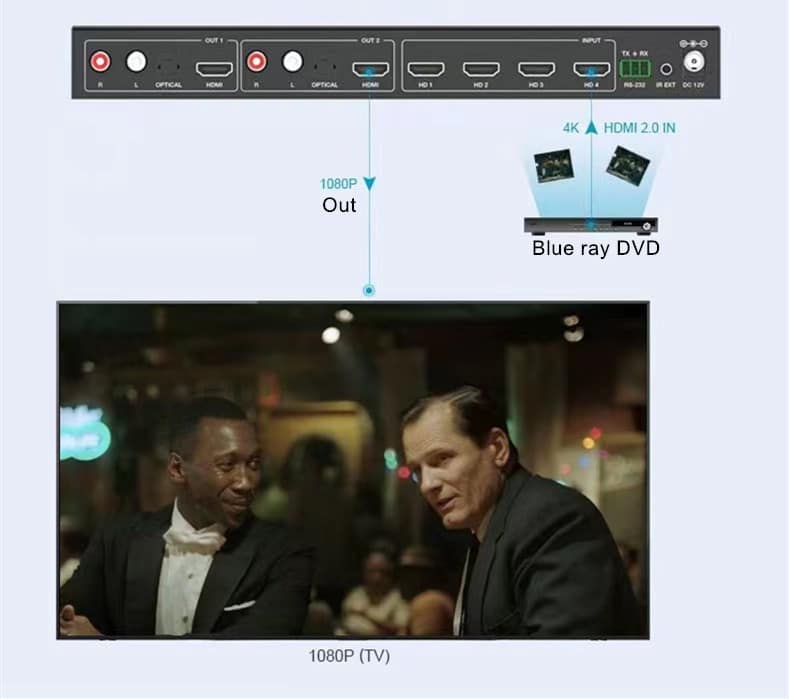

This device support full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.

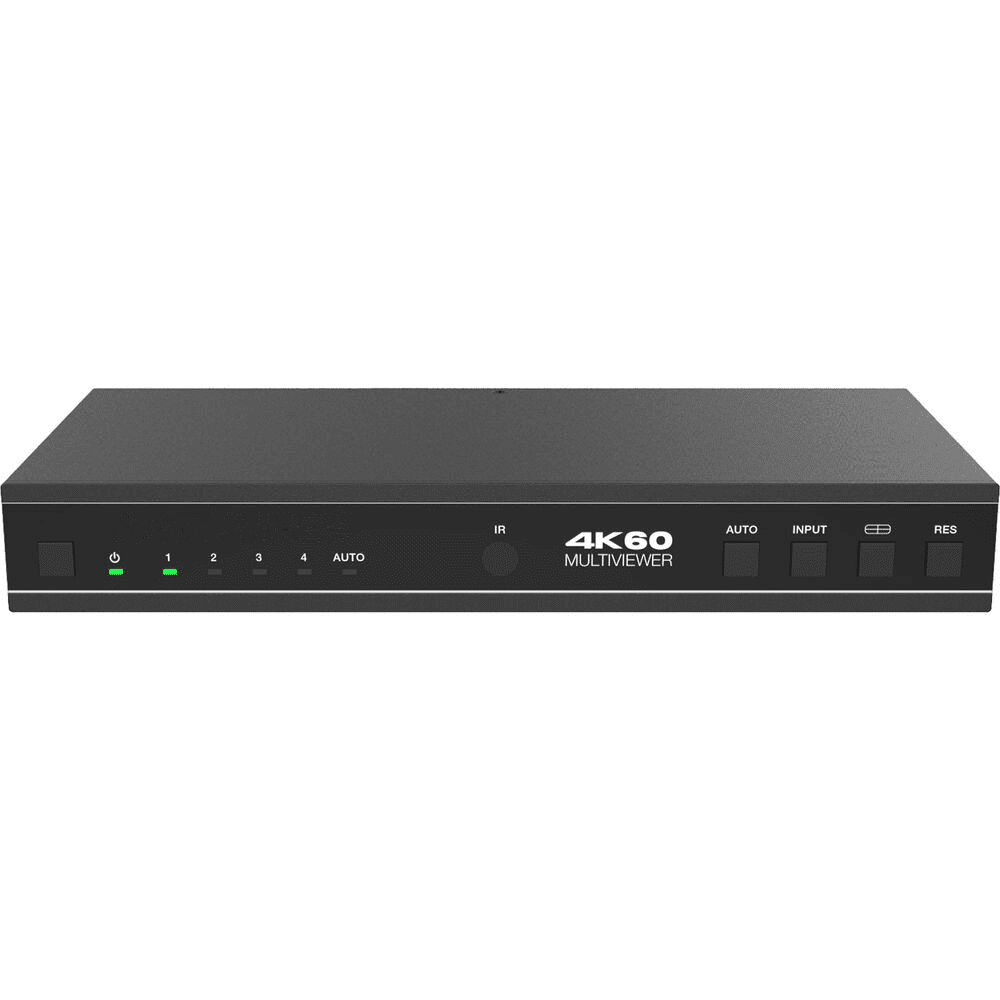

This device can be controlled via front panel buttons, IR remote, RS-232 commands.
FEATURES
HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Support 18Gbps video bandwidth
Input and output resolutions support up to 4K@60Hz
Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
Seamless switching between input channels and combined multiple images on two UHD monitor
Up to (8) display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
Seamless switching on two screen display mode
Fast switching on multiview display mode
Audio de-embedding via analog and optical fiber audio ports
Support volume control and independent audio selection
Support OSD navigation for advanced setting
EDID management
Control via front panel buttons, IR remote, RS-232 commands
Compact design for easy and flexible installation
SPECIFICATION
| Technical | |
| HDMIcompliance | HDMI 2.0b |
| HDCPcompliance | HDCP 2.2 and HDCP 1.x |
| Video Bandwidth | 18 Gbps |
| Video Resolutions | up to 4K@60Hz |
| IR Level | 5V p-p |
| IR Frequency | 38KHz |
| Color Space/Depth | RGB,YCbCr4:4:4,YCbCr 4:2:2,YCbCr 4:2:0 / 8bit |
| Audio Formats | HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0; SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0. Note: It does not support HBR audio. |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ESD Protection ±4kV (Contact discharge) |
| Connections | |

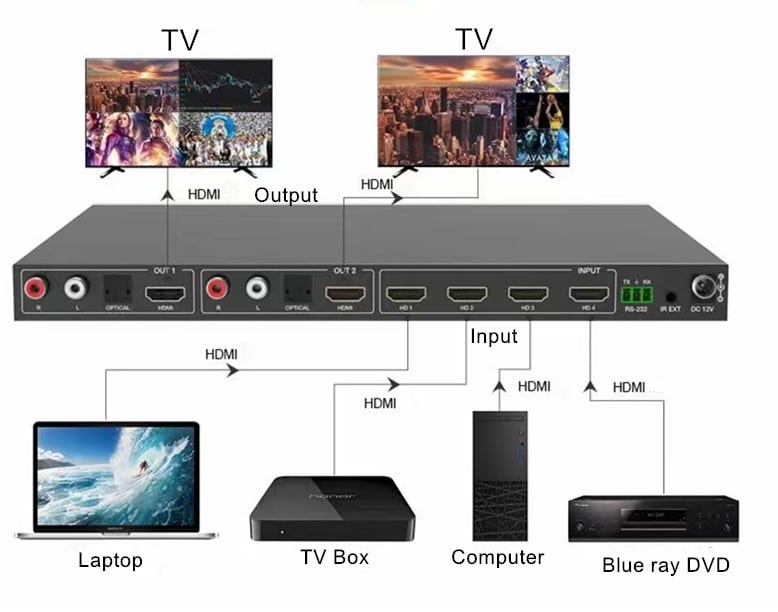

| Input ports / Output | Input ports 4 x HDMI IN [Type A, 19-pin female] Output ports 2 x HDMI OUT [Type A, 19-pin female] |
| Control ports | 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 320mm [W] x 100mm [D] x 30mm [H] |
| Weight | 900g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 10W (Max) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 – 90% RH (no condensation) |
