1080P HDMI Extender Over Single Cat6 Cable up to 492ft /150Meter One to Many (255 RX),JPEG XS

1080p HDMI IP Extender over One Cat6 Cable up to 150meter HDMI 1.3

Additional information

Weight 300 g
Dimensions 9 × 7 × 2 cm
HDMI Version

HDMI 1.3,1.4

Resolution

1080P

HDCP

HDCP1.4

Transmission Distance

150m/492ft via One Cat 6 cable

Video Bandwidth

6.75Gbps

Video Resolution

Up to 1920×1200@60Hz
Note: This product does not support interlaced signals, that is, i-standard signals.

IR

Wideband 20K-60KHz

Compression technology

EZCast

Detailes About 1080P HDMI Extender Over Single Cat6 Cable up to 492ft /150Meter One to Many (255 RX),JPEG XS

Overview

HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network Switch, and extends distance up to 150m/492ft between encoder and decoder via a CAT6 cable.

It offers configurable high quality, low-bandwidth EZCast compression video. The video resolution is up to 1920×1200@60Hz. It also supports HDMI loop output on encoder.

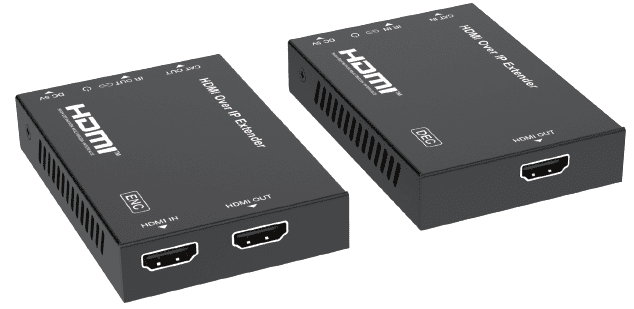

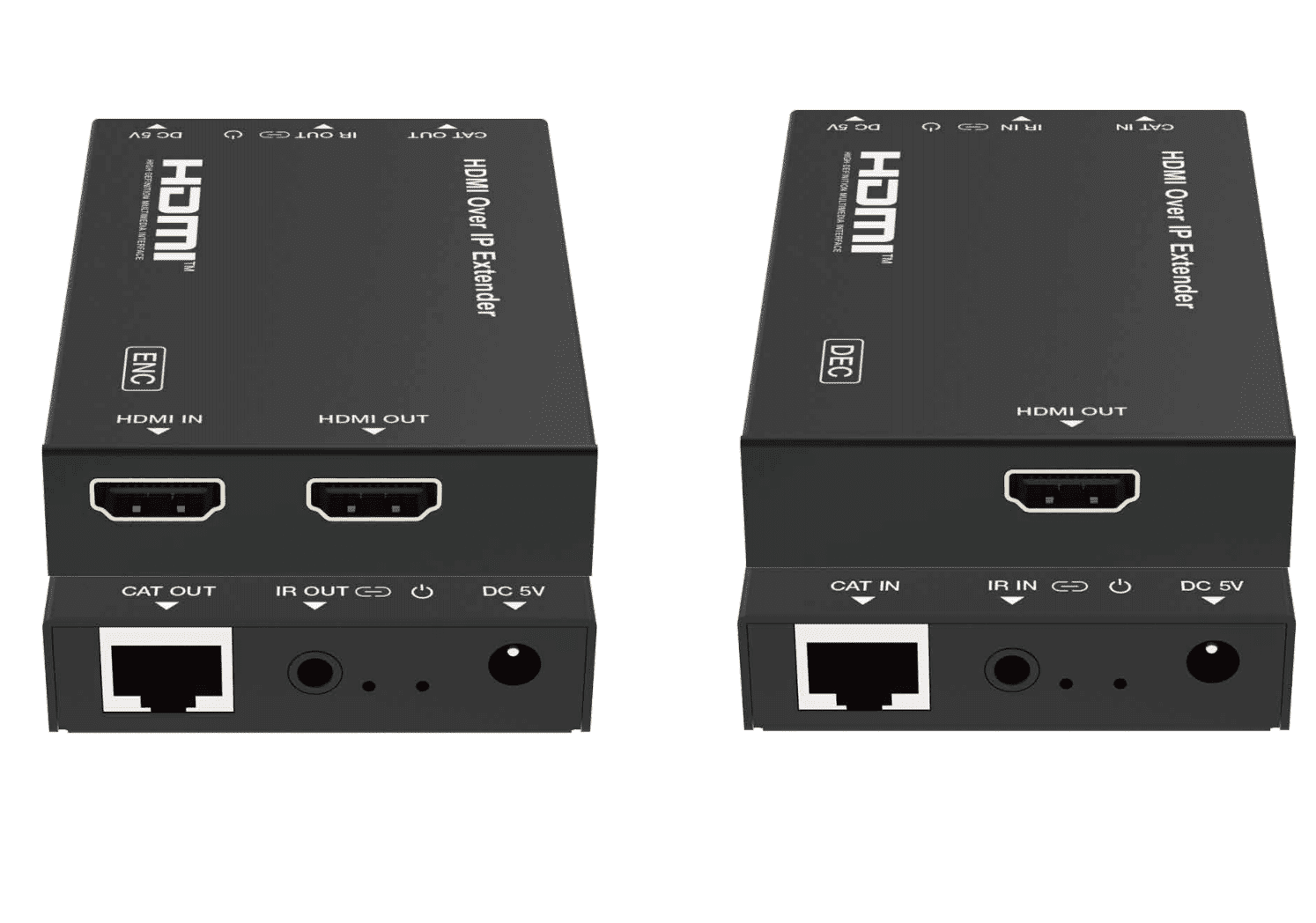

HDMI over IP Extender includes two units: Encoder and Decoder.

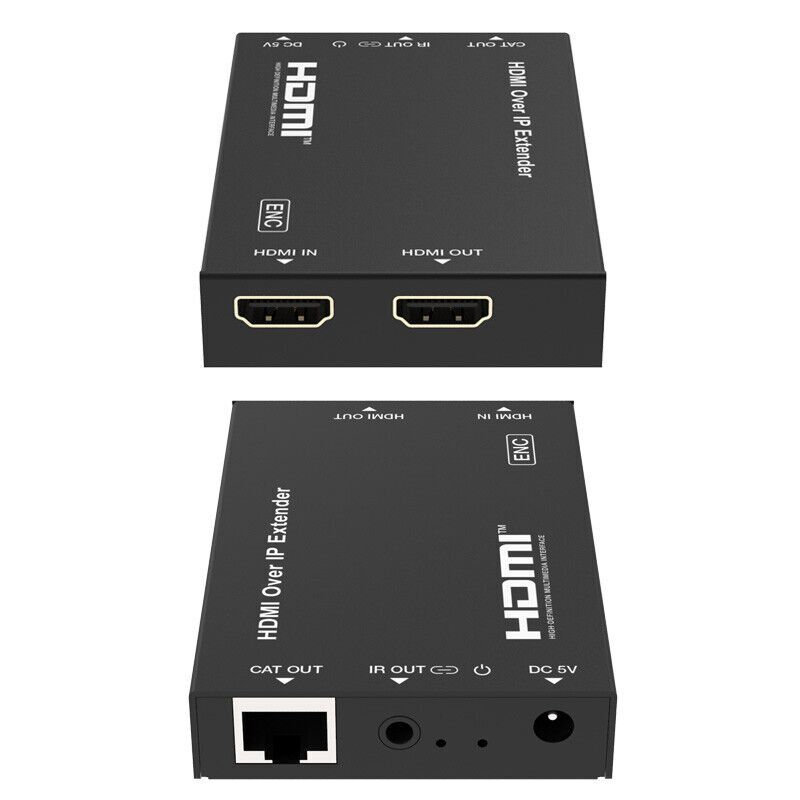

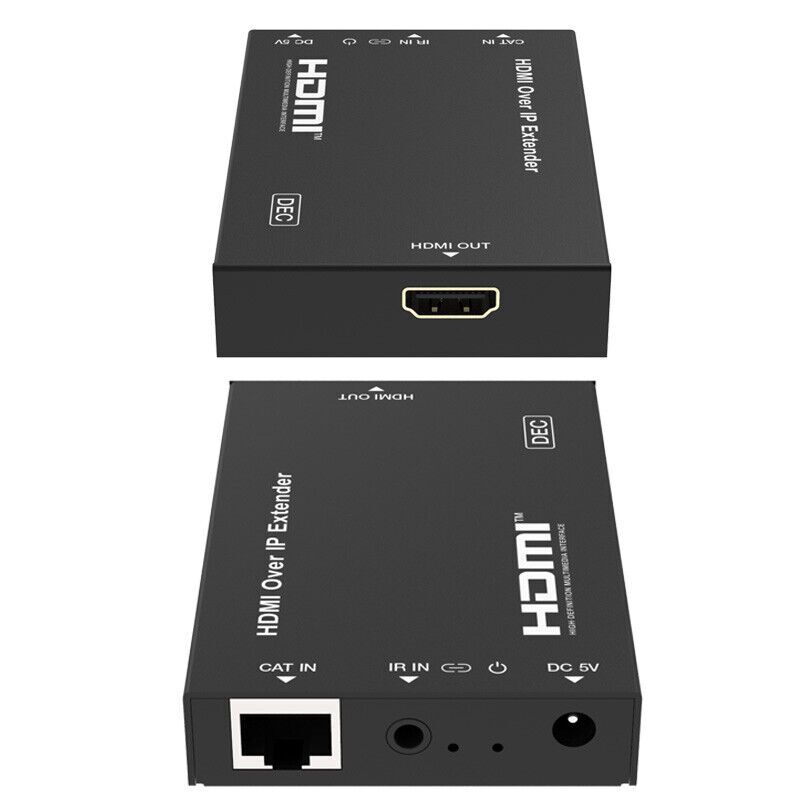

Encoder is responsible for obtaining HDMI signals for encoding, and transmitting via CAT6 cables. It supports HDMI loop output. Decoder is responsible for signal decoding and outputting HDMI signals to HD displays.

The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single CAT6 cable and is the perfect solution for any application.

Note: For One to Many application, it support 255 Receivers (Decoder) .

1080p hdmi extender over single cat6 cable up to 492ft /150meter one to many,jpeg xs

1080p hdmi extender over single cat6 cable up to 492ft /150meter one to many,jpeg xs



Features:

☆ HDMI 1.4 and HDCP 1.4 compliant

☆ Support 6.75Gbps video bandwidth

☆ Video resolution is up to 1920×1200@60Hz

☆ Extend transmission distance up to 150m/492ft between encoder and decoder via a single CAT6 cable

☆ Adopt the third-generation EZCast video transmission protocol

☆ Support 1G standard 2L Switch

☆ Support one-way IR control signal transmission (from DEC to ENC)

☆ Support PCM 2.0ch-32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

☆ Compact design for easy and flexible installation



Packing List

HDMI over IP Extender (Encoder),

HDMI over IP Extender (Decoder),

IR Blaster cable (1.5 meters),

IR Wideband Receiver cable (1.5 meters),

5V/1A Power Supply x 2 pcs

Specifications

1080p hdmi extender over single cat6 cable up to 492ft /150meter one to many,jpeg xs
1080p hdmi extender over single cat6 cable up to 492ft /150meter one to many,jpeg xs
Mechanical

Housing : Metal Enclosure

Silkscreen Color: Black

Dimensions: 88mm [W] × 61.2mm [D] × 16.5mm [H]

Weight:  Encoder: 158g, Decoder: 155g

Power Supply:Input: AC100 – 240V 50/60Hz,Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)

Power Consumption:Encoder: 1.5W, Decoder: 1.1W (Max)

HDCP Compliance HDCP 1.4

Video Network Bandwidth 1G

IR Level 5Vp-p



Operation Controls and Functions

Operation Temperature:  0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity : 20~90% RH (non-condensing)
