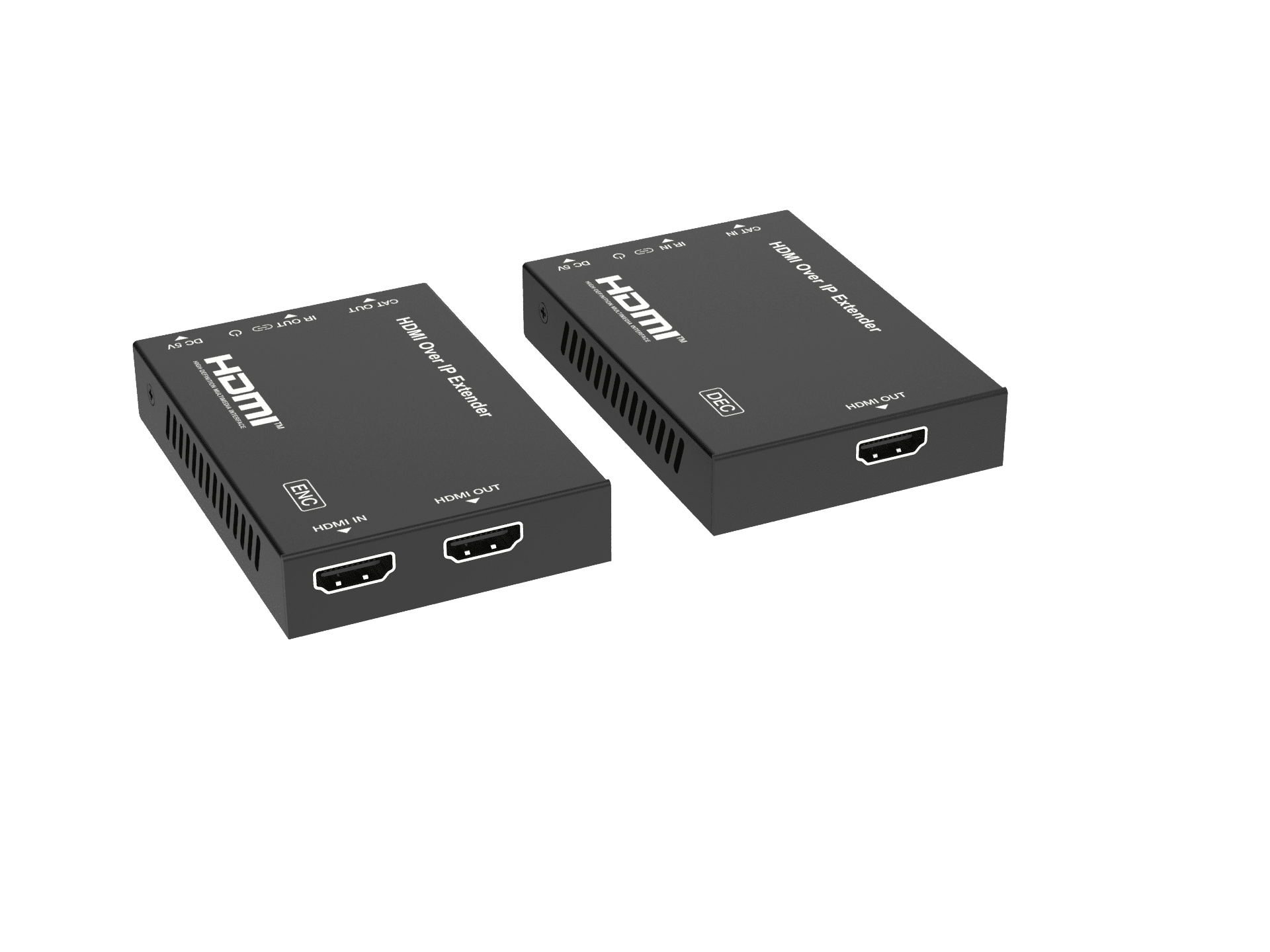

1080P HDMI 1.4 TCP/IP Extender Over Single Cat6 Cable up to 492ft /150Meter One to One,One to Many (255 RX),EZCast
1080p HDMI IP Extender over One Cat6 Cable up to 150meter HDMI 1.4,IR Control, HDMI Loopoutput, Zero latency. 492FT, One Transmitter with 255 Receivers via Switch
| Weight | 400 g |
|---|---|
| Dimensions | 8.8 × 6.12 × 1.65 cm |
| HDMI Version | HDMI 1.4, HDCP 1.4 |
| Resolution | Up to 1920×1200@60Hz |
| Compression Technology | EZCast |
| Transmission Distance | 150m/492ft via One Cat 6 cable,Support one to one, one TX to 255 RX via network switch |
| Video Bandwidth | 6.75Gbps |
| Video Network Bandwidth | 1G |
| IR | Wideband 20K-60KHz |
| Request for Switch | Transmitting data through the Data Link Layer |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | Input: 8/10/12-bit; Output: 8-bit |
| HDMI Audio Formats | Input: PCM 2.0ch, 2.1ch, 5.1ch, 7.1ch,Output: PCM 2.0ch |
Detailes About 1080P HDMI 1.4 TCP/IP Extender Over Single Cat6 Cable up to 492ft /150Meter One to One,One to Many (255 RX),EZCast
Overview
HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices
over a standard 1G network Switch, and extends distance up to 150m/492ft between encoder and decoder via a CAT6 cable. It offers configurable high quality, low-bandwidth EZCast compression video. The video resolution is up to 1920×1200@60Hz. It also supports HDMI loop output on encoder.
HDMI over IP Extender includes two units: Encoder and Decoder. Encoder is responsible for obtaining HDMI signals for encoding, and transmitting via CAT6 cables. It supports HDMI loop output. Decoder is responsible for signal decoding and outputting HDMI signals to HD displays.
The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single CAT6 cable and is the perfect solution for any application.
☆ HDMI 1.4 and HDCP 1.4 compliant
☆ Support 6.75Gbps video bandwidth
☆ Video resolution is up to 1920×1200@60Hz
☆ Extend transmission distance up to 150m/492ft between encoder and decoder via a single CAT6 cable
☆ Adopt the third-generation EZCast video transmission protocol
☆ Support 1G standard 2L Switch
☆ Support one-way IR control signal transmission (from DEC to ENC)
☆ Support PCM 2.0ch-32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz,192kHz
☆ Compact design for easy and flexible installation
| Qty | Item |
| 1 | HDMI over IP Extender (Encoder) |
| 1 | IR Blaster cable (1.5 meters) |
| 1 | 5V/1A Power Supply |
| 1 | User Manual |
| Qty | Item |
| 1 | HDMI over IP Extender (Decoder) |
| 1 | IR Wideband Receiver cable (1.5 meters) |
| 1 | 5V/1A Power Supply |
| 1 | User Manual |
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 6.75Gbps |
| Video Network Bandwidth | 1G |
| Video Resolution | Up to 1920×1200@60Hz Note: This product does not support interlaced signals, that is, i-standard signals. |
| HDMI Audio Formats | Input: PCM 2.0ch, 2.1ch, 5.1ch, 7.1ch Output: PCM 2.0ch |
| Sample Frequency | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| IR Frequency | Wideband 20Hz ~ 60KHz |
| IR Level | 5Vp-p |
| Compression Technology | EZCast |
| Request for Switch | Transmitting data through the Data Link Layer |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | Input: 8/10/12-bit; Output: 8-bit |
| Transmission Distance | 150m/492ft |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Encoder | Input: 1 × HDMI IN [Type A, 19-pin female] Output: 1 × HDMI OUT [Type A, 19-pin female] 1 × CAT OUT [RJ45 connector] Control:1 × IR OUT [3.5mm Stereo Mini-jack] |
| Decoder | Input: 1 × CAT IN [RJ45 connector] Output: 1 × HDMI OUT [Type A, 19-pin female] Control:1 × IR IN [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 88mm [W] × 61.2mm [D] × 16.5mm [H] |
| Weight | Encoder: 158g, Decoder: 155g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Encoder: 1.5W, Decoder: 1.1W (Max) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

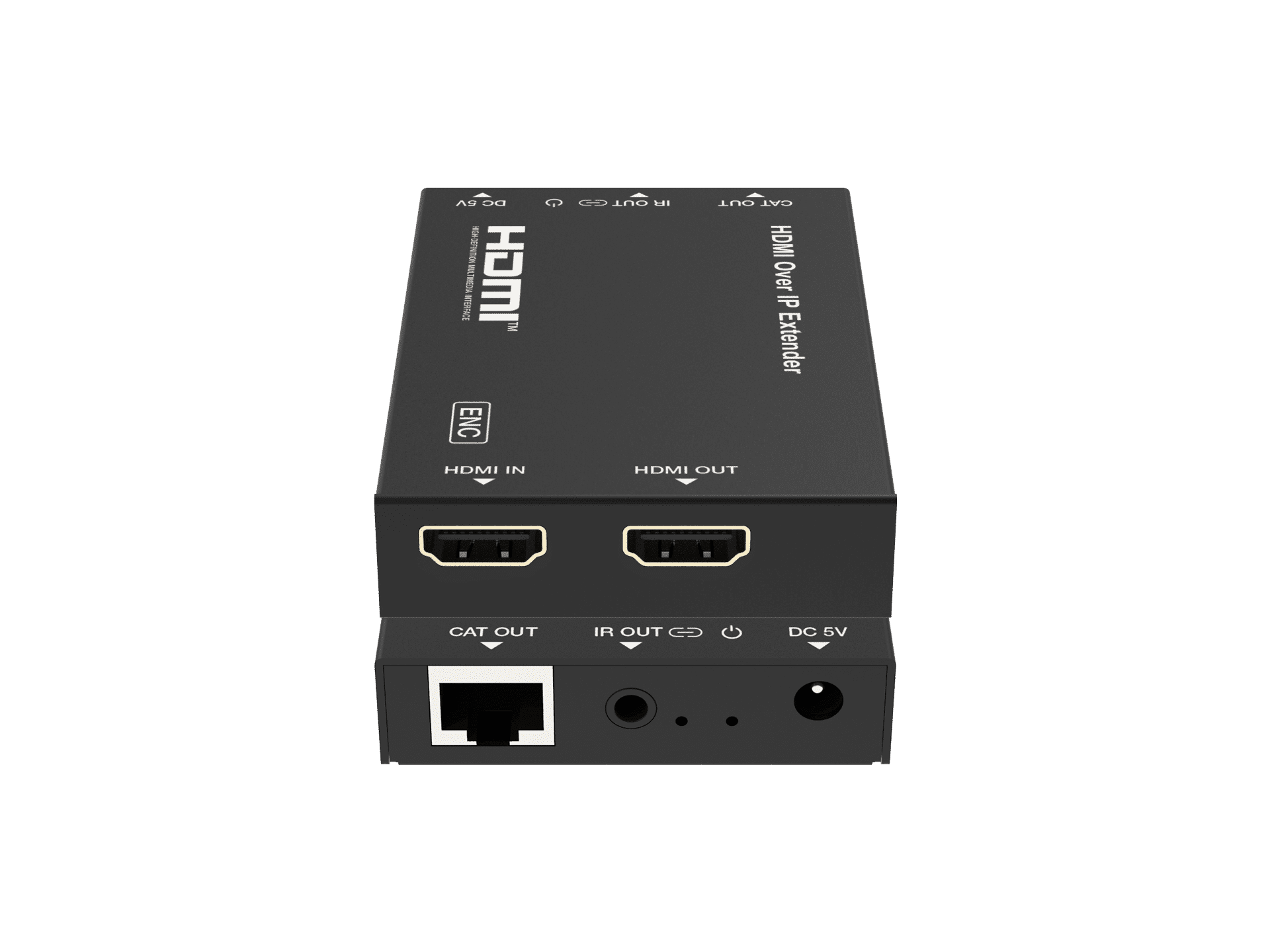

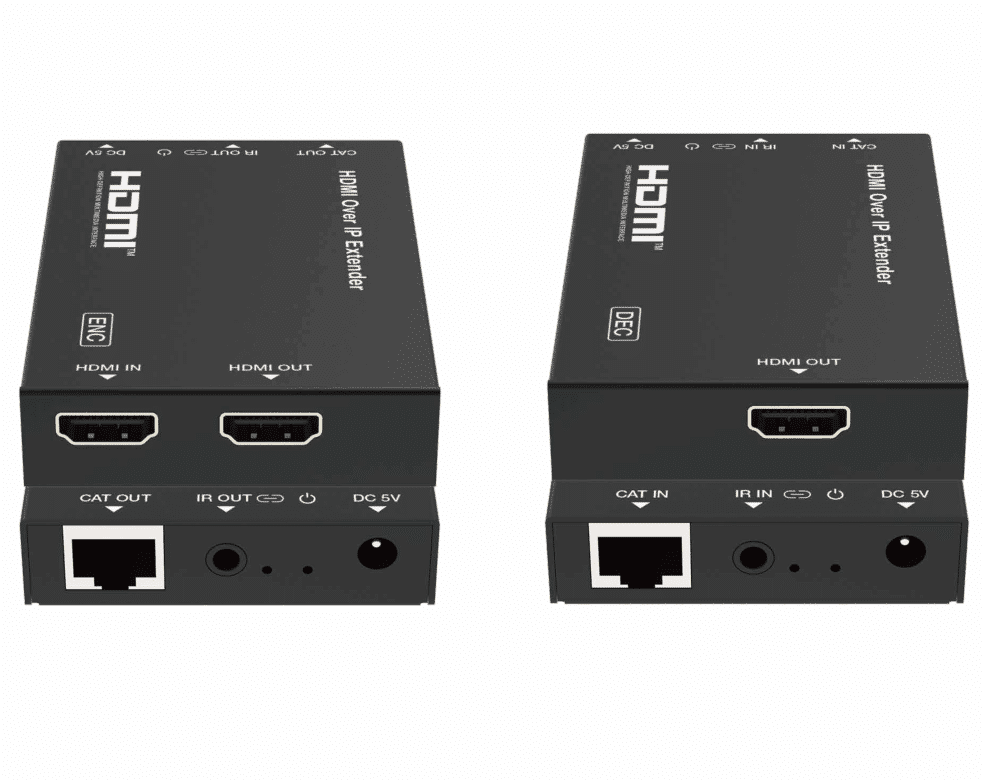

Interface Encoder
| No. | Name | Function Description |
| 1 | HDMI IN | HDMI input port, connected to HDMI source device such as DVD or Set-top box with an HDMI cable. |
| 2 | HDMI OUT | HDMI loop output port, connected to the HDMI display device such as TV or Monitor with an HDMI cable. |
| 3 | CAT OUT | The CAT OUT port is connected to the CAT IN port of decoder or connected to Switch / router / hub with CAT6 cable for sending signal to decoder. |
| 4 | IR OUT | Connect the IR blaster cable. The IR blaster signal is from the IR IN port of decoder. |
| 5 | LINK LED | The blue LED will flash when encoder is connected to decoder or connected to Switch / router / hub. |
| 6 | Power LED | The blue LED will be on when the encoder is powered on. |
| 7 | DC 5V | Plug the DC 5V/1A power supply into the unit and connect the adapter to an AC outlet. |

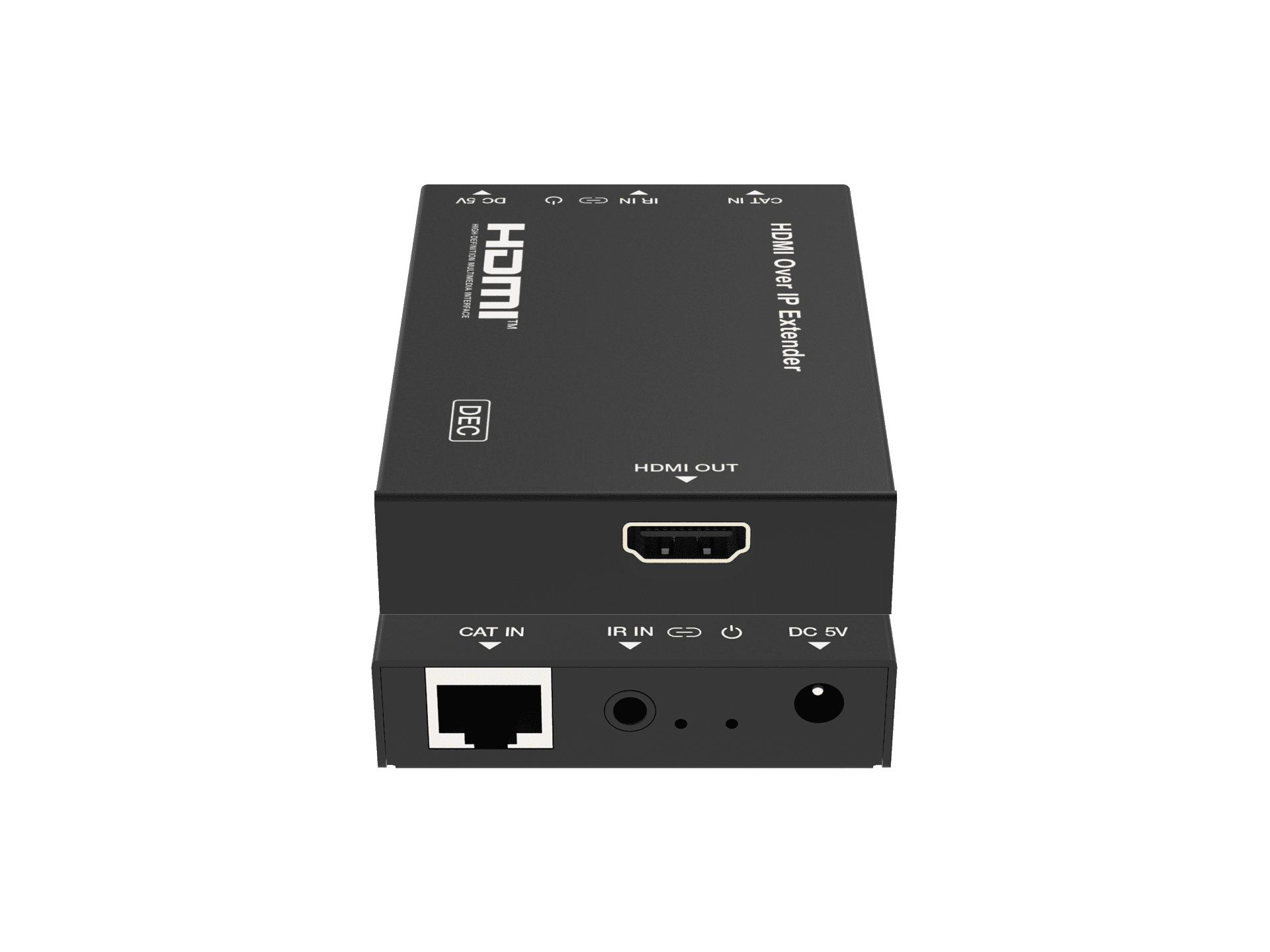

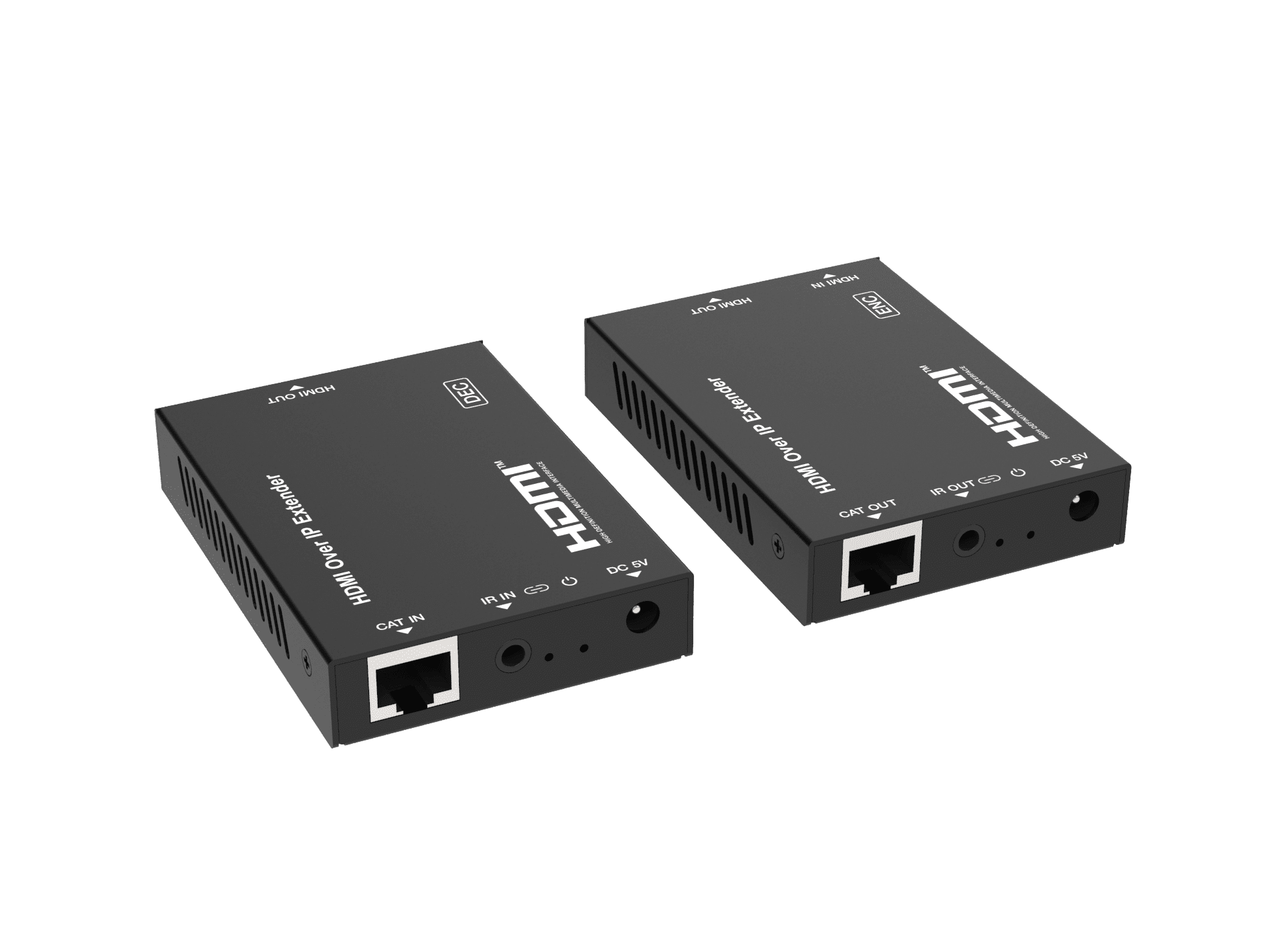

Decoder
| No. | Name | Function Description |
| 1 | HDMI OUT | HDMI output port, connected to the HDMI display device such as TV or Monitor with HDMI cable. |
| 2 | CAT IN | The CAT IN port is connected to the CAT OUT port of encoder or connected to Switch / router / hub with CAT6 cable for receiving signal from encoder. |
| 3 | IR IN | Connect the IR receiver cable. The IR signal is sent to IR OUT port of encoder. |
| 4 | LINK LED | The blue LED will flash when decoder is connected to encoder or connected to Switch / router / hub. |
| 5 | Power LED | The blue LED will be on when the decoder is powered on. |
| 6 | DC 5V | Plug the DC 5V/1A power supply into the unit and connect the adapter to an AC outlet. |
