2024 USB 3.2 HDbaset Extender Wallplate with Multiple USB C input up to 100m over CAT6a cable
New Wallplate 100Meter USB 3.2 Extender with USB-B USB-C Input
| Weight | 700 g |
|---|---|
| Dimensions | 8 × 4 × 3 cm |
| USB Version | USB 3.2 Gen 1, Backwards compatible with USB 2.0 and 1.1 |
| Interface | (TX) has 1 USB-C input ports and 1 USB B ports, |
| Data transfer rate | 5Gbps |
| Control methods | RS232 Control |
| Special feature | FSYNC GPIO passthrough for industry camara use |
Detailes About 2024 USB 3.2 HDbaset Extender Wallplate with Multiple USB C input up to 100m over CAT6a cable
USB 3.2 HDBaset EXTENDER,Plug&Play,Easy operation
Features
USB 3.2 Gen 1 extends up to 100 meters over CAT6a cable
USB 3.2 connection with data transfer rates up to 5Gbps Backwards
Compatible with USB 2.0 and 1.1
Hardware acceleration for isochronous and batch transfers
The TX end has two optional input ports: 1 USB-B and 1 USB-C

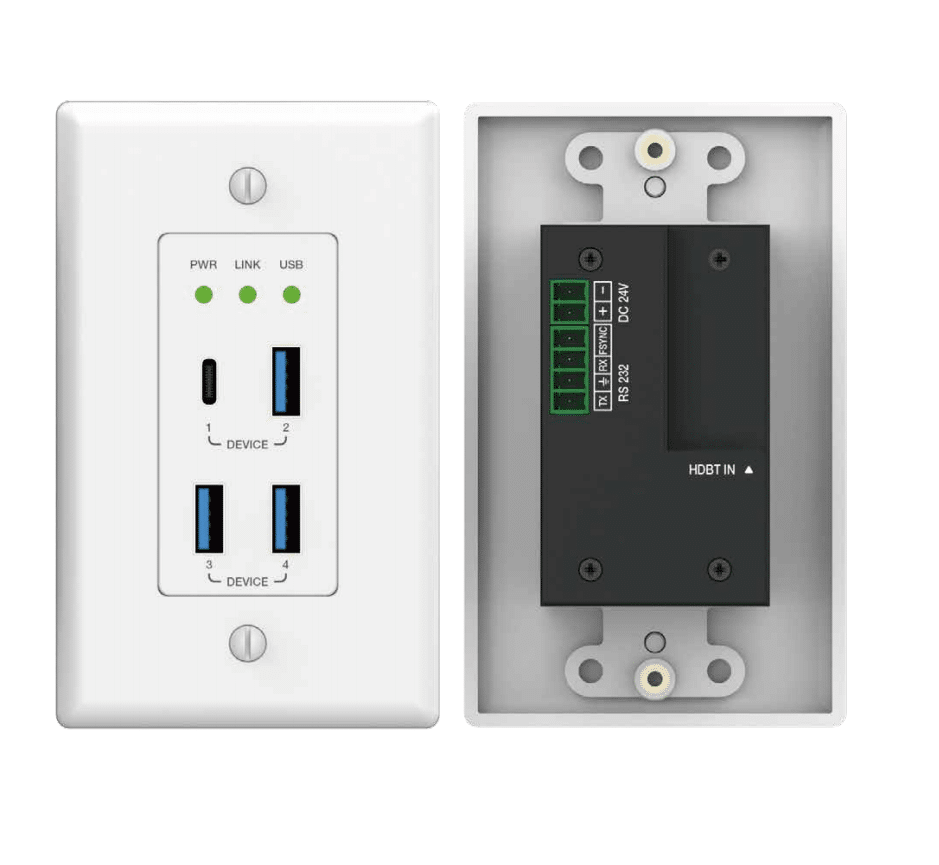

The RX side has 1 USB-C and 3 USB-A output ports (2 pcs for 5V@1500mA and 2 pcs for 5V@1000mA)
Plug and play, no need to download drivers or software
RS-232 serial port transparent transmission
FSYNC GPIO transparent transmission for industrial cameras
Bidirectional 24V PoC (powered via cable)
Firmware upgrade via USB-C service port

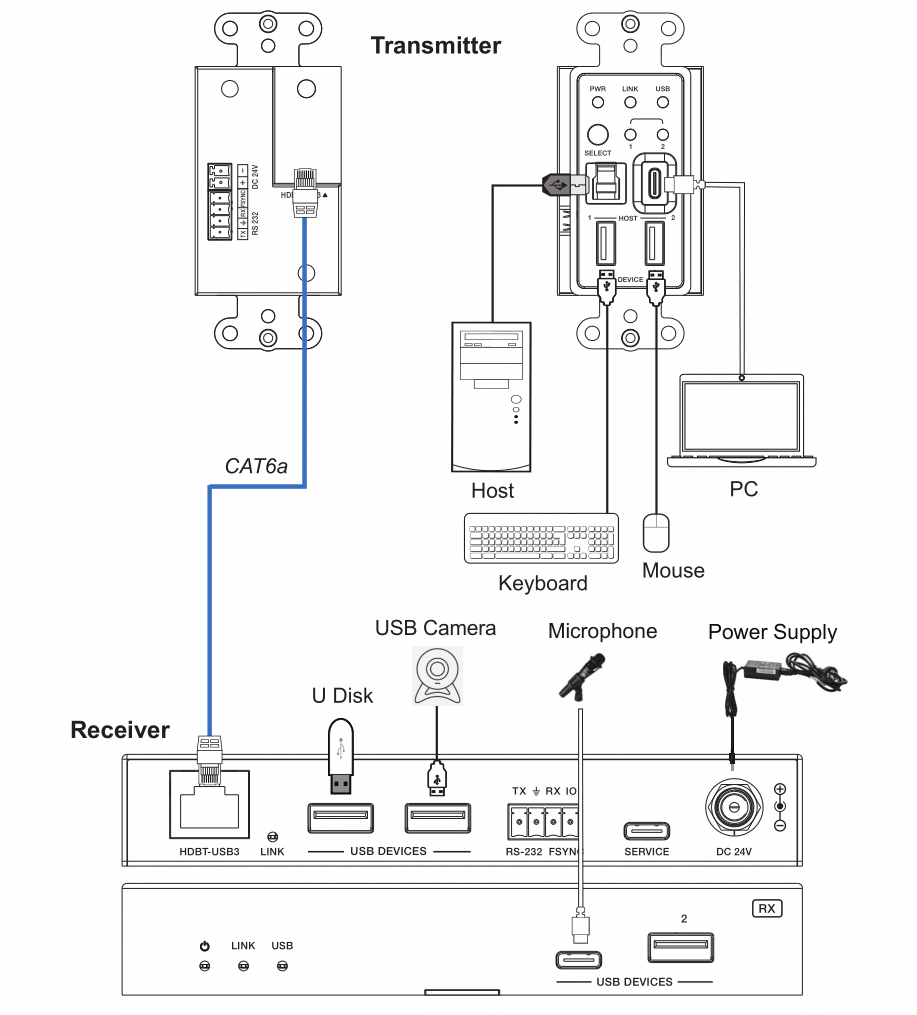

This device does not require any software to your system or target devices. Simply attach the transmitter to your computer’s USB port, plug in the Cat 6a cable, attach remote USB peripherals to the receiver, and start working.
It works with Windows, Mac OS X, and Linux operating systems.
Applications
Conference rooms
Classroom projector systems
Collaborative PC systems
Digital signage
Educational institutions
Boardroom systems
