8 Button Wall plate-based control panel for Central Control System

Programmable 8 Button Control Panel for individual or work together

Additional information

Weight 300 g
Dimensions 11.4 × 7 × 1 cm
Interface

2 RS232, 1 RS485, 1 Infrared & 1 Relay

Application

presentation show rooms, classrooms and boardrooms.

Control

Front Panel button, IR,RS-232,TCP/IP, Web, Software Control

Programmed

Programmed by USB or RS232, working with the PC software (PS-WP).

Package list

1 x : Programmable Control Panel ,1 x Power Adapter (12V DC)
3 x 2-pin Captive Screw Connector ,2 x IR Emitter
8 x Button Caps, 1 x Button Label
1 x USB Converting Cable, 1 x User Manual

Detailes About 8 Button Wall plate-based control panel for Central Control System

8-Button Control Panel Wall Plate with Programmable , RS-232, RS-458, Relay, and IR Control

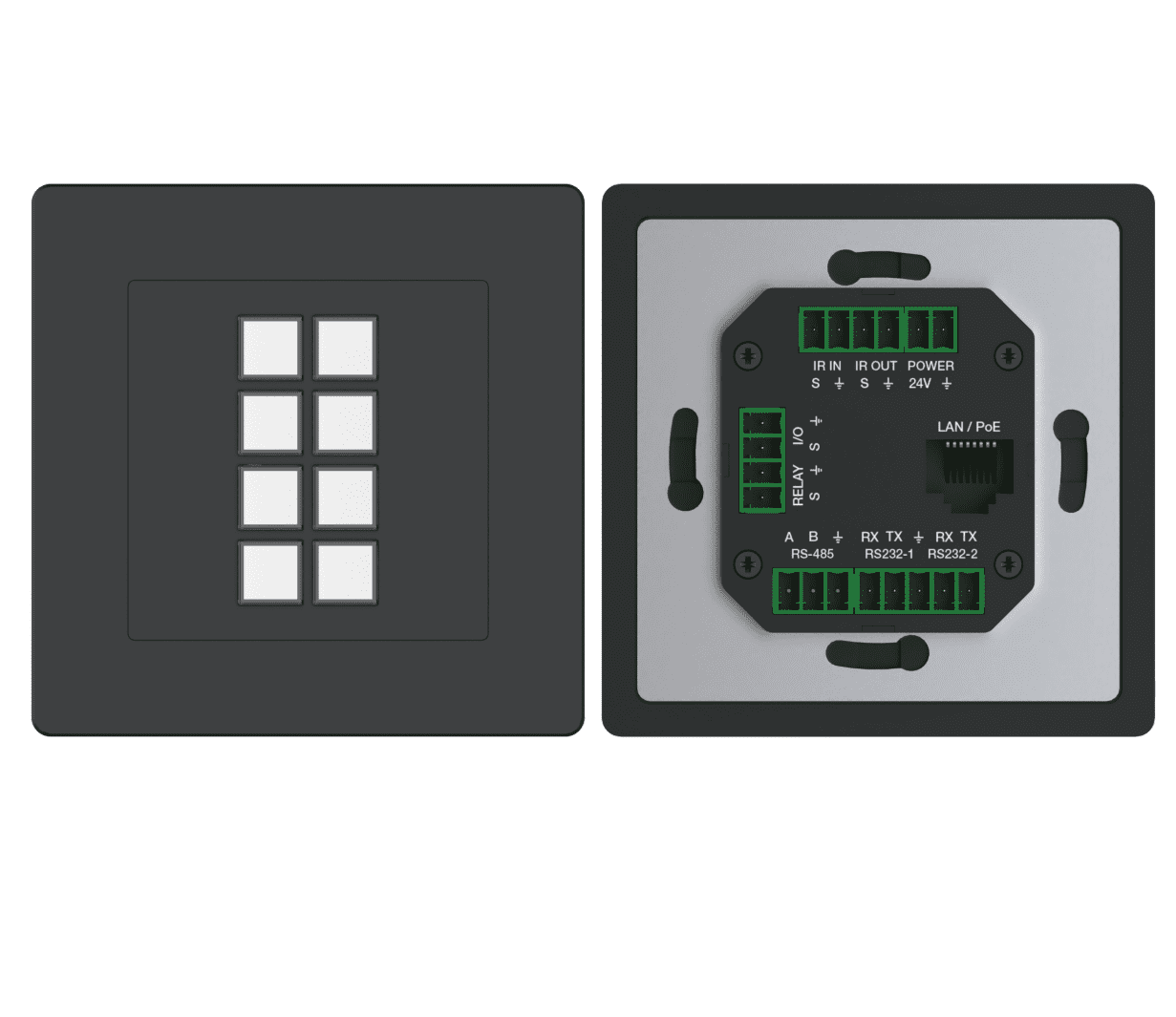

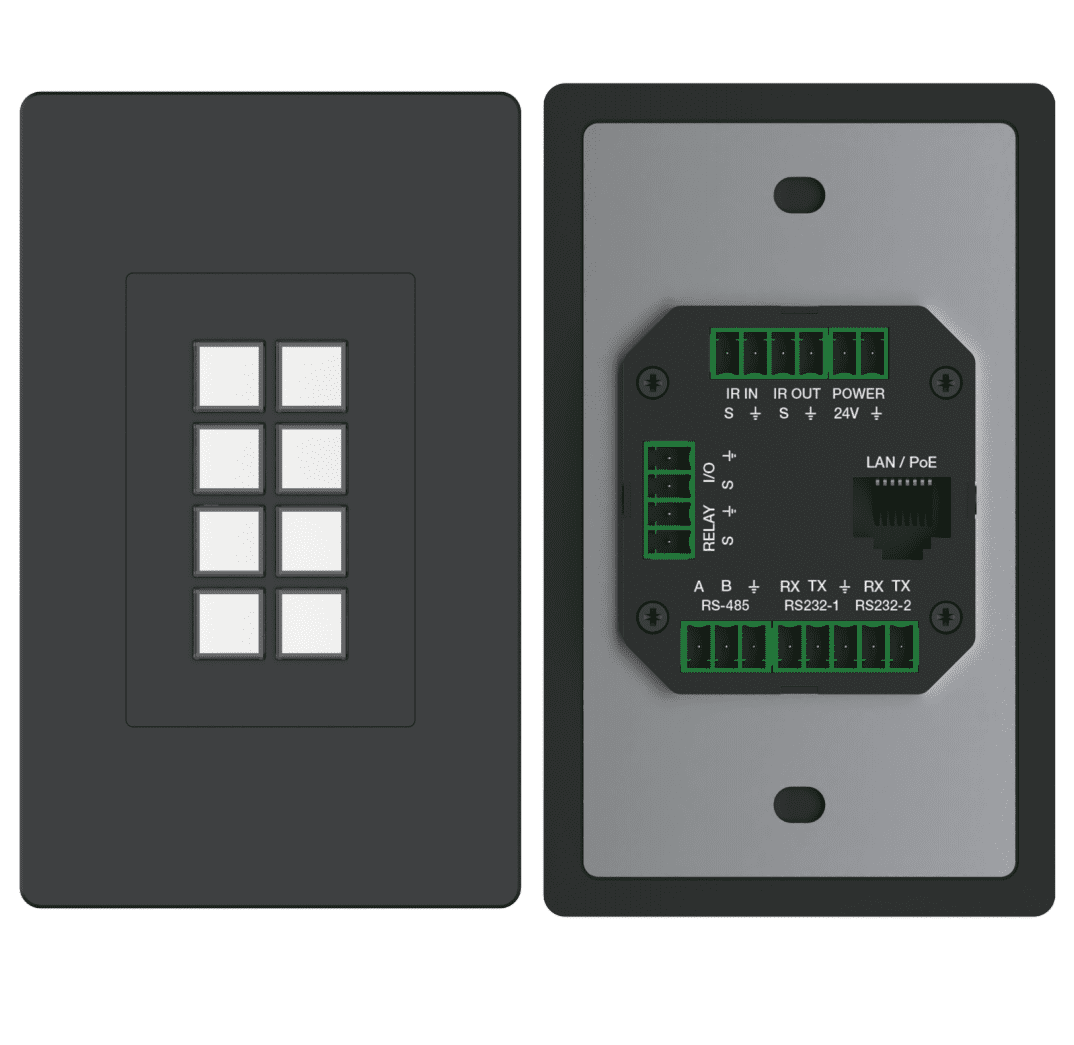

8 button wall plate based control panel for central control system



Features

8-button programmable control panel (wall plug)

Universal CN/UK/US/EU 1-GANG wall plug

Support IR learning and storage

2 RS-232 serial ports, 1 RS-485 serial port

1 IR learning port, 1 IR output port

1 low-voltage RELAY interface, 1 I/O interface

1 100M adaptive network port, supporting TCP/UDP communication protocol

Dual power supply mode, supports DC or POE power supply

Simple web configuration programming
