Video Wall Controller 4×18 Multiviewer Rotation 4K LCD LED Video Wall 56 Splicing mode FPGA Chip

Name: Video Wall Controller 4x18 Multiviewer Rotation 4K LCD LED Video Wall 56 Splicing mode FPGA Chip
Brand: Pro Home Audio Video HDMI Products
Author: 1@sz-sinowell.com

4K60hz VideoWall Controller with Audio, horizontal screen 1×1 to 1×18; vertical screen 18×1 to 1×1; or mosaic type: 2×2, 2×3, 3×3, 2×4, 4×2,4×3,4×4… etc

Weight	3700 g
Dimensions	44 × 18 × 4.5 cm
HDMI Version	4K60hz 18Gbps

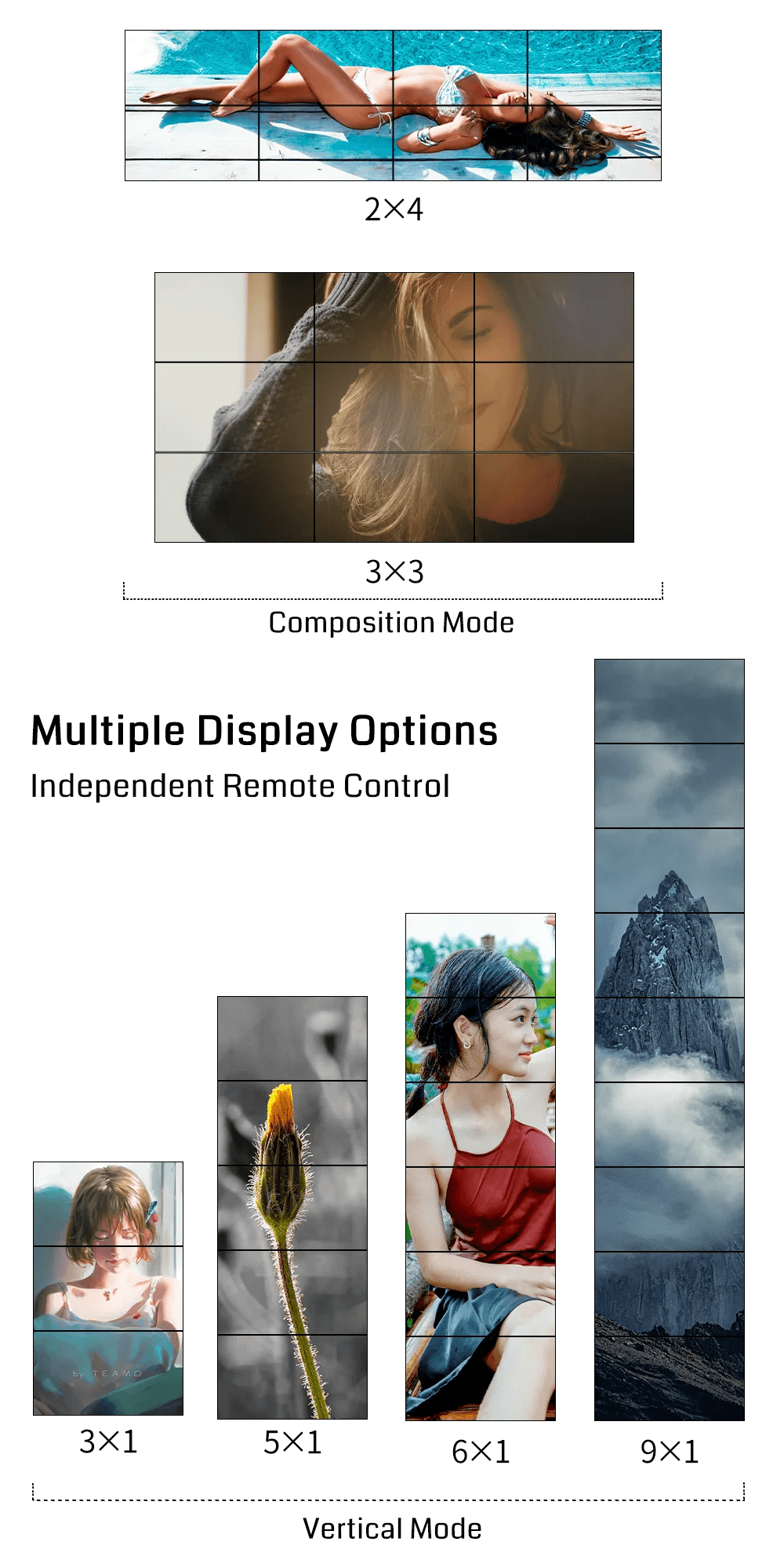

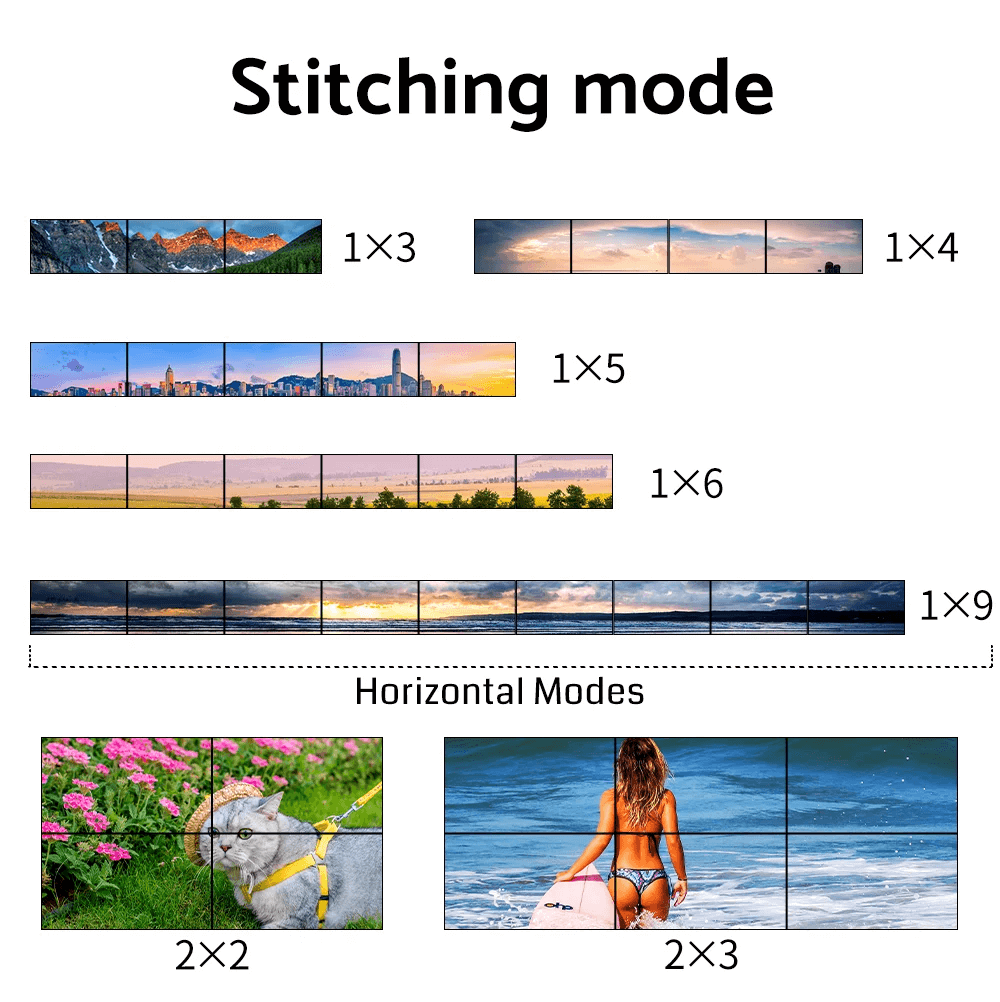

Splicing mode	More than 56 modes: horizontal screen 1×1…1×18; vertical screen 18×1…1×1; field type: 2×2, 2×3, 3×4, 3×5, 4×4…etc

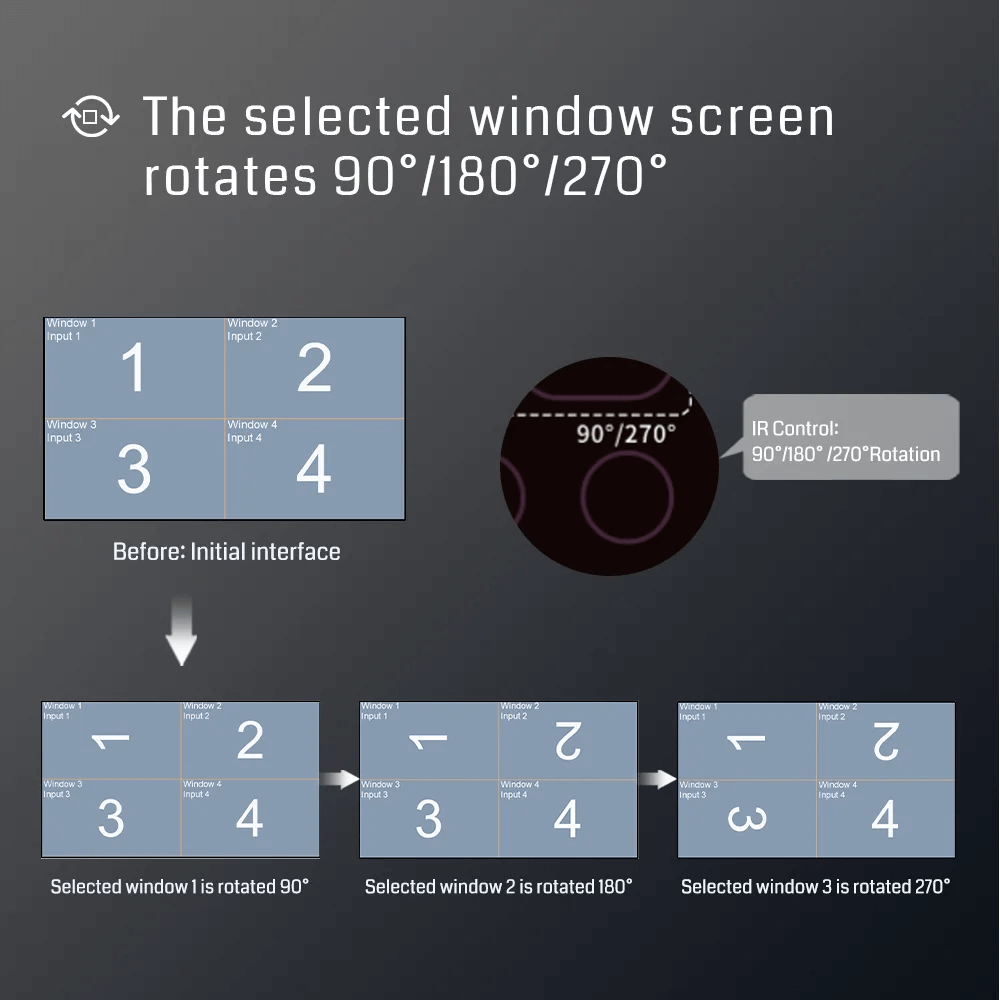

Rotation	90°, 180°, 270°

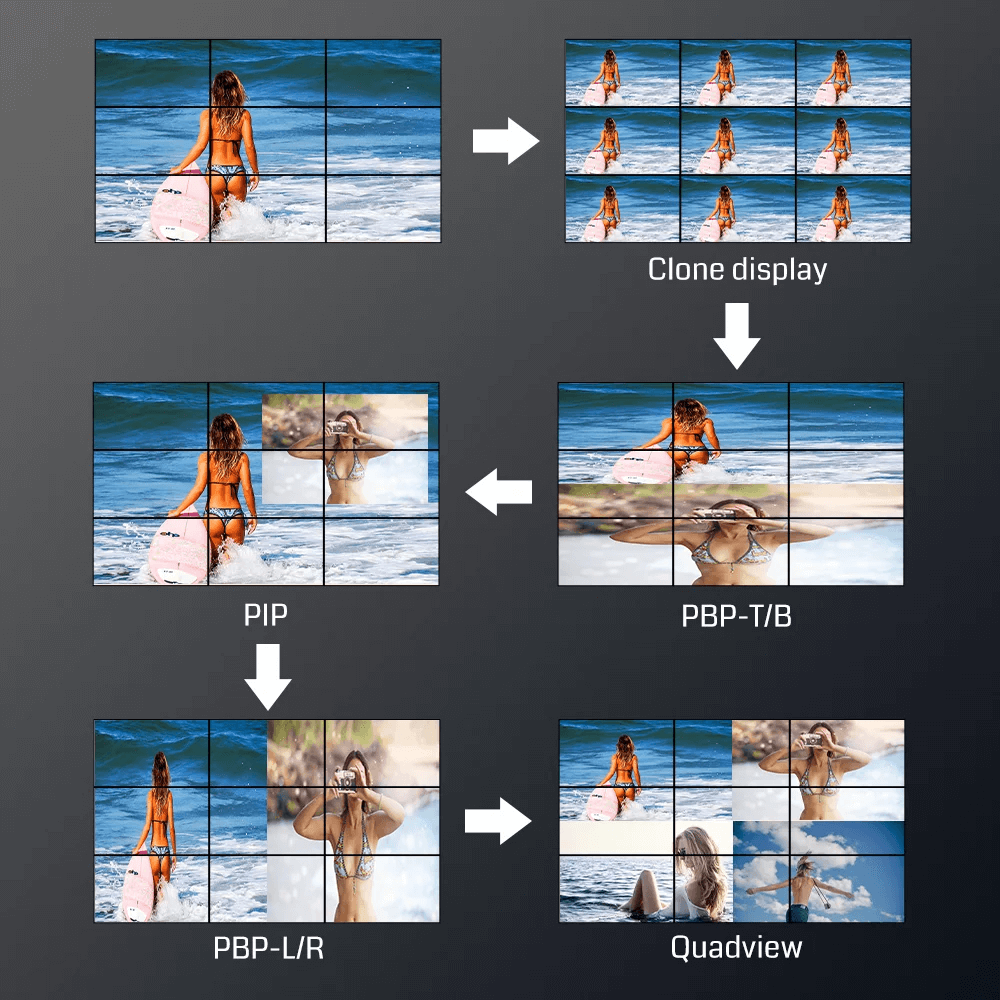

Multi-view Mode	4 modes (Left & Right/ Up & Down/One large and three small)
Markets	Venues, Government, Retail, Hospitality, Residential, Corporate, Education
Functions	With screen freezing function and screen mirroring function,gamma mode and panel gamma mode
Audio	Audio output supports HDMI OUT1 or ALL ON or ALL OFF

Detailes About Video Wall Controller 4×18 Multiviewer Rotation 4K LCD LED Video Wall 56 Splicing mode FPGA Chip

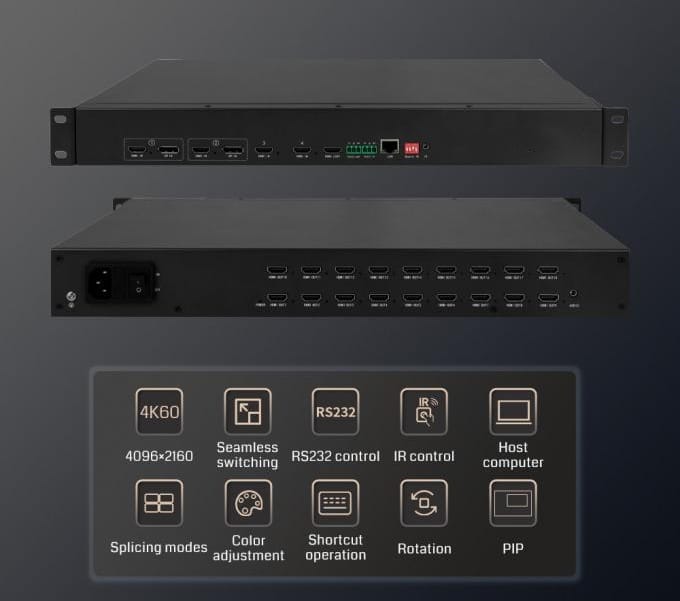

Overview

4K60 video processor HDMI switcher

☞Supports 4 channels of 4K*2K@60 input,each input port burns different resolutions,and supports EDID management;

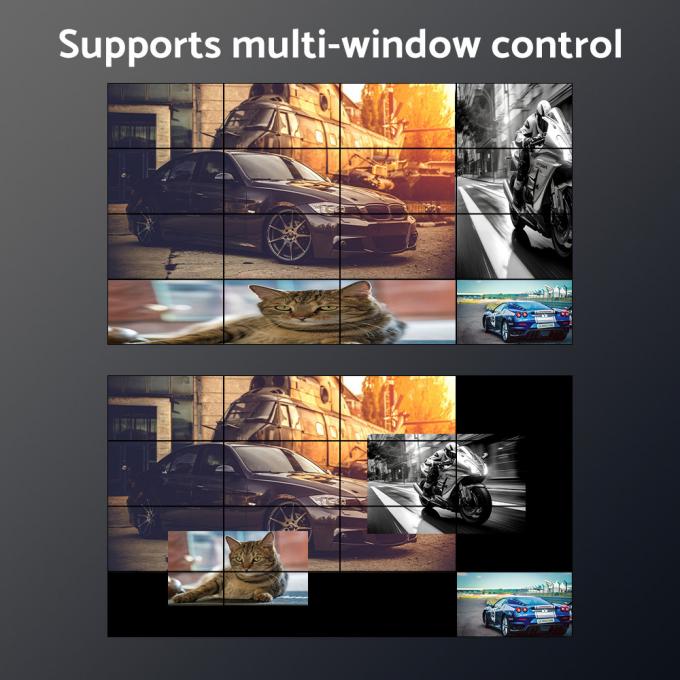

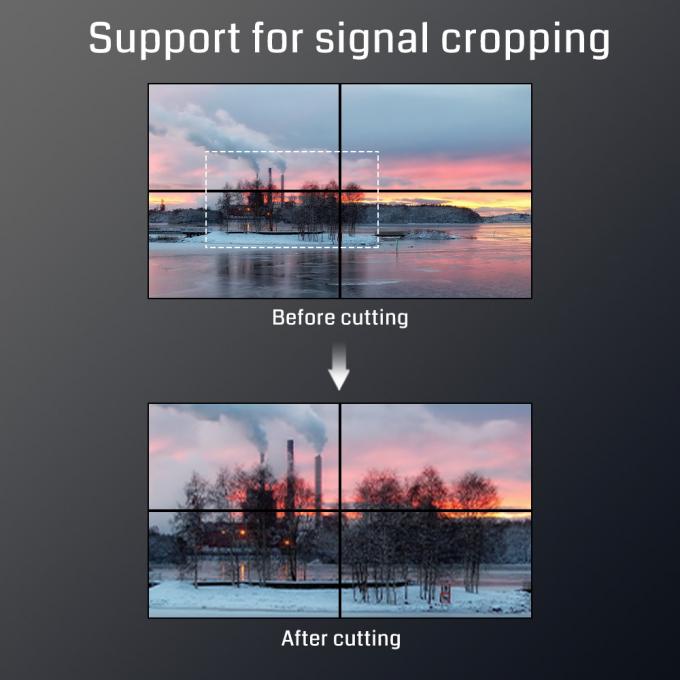

☞Supports multi-window control,can realize various functions such as POP tile mode,PIP overlay mode,arbitrary picture overlay,roaming,cross-screen,zoom,etc;

☞Flexible control (infrared remote control, RS232 serial port control,TCP/IP control methods);

☞One key to switch the signal source，Supports seamless real-time switching of signals;

☞Supports 56 splicing modes such as horizontal screen,vertical screen,etc;

☞Support DHCP，Support input can be rotated 90°,180°,270°,and the first line of output can be rotated 180°;

☞Supports image effect color,saturation and other parameter adjustment functions;

☞Audio separation (3.5mm audio port) + audio follow out;

☞With screen freezing function and screen mirroring function,gamma mode and panel.

Typical application

Mainly used in ultra-high-definition video surveillance,ultra-large screen walls,large advertising screens in stores,large exhibition screens and other industry applications.

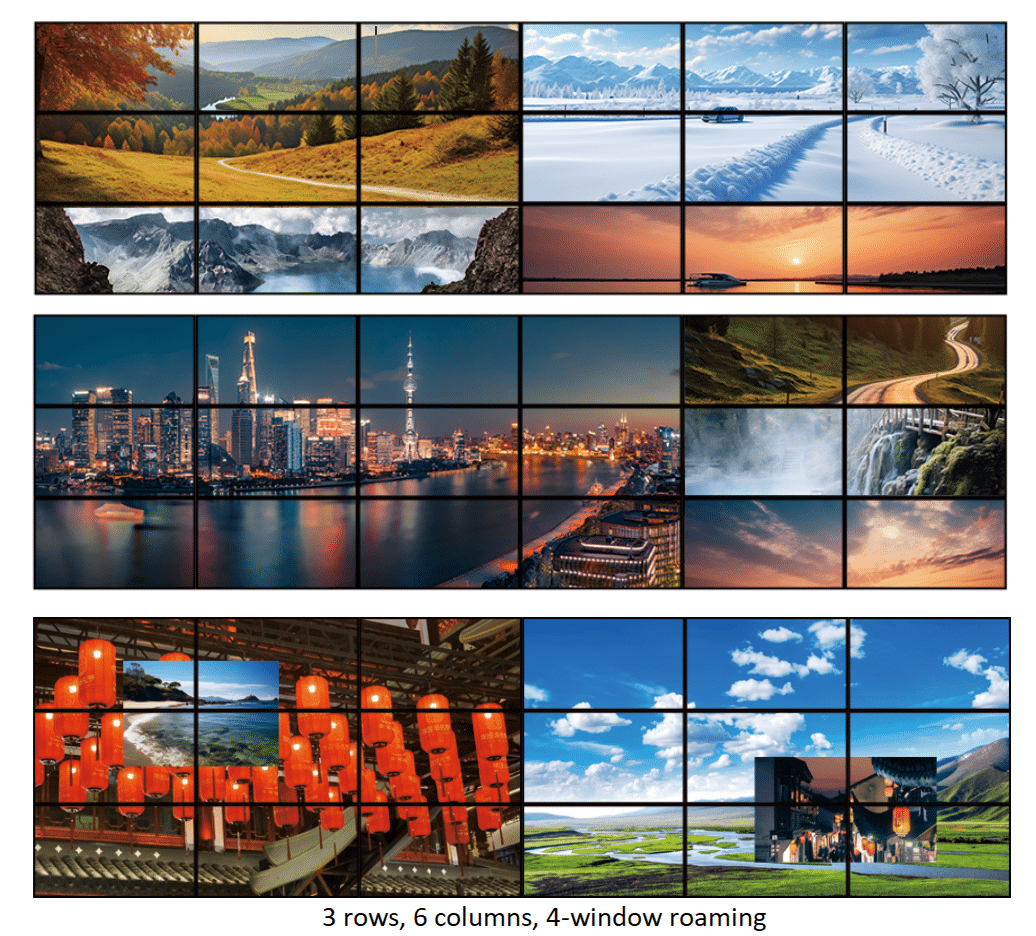

3 rows ,6 columns,4 window roaming

4 rows, 4 columns, 4 window roaming

Features:

📌【Exceptional 4K UHD Resolution】Equipped with advanced technology, supporting 4*HDMI, 2*DP, effortlessly achieving synchronous playback of 4x4K60 input sources. With 18 HDMI outputs, it guarantees true RGB4:4:4 color display, uncompressed transmission, and genuine image restoration. Various video wall splicing solutions like 1xN, Nx1, 4×4, 3×6, 2×9, 2×7, 3×6, and even 8K video walls cater to all your needs.

📌【Multifunctional Integrated Design】Seamlessly switch between four 4K UHD input sources, easily transforming into a 4-input 4K60 HDMI matrix. Equipped with PC software and a remote control for one-click switching, ensuring simple and convenient operation.

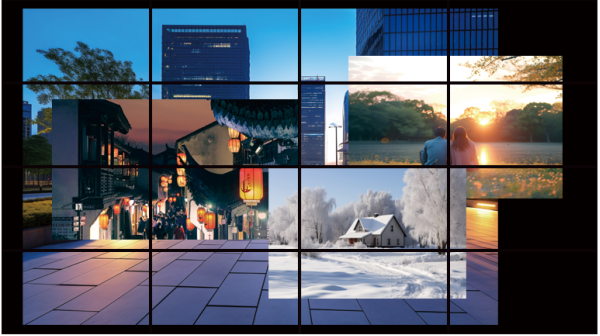

📌【Innovative Large Screen Splitting】In video wall mode, flexibly use the multiview feature screen splitter, displaying four input sources simultaneously. Supports multi-window control,can realize the picture outside the picture (POP) tiling mode,picture-in-picture (PIP) superimposed mode, with freely adjustable window size and position, and intuitive input source switching.Screen any superimposed, roaming,cross-screen, zoom and other functions.

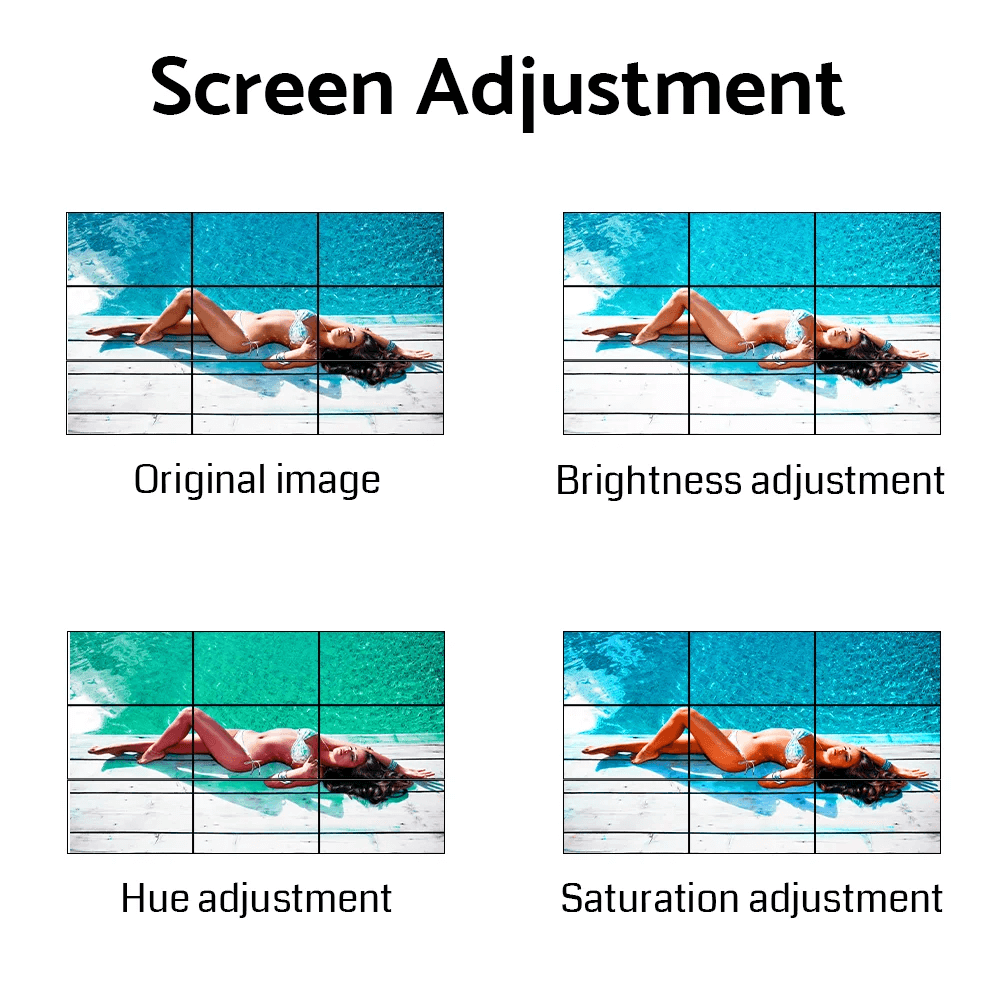

📌【Perfect Display Adjustment】Supports input image rotation of 90, 180, and 270 degrees. Freely adjust brightness, contrast, saturation, and hue to provide the best display for different scenarios.

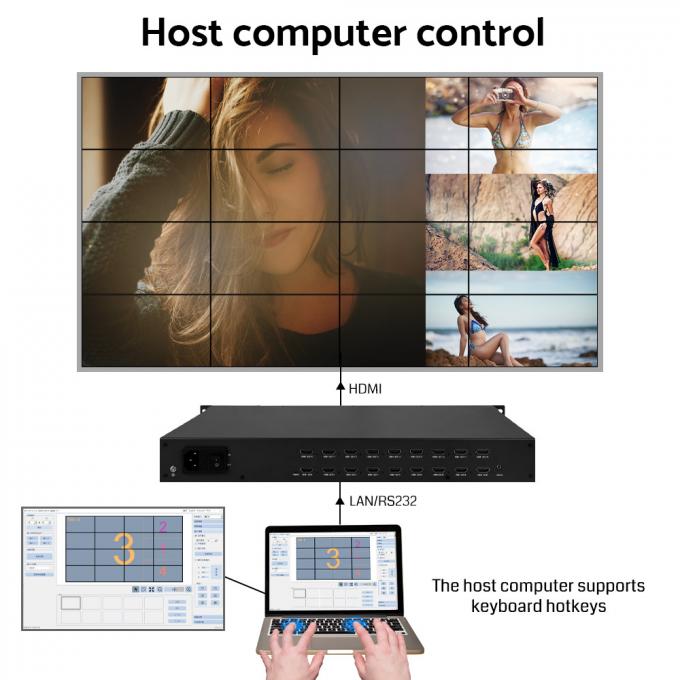

📌【Multiple control modes】Flexible control (infrared remote control, RS232 serial port control,TCP/IP control methods,Upper computer software control)with keyboard shortcuts, fast operation

📌【Wide Application Scenarios】Suitable for business displays, multimedia classrooms, conference rooms, mall advertising displays, exhibition shows, and more, meeting all your diverse needs.

Specification:

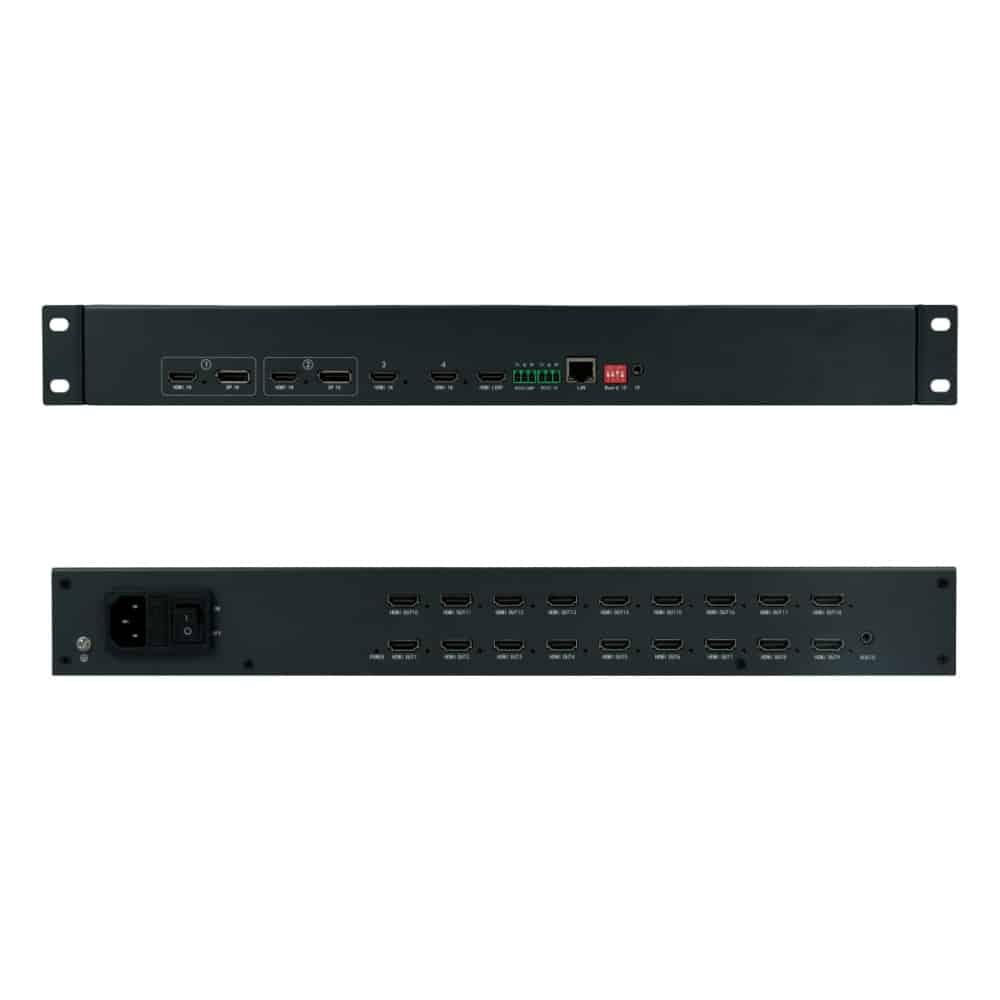

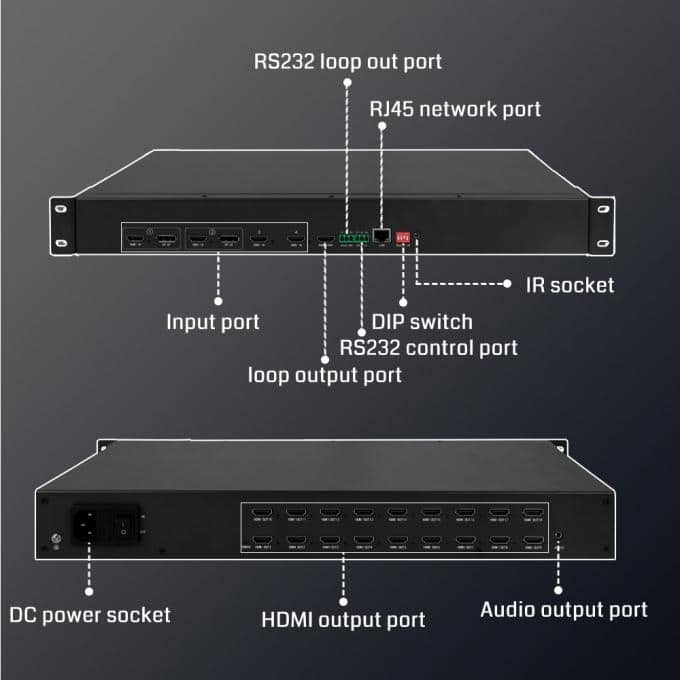

Input interface type	HDMI 2.0×4,DP 1.2×2
HDCP	2.2
Input interface maximum video pixel frequency	600MHz
Maximum resolution	4096×2160@60Hz
Input color depth	24bit
Colour format	RGB444, YUV444,YUV422,YUV420
Output interface type	HDMI 1.3×18 (≤15m)
Output interface maximum video pixel frequency	165MHz
Output resolution	1920×1080@60Hz/1920×1200@60Hz
Control method	infrared remote control, serial port RS232, PC host computer
Power supply	85-265V/47-63Hz
Power consumption	75W
Storage/working temperature	-10～50ºC/0～80ºC
Shell material	All aluminium options
Product Size	LxWxH: 437mmx177mmx45mm
Package Size	LxWxH: 540mmx290mmx110mm
Net Weight	2.5KG (aluminium)
Package weight	4.1KG (aluminium)

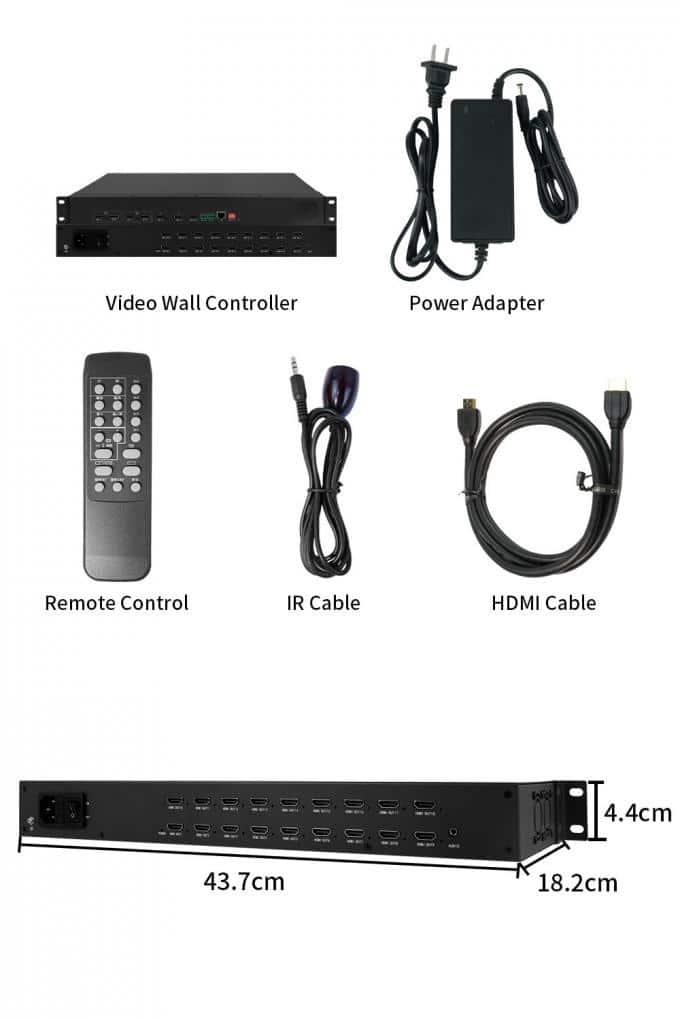

Accessories list:	220V power supply x1, IR receiver head x1, remote control x1, certificate of conformity x1, warranty card x1, network cable x1, HDMI or DP cable x1, USB to RS232 serial cable (optional)
After-sales warranty	After-sales service 3-year warranty
