Lossless 4K60Hz 18Gbps HDMI Matrix Extender HDMI2.0 8×8 by One Cat6 up to 70meter 8mirror outputs
HDMI2.0 Matrix Extender 8×8 4K@60Hz By CAT6 Extend IR/ UHD/HDR/UP TO 70m HDMI Extender with 8 receivers
| Weight | 5000 g |
|---|---|
| Dimensions | 44 × 25 × 4.5 cm |
| HDMI Version | 2.0 18Gbps |
| Resolution | 4K2K@60Hz 4:4:4, 18Gbps |
| HDCP | HDCP2.2/1.x |
| Markets | Hospitality, Residential, Corporate, Education, Venues, Government, Retail |
| Cat6 Cable Perfomance | 4K@60Hz signal up to 70meter |
| ESD protection | Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| RS232 | Support Control via front panel buttons, IR remote, RS-232, LAN and Web GUI |
| HDMI Audio formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| HDMI Loop Out | Support 8 HDMI Outputs Mirror Local display |
| Color space and depth | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
Detailes About Lossless 4K60Hz 18Gbps HDMI Matrix Extender HDMI2.0 8×8 by One Cat6 up to 70meter 8mirror outputs

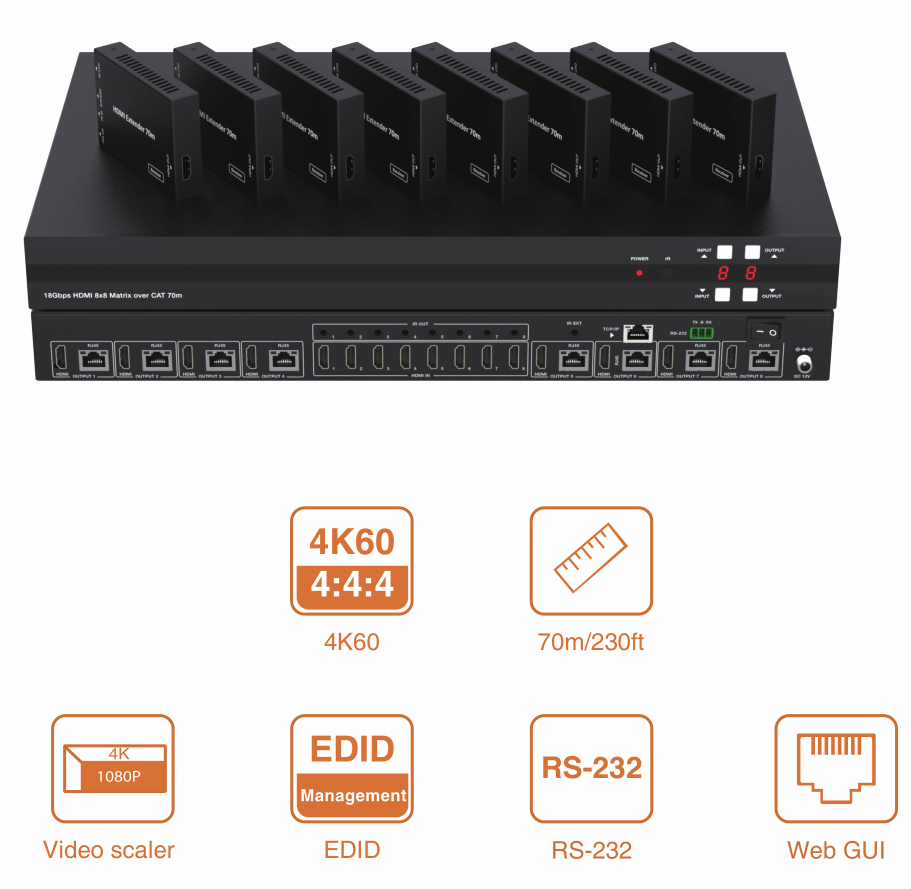

8×8 4K UHD HDMI Matrix Kit with 8 Receivers
The 18Gbps 8×8 HDMI Matrix can connect 8 HDMI sources to 16 displays. It features eight HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, DolbyTrueHD, Dolby Digital Plus and DTS-HD Master Audio.
The Matrix can be used for multi-room connectivity, and the HDMI signals can be extended up to 230ft/70m via connecting a CAT Receiver to each of the CAT-Cable outputs.
The Matrix supports one-way IR matrix function. Besides, it can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Features:
☆ HDMI 2.0b and HDCP 2.2/1.x compliant
☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
☆ 8 HDMI inputs,8 HDMI & CAT mirrored outputs
☆ HDMI ports support 18Gbps lossless compressed video bandwidth
☆ HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
☆ CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
☆ Advanced EDID management and CEC control are supported
☆ 12V POC on all CAT ports
☆ Support one-way IR matrix function
☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Specification
| Technical | |||
| HDMI Compliance | HDMI 2.0 | ||
| HDCP Compliance | HDCP 2.2/1.x | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) | ||
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 | ||
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0） |
||
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | ||
| HDR | HDR10, HDR10+, Dolby Vision, HLG | ||
| Transmission Distance | 230ft/70m (via a single CAT6 cable) | ||
| ESD Protection | Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge) | ||
| Connections | |||
| Matrix | Inputs: 8x HDMI Type A [19-pin female]
Outputs: 8x HDMI Type A [19-pin female] 8x CAT port [RJ45] Controls: 1x TCP/IP [RJ45] 1x RS-232 [3-pin phoenix connector] 8x IR OUT [3.5mm Stereo Mini-jack] 1x IR EXT [3.5mm Stereo Mini-jack |
||
| CAT Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT port [RJ45] Output: 1x HDMI Type A [19-pin female] Control: 1x SERVICE [Micro USB, Update port] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Matrix: 440mm (W) x 250mm (D) x 44.5mm (H)
Receiver: 61mm (W) x 88mm (D) x 18mm (H） |
||
| Weight | Matrix: 3.2kg, Receiver: 155g | ||
| Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 12V/5A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption (Max) | 50W (Max) | ||
| Operation Temperature | 32°F – 104°F / 0°C – 40°C | ||
| Storage temperature | -4°F – 140°F / -20°C – 60°C | ||
| Relative Humidity |
|
||
| Resolution / Cable length | 4K60 -Feet /Meters | 4K30-Feet / Meters | 1080P60 – Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| The use of “Premium High Speed HDMI” cable is highly recommended. |
|||
