8K Magical Splicing processor,Any Angle for Six Screens

8K60 6×1 2×3 PIP Artistic Video Wall Irregular Splicing Video Wall Controller

Additional information

Weight 1800 g
Dimensions 44 × 16 × 4.5 cm
Interface

1xHDMI Input 4K60HZ 2.0 Support 8K60 decode, 6XHDMI Output Version 1.3
Audio in & Out,4XUSB,LAN port for Central control

Application

commercial display (splicing, LED), Advertising media, bar,catering, entertainment, culture and tourism, exhibition and display industries

Control

RS232/RS485/TTL

Window layout

Any window opening*30,overlay,roaming

Package list

1 x : Programmable Control Panel ,1 x Power Adapter (12V DC)
3 x 2-pin Captive Screw Connector ,2 x IR Emitter
8 x Button Caps, 1 x Button Label
1 x USB Converting Cable, 1 x User Manual

Detailes About 8K Magical Splicing processor,Any Angle for Six Screens

7680×4320@60Hz PIP Point to Point Art Video Wall LCD LED Video Processor

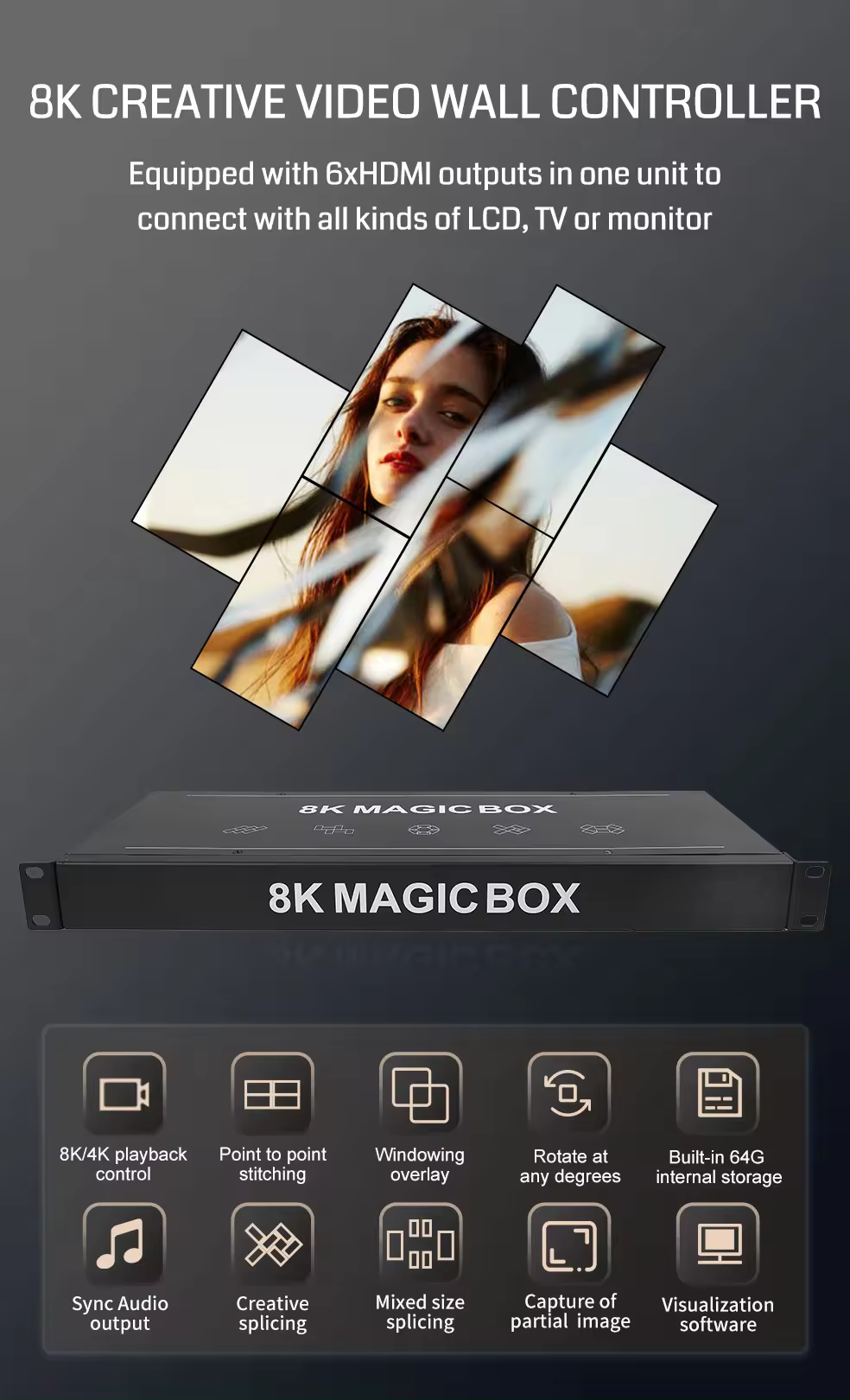

Creative Irregular Splicing Video Processor 8K/4K/2K playback control, splicing (point-to-point, shaped), opening Window (multi-window scene any layout switching), 30 layers superimposed, roaming, slicing, edge effects and other functions in one Magic control splicer.Support Centrol control and third party control.

8k magical splicing processor,any angle for six screens

Features

☞6 screens in any angle, any shape splicing

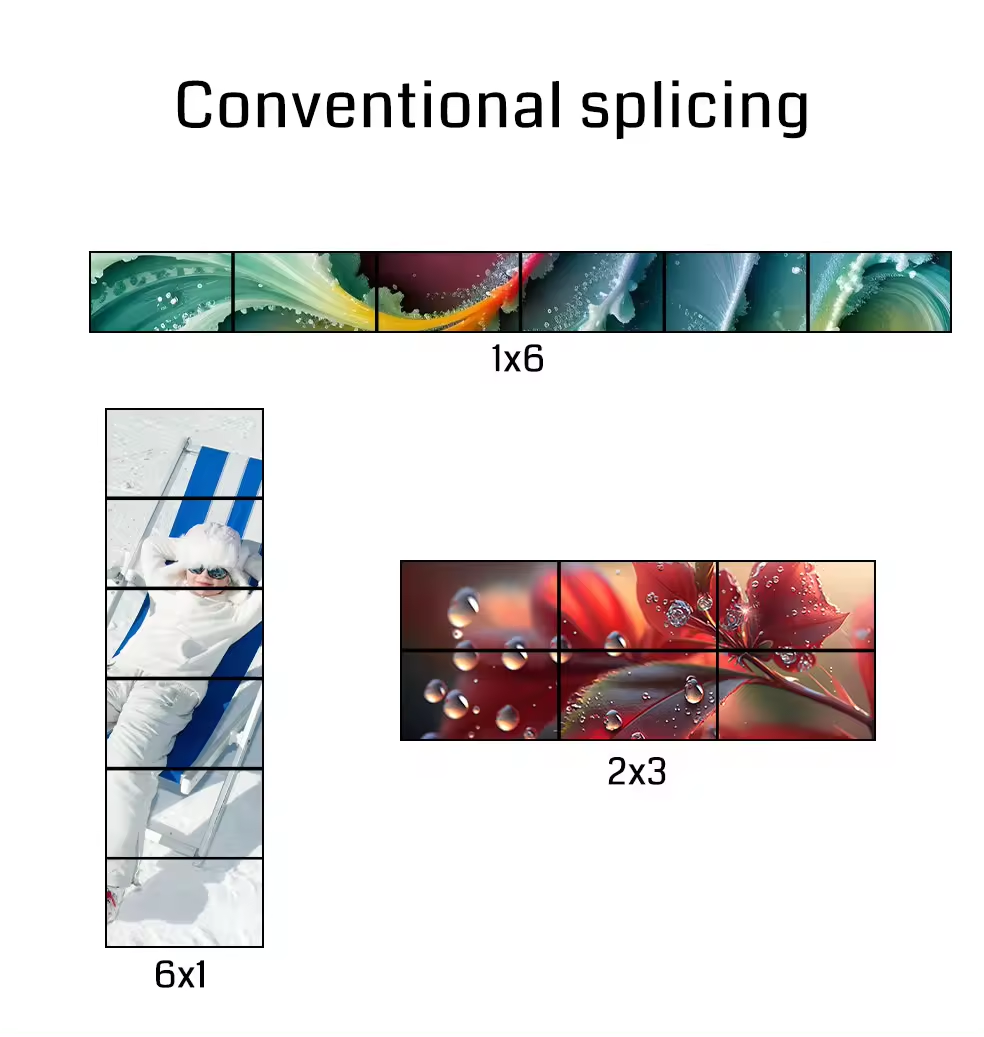

☞Support normal splicing,For example, 1×6, 6×1, 2×3 and so on

☞Support 8k60 (7680×4320@60Hz) video decoding,Built-in 64G memory, storage material

☞Support multi-layer material overlay, material picture-in-picture(PIP), up to 30 layers of material overlay.

☞Support RS232/RS485/TTL multiple control protocols and interfaces

☞Support network screen display monitor function,scrolling subtitle function

☞Support edge effects function (edge indentation, blur degree, matte degree, zoom, mirror) Application Scenarios Suitable for a variety of audio and video applications, such as commercial display (splicing, LED), Advertising media, bar,catering, entertainment, culture and tourism, exhibition and display industries

8k magical splicing processor,any angle for six screens

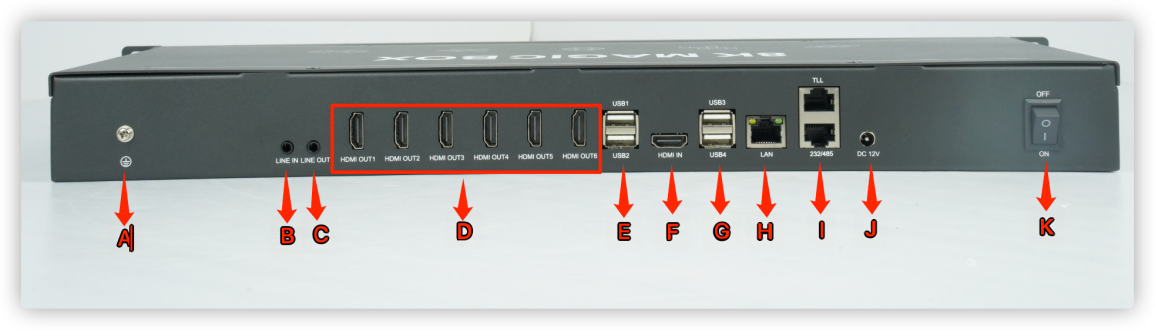

Interface

8k magical splicing processor,any angle for six screens

A: Ground screw

B: 3.5 mm audio input

C: 3.5 mm audio output

D: 6 x HDMI OUT (port 1/2 or port 3/4 need to be connected to output at the same time to have signal)

E: 2xUSB2.0

F: 1xHDMI2.0 capture input

G: 2xUSB2.0

H: LAN network port, used for host computer connection control

I: TTL/RS232/RS485 serial port

J: 12V2A power interface

K: power switch

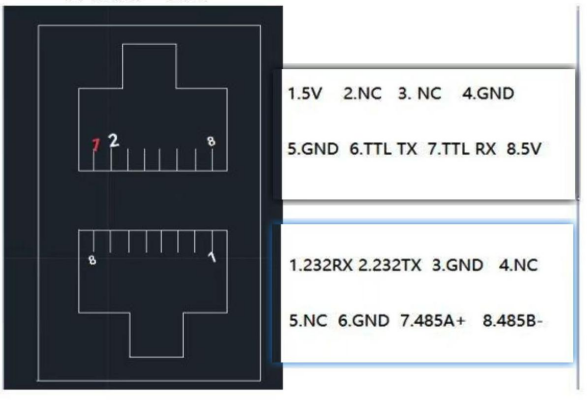

RS232/RS485/TTL wiring sequence:

8k magical splicing processor,any angle for six screens

8k magical splicing processor,any angle for six screens 8k magical splicing processor,any angle for six screens

Specification

Product Name
8K Creative Special-shaped Splicing Processor
Input Line length
4K60:5m

1080P:10m
Output Line length
1080P:10m
Audio
3.5mm audio separation interface
Control method
PC computer
Window layout
Any window opening*30,overlay,roaming
Material management
Video and picture playback control
Operating temperature
≤60℃
Power supply
DC12V2A
Power consumption
≤14W

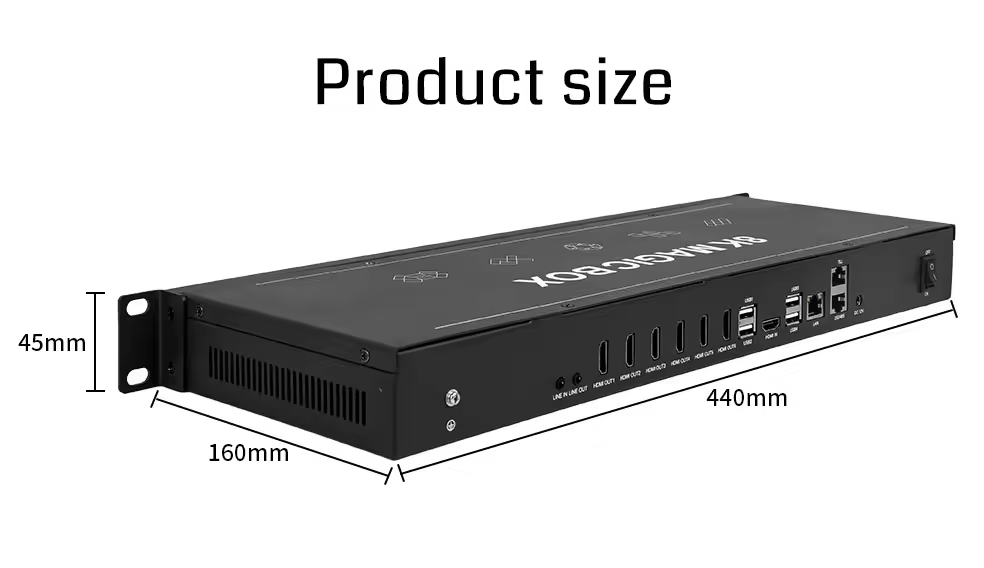

Product Size
440mm*160mm*45mm
Product Weight
1.8KG
Packing list
Equipment *1

Power supply *1
Network cable *1
Certificate *1
Warranty card *1
Certification
CE,FCC,ROHS
Support
ODM,OEM

8k magical splicing processor,any angle for six screens 8k magical splicing processor,any angle for six screens 8k magical splicing processor,any angle for six screens
